have had a couple of hours free this arvo..... so i have decided to do the CAI.
got all the tools ready and found out that i have left the intake tube at home.... so grabbed all the tools i need and went home..... this is the "drive-way" job :D
front bar removed
front bar sitting on something to prevent from scratching
removed the vertical plastic bit, the horzontial plastic bit and the white form bit (all plastic clips) and pull the factory intake system away from the factory airbox.
Unplug small diameter tube from the factory intake system to free the whole unit.
direct view from outside, you can see the K&N ram pod filter
got all the tools ready and found out that i have left the intake tube at home.... so grabbed all the tools i need and went home..... this is the "drive-way" job :D
front bar removed
front bar sitting on something to prevent from scratching
removed the vertical plastic bit, the horzontial plastic bit and the white form bit (all plastic clips) and pull the factory intake system away from the factory airbox.
Unplug small diameter tube from the factory intake system to free the whole unit.
direct view from outside, you can see the K&N ram pod filter
#2
cry me a river...
Thread Starter
Join Date: Dec 2003
Location: Syd / Melb
Posts: 4,475
Likes: 0
Received 0 Likes
on
0 Posts
factory intake system totally removed
remove the factory airbox. this is the bottome half of the airbox.
remove the soft formy bit, and clean the sticky bits off it.
bottom half of the airbox, the intake tube and cloth tape (aka. race tape)
the intake tube goes in nicely into the factory airbox air inlet.
remove the factory airbox. this is the bottome half of the airbox.
remove the soft formy bit, and clean the sticky bits off it.
bottom half of the airbox, the intake tube and cloth tape (aka. race tape)
the intake tube goes in nicely into the factory airbox air inlet.
#3
cry me a river...
Thread Starter
Join Date: Dec 2003
Location: Syd / Melb
Posts: 4,475
Likes: 0
Received 0 Likes
on
0 Posts
use the cloth tape and seal the gaps off on the outside to give it a "total sucktion" system.

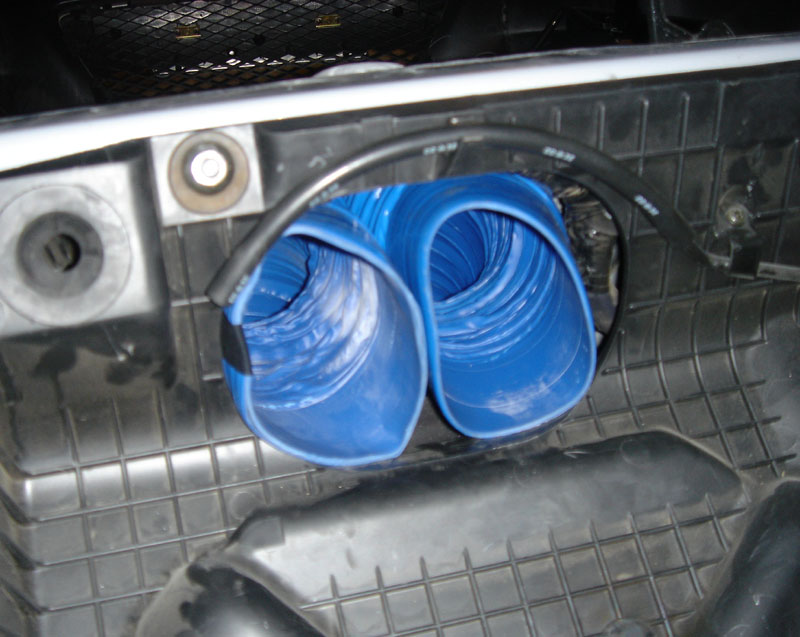

replace the airbox back onto the car and run the intake tube through the required places. (close up view)
further away view

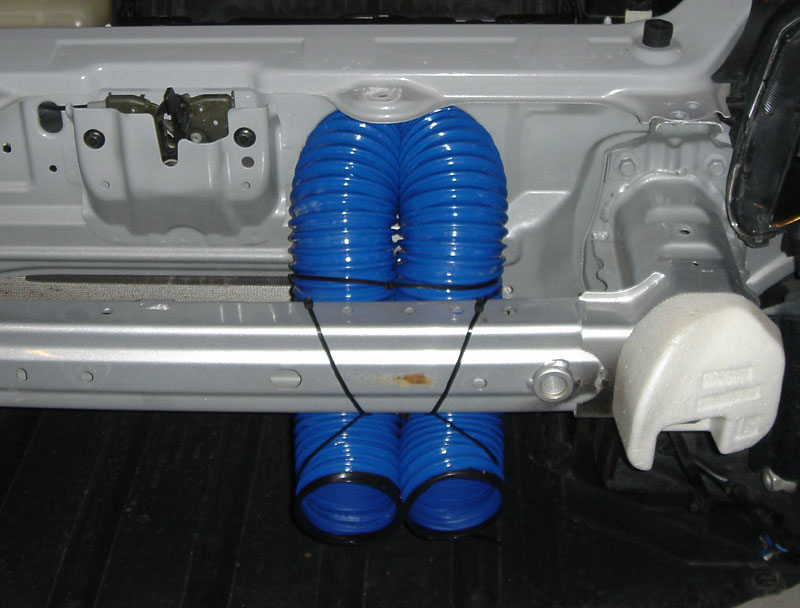

trim the intake tube to the right length, and use cable ties to secure it properly
replace the airbox back onto the car and run the intake tube through the required places. (close up view)
further away view
trim the intake tube to the right length, and use cable ties to secure it properly
#4
cry me a river...
Thread Starter
Join Date: Dec 2003
Location: Syd / Melb
Posts: 4,475
Likes: 0
Received 0 Likes
on
0 Posts
now with vertical plastic and white form bits replaced. left the horzontial plastic bit out. did have any soft black mesh, so will get some and put it on the end of the tubo later on when i have proper mesh grill for the oil cooler
this "mouth" and mesh were part of the factory airbox items, was thinking of putting it at the end of the tube, but it didnt look stealth when the front bar on.
front bar on, with intake tube right behind the grill, had to cut about 7 diamonds to get all the air in (the first 3 diamonds were in the wrong place :p ).
its quite stealth, you cant really see it unless you know it there and look hard :D
the result:
well worth the time and effort.... should've done this earlier
i have purposely left it after the recall flash, so i can butt dyno the before (20 degrees) and after (21 degrees) results with whatever the current flash.
with the "clean" K&N ram pod, the 8 feels more responsive down low, especially between 2-3.5k rpm range, redlines quicker, and the engine sounds awesome .
might take it out tonight for a night testing.... should be more fun with colder air :D
this "mouth" and mesh were part of the factory airbox items, was thinking of putting it at the end of the tube, but it didnt look stealth when the front bar on.
front bar on, with intake tube right behind the grill, had to cut about 7 diamonds to get all the air in (the first 3 diamonds were in the wrong place :p ).
its quite stealth, you cant really see it unless you know it there and look hard :D
the result:
well worth the time and effort.... should've done this earlier
i have purposely left it after the recall flash, so i can butt dyno the before (20 degrees) and after (21 degrees) results with whatever the current flash.
with the "clean" K&N ram pod, the 8 feels more responsive down low, especially between 2-3.5k rpm range, redlines quicker, and the engine sounds awesome .
might take it out tonight for a night testing.... should be more fun with colder air :D
