Official technical specs of the Mazda3 MPS (aka Mazdaspeed3):
Mazda3 MPS Technical Specifications
MZR DISI 2.3L Turbo
Engine Type Inline 4-cylinder,
DOHC turbo petrol
Displacement cm3 2261
Bore x stroke mm 87.5 x 94.0
Valves 4 per cylinder
Max. power* -kW more than 184 at 5500 rpm
-PS more than 250 at 5500 rpm
Max. torque* -Nm 380 at 3000 rpm
Fuel type Unleaded 98RON
Emission control system 3-way catalytic converter
Emissions ranking Euro Stage IV
Transmission 6-speed manual
Powertrain Front engine, front-wheel drive
Gear Ratios
1st 3.538
2nd 2.238
3rd 1.535
4th 1.171
5th 1.085
6th 0.853
Final drive ratio (1st - 4th) 3.941
Final drive ratio (5th – 6th) 3.350
Reverse 3.831
Performance
Top Speed** km/h 250
Acceleration***
0-100 km/h (sec) 6.1
50-100 km/h in 3rd gear (sec) 4.2
80-120 km/h in 5th gear (sec) 5.4
Fuel consumption*
Combined l/100 km 9.7
* Mazda targets subject to change upon homologation
** Electronically limited
*** Under Mazda test conditions
MZR DISI 2.3L Turbo
Suspension and Wheels
Front suspension MacPherson independent struts
Rear suspension Independent multi-link
Wheel size 18x7J
Tyre size 215/45R18 93Y
Brakes
Type front Ventilated discs
Type rear Solid discs
Diameter front (mm) 320
Diameter rear (mm) 280
Mazda3 MPS Dimensions
Mazda3 MPS
Body Type Monocoque
Seating capacity 5
Seat type 2 individual front
3 bench type rear
External Dimensions
Overall length w/license
plate holder (mm) 4435
Overall width (mm) 1765
Overall height (mm) 1465
Wheelbase (mm) 2640
Front tread (mm) 1530
Rear tread (mm) 1515
Mazda3 MPS Technical Specifications
MZR DISI 2.3L Turbo
Engine Type Inline 4-cylinder,
DOHC turbo petrol
Displacement cm3 2261
Bore x stroke mm 87.5 x 94.0
Valves 4 per cylinder
Max. power* -kW more than 184 at 5500 rpm
-PS more than 250 at 5500 rpm
Max. torque* -Nm 380 at 3000 rpm
Fuel type Unleaded 98RON
Emission control system 3-way catalytic converter
Emissions ranking Euro Stage IV
Transmission 6-speed manual
Powertrain Front engine, front-wheel drive
Gear Ratios
1st 3.538
2nd 2.238
3rd 1.535
4th 1.171
5th 1.085
6th 0.853
Final drive ratio (1st - 4th) 3.941
Final drive ratio (5th – 6th) 3.350
Reverse 3.831
Performance
Top Speed** km/h 250
Acceleration***
0-100 km/h (sec) 6.1
50-100 km/h in 3rd gear (sec) 4.2
80-120 km/h in 5th gear (sec) 5.4
Fuel consumption*
Combined l/100 km 9.7
* Mazda targets subject to change upon homologation
** Electronically limited
*** Under Mazda test conditions
MZR DISI 2.3L Turbo
Suspension and Wheels
Front suspension MacPherson independent struts
Rear suspension Independent multi-link
Wheel size 18x7J
Tyre size 215/45R18 93Y
Brakes
Type front Ventilated discs
Type rear Solid discs
Diameter front (mm) 320
Diameter rear (mm) 280
Mazda3 MPS Dimensions
Mazda3 MPS
Body Type Monocoque
Seating capacity 5
Seat type 2 individual front
3 bench type rear
External Dimensions
Overall length w/license
plate holder (mm) 4435
Overall width (mm) 1765
Overall height (mm) 1465
Wheelbase (mm) 2640
Front tread (mm) 1530
Rear tread (mm) 1515
#11
My Rex goes to 11!
Join Date: Jun 2004
Location: Arlington, VA
Posts: 773
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by snizzle
Judging from the MS6 that shouldn't be true.
not sure where they got the info, but just passing it along.
#12
Shakezula, the Mic Rula
Join Date: Jul 2004
Location: Richmond, VA
Posts: 1,466
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dinhx8
the article says it. article also says its detuned version of same engine is MS6.
not sure where they got the info, but just passing it along.
not sure where they got the info, but just passing it along.
#14
I think the next mazda minivan that comes out will have a factory turbo and shoots through the 1/4 mile in 13.9 seconds and slaloms at 70mph... (puts on flame suit) while the rx8 would still feel neglected.
#15
Super Moderator

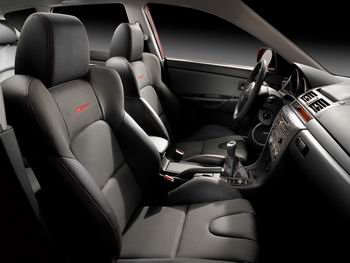

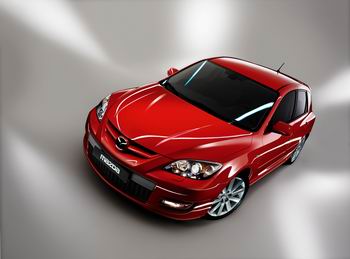

More MPS 3 Pics
The real Mazdaspeed 3 or MPS 3 at Geneva.
#16
Super Moderator
and these images
MPS 3 AKA Mazdaspeed 3.
Last edited by ASH8; 02-28-2006 at 02:43 PM.
#17
Administrator
Originally Posted by Dinhx8
the article says 246 hp and 184 ft/lbs
its a mistake that is power in kw at 5500 as per the specs. the spec say 380 (newton meter) which = 280.273617 pounds force feet for T
#18
Registered User
Join Date: Nov 2003
Location: Cambridge, MA
Posts: 340
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dinhx8
the article says 246 hp and 184 ft/lbs
#20
Registered User
Join Date: Oct 2005
Location: Toronto, Canada
Posts: 2,047
Likes: 0
Received 0 Likes
on
0 Posts
Very agressive under the hood =D.. 280 tq on a FWD, it'll sure be faster than civic SI(competitor), but dont know about its handling capabilities, but o well, everyone wants HP, and not care about handling anyways
________
Harmed By Nexium
________
Harmed By Nexium
Last edited by Renesis_8; 09-11-2011 at 07:55 AM.
#21
Registered
Join Date: Jan 2004
Location: Milwaukee Wi.
Posts: 997
Likes: 0
Received 0 Likes
on
0 Posts
It's mazdas contribution to a future trend
http://www.motortrendautoshows.com/concept.html
http://www.motortrendautoshows.com/concept.html
#23
Registered User
Join Date: Nov 2003
Location: Cambridge, MA
Posts: 340
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by AQA101
So the next thing we'll probably see is a stock Civic that outruns the S2K?
#24
I like rusty spoons
Join Date: Jul 2004
Location: Calgary, Alberta
Posts: 1,959
Likes: 0
Received 0 Likes
on
0 Posts
Anyone else think that 6.1 seconds 0-62 is WAY LOW?
If the Mazdaspeed3 weighs anything close to the 2750 lbs of the regular Mazda 3, then with all that HP and TQ I think it would be a lot closer to 5.5 seconds or lower.
Definitely in SRT-4 territory...
If the Mazdaspeed3 weighs anything close to the 2750 lbs of the regular Mazda 3, then with all that HP and TQ I think it would be a lot closer to 5.5 seconds or lower.
Definitely in SRT-4 territory...
#25
Int'l Man of Mystery
Join Date: Jan 2004
Location: Central Florida
Posts: 3,651
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Animagix
I think the next mazda minivan that comes out will have a factory turbo and shoots through the 1/4 mile in 13.9 seconds and slaloms at 70mph... (puts on flame suit) while the rx8 would still feel neglected.
