Since I'm not working tonight, I think I'll pull out my starter and check a few things.
It would be awesome if the only problem with our starter is the brushes!
I would gladly pay $15 for brushes versus paying for a new starter.
But knowing my luck, this issue will be shorts in the coils and would require a new starter anyway.
It would be awesome if the only problem with our starter is the brushes!
I would gladly pay $15 for brushes versus paying for a new starter.
But knowing my luck, this issue will be shorts in the coils and would require a new starter anyway.
At least that way you don't risk making the starter worse once you crack it open.
The other option is remanufacturing the old starter and then selling it. To Steve. When he gets back from his trip and his car won't start. For a lot of money.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#4702
SHKWAV
Had to postpone this morning's tinting until saturday. So.... pics to be seen saturday afternoon!
you know it's supposed to snow next week??? F`ing ohio weather... LOL
you know it's supposed to snow next week??? F`ing ohio weather... LOL
#4705
It's Not Easy Being Green
iTrader: (1)
Join Date: Apr 2008
Location: Akron, OH
Posts: 1,846
Likes: 0
Received 0 Likes
on
0 Posts
Funny Jon. Shoulda known you'd already have it apart.
Well if you break yours at least you know there's another one down the street.

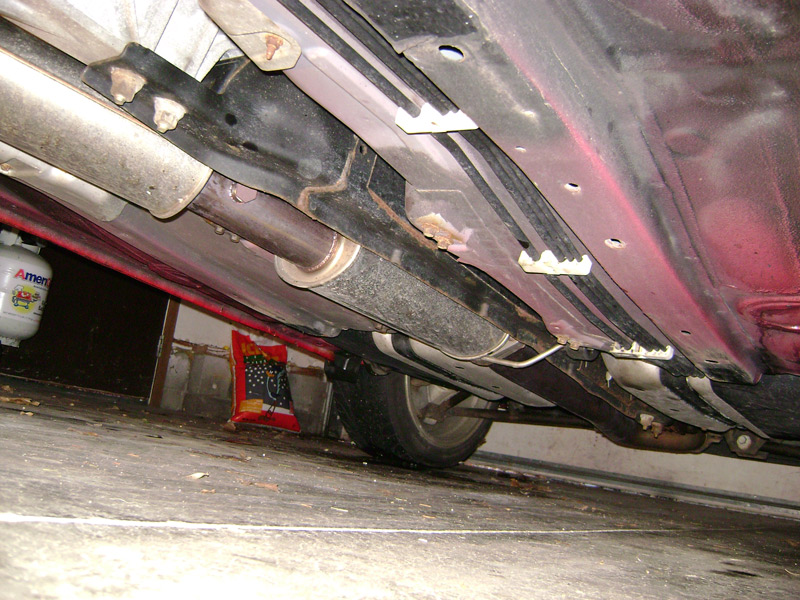

John - here's a pretty decent pic of my stock exhaust and how close/far away it is from the diff.
http://farm4.static.flickr.com/3370/...1cdd700a_b.jpg
Dunno if that will help or not. I forgot to get a shot of the Borla while it was up in the air.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
John - here's a pretty decent pic of my stock exhaust and how close/far away it is from the diff.
http://farm4.static.flickr.com/3370/...1cdd700a_b.jpg
Dunno if that will help or not. I forgot to get a shot of the Borla while it was up in the air.
#4707
"13B vs. Renesis" Discuss
iTrader: (28)
Yeah, : Jon, I really don't think there were that many options to get the fit wrong on John's car... I mean, you're limited by the play in the bolts that bolt to the midpipe and where the hangers are welded on. Those guys won't bend unless you take it back off also.
What did you find out about the starter? Any wear or areas where you see that it was failing?
And my car is so going to start right up when i get back. I know it!
What did you find out about the starter? Any wear or areas where you see that it was failing?
And my car is so going to start right up when i get back. I know it!
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#4711
Grasshopper
iTrader: (1)
So here are some pics of the starter disassembled:
![Akron/Cleveland 8 Owners.-starter-9-.jpg](https://www.rx8club.com/attachments/ne-rx-8-forum-29/134879d1236783969t-akron-cleveland-8-owners-starter-9-.jpg)

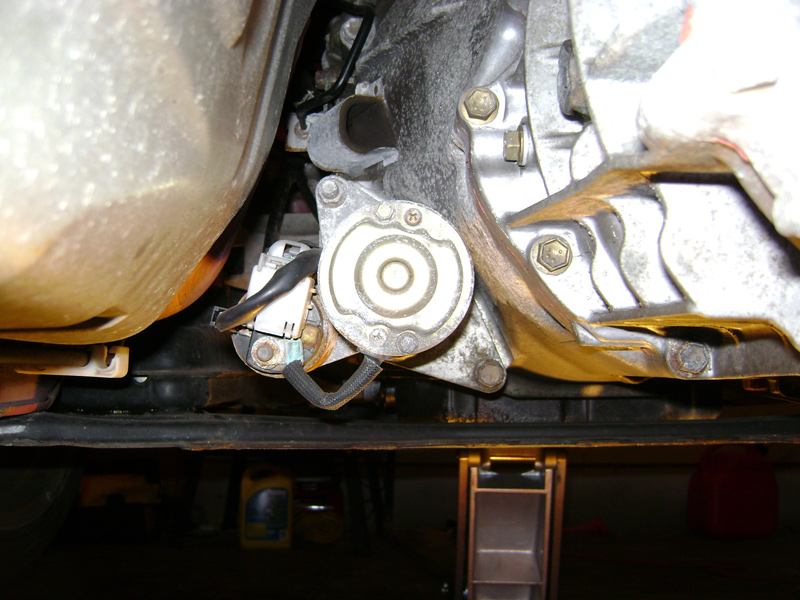

1st pic shows the starter installed in the car.

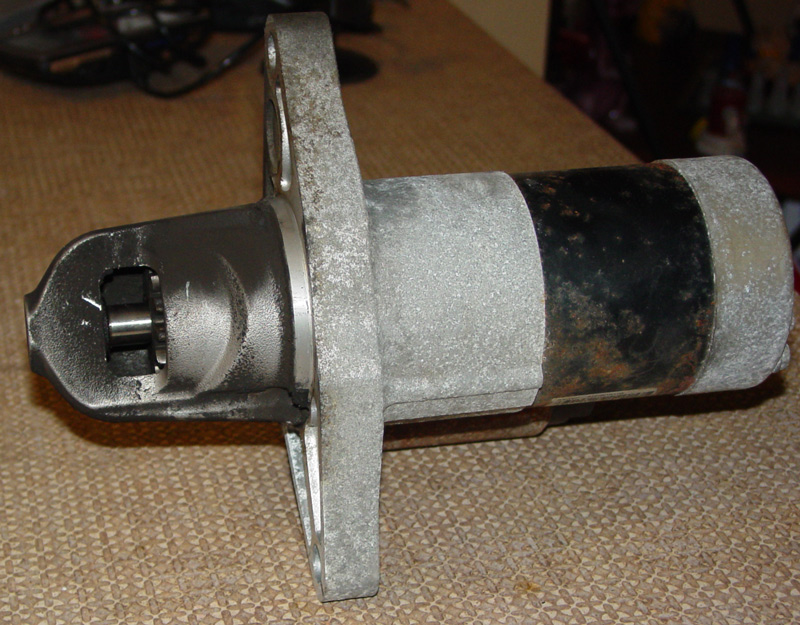

2nd pic shows the drive gear that spins the flywheel.
Notice the gear is inside the housing... this is so the starter isn't running when the car is running (which would burn out the starter).
When the key is turned to 'start', a switch is activated and pushes a shaft the drive gear is on and it spins the flywheel.

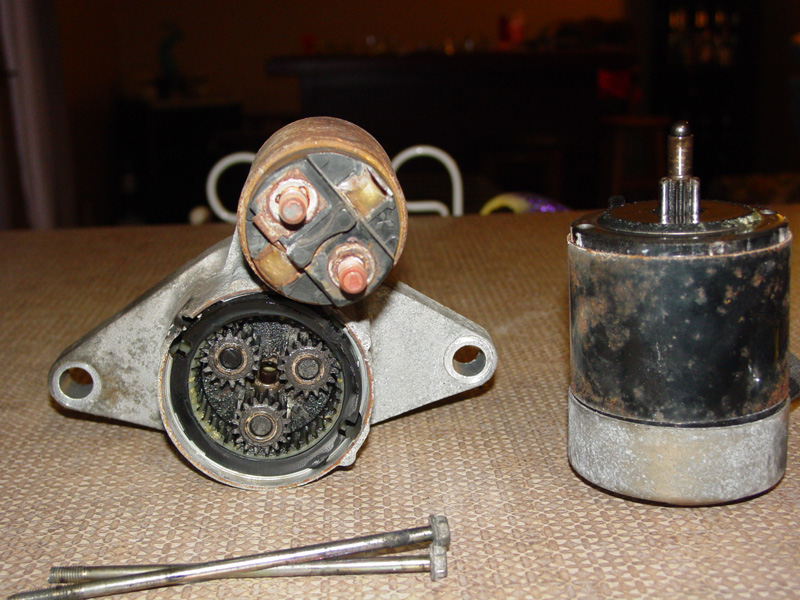

3rd pic shows the starter split in half.
On the left you can see the switch on top and internal gears below.
On the right is the yoke that houses the armature and brushes.

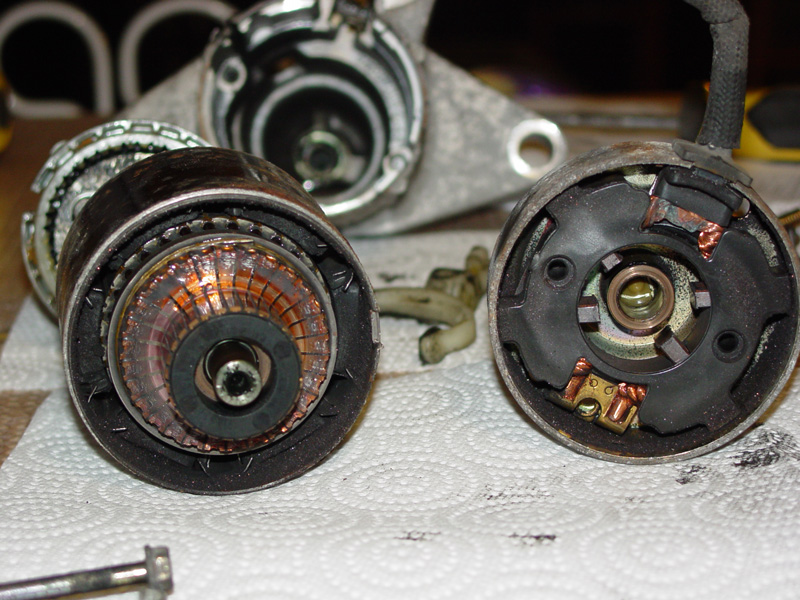

4th pic shows the the yoke apart.
On the left is the commutator that the brushes rest on.
On the right are the brushes (the 4 sticking towards the center).

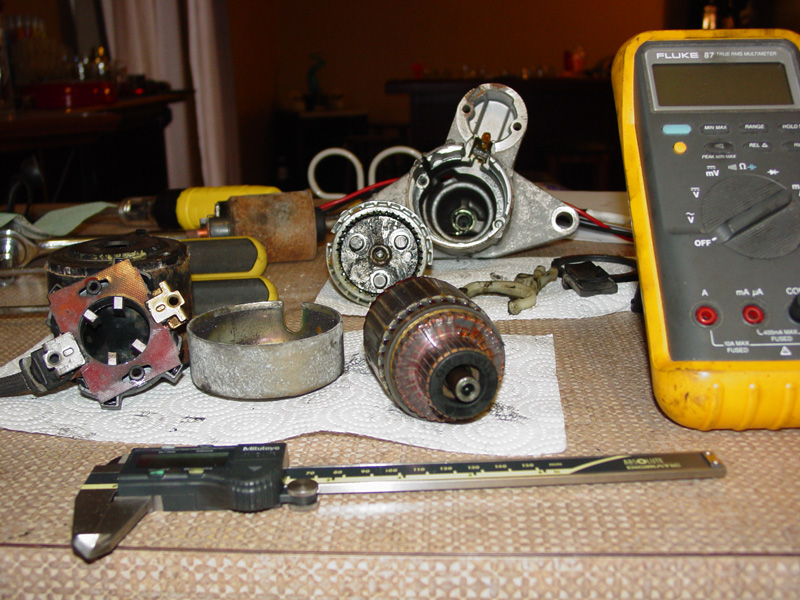

5th pic shows everything apart.
