Akron/Cleveland 8 Owners.
05-27-2010, 05:34 AM
this doesn't sound good... awaiting pics...
05-27-2010, 06:19 AM

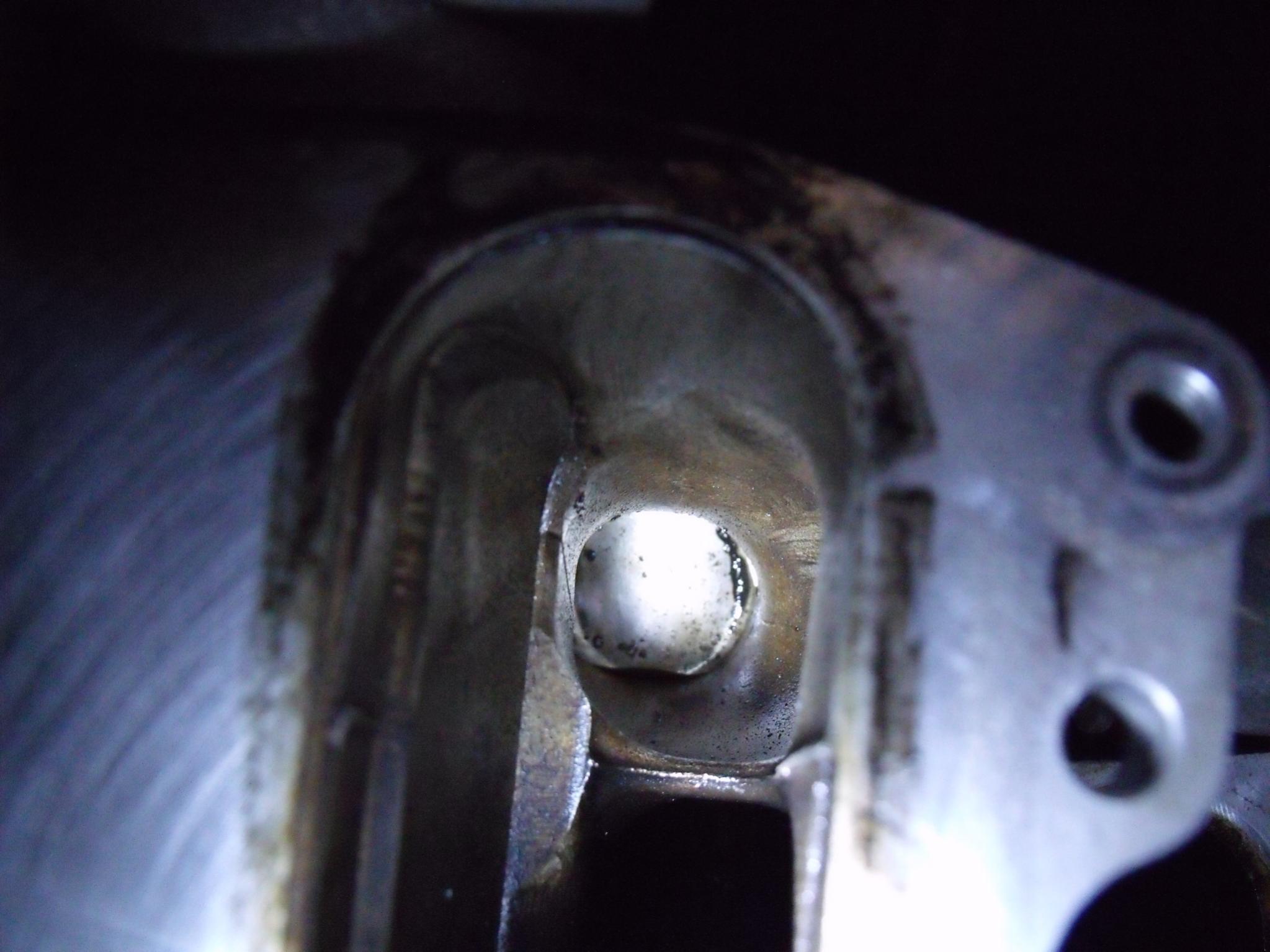

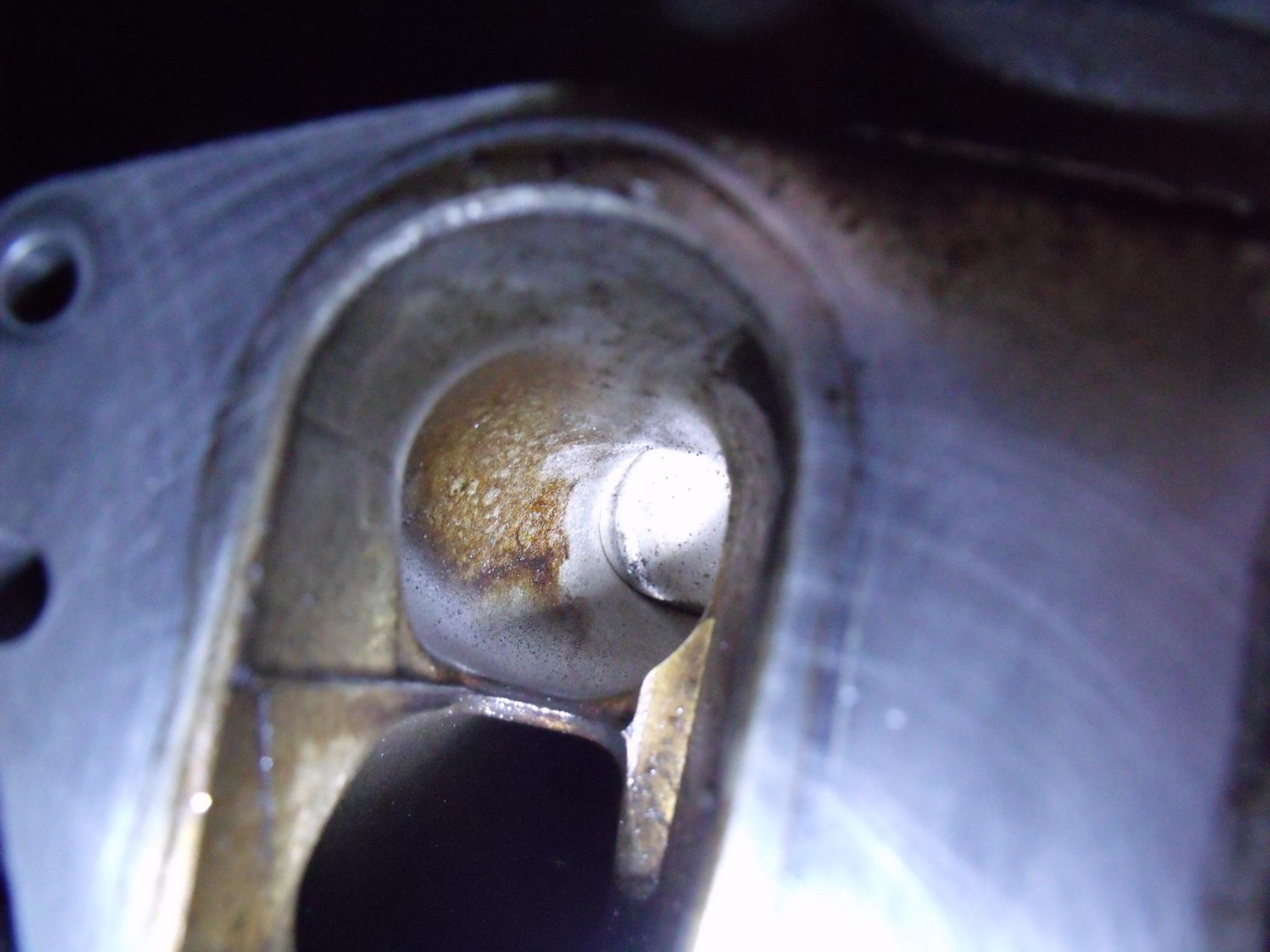

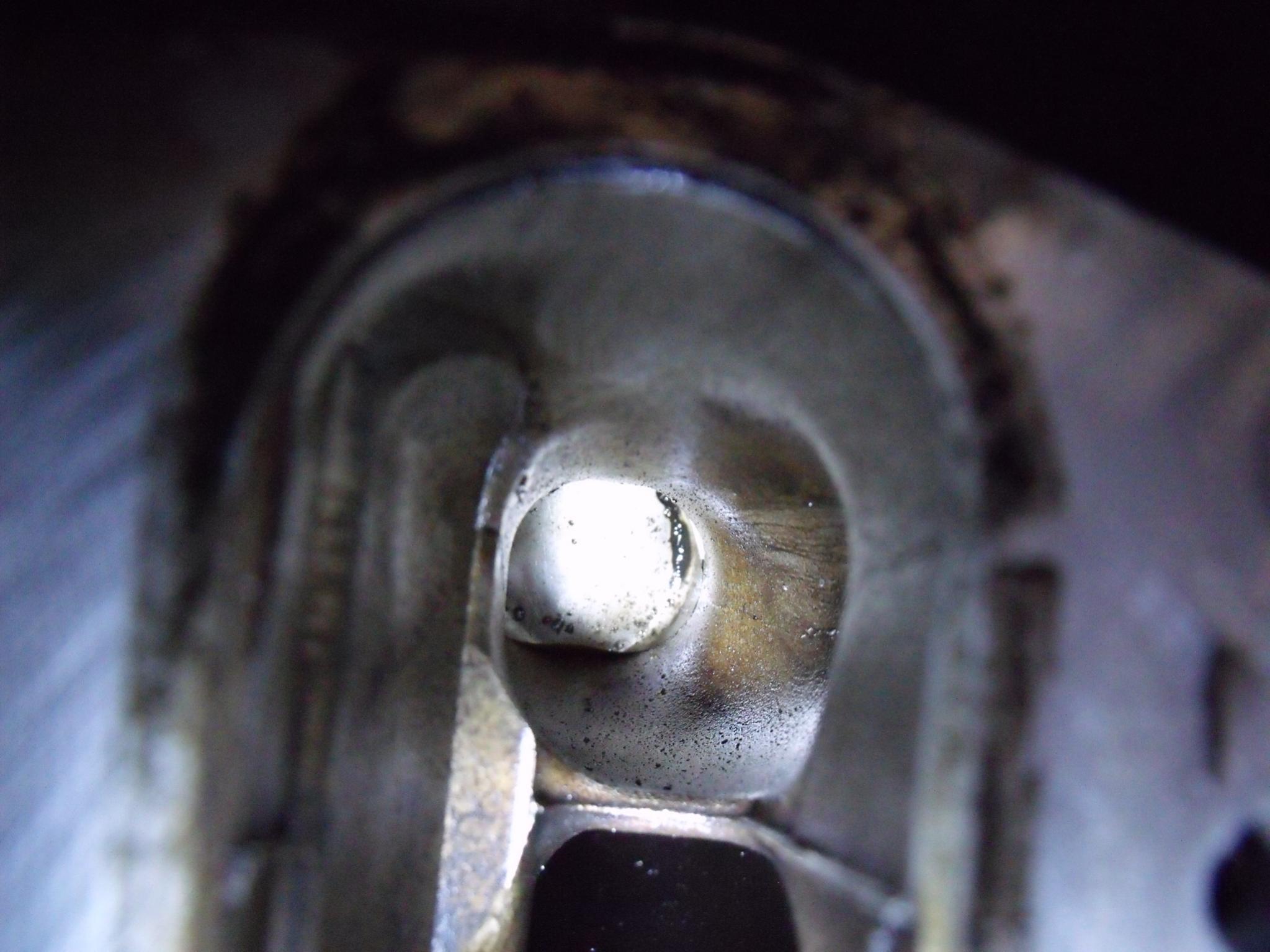

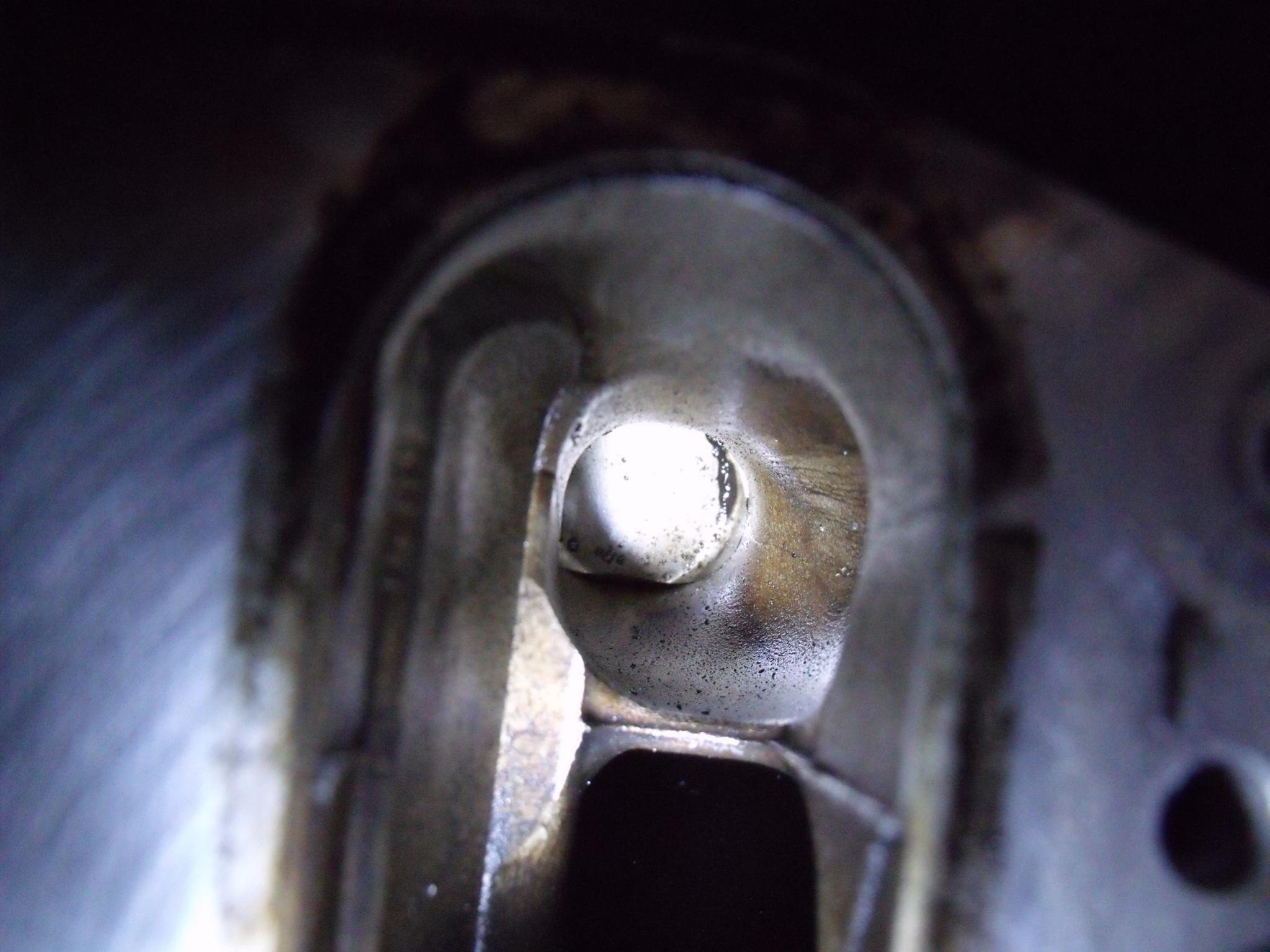

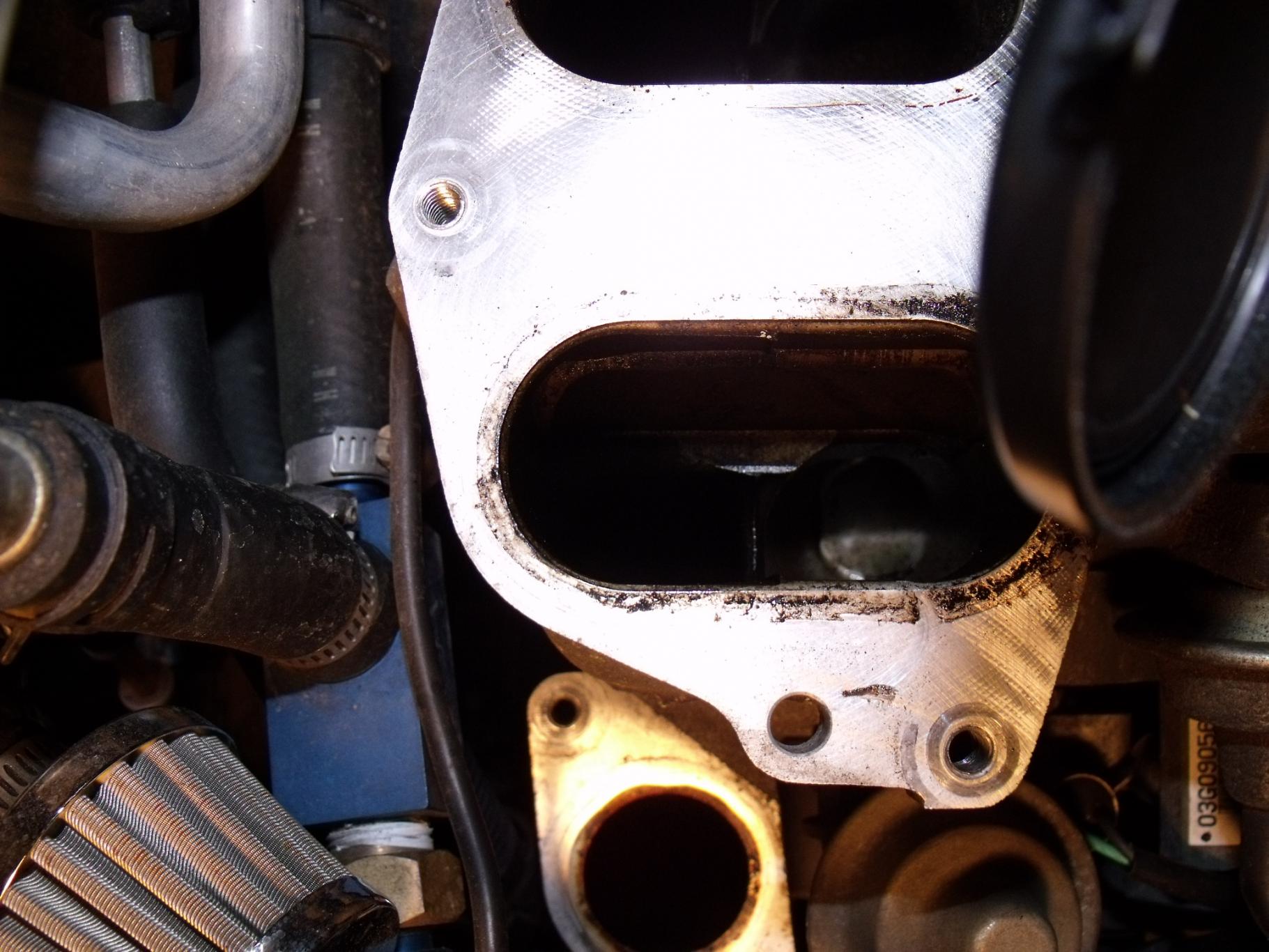

LED flashlight pics looking down to the SSV
OH, and on a much more comical note... I found a 10mm socket with extension still attached below the UIM.
OH, and on a much more comical note... I found a 10mm socket with extension still attached below the UIM.
Last edited by Vyndictive; 05-27-2010 at 06:27 AM.
05-27-2010, 06:27 AM

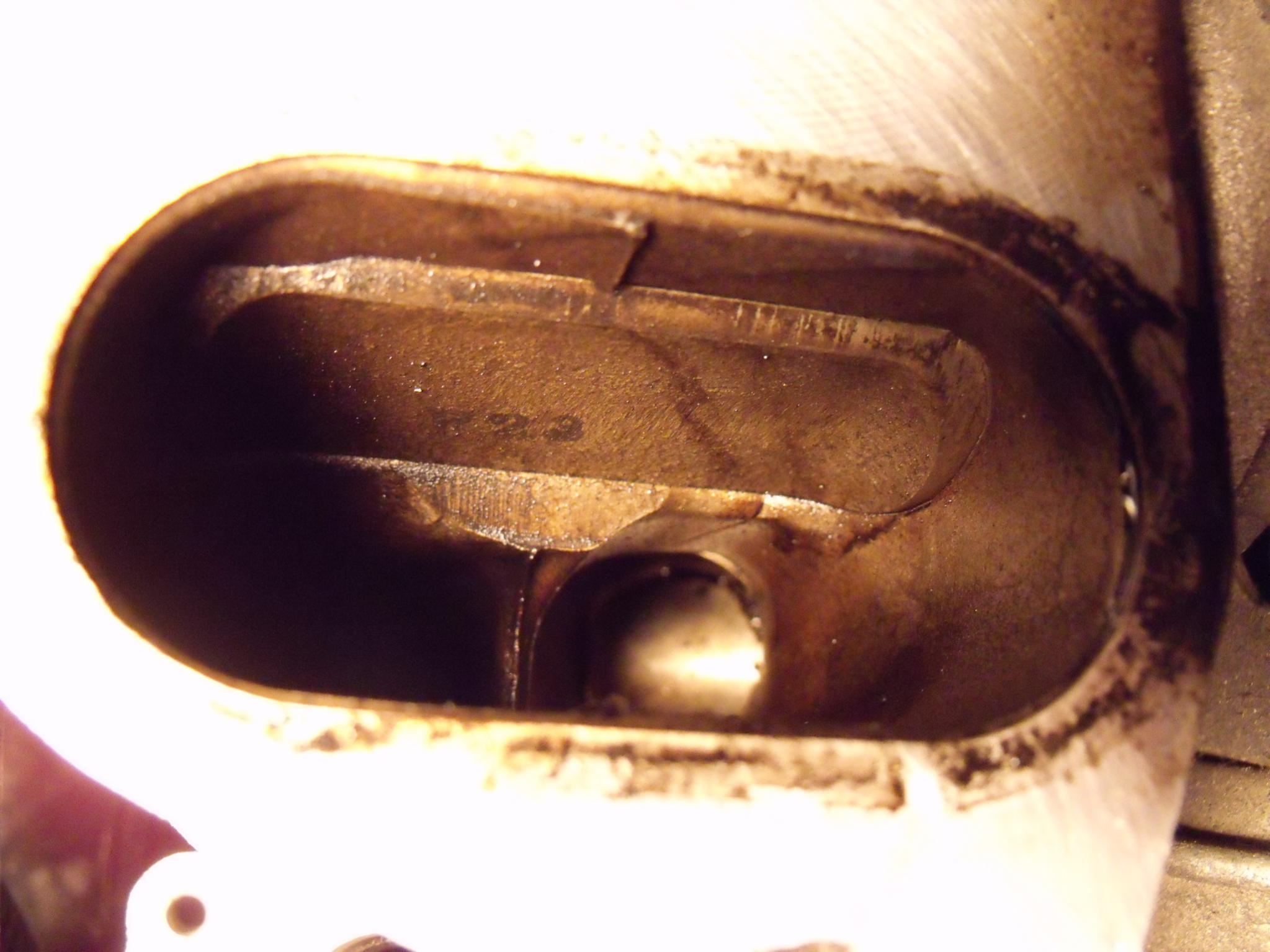

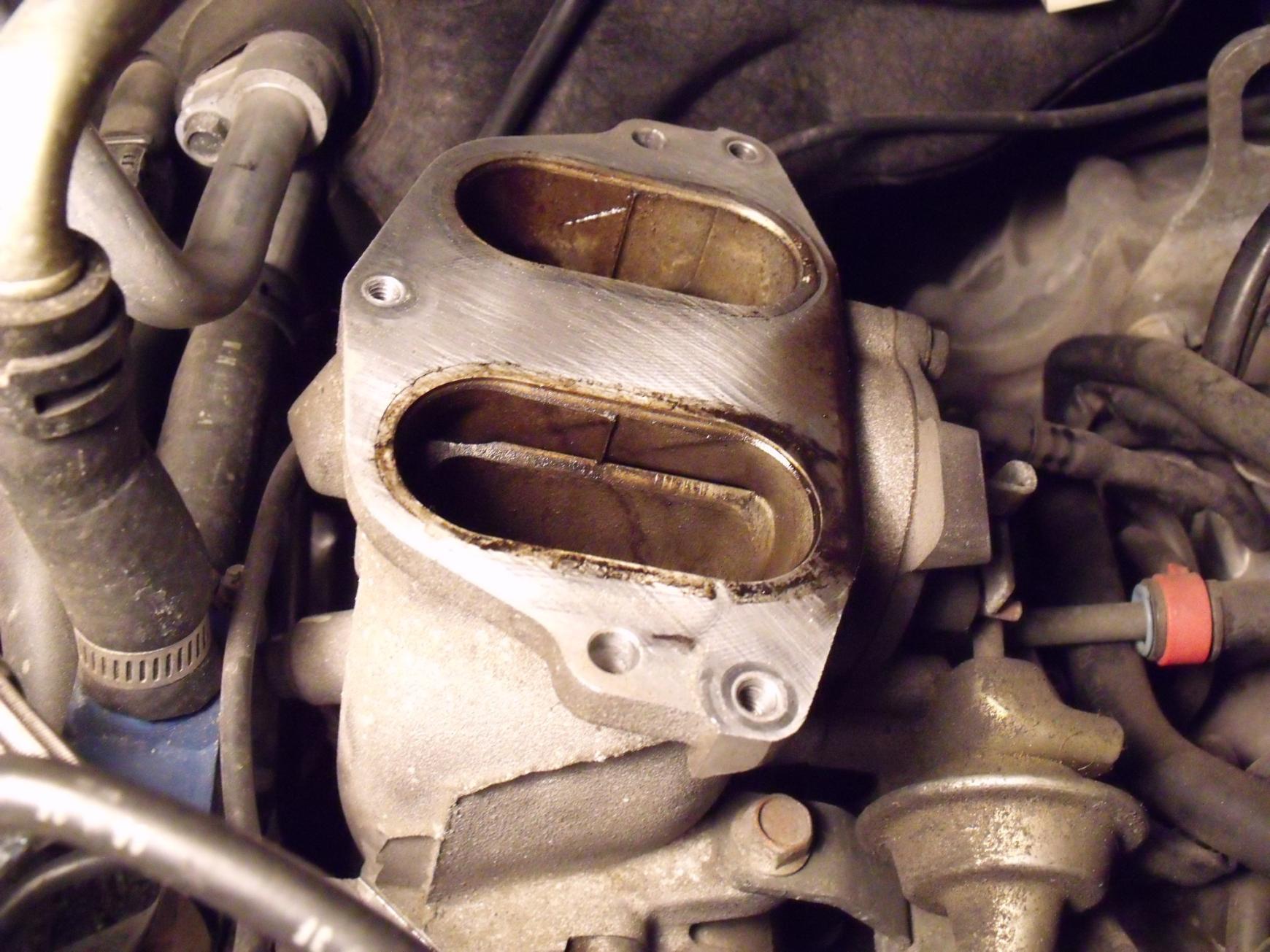

The oil rings on top of the LIM indicates a very likely spot for a vac leak.
The UIM may not have been fully seated/bolted down.
Here is what I would do.
1) Take carb cleaner and remove all the oil from the top of the LIM.
2) Remove the orange gaskets from the UIM and clean with soap/water (or swap with the donor's).
3) Reinstall everything. When installing the bolts for the UIM, don't fully tighten one side before starting another bolt. This can cause one side to slightly lift.
4) Try starting.
5) If it works, we'll run a compression test once I get my transducer back.
The UIM may not have been fully seated/bolted down.
Here is what I would do.
1) Take carb cleaner and remove all the oil from the top of the LIM.
2) Remove the orange gaskets from the UIM and clean with soap/water (or swap with the donor's).
3) Reinstall everything. When installing the bolts for the UIM, don't fully tighten one side before starting another bolt. This can cause one side to slightly lift.
4) Try starting.
5) If it works, we'll run a compression test once I get my transducer back.
05-27-2010, 02:38 PM
Gophericer...?
Join Date: May 2007
Location: Brinkhaven, or Hudson
Posts: 353
Likes: 0
Received 0 Likes
on
0 Posts
This one was my bet, that is what I suggested in that pm i sent you awhile back. Have you taken the fuel pump out and checked yet?
Who knows though maybe a leak is to blame. We did see how picky your car was that one day without the air pump attached.
If you want someone to come down and hand you tools, (or loosen bolts that you don't want loosened) just let me know haha.
Who knows though maybe a leak is to blame. We did see how picky your car was that one day without the air pump attached.
If you want someone to come down and hand you tools, (or loosen bolts that you don't want loosened) just let me know haha.
05-27-2010, 03:54 PM
RX8 the Asian Alfa Romeo
Join Date: May 2008
Location: Bratenahl, Ohio
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Hey Ya'll! Sorry to MIA for a while, end of the semester and teaching summer school. I'll be reading the forum this long weekend on what I missed out on.....
05-28-2010, 06:16 AM
Steve- If cleaning the LIM and the gaskets for the UIM doesn't fix your problem, we can move onto the injectors.
We can pull the primary1 injectors (red) out and hook the fuel line directly to it and just leave the other four (yellow) injectors in place.
There is a "check connector" in the fuse panel that allows us to ground the fuel pump relay.
You can ground a wire to the PCM to activate the injectors (which requires removing the PCM), but I'm thinking we can just disconnect the eshaft sensor and crank the engine (like a deflood) and watch the drip rate.
Doing it like a deflood should (in theory) prevent us from having to ground the check connector and a PCM wire.
Either way... there are a couple ways I believe we can achieve this.
We'll just have to remember to tie the injectors to the rails so the injectors don't pop out
We can pull the primary1 injectors (red) out and hook the fuel line directly to it and just leave the other four (yellow) injectors in place.
There is a "check connector" in the fuse panel that allows us to ground the fuel pump relay.
You can ground a wire to the PCM to activate the injectors (which requires removing the PCM), but I'm thinking we can just disconnect the eshaft sensor and crank the engine (like a deflood) and watch the drip rate.
Doing it like a deflood should (in theory) prevent us from having to ground the check connector and a PCM wire.
Either way... there are a couple ways I believe we can achieve this.
We'll just have to remember to tie the injectors to the rails so the injectors don't pop out
05-28-2010, 01:01 PM
No more RX :(
Join Date: Dec 2008
Location: Akron, OH
Posts: 115
Likes: 0
Received 0 Likes
on
0 Posts
I know I havent been here in a long while but had to give up my Shinka cause my wife lost her job for a bit. The reason I am posting here is because I have a friend doing a show-hunt-autocross event and I immediatly thought of you guys and how mazdas usually smoke everything else in class. If you all are interested in learning more about it here is a clicky.
oh well.
06-01-2010, 07:36 AM
Trust me, you're wrong
iTrader: (1)
Join Date: Feb 2008
Location: Youngstown, Oh
Posts: 779
Likes: 0
Received 0 Likes
on
0 Posts
I know I havent been here in a long while but had to give up my Shinka cause my wife lost her job for a bit. The reason I am posting here is because I have a friend doing a show-hunt-autocross event and I immediatly thought of you guys and how mazdas usually smoke everything else in class. If you all are interested in learning more about it here is a clicky.
As for the autocross I won't make it. That's the weekend of the Toledo Pro Solo.
06-01-2010, 09:46 AM
Registered
Join Date: May 2007
Location: Strongsville, Ohio
Posts: 311
Likes: 0
Received 0 Likes
on
0 Posts
Jtaylor3, this particular group hasn't that big on Grand Am in the past. I think John and I are the only ones who've gone the last few years, though Doc was talking about getting there with the boys this year if he can make his schedule work. It's great fun! As John said, get the Mazda Owner's ticket:
http://www.midohio.com/Store/Tickets...ar-Club-Ticket
It's a pretty good deal for $30. Lime Rock was twice that for the weekend, and they charged extra for the corral parking (though they didn't see to enforce it). At Mid-Ohio you absolutely need to park in the infield. The general admission parking is the longest, crappiest hike of any track I've ever been to.
06-01-2010, 10:15 AM
The devil made me do it
iTrader: (1)
Join Date: Jul 2007
Location: Colorado Springs, CO
Posts: 3,708
Likes: 0
Received 2 Likes
on
2 Posts
You want to meet up at our usual place Tom for the drive down? Im probably going to go down on Sat morning...spend the night down there...and then head back after the race on Sunday.
06-01-2010, 11:23 AM
Registered
Join Date: Apr 2007
Posts: 403
Likes: 0
Received 0 Likes
on
0 Posts
Tom is being a bit modest, he has been on board with SpeedSource for the past two races.....he crewed for the #70 car yesterday and @ VIR, he was the tire runner for all 3 cars.....I got a lot of great feedback from Sylvain and all of the crew chiefs about how well our people did. It may not seem like much, bit every second counts! I think they'll have you crewing again @ Mid-Ohio as well.
Mid-Ohio should be a great event, we will have some great prizes to raffle off, Piloti shoes, Corsa Car Care Products, meet and greets, paddock tours, tech talks and more. I am workingon getting some team apparel as well and 4-Rolex Mazda RX-8 posters.
We'll have out tent from Mazdaspeed Motorsports too!
Mid-Ohio should be a great event, we will have some great prizes to raffle off, Piloti shoes, Corsa Car Care Products, meet and greets, paddock tours, tech talks and more. I am workingon getting some team apparel as well and 4-Rolex Mazda RX-8 posters.
We'll have out tent from Mazdaspeed Motorsports too!
06-01-2010, 11:36 AM
The devil made me do it
iTrader: (1)
Join Date: Jul 2007
Location: Colorado Springs, CO
Posts: 3,708
Likes: 0
Received 2 Likes
on
2 Posts
Hey Marlon...ltns. Looking forward to another great event this year. I tried to pick up my tickets for the Indy race as well but it doesn't look like the corral is in yet. Still planning on having one this year?
06-01-2010, 03:10 PM
Registered
Join Date: May 2007
Location: Strongsville, Ohio
Posts: 311
Likes: 0
Received 0 Likes
on
0 Posts
Marlon, I'm still a bit up in the air about crewing because I'm not sure who among my kids are coming, and I think there will be a few potential converts from work also. Jackie may even come. It may not go over well with her if I drag her down there and then disappear during the race. Then again, maybe I'll just leave her home.
06-01-2010, 04:46 PM
Registered
Join Date: Apr 2007
Posts: 403
Likes: 0
Received 0 Likes
on
0 Posts
We can certainly hook up ahead of time again, John. I won't be staying over though. It's not as far for me from Strongsville as it is for you.
Marlon, I'm still a bit up in the air about crewing because I'm not sure who among my kids are coming, and I think there will be a few potential converts from work also. Jackie may even come. It may not go over well with her if I drag her down there and then disappear during the race. Then again, maybe I'll just leave her home.
Marlon, I'm still a bit up in the air about crewing because I'm not sure who among my kids are coming, and I think there will be a few potential converts from work also. Jackie may even come. It may not go over well with her if I drag her down there and then disappear during the race. Then again, maybe I'll just leave her home.
06-02-2010, 06:23 PM
I'm definitely trying to go down for the Rolex race this year...never been cause I've gone to watch ALMS every year and the fact that Rolex tickets are fantastically cheap i think I'm going to hit up both this year
