Bad housing
#1
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Bad housing

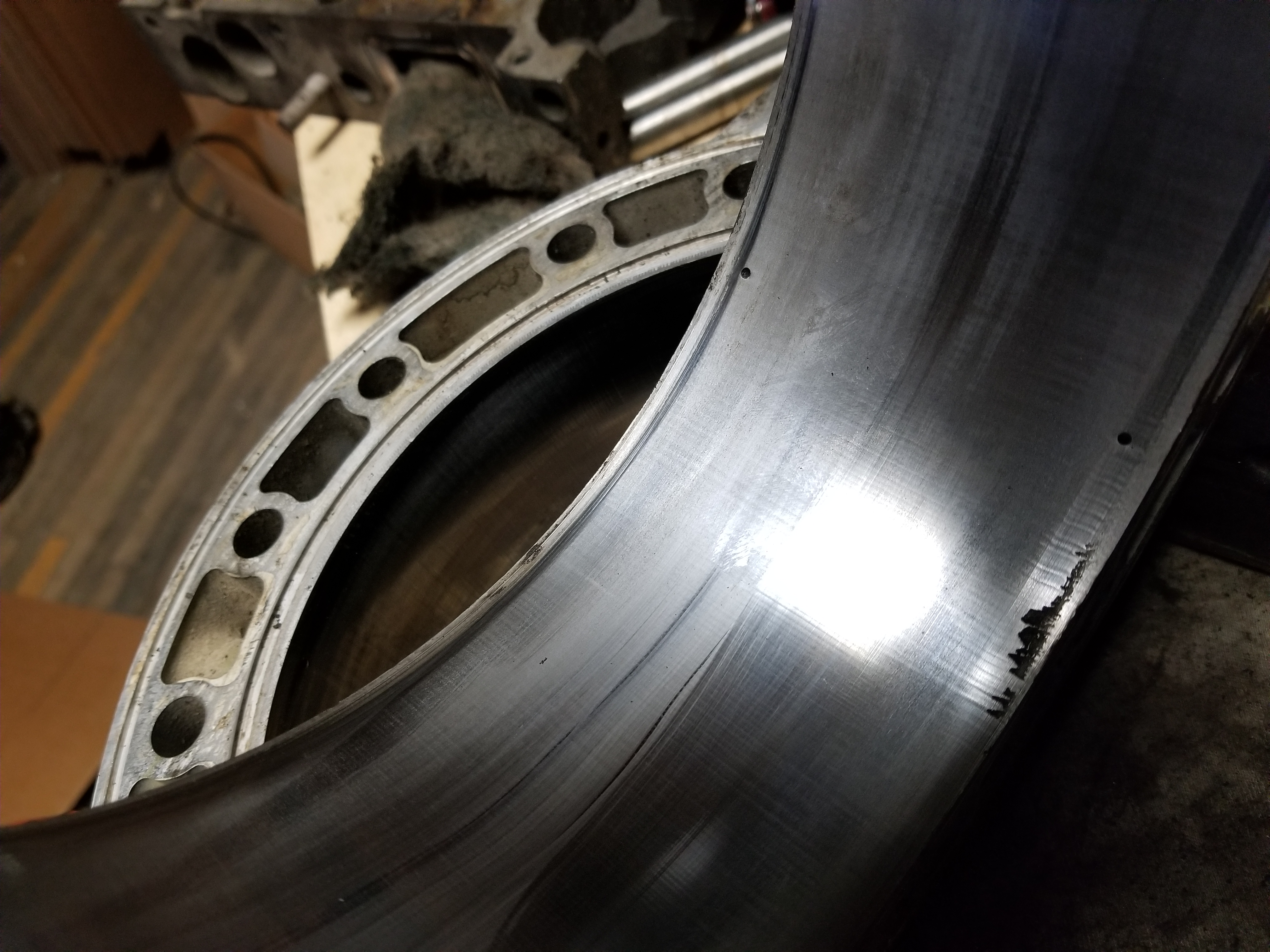

Need a new motor, contemplating rebuilding existing, but I don't know if I should have goopy refinish this, or buy new housings. This is the only flaking from both housings, the rest of the surfaces looks workable.
#3
77 cylinders, 4 rotors...
And Goopy will tell you that housing will not benefit from their process. They don't add material, they resurface what is there, which means slight loss of more chrome thickness to get the surface finish they get. Your housing looks like that flaking is one of the lesser problems you have there. If you email them some pictures they will give you their take on it.
#4
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
And Goopy will tell you that housing will not benefit from their process. They don't add material, they resurface what is there, which means slight loss of more chrome thickness to get the surface finish they get. Your housing looks like that flaking is one of the lesser problems you have there. If you email them some pictures they will give you their take on it.
#7
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
#8
77 cylinders, 4 rotors...
Please update when you get that engine.
Thank you.
Thank you.
#10
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
So I got the motor. I think it has a stuck side seal or something. It starts, but it's smoking like a chimney I mean really really bad. Just looked the the intake and its got quite a bit of oil in the accordion. It idled but wouldn't rev past 2k, thought it was the cat being clogged, took the cat out, wouldn't idle but revved up to 9k, pulled leading plugs which were brand new, rear rotor leading plug was black, front rotor leading plug was shiny as new. Still chrome. Soaking with trans fluid now, hoping for the best but I'm kinda lost
#11
Registered
iTrader: (4)
Did you try the 20 stomp Memory reset? The new motor will run differently than your previous one. Sadly a JDM motor could be just as bad as your previous one, but this should help it run correctly once you drive it around and let your ECU relearn this motor
https://www.rx8club.com/series-i-tro...memory-169443/
https://www.rx8club.com/series-i-tro...memory-169443/
Last edited by BigBadChris; 06-04-2018 at 08:44 PM.
#16
Modulated Moderator
iTrader: (3)
So I got the motor. I think it has a stuck side seal or something. It starts, but it's smoking like a chimney I mean really really bad. Just looked the the intake and its got quite a bit of oil in the accordion. It idled but wouldn't rev past 2k, thought it was the cat being clogged, took the cat out, wouldn't idle but revved up to 9k, pulled leading plugs which were brand new, rear rotor leading plug was black, front rotor leading plug was shiny as new. Still chrome. Soaking with trans fluid now, hoping for the best but I'm kinda lost
Are you sure that the coil on the shiny plug was working?
it's going to smoke for a while...it could have a ton of oil in the intake and the vent system if the motor was on its side. A side seal won't make it smoke.....it will drop the compression a lot though and make it run like crap. The oil control rings are the most likely issue of its run long enough to burn off all the residual oil
#20
Registered
iTrader: (1)
Just to be clear, was it the plugs you received with the engine that were shiny, or the new ones you put in before starting it up? If it's the old ones then never mind the coils. Sounds like all the plugs should be well covered in oil now
Oil in the accordion is going to get sucked down and burned and make tons of smoke. Sounds like par for the course so far. You got it to idle, so that's a good sign.
Not a lot of things smell like a burnt clutch, so is it possible the engine is fine but the clutch wasn't aligned correctly or obstructed causing it to rub and overheat?
Oil in the accordion is going to get sucked down and burned and make tons of smoke. Sounds like par for the course so far. You got it to idle, so that's a good sign.
Not a lot of things smell like a burnt clutch, so is it possible the engine is fine but the clutch wasn't aligned correctly or obstructed causing it to rub and overheat?
#21
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
They were my new plugs, which is why the difference in color was so noticeable. Carbon black on the rear and shiny silver on the front. The clutch should have been aligned properly, I took my time installing it and didn't have any issues installing the motor twice with no help. Someone said to change the pcv valve but I don't know what they mean. The purge valve solenoid?
#22
Registered
iTrader: (1)
Ah. Then the clean plugs aren't firing. Time to chase the wiring. You can try to swap coils that are currently powering the rear rotor to the front, and vice versa, to see if you can get the fronts to fire. If so, the problem is the coils or the wires, or their connections. If not (which I suspect is the case), then something further up the chain is preventing the coils from firing.
Could you swap the eccentric shaft sensor from your old motor to this one? Possible that it's not reading clean. That would cause things to run poorly for sure. It's near the crank pulley. Do the brake-stomp procedure until the oil gauge needle sweeps on its own after you change the sensor.
Also just to make sure.. the new JDM motor is a 6 port, high power version, like your original one?
Any check engine lights from the time that you had it running?
The other thing that people commonly mess up when installing engines is the injector wiring. It's an easy mistake to make. Is it possible they're cross wired, like the front rotor primary is taking input meant for a secondary?
PCV = positive crankcase ventilation. Whoever told you that doesn't realize this car's PCV is sort of built into the oil filler neck. There isn't a stand alone one you can change. Also sounds like they're using piston logic in a rotary application. In any case, it wouldn't prevent you from running.
Could you swap the eccentric shaft sensor from your old motor to this one? Possible that it's not reading clean. That would cause things to run poorly for sure. It's near the crank pulley. Do the brake-stomp procedure until the oil gauge needle sweeps on its own after you change the sensor.
Also just to make sure.. the new JDM motor is a 6 port, high power version, like your original one?
Any check engine lights from the time that you had it running?
The other thing that people commonly mess up when installing engines is the injector wiring. It's an easy mistake to make. Is it possible they're cross wired, like the front rotor primary is taking input meant for a secondary?
PCV = positive crankcase ventilation. Whoever told you that doesn't realize this car's PCV is sort of built into the oil filler neck. There isn't a stand alone one you can change. Also sounds like they're using piston logic in a rotary application. In any case, it wouldn't prevent you from running.
Last edited by Loki; 06-05-2018 at 06:08 AM.
#23
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Jdm is a six port, I'll check the injectors but I don't think I messed with them, as the engine came complete with the intake and harness and everything connected. That's what I thought as far as the "pcv" goes.
#24
Registered
Thread Starter
Join Date: Apr 2018
Location: Colorado
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Oh and the dtc light has been on since i put a battery in it. Boss gave me an obdII bluetooth adapter and i downloaded an app, but it said there were no codes to read. I'll try it again with a different app
#25
Registered
iTrader: (1)
Some Mazda-specific codes don't show up on all apps, but that is information in itself: usually this is the code for the oil metering pump and it will prevent you from revving over 3k. Check the connection to the OMP. Did you remove it at all and are you currently using the jdm one or your original? Try swapping them over. The pump itself doesn't really fail, but the electronic component does.
