Need some help rebuild

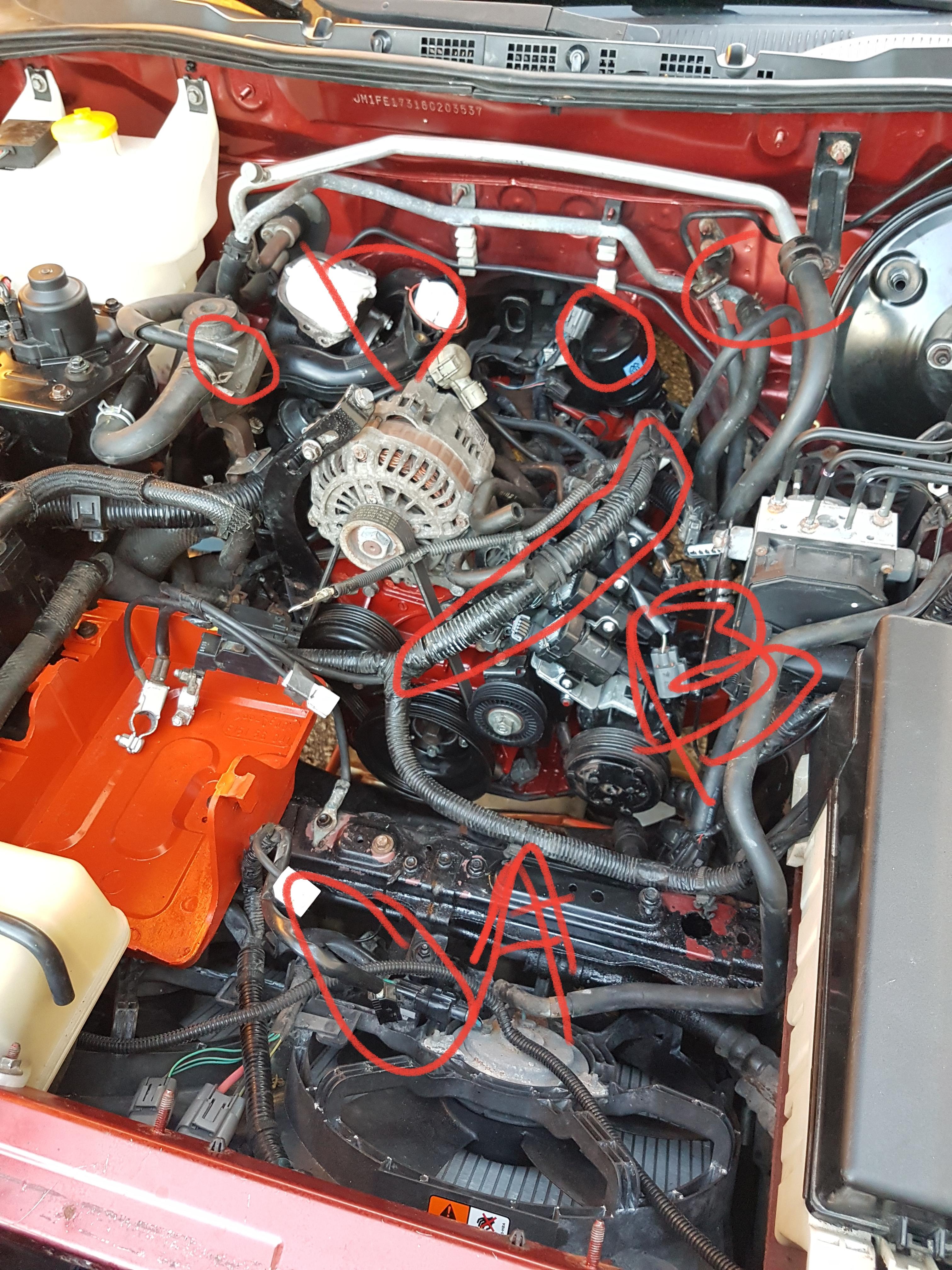

Im just finishing my rebuild on my engine and im having trouble remembering where these things go
A- 2 conectors black and white go where?
B-is this the proper way to run the harness
C-grey conector is it conected to feed harness?
D-2 hoses coming out of lower intake not sure they go

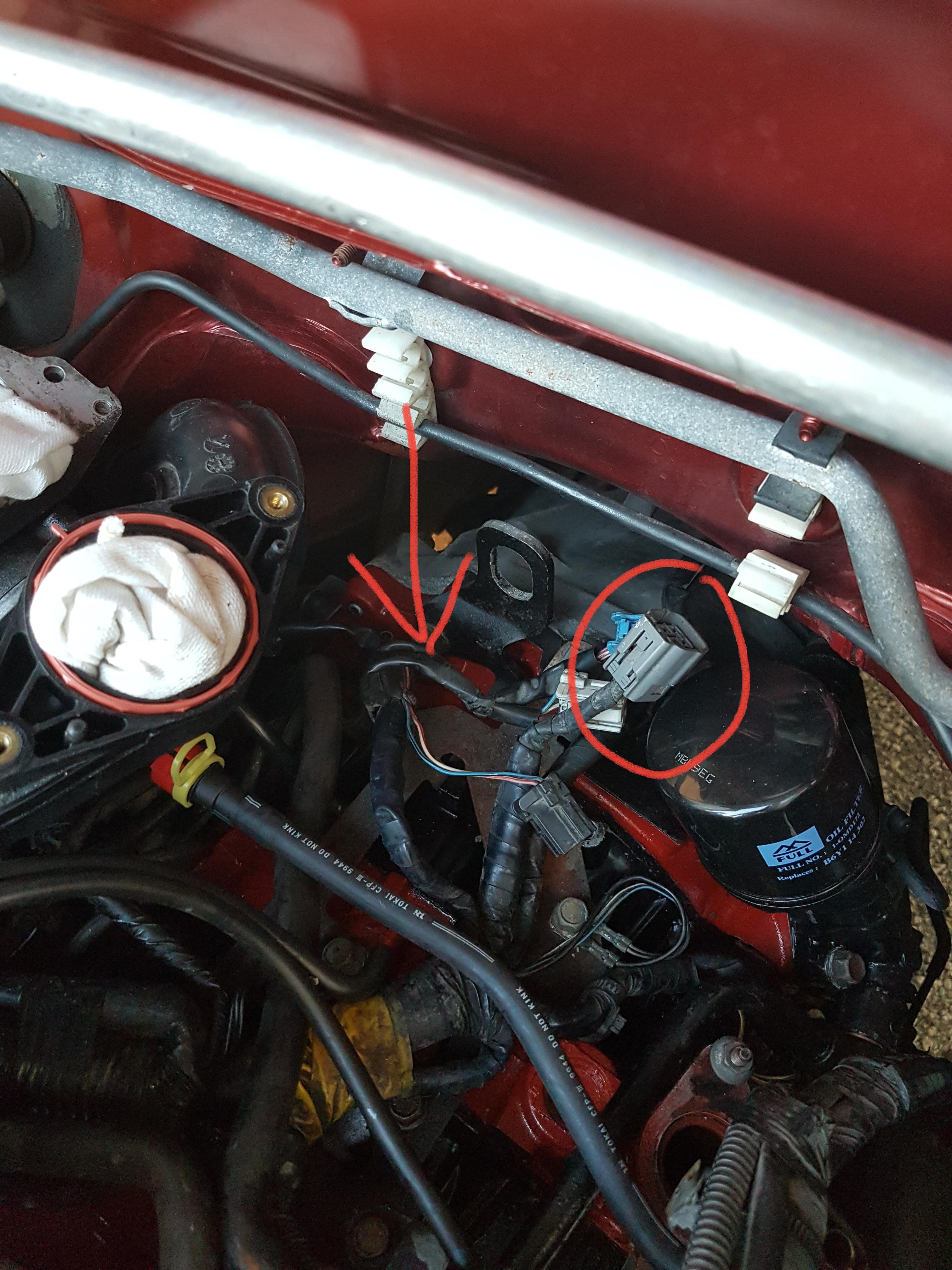

Also second photo theres a male conector attached to the housing which tube would i attach it to?
Attached Thumbnails Need some help rebuild-20170611_010825.jpg   Need some help rebuild-20170611_010922.jpg
Old 06-11-2017, 05:51 AM
  #2
What am I doing here?

NotAPreppie's Avatar

Join Date: Mar 2006
Location: 2017 Miata RF Launch Edition
Posts: 3,606
Received 649 Likes on 510 Posts
C is for the rear O2 sensor.
