new rx-8 owner here
#1
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
![AK](https://www.rx8club.com/images/icons/ak.jpg)
Well first thing first. My name is Jay and I now currently own a 2004 rx-8. Just bought it 2 weeks ago.
History...... well the previous owner didn't know how to take care of a rotary engine and failed to check or do any main thence on the engine regarding mainly the oil or whatever.... thus causing him having to buy a brand new engine.... I only paid 8500 for the car and it was booked around d 10500. Anyways the new engine coated him a good chunk of cash.
now that I finally got the car I felt better.... or at least I was until today. I filled her up on premium and then I started getting the check engine light.... I know the gas cap and oil cap was on tight. I even rechecked them... I'm still on the break in part for breaking in the engin. Anyways so the light of course has me a little bit concerned. So I'm taking it into the shop tomorrow.
Anyways I will throw up some pics a little later. And also I live in Alaska.... Fairbanks Alaska... if any of you guys know of some car clubs or rx-8 clubs here that would be cool
History...... well the previous owner didn't know how to take care of a rotary engine and failed to check or do any main thence on the engine regarding mainly the oil or whatever.... thus causing him having to buy a brand new engine.... I only paid 8500 for the car and it was booked around d 10500. Anyways the new engine coated him a good chunk of cash.
now that I finally got the car I felt better.... or at least I was until today. I filled her up on premium and then I started getting the check engine light.... I know the gas cap and oil cap was on tight. I even rechecked them... I'm still on the break in part for breaking in the engin. Anyways so the light of course has me a little bit concerned. So I'm taking it into the shop tomorrow.
Anyways I will throw up some pics a little later. And also I live in Alaska.... Fairbanks Alaska... if any of you guys know of some car clubs or rx-8 clubs here that would be cool
#2
Charles Bundy
iTrader: (5)
CEL? Get it checked. In the meantime, take an hour or two and read these informative threads:
Congratulations, you got an 8!
New and Potential Owners START HERE!
Congratulations, you got an 8!
New and Potential Owners START HERE!
#6
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
#8
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
Yea well in this last month I have learned A LOT about rotaries.... considering I knew nothing bout them when I bought it.
But after the engine got replaced we thought that (some kind of eccentric or valve train?) Had to be relearned..... nope wasn't that cause cel flashed. so I got underneath her and did a full sweep... everything was plugged in and connected properly in her undercarriage... well except the exhaust. My borla exhaust flange was missing the spring and nut that helped bolted it to the cat.
![](http://i41.tinypic.com/263y6pw.jpg)
![](http://i41.tinypic.com/ljqcj.jpg)
So yea I thought that was the problem so I bought a new nut and spring tighten down..... yet again cel Was still flashing..... so I give in I went online and bought a new ignition coil for cylinder 1 and neespark plug wires...... looks like the only thing the shop replaced were the fuel pump engine clutch and spark plugs... among other things.... they put in iridium spark plugs? So yea this weekend Imma put in new ignition coil and wires... oh p code was P0301 so that's why I bought a single ignition coil.... ( also ki da tight on money )
But after the engine got replaced we thought that (some kind of eccentric or valve train?) Had to be relearned..... nope wasn't that cause cel flashed. so I got underneath her and did a full sweep... everything was plugged in and connected properly in her undercarriage... well except the exhaust. My borla exhaust flange was missing the spring and nut that helped bolted it to the cat.
![](http://i41.tinypic.com/263y6pw.jpg)
![](http://i41.tinypic.com/ljqcj.jpg)
So yea I thought that was the problem so I bought a new nut and spring tighten down..... yet again cel Was still flashing..... so I give in I went online and bought a new ignition coil for cylinder 1 and neespark plug wires...... looks like the only thing the shop replaced were the fuel pump engine clutch and spark plugs... among other things.... they put in iridium spark plugs? So yea this weekend Imma put in new ignition coil and wires... oh p code was P0301 so that's why I bought a single ignition coil.... ( also ki da tight on money )
#11
You gonna eat that?
iTrader: (1)
Welcome, IMHO since you are having misfires, and have a new engine, I would suggest changing all coils. About $90 more for all four.
If you can swing it, no sense half-a**ing it.
If you can swing it, no sense half-a**ing it.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#12
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
yea im kinda on a tight budget at the moment but i plan on replacing the other 3 here either next month or july at the most...... stil gotta buy 2 new tires which are gonna run me another $400
#13
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
#15
FULLY SEMI AUTOMATIC
iTrader: (9)

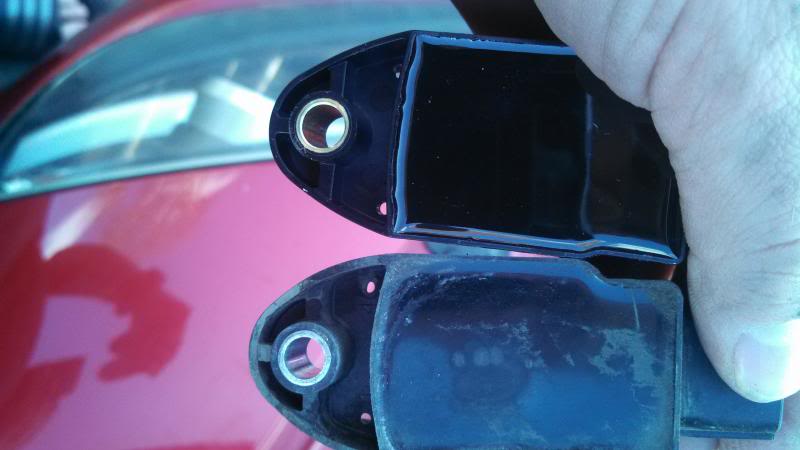

white burn marks on the bottom of coils dont mean ****.

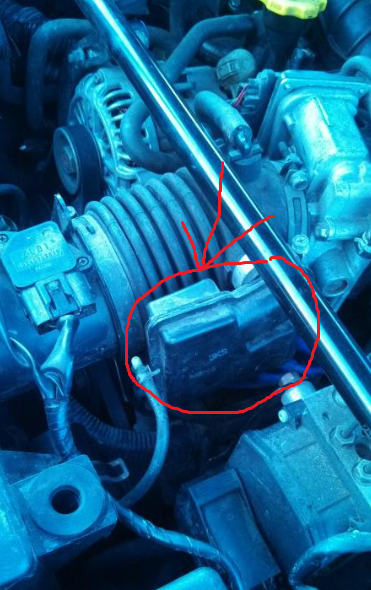

the box you circled is for sound supression iirc
a flashing cel always means a misfire. get it fixed asap espically if you are running a cat.
the box you circled is for sound supression iirc
a flashing cel always means a misfire. get it fixed asap espically if you are running a cat.
#16
You gonna eat that?
iTrader: (1)
200 is right.
You keep driving it with misfires & chain reaction bad things are likely, especially if you wait til July.
If you have tread left on tires, you might want to get those later, coils now.
You keep driving it with misfires & chain reaction bad things are likely, especially if you wait til July.
If you have tread left on tires, you might want to get those later, coils now.
#17
Registered
iTrader: (4)
The device circled is used to quiet the sound of air in the intake. When my cat was clogged, it doubled as a place to collect oil that was drawn up into the intake due to excessive backpressure.
#18
FULLY SEMI AUTOMATIC
iTrader: (9)
A missfire will dump unburned fuel into the catalytic converter. This will cause the cat to either clog up or burn out. That's a $1500 expense for a new oem converter.
The device circled is used to quiet the sound of air in the intake. When my cat was clogged, it doubled as a place to collect oil that was drawn up into the intake due to excessive backpressure.
The device circled is used to quiet the sound of air in the intake. When my cat was clogged, it doubled as a place to collect oil that was drawn up into the intake due to excessive backpressure.
#19
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
OK I got my coil off of advanced auto parts.com should I get the remaining 3? And I should be getting my spark plug wires tomorrow... could those cause an issue as well?
I know I'm asking a lot of questions but I have been reading a lot on the forums. But Imma deff check out my cat
I know I'm asking a lot of questions but I have been reading a lot on the forums. But Imma deff check out my cat
#20
Registered
iTrader: (4)
OK I got my coil off of advanced auto parts.com should I get the remaining 3? And I should be getting my spark plug wires tomorrow... could those cause an issue as well?
I know I'm asking a lot of questions but I have been reading a lot on the forums. But Imma deff check out my cat
I know I'm asking a lot of questions but I have been reading a lot on the forums. But Imma deff check out my cat
#21
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
Yea... I bought the OEM NGK plug wires from advanced auto parts. So after o swap out the wires Imma clear the codes and try it again. Cause the cel will flash if I'm slowly starting to increase speed And rpms Usually happens between 4rpms and 6rpms
#22
You gonna eat that?
iTrader: (1)
OK I got my coil off of advanced auto parts.com should I get the remaining 3? And I should be getting my spark plug wires tomorrow... could those cause an issue as well?
I know I'm asking a lot of questions but I have been reading a lot on the forums. But Imma deff check out my cat
I know I'm asking a lot of questions but I have been reading a lot on the forums. But Imma deff check out my cat
I had the same issues soon after buying mine.
I learned by reading the stickies and listening to the advice of the members here.
You should do the same if you want your car to last.
This forum is pretty much your best resource for your 8.
I did all 4, took my bad cat off & replaced it with a midpipe, cleaned ESS & MAF sensors, did the 20 pedal stomp, and now my 8 runs better than ever.
Good luck
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#23
You gonna eat that?
iTrader: (1)
Be SURE you don't get them crossed up!
I also find it helps to lable the old wires with masking tape before you take them off to match up the lengths with the new ones.
Last edited by BigCajun; 05-16-2013 at 01:23 PM.
#24
FULLY SEMI AUTOMATIC
iTrader: (9)
front of the engine back for coils l1,t1, l2,t2
#25
Drive Like Hell
Thread Starter
Join Date: Mar 2013
Location: Colorado
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
So if I'm looking at it from the left side and I see the coils and I count them left to right.... can someone send me the link to where the ignition diagram is at?
