It looks like the Isuzu uses Delco/GM electronics so there -may- be a way to reprogram the maps. Since the intake runners essentially just shift the VE to another RPM, I'll consider the tune on my Miata that didn't have a variable intake system. My fuel maps were fairly flat but when viewed as a 3D map I could clearly see the hump where the engine's VE was at it's peak. I don't have the maps anymore but I would guess about 10% more fuel was required. That said, the Isuzu maps should theoretically show two humps since the actuator only has open/closed states. The factory trims should be able to manage a 10% fuel trim (where there is no longer a peak in VE) and also add fuel at the peak in VE, which will be a much higher RPM then is factory programed.
If the programed curves become an issue, and I can't reprogram them, I'll resort to a piggy back ECU like the AEM FIC. I have some experience with it. I used a 1.6L NA ECU to run a 1.8L turbo engine in an MX3 and was able to "piggy-tune" that without any issues. Completely different cam profiles, different intake system, larger injectors, and boosted, yet was easily tuned.
Last edited by kickerfox; 04-04-2013 at 07:55 PM.
#480
Registered
Thread Starter
#481
Registered
Thread Starter
Good news! I just got back from a friends house who offered to let me use the 2 car side of his 3 car garage to do my project. Looks like I can get the tear down started soon.
#482
As for the vim being deactivated...duh lol your making a custom manifold my question was more along the lines of getting the cel to shut off, since it will clearly think the system is working incorrectly. Or am I missing something here?
#483
Registered
Thread Starter
You're either an epic troll, or can't read lol.
As for the vim being deactivated...duh lol your making a custom manifold my question was more along the lines of getting the cel to shut off, since it will clearly think the system is working incorrectly. Or am I missing something here?
As for the vim being deactivated...duh lol your making a custom manifold my question was more along the lines of getting the cel to shut off, since it will clearly think the system is working incorrectly. Or am I missing something here?
#484
The Variable Intake Manifold (VIM) solenoid has +12 VDC supplied to one side of the coil, the ECM grounds the other side of the coil to energize the solenoid (ON). The VIM controls the induction control valves that change the length of the intake runners. When the engine RPM is less than 3600 , the VIM solenoid is “ON” and when the engine RPM is more than 3600, the VIM solenoid is “”OFF”. The induction control valves are closed when the VIM solenoid is “ON”, and opened at the VIM solenoid is “OFF”. (info from buster28, planetisuzu)
Guess I just dont see where your resistor is going?
Guess I just dont see where your resistor is going?
#486
Registered
Thread Starter
Your quote is correct.
The solenoid is electronically "low-side switched" by either an npn transistor or a n-channel mosfet. Anything controlled (switched) by the ECU is typically low side switched. If the switch is off, there will be 12v present (if the solenoid is connected). That's one way an ECU can detect if a device is in circuit. If the device is to be removed, a small resistor can be placed in it's place so the ECU still see's the 12v and thinks the device is still there. The other way an ECU can detect a device is by placing a current shunt before the switch. When the switch is on, the ECU can detect a small voltage across the shunt. The only time I've seen an ECU use shunts is with pre-heated O2 sensors. It can measure the current this way and probably detect a failing O2 heater before it goes open-circuit -or- detect the current through the heater as part of a feedback loop to control warm-up time.
I think the impact of vics (variable intake control system) removal is minimal.
The Mazda v6 (KLDE) I used in the sand rail also had vics that had two stages. Both solenoids were failed open-circuit but I didn't have a CEL but it was OBD1. After repairing them, I didn't feel any difference in performance. It sure sounded nice when they opened though. Something along the lines of mmmmmmmmmMAWWWWWWW. Almost deafening considering the cone filter was right behind my head.
The solenoid is electronically "low-side switched" by either an npn transistor or a n-channel mosfet. Anything controlled (switched) by the ECU is typically low side switched. If the switch is off, there will be 12v present (if the solenoid is connected). That's one way an ECU can detect if a device is in circuit. If the device is to be removed, a small resistor can be placed in it's place so the ECU still see's the 12v and thinks the device is still there. The other way an ECU can detect a device is by placing a current shunt before the switch. When the switch is on, the ECU can detect a small voltage across the shunt. The only time I've seen an ECU use shunts is with pre-heated O2 sensors. It can measure the current this way and probably detect a failing O2 heater before it goes open-circuit -or- detect the current through the heater as part of a feedback loop to control warm-up time.
I think the impact of vics (variable intake control system) removal is minimal.
The Mazda v6 (KLDE) I used in the sand rail also had vics that had two stages. Both solenoids were failed open-circuit but I didn't have a CEL but it was OBD1. After repairing them, I didn't feel any difference in performance. It sure sounded nice when they opened though. Something along the lines of mmmmmmmmmMAWWWWWWW. Almost deafening considering the cone filter was right behind my head.
Last edited by kickerfox; 04-05-2013 at 03:15 PM.
#487
Well I'm over turning you off the idea. And willing to help, hopefully the Isuzu guys can take something away from it. You seem set haha. Not sure about the current shunt but a dozen beer can do that haha.
#490
Registered
Thread Starter
A current shunt is a fractional value resistor like .01ohm. When a current flows through it you can measure a voltage across it. 10mv per amp in that example. If your kid ever wants more torque from those el-cheapo electric scooters, just pop the controller open and look for a ~1/2in loop of #12 wire on the pcb. Run a bead of solder over it to thicken it up.
#491
Registered
Thread Starter
Hey I started this thread in the end of December. It's been 3. :P Builds take years? I'm not doing a full restoration here. It's just a motor swap.
I would normally agree. I've never owned an Isuzu and it's definitely not one of the brands in my bucket list. It's when I started looking at the engine design that I said "hmm that's not bad" and "omg transmission options".
I would normally agree. I've never owned an Isuzu and it's definitely not one of the brands in my bucket list. It's when I started looking at the engine design that I said "hmm that's not bad" and "omg transmission options".
Last edited by kickerfox; 04-06-2013 at 01:55 AM.
#496
Registered
Thread Starter
I got the garage cleaned over the weekend and will be starting the teardown tonight.
Anyone need any parts? I'll be parting out the complete engine and also selling the 6-speed transmission and ECU. The car runs and drives but, as mentioned, I believe the engine to be failing. It has 74k miles on it. It looks like the trans has been apart. Shifts great.
Anyone need any parts? I'll be parting out the complete engine and also selling the 6-speed transmission and ECU. The car runs and drives but, as mentioned, I believe the engine to be failing. It has 74k miles on it. It looks like the trans has been apart. Shifts great.
#497
Release the twins.
eh, i'm gonna hate on the izuzu engine as well. a 6g72 or 6g74-75 would be a better choice. and you know all the tuning options out there to make a 3000gt vr-4 500 hp. hell, i'm putting a 6g72 in a 1st gen rx7.
#498
Registered
Thread Starter
Any supporting reason(s)?

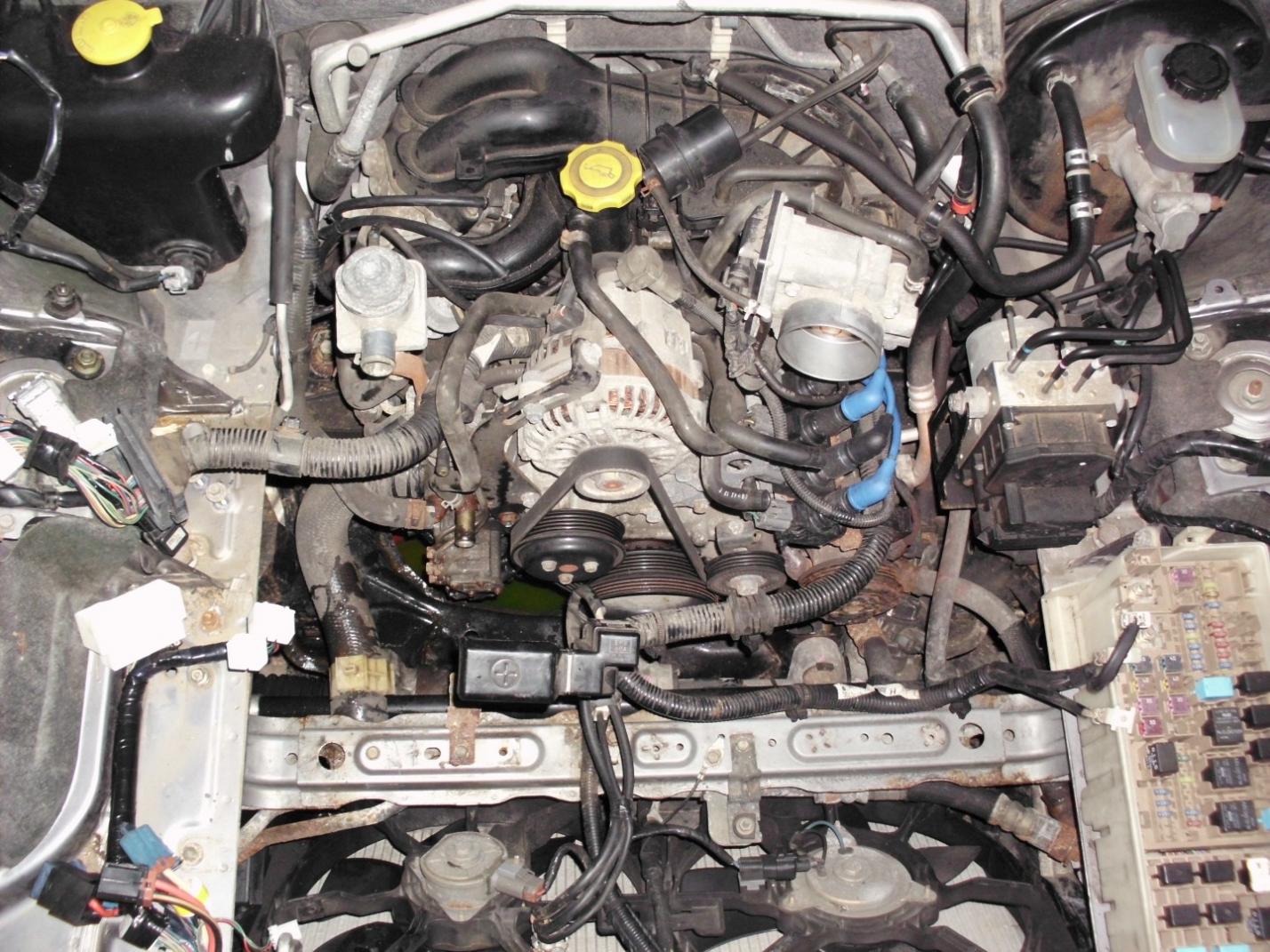

The bits from the front of the engine bay are out. I'll start tackling the engine tomorrow.

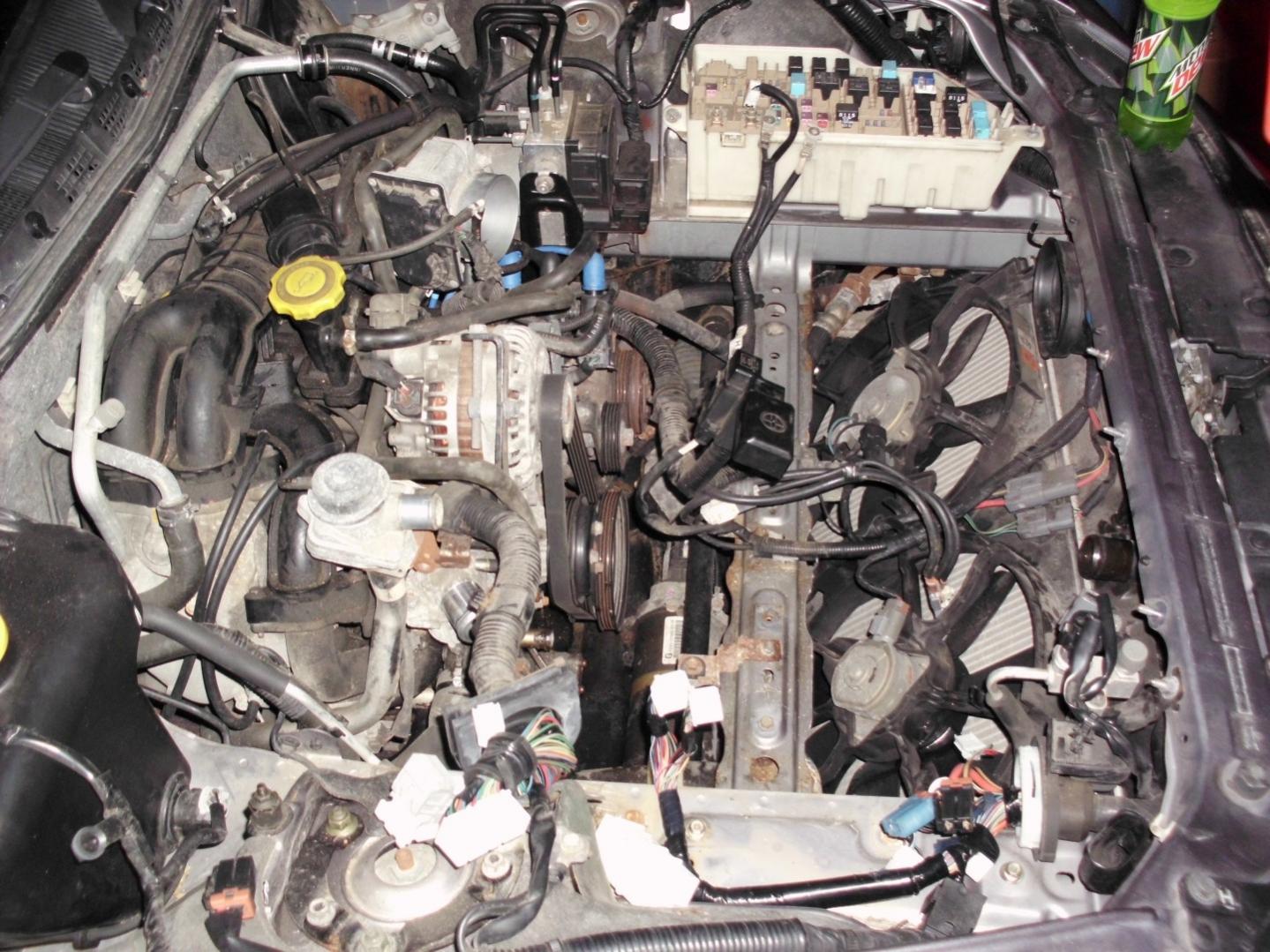

Look at all that room! That airfilter/battery support is probably going to go. The battery is most likely going to be relocated to the trunk or placed at the right rear of the engine bay (like a Civic) where the washer fluid bottle is currently located. I have a 1 quart washer bottle I can hide somewhere else. The ABS motor will be replaced with the Isuzu unit.
The bits from the front of the engine bay are out. I'll start tackling the engine tomorrow.
Look at all that room! That airfilter/battery support is probably going to go. The battery is most likely going to be relocated to the trunk or placed at the right rear of the engine bay (like a Civic) where the washer fluid bottle is currently located. I have a 1 quart washer bottle I can hide somewhere else. The ABS motor will be replaced with the Isuzu unit.
Last edited by kickerfox; 04-08-2013 at 09:53 PM.
#500
Registered
Thread Starter
Something has to keep the mechanic awake. :
The engine bay is all prepped and ready for the pull. I still need to unhook the driveline and exhaust but things are moving right along. It might be out tomorrow night.
So now that I have a lot more room to view things... I'm going off *rough* measurements of the Isuzu engine. It was 5 degrees out and a nice yard-walk to the warehouse when I measured it. I may have hurried. The engine looks like it will fit behind the battery support ok but the crank pully and accessories might interfere with it. Hopefully I overmeasured the engine. Width looks good. Exhaust routing looks good. It'll clear the steering shaft anyways.
Some of the Rodeo/Trooper/Axiom/whatevers have the ECU in the engine bay also so it'll be really easy to get it up and running, but, I think it's on the other corner. The instrument cluster will be the biggest headache.
As far as boost goes. I'd love to twin turbo this engine because I have that nice pair of T-25s from a 300zx. A 3.5L should spool the **** out of them. I'm not looking for big boost numbers. 6~8psi would wake it up and the turbos can manage that. Maybe if I have the room I can criss-cross the intake like the zx and keep the low end torque. Maybe I'll wake up one morning and have a billet crank and H-beams in it as well. I'll keep on dreaming of it.
One thing I saw under there, while disconnecting the starter, was how easy it would be to make an X frame to serve as the trans cross-member. Sort of a butterfly-brace. That's only if it becomes hard to connect the PPF to the trans.
The engine bay is all prepped and ready for the pull. I still need to unhook the driveline and exhaust but things are moving right along. It might be out tomorrow night.
So now that I have a lot more room to view things... I'm going off *rough* measurements of the Isuzu engine. It was 5 degrees out and a nice yard-walk to the warehouse when I measured it. I may have hurried. The engine looks like it will fit behind the battery support ok but the crank pully and accessories might interfere with it. Hopefully I overmeasured the engine. Width looks good. Exhaust routing looks good. It'll clear the steering shaft anyways.
Some of the Rodeo/Trooper/Axiom/whatevers have the ECU in the engine bay also so it'll be really easy to get it up and running, but, I think it's on the other corner. The instrument cluster will be the biggest headache.
As far as boost goes. I'd love to twin turbo this engine because I have that nice pair of T-25s from a 300zx. A 3.5L should spool the **** out of them. I'm not looking for big boost numbers. 6~8psi would wake it up and the turbos can manage that. Maybe if I have the room I can criss-cross the intake like the zx and keep the low end torque. Maybe I'll wake up one morning and have a billet crank and H-beams in it as well. I'll keep on dreaming of it.
One thing I saw under there, while disconnecting the starter, was how easy it would be to make an X frame to serve as the trans cross-member. Sort of a butterfly-brace. That's only if it becomes hard to connect the PPF to the trans.
