My Velocity Red 05 Triple Duty RX-8
#1
Registered
Thread Starter
Join Date: Dec 2009
Location: Lexington, KY
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
My Velocity Red 05 Triple Duty RX-8
Bought this bone stock in February to replace my old track car. Wanted it to be something that could be daily driven, competitive for a specific autocross class (STX) and drive to/from track days reliably. So far, it's doing great for all of those things.
Mods:
KW V3 Coilovers
Enkei RPF1s
255/40-17 Hankook RS3's
Two Recaro SPGs
BHR Ignition
HKS Hi Power
Other minor things here and there..
Took a few boring pictures this weekend:
![](http://farm7.static.flickr.com/6027/5899839320_c20cf0193f_b.jpg)
![](http://farm7.static.flickr.com/6046/5899275371_b32d4ec0b1_b.jpg)
![](http://farm7.static.flickr.com/6013/5899839710_36ba75061d_b.jpg)
![](http://farm7.static.flickr.com/6039/5899275713_8b06088a7c_b.jpg)
![](http://farm7.static.flickr.com/6005/5899839986_c9a72b4460_b.jpg)
![](http://farm6.static.flickr.com/5316/5899840136_b28e7c2b36_b.jpg)
![](http://farm7.static.flickr.com/6046/5899840288_2c5e14abf6_b.jpg)
Some random videos:
Mods:
KW V3 Coilovers
Enkei RPF1s
255/40-17 Hankook RS3's
Two Recaro SPGs
BHR Ignition
HKS Hi Power
Other minor things here and there..
Took a few boring pictures this weekend:
![](http://farm7.static.flickr.com/6027/5899839320_c20cf0193f_b.jpg)
![](http://farm7.static.flickr.com/6046/5899275371_b32d4ec0b1_b.jpg)
![](http://farm7.static.flickr.com/6013/5899839710_36ba75061d_b.jpg)
![](http://farm7.static.flickr.com/6039/5899275713_8b06088a7c_b.jpg)
![](http://farm7.static.flickr.com/6005/5899839986_c9a72b4460_b.jpg)
![](http://farm6.static.flickr.com/5316/5899840136_b28e7c2b36_b.jpg)
![](http://farm7.static.flickr.com/6046/5899840288_2c5e14abf6_b.jpg)
Some random videos:
Last edited by Rzoops; 01-14-2012 at 11:33 AM.
#2
Registered
Love it. Looks great. Can we see some interior shots? What rails/mounts did you use for the Recaros?
What do you think think about the KW's? I had coilovers based on the v3s on my STi and absolutely loved them.
What do you think think about the KW's? I had coilovers based on the v3s on my STi and absolutely loved them.
#4
Registered
#5
Registered
Thread Starter
Join Date: Dec 2009
Location: Lexington, KY
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Yes, the HKS is single only. Sounds great.
The KW's have been amazing so far. Very compliant for the street and even better on track. I just put them on straight out of the box and had a very good alignment and corner balance done. I've never felt the need to tweak any of the settings, and I likely won't, until at least a season full of driving.
The seat mounts are custom at this point. They began as Corbeau bottom mounts that would accommodate for sliders and a bottom mount seat. At 6'2", and given the height of most fixed back seats that work for me, using sliders was not an option. On previous cars I have mounted side mounts directly to the seat mount, so that's what I wanted to do. I took the Corbeau mounts, which are made for very wide seats, welded 3/16" steel to the center of them to get more surface area to work with for the narrow Recaro width, and then aligned the seat. Once I had it aligned, I cut out the excess, added some extra welds for good measure, and hard-mounted Sparco steel side mounts and the Recaros themselves with standard seat mounting hardware. I had also modified the seat belt mounts and added another hole to mount lap belts for my harness. Painted it matte black, and at the end of the day, I have a completely rigid mount that gets my seats as low as physically possible without removing carpet or cutting the floor any. Driver and passenger have the same things done.
I only use the harness for autocrosses, not track days, so I do want to eventually do a roll bar.
Pics:

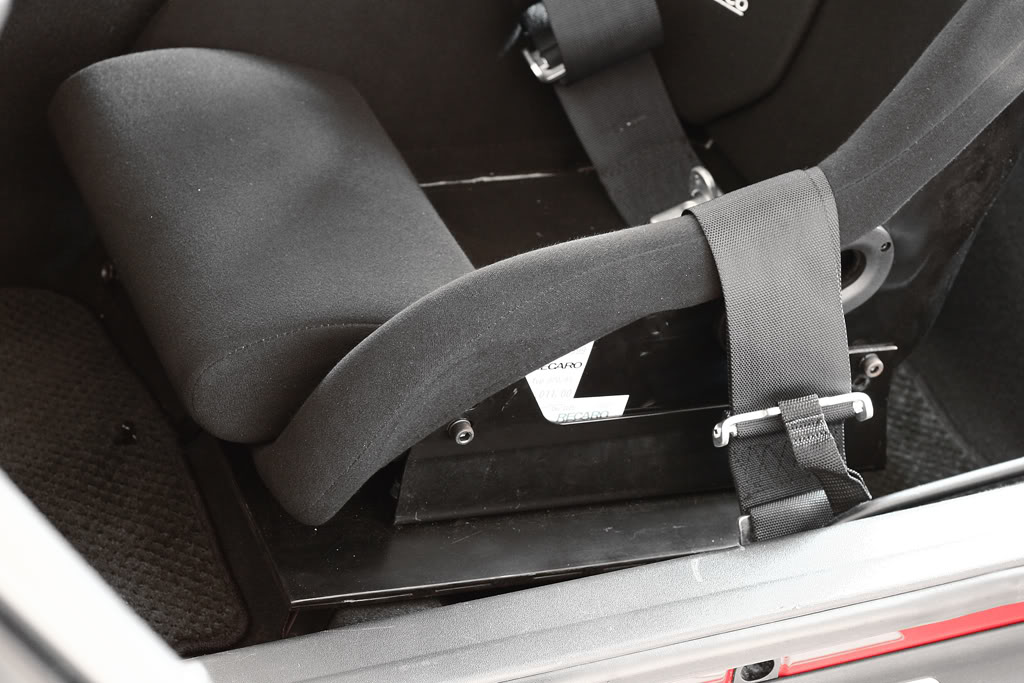

![Name: IMG_3491.jpg
Views: 82
Size: 110.6 KB](https://www.rx8club.com/attachments/rx-8-multimedia-photo-gallery-6/243173d1501256479-my-velocity-red-05-triple-duty-rx-8-img_3491.jpg)

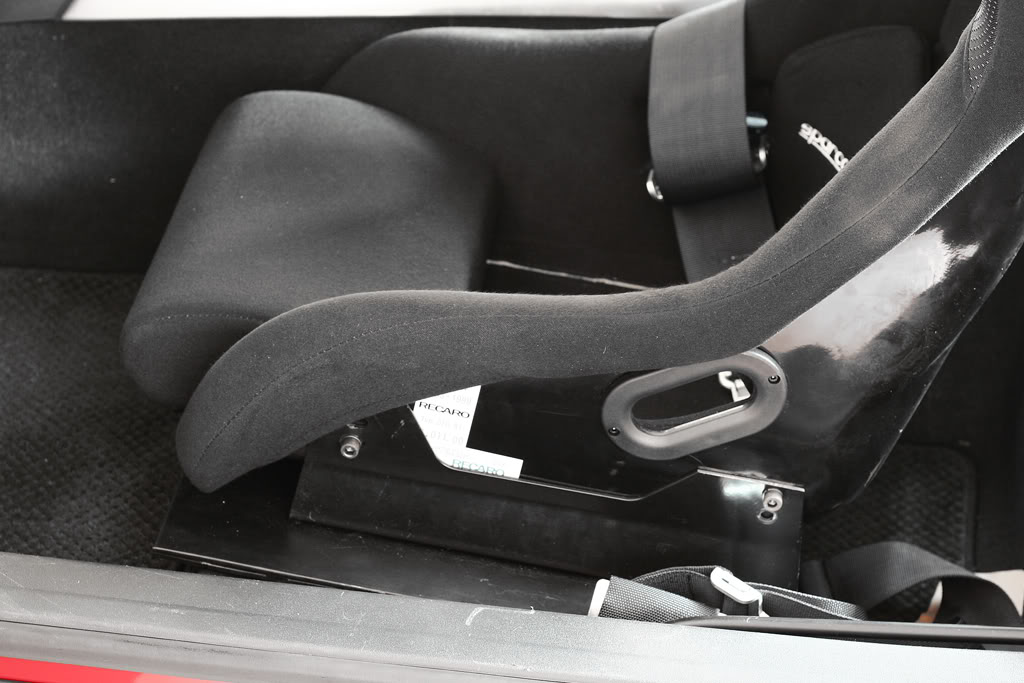

![Name: IMG_3492.jpg
Views: 67
Size: 93.9 KB](https://www.rx8club.com/attachments/rx-8-multimedia-photo-gallery-6/243174d1501256479-my-velocity-red-05-triple-duty-rx-8-img_3492.jpg)
The KW's have been amazing so far. Very compliant for the street and even better on track. I just put them on straight out of the box and had a very good alignment and corner balance done. I've never felt the need to tweak any of the settings, and I likely won't, until at least a season full of driving.
The seat mounts are custom at this point. They began as Corbeau bottom mounts that would accommodate for sliders and a bottom mount seat. At 6'2", and given the height of most fixed back seats that work for me, using sliders was not an option. On previous cars I have mounted side mounts directly to the seat mount, so that's what I wanted to do. I took the Corbeau mounts, which are made for very wide seats, welded 3/16" steel to the center of them to get more surface area to work with for the narrow Recaro width, and then aligned the seat. Once I had it aligned, I cut out the excess, added some extra welds for good measure, and hard-mounted Sparco steel side mounts and the Recaros themselves with standard seat mounting hardware. I had also modified the seat belt mounts and added another hole to mount lap belts for my harness. Painted it matte black, and at the end of the day, I have a completely rigid mount that gets my seats as low as physically possible without removing carpet or cutting the floor any. Driver and passenger have the same things done.
I only use the harness for autocrosses, not track days, so I do want to eventually do a roll bar.
Pics:
![Name: IMG_3491.jpg
Views: 82
Size: 110.6 KB](https://www.rx8club.com/attachments/rx-8-multimedia-photo-gallery-6/243173d1501256479-my-velocity-red-05-triple-duty-rx-8-img_3491.jpg)
![Name: IMG_3492.jpg
Views: 67
Size: 93.9 KB](https://www.rx8club.com/attachments/rx-8-multimedia-photo-gallery-6/243174d1501256479-my-velocity-red-05-triple-duty-rx-8-img_3492.jpg)

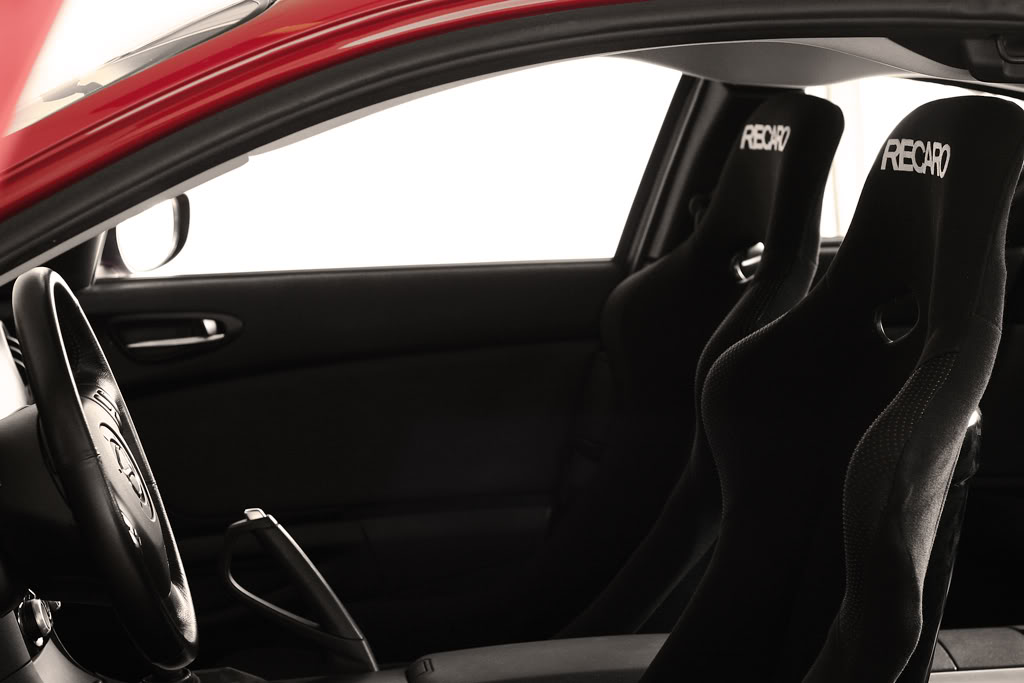

![Name: IMG_3495.jpg
Views: 70
Size: 70.3 KB](https://www.rx8club.com/attachments/rx-8-multimedia-photo-gallery-6/243175d1501256479-my-velocity-red-05-triple-duty-rx-8-img_3495.jpg)
