that's sick dude! how long did it take you? I just made the Renesis (to the best of my abilities) in AutoCAD for my final project. I'm gonna take solidworks in the spring of next year.
05-05-2010, 02:58 PM
#9
ReDuX
iTrader: (4)
Join Date: Oct 2006
Location: Norfolk, VA
Posts: 918
Likes: 0
Received 0 Likes
on
0 Posts
Not to familiar with solidworks as I use Autocad. I did the same thing for my Design capstone Project but definately nowhere near the amount of detail you put in yours (Gear tooth and all)
Does your eccentric shaft actually rotate 3 times for every full rotation of the rotor?
Does your eccentric shaft actually rotate 3 times for every full rotation of the rotor?
05-05-2010, 11:02 PM
#11
Registered
Join Date: Mar 2009
Location: Las Vegas
Posts: 40
Likes: 0
Received 0 Likes
on
0 Posts

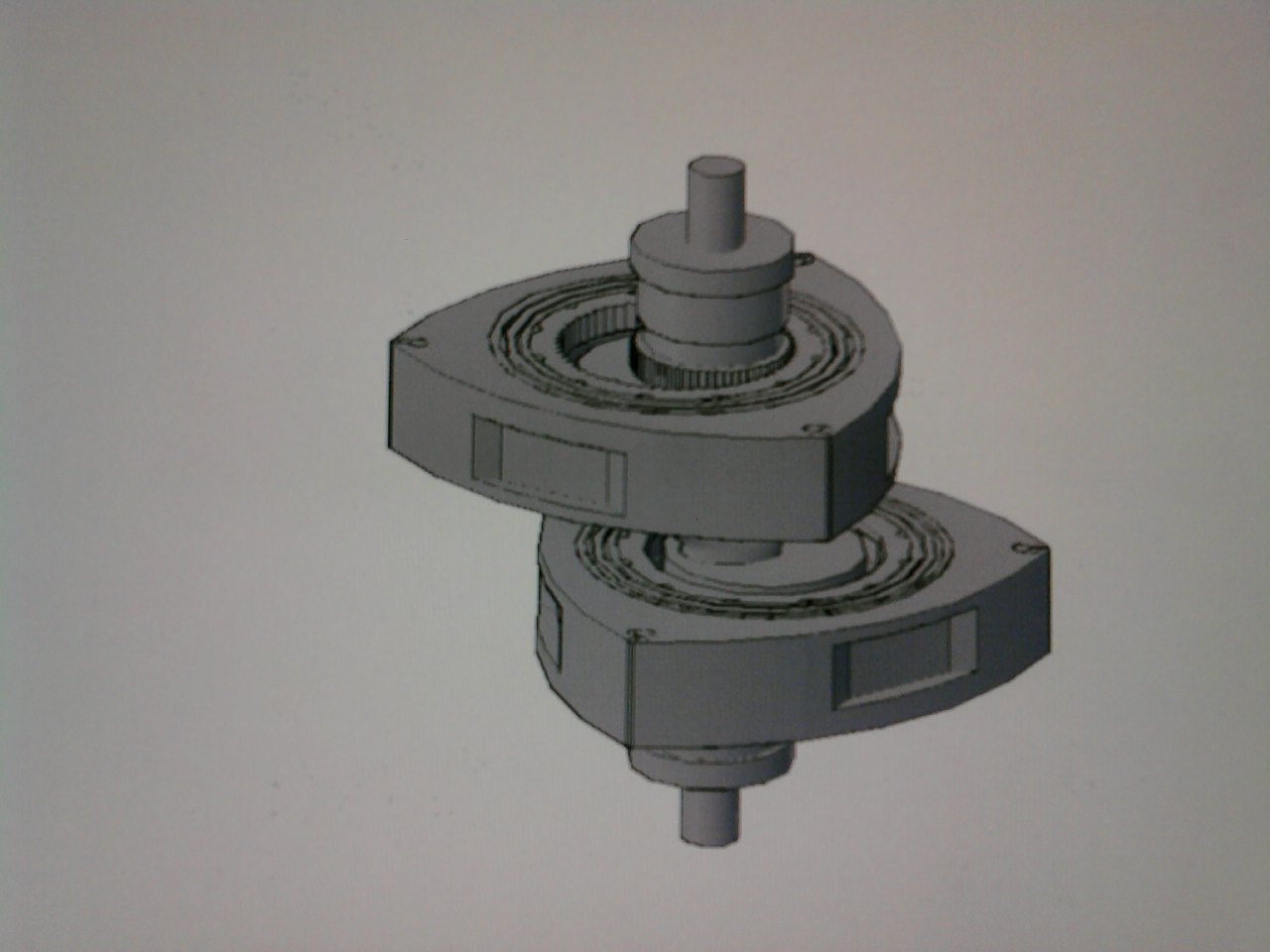

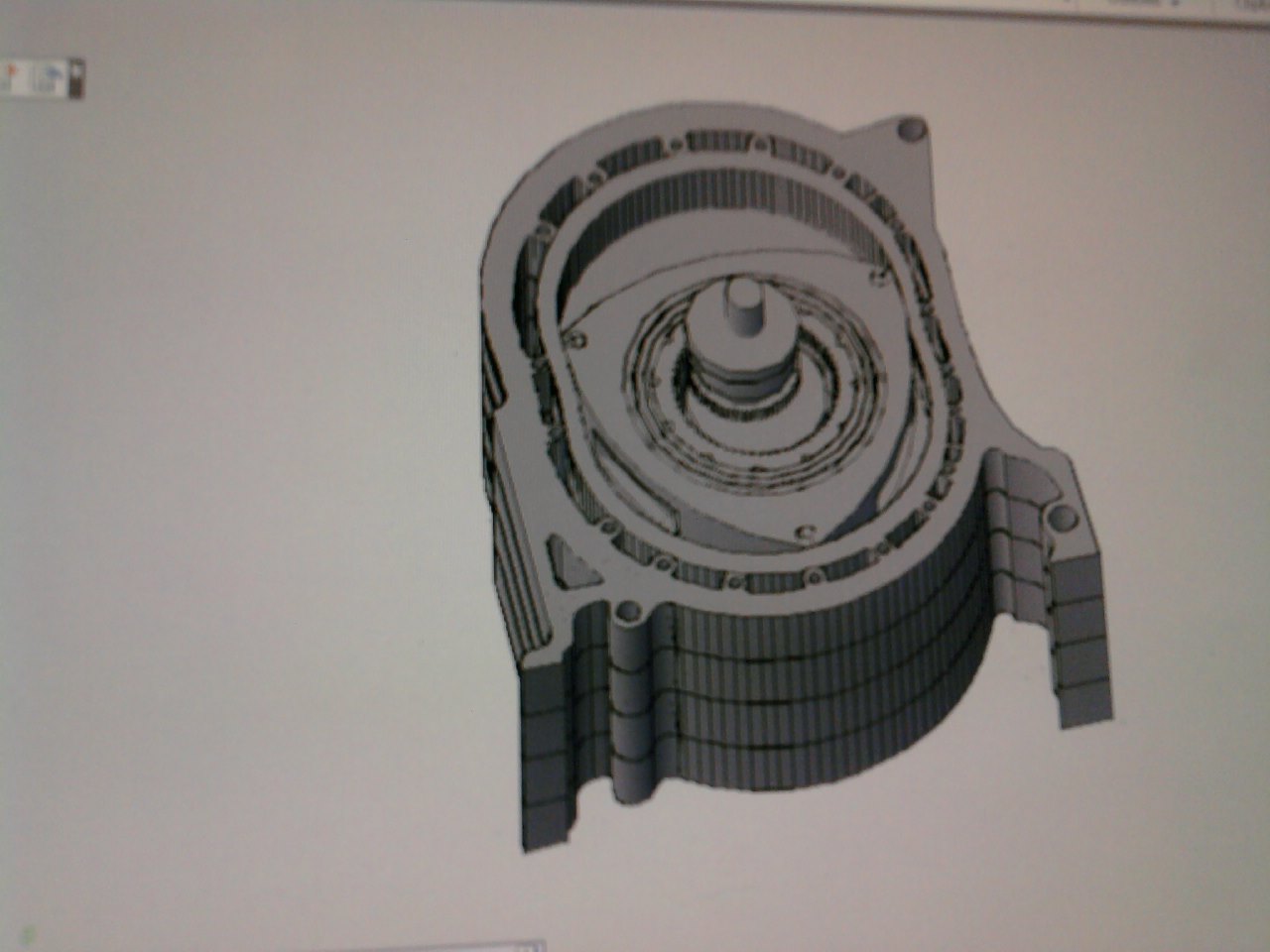

how did you get measurements if you don't mind me asking. I want to make a better render. I had to freestyle it, here are some cell phone pics i took of my project. As you can see my combustion recess is all messed up, but i had two weeks to make it and i had to learn 3d in those two weeks.
Last edited by AlphaOmegaRX8; 05-05-2010 at 11:04 PM.
05-06-2010, 03:15 AM
#12
Not to familiar with solidworks as I use Autocad. I did the same thing for my Design capstone Project but definately nowhere near the amount of detail you put in yours (Gear tooth and all)
Does your eccentric shaft actually rotate 3 times for every full rotation of the rotor?
Does your eccentric shaft actually rotate 3 times for every full rotation of the rotor?
IMO solidworks is way better for 3d than Autocad. I don't really like autocad at all except for something like blueprints.
mac1183@gmail.com
very carefully! lol.
these were all done by hand with calipers, micrometers, gauge pins and a couple other tools where appropriate.
thats pretty damn good for just learning 3d! Keep at it
