Hero locations/resolution
#3
Inside right rear window - gives basically a passengers perspective of the run including hands on the steering wheel with a "standard" (as oposed to wide view) hero. If you don't use a harness, you can start/stop pretty easily from inside the car. Doesn't work if you have a passenger though.
#4
I place it near the rear view mirror. I don't know if it would be a problem with an autocross course though.
![](https://www.rx8club.com/attachments/rx-8-racing-25/179291d1322954197-hero-locations-resolution-adenau.jpg)
Feel free to make fun of what happened after that pic lol.
If you're unlucky and have a sunroof then that's ok too.
Otherwise where Team said or under the front bumper grille.
Just have fun experimenting!
![](https://www.rx8club.com/attachments/rx-8-racing-25/179291d1322954197-hero-locations-resolution-adenau.jpg)
Feel free to make fun of what happened after that pic lol.
If you're unlucky and have a sunroof then that's ok too.
Otherwise where Team said or under the front bumper grille.
Just have fun experimenting!
![Hero locations/resolution-adenau.jpg](https://www.rx8club.com/attachments/rx-8-racing-25/179291d1322954197t-hero-locations-resolution-adenau.jpg)
#6
Registered
Thread Starter
^ sounds cool - need to be sure not to t-bone any orange pointy things!
Has anyone tried on the ouside of the drivers side rear window? Seems like I've seen it done where you can pick up some(?) driver inputs and still see the course, albeit only from the drivers side.
Has anyone tried on the ouside of the drivers side rear window? Seems like I've seen it done where you can pick up some(?) driver inputs and still see the course, albeit only from the drivers side.
#7
I talk to cones
Join Date: Aug 2003
Location: Madison,AL
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
Top of Roof:
http://youtu.be/g19aqATEvmM
Front of Hood:
http://youtu.be/x2yfQaGq47Q
On Rear Driver Side Door:
http://youtu.be/VeI3rWRPyRY
Upside down hanging from dome light:
http://youtu.be/OwTEzI8BXOw
Here's a picture of the dome light mount. The GoPro has an option to invert the image in it's setup menu. I really like the video coverage from this location but the audio is picking up a noise that I haven't isolated yet:
http://youtu.be/g19aqATEvmM
Front of Hood:
http://youtu.be/x2yfQaGq47Q
On Rear Driver Side Door:
http://youtu.be/VeI3rWRPyRY
Upside down hanging from dome light:
http://youtu.be/OwTEzI8BXOw
Here's a picture of the dome light mount. The GoPro has an option to invert the image in it's setup menu. I really like the video coverage from this location but the audio is picking up a noise that I haven't isolated yet:
![Name: 2011-12-05_18-00-12_352.jpg
Views: 25
Size: 49.4 KB](https://www.rx8club.com/attachments/rx-8-racing-25/238476d1501246832-hero-locations-resolution-2011-12-05_18-00-12_352.jpg)
#8
#10
I talk to cones
Join Date: Aug 2003
Location: Madison,AL
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
#11
Registered
Thread Starter
Chris, thanks, I kind of like that spot. Fun to try some different places.
How are you guys getting the data overlayed onto the video?
Also, what tool do people use to edit, put titles/credits etc?
How are you guys getting the data overlayed onto the video?
Also, what tool do people use to edit, put titles/credits etc?
#12
I talk to cones
Join Date: Aug 2003
Location: Madison,AL
Posts: 215
Likes: 0
Received 0 Likes
on
0 Posts
I use a Qstarz BT-1000ex GPS data logger in the car:
http://madmonkeyspeed.com/BT-Q1000eX.html
And combine with the video using Dashware:
http://www.dashware.net/
Dashware is really convenient to use. Takes less than 5 min to produce a finished video.
The data logger also comes with data analysis tools (QStarz Racing particularly) that help compare runs back to back. Using that in combination with video helps me see whats really working vs. things that just feel fast.
http://madmonkeyspeed.com/BT-Q1000eX.html
And combine with the video using Dashware:
http://www.dashware.net/
Dashware is really convenient to use. Takes less than 5 min to produce a finished video.
The data logger also comes with data analysis tools (QStarz Racing particularly) that help compare runs back to back. Using that in combination with video helps me see whats really working vs. things that just feel fast.
Last edited by Sparky; 12-06-2011 at 05:24 PM.
#13
Registered
iTrader: (2)
Join Date: Sep 2010
Location: Savannah, GA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
If so, some tape inside the mount itself will clear that up. The whole mount is wiggling a little bit in there, tape on the base, I used just one layer of regular blue racers tape, will tighten the tolerance and eliminate that sound.
Don't have any videos uploaded to youtube to post with the tape in the mount, but it does get rid of the clicking.
Personally I like the nose mount for tracking, better sense of speed, and I know the camera is right in the middle, can tell basic car placement on the track from there.
Edit:
I use Trackmaster, its a Droid phone app, its not perfect for serious racing, but I found it to be less than .1s off. That is based on using it on a buddy's race bike equipped with a transponder. Trackmaster will output an excel file that RaceChrono2AVI (free program) will parse and let you put whatever data into a recording area and make a telemetry video, then its just syncing it with your GoPro video in a video editing program.
10 bucks for the app is a ton cheaper than "real" data acquisition, and is all I need. You can make it more accurate by adding a 5 or 10 hz bluetooth module to interface with the app as opposed to the standard 1 hz phone gps, but it does interpolate pretty well as is.
Last edited by AerialEight; 12-06-2011 at 07:43 PM. Reason: added overlay info
#15
For video editing I use RaceRender2, the free version. Just email the exported data from the ipod to your computer, import the data and video files into RaceRender. Trim here and there, line up the data and create. I don't think the free version allows you to add titles.
For the cost this is a decent way to go. If I can't get the current GPS module to work consistently I will be moving to a NMEA enabled device.
#16
Not yet famous
iTrader: (7)

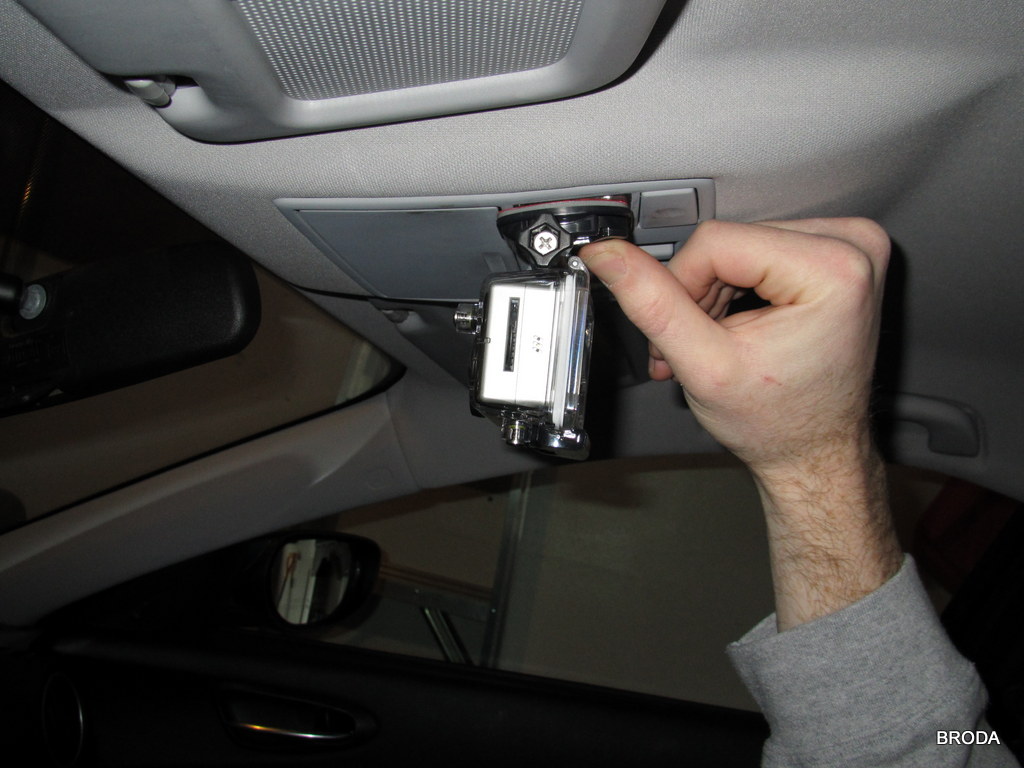

I got one of these for Christmas and am just now thinking about where to mount it. Has anyone tried the map light? I can't really tell if it would be in the way or not. It seems like it would be no worse than the rear view mirror. In 960p mode, it captures the top half of the steering wheel.
![Hero locations/resolution-img_0001.jpg](https://www.rx8club.com/attachments/rx-8-racing-25/182174d1330877899t-hero-locations-resolution-img_0001.jpg)
I love the unicorn (top of the windshield) mount, but I really want to be able to see my hands. The driver's side rear door window is pretty good, but there is still the issue of wind noise. And for both, you have to get out of the car to start and stop it.
![Hero locations/resolution-img_0001.jpg](https://www.rx8club.com/attachments/rx-8-racing-25/182174d1330877899t-hero-locations-resolution-img_0001.jpg)
I love the unicorn (top of the windshield) mount, but I really want to be able to see my hands. The driver's side rear door window is pretty good, but there is still the issue of wind noise. And for both, you have to get out of the car to start and stop it.
Last edited by BRODA; 04-20-2012 at 06:29 AM.
#17
#18
Registered
Join Date: Dec 2009
Location: Lexington, KY
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
On the driver side rear small window gives a great look at your inputs and the road ahead of you. I find it hard to pick out mistakes when you can't see what you did.
#20
Not yet famous
iTrader: (7)
Mounted mine to the map light. I keep hitting my helmet on it while entering and exiting the vehicle, but it's not in the way while driving. I like the view of the course / steering wheel.
http://youtu.be/Fz_PH9-j7Lg?hd=1
http://youtu.be/Fz_PH9-j7Lg?hd=1
