I'm on a cooling quest for the summer!
#26
Banned
iTrader: (3)
The "break-over" point is about 96° - 98°F.
Under that, the motor will stay relatively cool.
Over that, it will overheat.
I don't know why, but this has been borne out again and again on a bunch of different RX-8s with different setups.
Removing the t-stat is, indeed, a bad idea. You can replace it with a restrictor disk, but it will only matter up to that magical ambient 98° or so.
The fan mod will only work below that temp as well.
BTW - the OE gauge starts moving at 231°F.
Under that, the motor will stay relatively cool.
Over that, it will overheat.
I don't know why, but this has been borne out again and again on a bunch of different RX-8s with different setups.
Removing the t-stat is, indeed, a bad idea. You can replace it with a restrictor disk, but it will only matter up to that magical ambient 98° or so.
The fan mod will only work below that temp as well.
BTW - the OE gauge starts moving at 231°F.
#28
Registered
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Los Angeles
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
The "break-over" point is about 96° - 98°F.
Under that, the motor will stay relatively cool.
Over that, it will overheat.
I don't know why, but this has been borne out again and again on a bunch of different RX-8s with different setups.
Removing the t-stat is, indeed, a bad idea. You can replace it with a restrictor disk, but it will only matter up to that magical ambient 98° or so.
The fan mod will only work below that temp as well.
BTW - the OE gauge starts moving at 231°F.
Under that, the motor will stay relatively cool.
Over that, it will overheat.
I don't know why, but this has been borne out again and again on a bunch of different RX-8s with different setups.
Removing the t-stat is, indeed, a bad idea. You can replace it with a restrictor disk, but it will only matter up to that magical ambient 98° or so.
The fan mod will only work below that temp as well.
BTW - the OE gauge starts moving at 231°F.
Last edited by kinchu007; 07-18-2008 at 03:50 AM.
#32
Registered User
iTrader: (1)
Join Date: Jun 2004
Location: Los Angeles
Posts: 222
Likes: 0
Received 0 Likes
on
0 Posts
My coolant temp peaked at 219F on a 18 mins run, and the ambient temp was 86F.
skyse3p's coolant temp peaked at over 230F on the same run session, and he has 1.3 bar radiator cap and mazsport cooling fan mod.
#42
Registered
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Los Angeles
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
I just wanted to capture this so we have a record of it before it become impossible to find (will also try calling Buttonwillow next week to get their take on amb. temps and track temps...not sure if they provide this data).
Looks like the 104F trusty digital readout was totally wrong.
Looks like the 104F trusty digital readout was totally wrong.
#43
Registered
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Los Angeles
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
Buttonwillow Part 2!!!
So I just got back from Buttonwillow running 13CW this time...it was hot, hot, hot and I have some updates.
First of all, I got the water pump in there before the radiator (I'll update my opening post to reflect this).
Also I sealed the radiator gaps with foam.
And....it looks like they both worked wonders!
I didn't overheat one time, stayed under 225F!
Just in case you're wondering I DID NOT change my driving style by shifting earlier or by avoiding high RPM engine braking/throttle coasting (or whatever you call it)...I drove the same way, no adjustments. Looks like the water pump works and sealing the radiator gaps works, so that's good news! I honestly think you can stop here and safely summer track the car with the stock radiator, but I'm still going to go forward with the BHR rad.

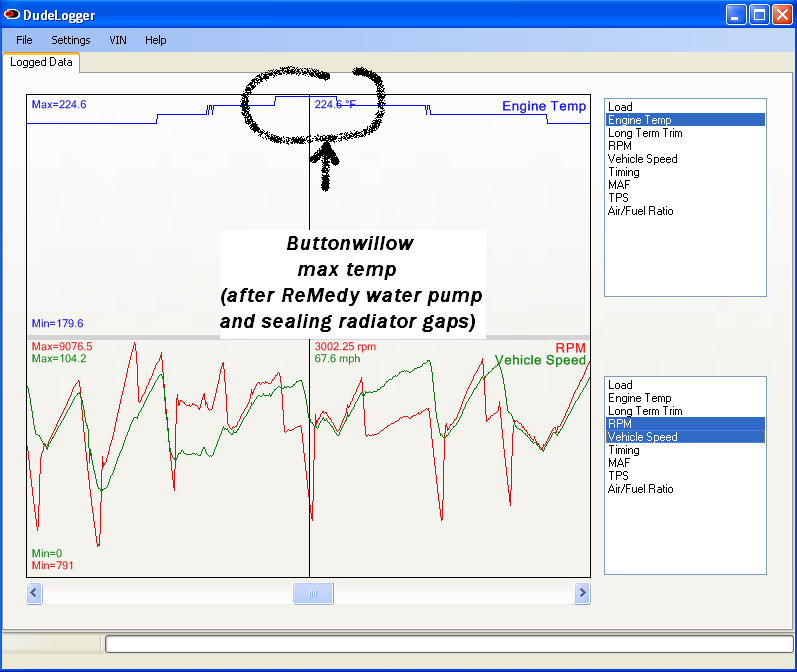

Here's a pic of the max engine temp (much lower than the previous 240.8F)...
...and a pic of the weather data (only 2 degrees colder than teh previous 96F)...

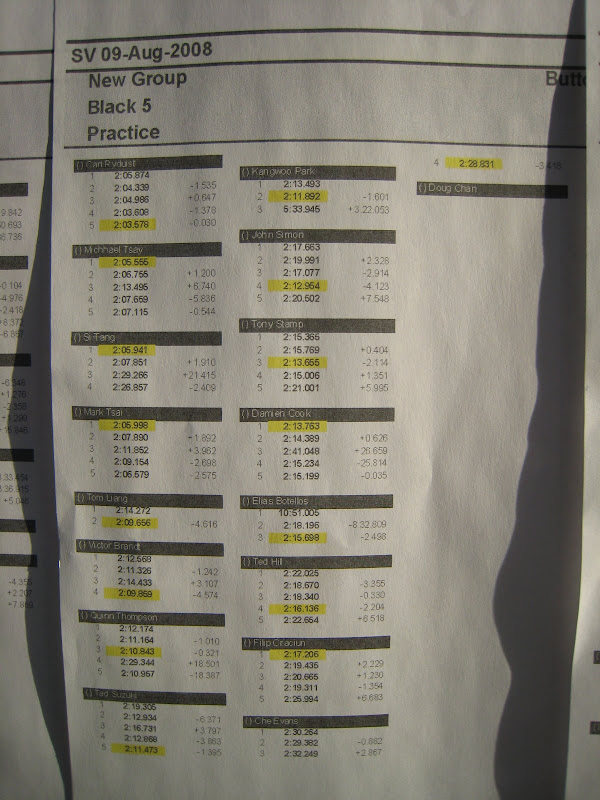

...and finally a pic of my best time (Filip Craciun @ 2:17.2)...
...and here's a pic of the HOFF!
I still came out on top of my buddy's 135i even though he got Potenza RE01-Rs and Cool *****'s track pads.
My buddy's stock S2000 with Ferrodo pads was able to get a 2:22.8, which is very impressive for his first time tracking the car.
Linky: http://picasaweb.google.com/filip.cr...09Buttonwillow
First of all, I got the water pump in there before the radiator (I'll update my opening post to reflect this).
Also I sealed the radiator gaps with foam.
And....it looks like they both worked wonders!
I didn't overheat one time, stayed under 225F!
Just in case you're wondering I DID NOT change my driving style by shifting earlier or by avoiding high RPM engine braking/throttle coasting (or whatever you call it)...I drove the same way, no adjustments. Looks like the water pump works and sealing the radiator gaps works, so that's good news! I honestly think you can stop here and safely summer track the car with the stock radiator, but I'm still going to go forward with the BHR rad.
Here's a pic of the max engine temp (much lower than the previous 240.8F)...
...and a pic of the weather data (only 2 degrees colder than teh previous 96F)...
...and finally a pic of my best time (Filip Craciun @ 2:17.2)...
...and here's a pic of the HOFF!
I still came out on top of my buddy's 135i even though he got Potenza RE01-Rs and Cool *****'s track pads.
My buddy's stock S2000 with Ferrodo pads was able to get a 2:22.8, which is very impressive for his first time tracking the car.
Linky: http://picasaweb.google.com/filip.cr...09Buttonwillow
Last edited by kinchu007; 08-10-2008 at 01:12 PM.
#44
Registered
iTrader: (3)
i am now convinced that those of us that have to drive on days with +95F ambient(track and street) need a secondary radiator and a 180F thermostat(which I can now do.) My car is MUCH cooler now and I didnt really have any cooling issues before--i was just to close to the edge at times( like grid lock and backed up drive throughs).
OD
OD
#45
Registered User
Join Date: Dec 2006
Location: Martinsville, VA
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Hey Guys,
For those of you that track quite often - you should seriously consider replacing the stock fans with a single, larger fan.
What happens is at high speed the stock fans are actually restrict more air than they help to pass through. Getting a single fan mounted to one side of the radiator or the other will leave part of the radiator open for free flowing air at speed.
Plus, there are single fans out there that push more air than the stock ones. Look into SPAL fans.
As for removing the thermostat, it can be done if you block off the radiator bypass, either by fitting a sheet of metal over it and welding (or JB welding, which I saw in another thread), or by tapping it and putting in a 1/2" Pipe Thread plug. The second option allows removal during winter months if so desired. Also, you need to leave the sealing ring in place between the lower and upper portions of the housing.
I cringe when I see these track temperatures - our Alarm is set for 200 degrees, and we bring the cars if they hit 215, which is rare, thankfully.
-- Adam
For those of you that track quite often - you should seriously consider replacing the stock fans with a single, larger fan.
What happens is at high speed the stock fans are actually restrict more air than they help to pass through. Getting a single fan mounted to one side of the radiator or the other will leave part of the radiator open for free flowing air at speed.
Plus, there are single fans out there that push more air than the stock ones. Look into SPAL fans.
As for removing the thermostat, it can be done if you block off the radiator bypass, either by fitting a sheet of metal over it and welding (or JB welding, which I saw in another thread), or by tapping it and putting in a 1/2" Pipe Thread plug. The second option allows removal during winter months if so desired. Also, you need to leave the sealing ring in place between the lower and upper portions of the housing.
I cringe when I see these track temperatures - our Alarm is set for 200 degrees, and we bring the cars if they hit 215, which is rare, thankfully.
-- Adam
#46
Registered
Join Date: May 2006
Location: Charlotte, NC
Posts: 528
Likes: 0
Received 0 Likes
on
0 Posts
You mean 215 water temp or oil temp? I've seen 225 on the water temp many times on hot days at the track. You think this is way too high? Should we be looking to do a cool off lap when things get above 215?
#47
Administrator
iTrader: (7)
kinchu: great thread. Glald to see the water pump and Rad are helping you out.
#48
Registered User
Join Date: Dec 2006
Location: Martinsville, VA
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
We have seen rotor housings start to get warped at a water temp above 225 degrees. When that happens the motors will still run fine but we have seen a decrease in longevity of the motors. 240 is very dangerous. 260 is catastrophic.
Our oil temps on the other hand generally run anywhere from 10 degrees cooler to 5 degrees hotter than the water temp.
This is in motors with Ceramic Apex seals, and we run custom radiators and Setrab oil coolers. We get as much out from between the radiator and motor that we can and have a custom front end with ducting for the radiator and oil coolers.
Our temps probably aren't realistic goals on cars also run on the street with all of the creature comforts and without other engine bay modifications. But they do need to be better than what everyone is saying they are getting up to.
#49
Registered
Thread Starter
iTrader: (1)
Join Date: Nov 2006
Location: Los Angeles
Posts: 424
Likes: 0
Received 0 Likes
on
0 Posts
Hey Guys,
For those of you that track quite often - you should seriously consider replacing the stock fans with a single, larger fan.
What happens is at high speed the stock fans are actually restrict more air than they help to pass through. Getting a single fan mounted to one side of the radiator or the other will leave part of the radiator open for free flowing air at speed.
Plus, there are single fans out there that push more air than the stock ones. Look into SPAL fans.
As for removing the thermostat, it can be done if you block off the radiator bypass, either by fitting a sheet of metal over it and welding (or JB welding, which I saw in another thread), or by tapping it and putting in a 1/2" Pipe Thread plug. The second option allows removal during winter months if so desired. Also, you need to leave the sealing ring in place between the lower and upper portions of the housing.
I cringe when I see these track temperatures - our Alarm is set for 200 degrees, and we bring the cars if they hit 215, which is rare, thankfully.
-- Adam
For those of you that track quite often - you should seriously consider replacing the stock fans with a single, larger fan.
What happens is at high speed the stock fans are actually restrict more air than they help to pass through. Getting a single fan mounted to one side of the radiator or the other will leave part of the radiator open for free flowing air at speed.
Plus, there are single fans out there that push more air than the stock ones. Look into SPAL fans.
As for removing the thermostat, it can be done if you block off the radiator bypass, either by fitting a sheet of metal over it and welding (or JB welding, which I saw in another thread), or by tapping it and putting in a 1/2" Pipe Thread plug. The second option allows removal during winter months if so desired. Also, you need to leave the sealing ring in place between the lower and upper portions of the housing.
I cringe when I see these track temperatures - our Alarm is set for 200 degrees, and we bring the cars if they hit 215, which is rare, thankfully.
-- Adam
The idea behind the BHR radiator is to space the fins apart a little more so the stock fans can pull more air through.
I do see your point about having one side open altogether.
You say your alarm is at 200F...that sounds awesome...can you please list all your cooling mods? I'm sure that would be more useful to all of us than avoiding summer track days altogether
-Fil
#50
Registered User
Join Date: Dec 2006
Location: Martinsville, VA
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts
Sure:
Custom Water Reservoir, mounted in the space b/w the Passenger front wheel arch and the firewall.
Custom Front Bumper Assembly w/ Radiator + Oil Cooler Ducting
ReMedy Water Pump
Modified Thermostat Housing
Complete A/N Water Lines and Oil lines using Aeroquip Startlite Hose
Setrab oil Coolers
Custom 3" Dual pass radiator.
Spal Extreme High Performance Fan, turned on by a dashboard switch by the driver.
Remote HP1 Oil filter is mounted to the crossmember, behind the radiator.
And on top of that - removal of everything that isn't necessary. Our engine bays have much more space than stock.
-- Adam
Custom Water Reservoir, mounted in the space b/w the Passenger front wheel arch and the firewall.
Custom Front Bumper Assembly w/ Radiator + Oil Cooler Ducting
ReMedy Water Pump
Modified Thermostat Housing
Complete A/N Water Lines and Oil lines using Aeroquip Startlite Hose
Setrab oil Coolers
Custom 3" Dual pass radiator.
Spal Extreme High Performance Fan, turned on by a dashboard switch by the driver.
Remote HP1 Oil filter is mounted to the crossmember, behind the radiator.
And on top of that - removal of everything that isn't necessary. Our engine bays have much more space than stock.
-- Adam
