NASA PT/TT thread
#129
Registered
iTrader: (2)
I don't believe it's any points unless the bushing is metal.
Here is one that says it is not metal:
Mazda RX8 Front Lower Control Arm Bushing Kit, 2003-2008, by Drop Engineering
This should be no points and give you the extra camber you need. However I do notice that the website no longer shows them in stock... not a good sign.
Last edited by MagnusRacing; 06-29-2013 at 02:50 AM.
#131
Registered
Thread Starter
I don't believe it's any points unless the bushing is metal.
Here is one that says it is not metal:
Mazda RX8 Front Lower Control Arm Bushing Kit, 2003-2008, by Drop Engineering
This should be no points and give you the extra camber you need. However I do notice that the website no longer shows them in stock... not a good sign.
Here is one that says it is not metal:
Mazda RX8 Front Lower Control Arm Bushing Kit, 2003-2008, by Drop Engineering
This should be no points and give you the extra camber you need. However I do notice that the website no longer shows them in stock... not a good sign.
#133
Registered
Thread Starter
I don't believe it's any points unless the bushing is metal.
Here is one that says it is not metal:
Mazda RX8 Front Lower Control Arm Bushing Kit, 2003-2008, by Drop Engineering
This should be no points and give you the extra camber you need. However I do notice that the website no longer shows them in stock... not a good sign.
Here is one that says it is not metal:
Mazda RX8 Front Lower Control Arm Bushing Kit, 2003-2008, by Drop Engineering
This should be no points and give you the extra camber you need. However I do notice that the website no longer shows them in stock... not a good sign.
"These bushings do not allow for camber adjustments. Unfortunately, the RX8 front lower control arm bushings show to currently be unavailable. We do not have a date on when additional inventory will be available. I am sorry for any inconvenience"
#134
No respecter of malarkey
iTrader: (25)

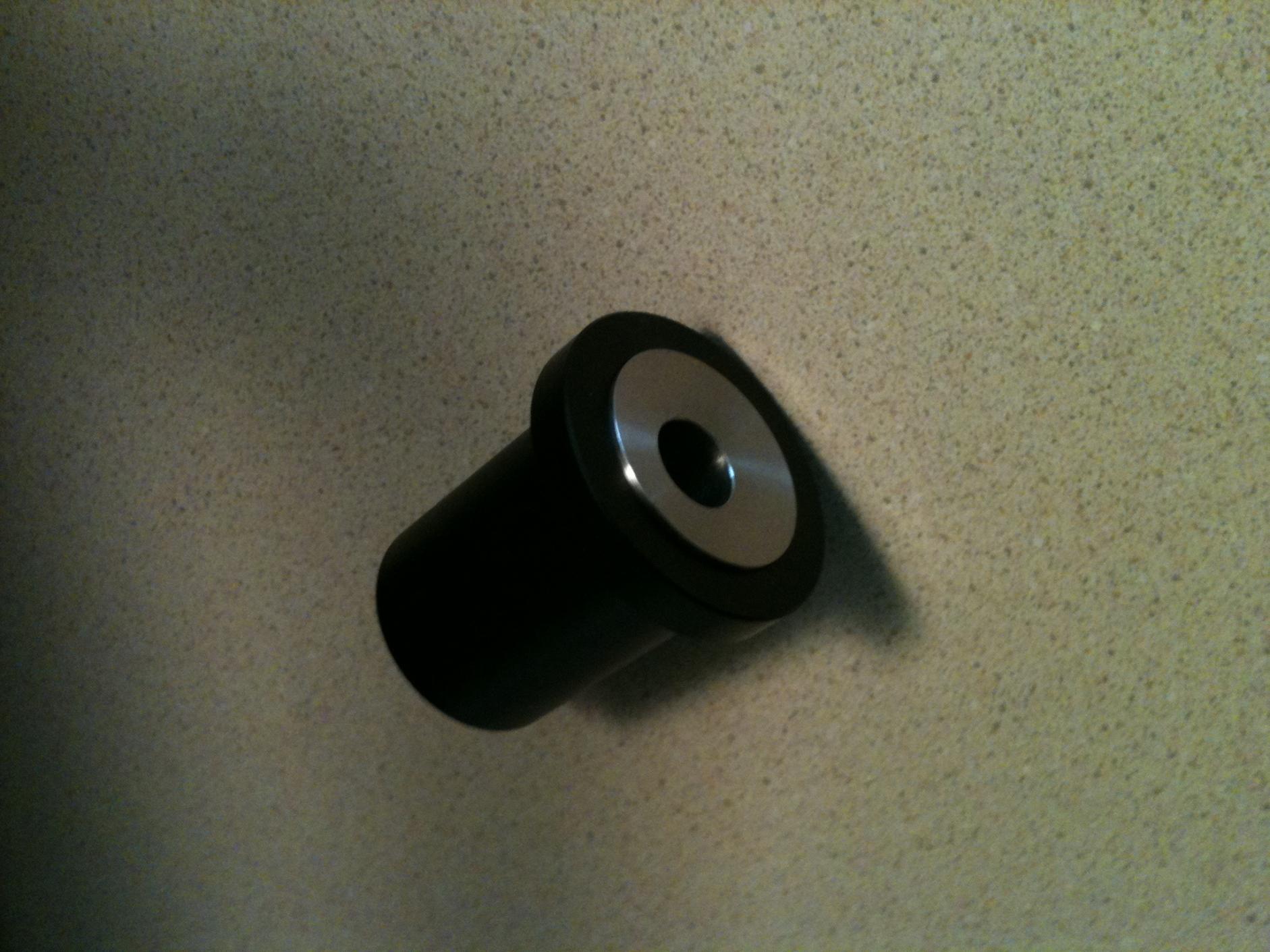

I've never seen the inside of those bushings, but always assumed they held a metal spherical bearing inside like the Speedsource all metal LCA bushings
you might look around though as I've seen these for sale by various vendors, they may have a set in their own store inventory stock.
you might look around though as I've seen these for sale by various vendors, they may have a set in their own store inventory stock.
#135
Registered
Thread Starter
I agree; it is unclear from the pics I've seen. What they confirmed is that the center isn't offset like the Speedsource ones, hence there is not negative camber benefit to them, which is what I was after.
#137
No respecter of malarkey
iTrader: (25)
new set of the Speedsource LCA spherical camber bushings in the FS area for anyone who can use them:
https://www.rx8club.com/rx-8-parts-s...er-kit-244903/
https://www.rx8club.com/rx-8-parts-s...er-kit-244903/
#144
No respecter of malarkey
iTrader: (25)
You won't gain much for tire position over what you're doing now. You'll gain a bunch of tire clearance by raising it back up and then still being able to get the alignment where you want it. You'll also get better geometry & suspension dynamics. It's too low right now, your LCAs must have some serious angle in them at that ride height. Lots of bad juju going on there.
Working on a cost to have a run made. The one-off cost for the first set is probably more than most people will want to pay.
Working on a cost to have a run made. The one-off cost for the first set is probably more than most people will want to pay.
#145
BECAUSE RACECAR
iTrader: (10)
You won't gain much for tire position over what you're doing now. You'll gain a bunch of tire clearance by raising it back up and then still being able to get the alignment where you want it. You'll also get better geometry & suspension dynamics. It's too low right now, your LCAs must have some serious angle in them at that ride height. Lots of bad juju going on there.
Working on a cost to have a run made. The one-off cost for the first set is probably more than most people will want to pay.
Working on a cost to have a run made. The one-off cost for the first set is probably more than most people will want to pay.
#146
No respecter of malarkey
iTrader: (25)
Most people can't get anywhere near 3 deg front camber without lowering the ride height well below 13" as measured from the hub center vertically up to the fender lip. This is too low. I could only get 2.5 deg @ 13.5" and the control arm is a bit off level, but the ball joint is below the arm and is just about even with the LCA bushing centerline.
#147
Registered
Most people can't get anywhere near 3 deg front camber without lowering the ride height well below 13" as measured from the hub center vertically up to the fender lip. This is too low. I could only get 2.5 deg @ 13.5" and the control arm is a bit off level, but the ball joint is below the arm and is just about even with the LCA bushing centerline.
The bottom line is this: If you are on this thread and are seeking to make your have faster capabilities, proper ride height with offset bushings is one of the preferred ingredients. LOWERING the car to get your -3 is not. NOT. The front roll center does some absolutely nasty stuff when these cars get lowered. Google that to understand cuz I won't tell you what it means and don't PM me.
The second bottom line is this: If you are running a 225 or larger R compound tire and the track conditions you frequent provide a TON of grip AND you have already stiffened your suspension then you NEED more than -2.5 front and -2.0 rear. If your in this situation than your package is pretty fast however if your slammed to get there on camber YOUR GEOMETRY is holding you back----so raise the car, get some offset bushings and do it properly.
Last bottom line (I promise): While we are on the subject you'll want to read up as much as you can on "stiction". Lack of stiction is this: pull your front or rear wheel off, remove the shock and move your suspension up and down. If you can't budge it by hand then you have stiction and your shXt is all bound up and doesn't freely move. Learn how to fix this and your car will perform better.
Meyer out
PS Get the 5.12 ring and pinion. It is the secret to making these cars go fast on the track.
