BHR Ignition System: Results/Impressions
#26
#29
#30
Registered
Join Date: Aug 2005
Location: Ewa Beach, HI
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
First to answer Charles' question no I didn't disconnect the battery. Second I checked the resistance of the ground I used to the negative battery terminal and only got 1.2ohms so I'm pretty sure that's not it either. Also checked tightness of all connectors. I did however screw up the rear rotor wires and got them backwards. That is fixed now. So with the above stated my current situation is now the car will start about 50% of the time. It still however stuttered like crazy under boost on the map I was using ( MM's 1_5a for FI). Looking at the AP the AFR sticks nicely at 11.2 so I don't think fuel is the issue. I switched over to the new baseline tuning map and tried it under boost ( just for troubleshooting purposes). On this map the AFR sits right around 12.4 and the car stutters only slightly but still makes no power under boost. My next course of action is going to have to be to swap back to the stock coils and see if everything goes back to normal just to make sure that its something with the kit setup that's the problem.
#31
Registered
iTrader: (2)
Did you get the Electrical connections in the correct place? L1,T1,L2,T2. on the wire harness', did they click together? Did you change the spark plugs? Did you get the plug wire boot down on the spark plug fully. Did you hear it click? Try using the ground suggested on the fender by the brake booster.
#32
Zoom-Freakin'-Zoom
iTrader: (5)
if you ran the rear rotor wires backwards under boost, that is very bad.. it is proven.
beers
beers
First to answer Charles' question no I didn't disconnect the battery. Second I checked the resistance of the ground I used to the negative battery terminal and only got 1.2ohms so I'm pretty sure that's not it either. Also checked tightness of all connectors. I did however screw up the rear rotor wires and got them backwards. That is fixed now. So with the above stated my current situation is now the car will start about 50% of the time. It still however stuttered like crazy under boost on the map I was using ( MM's 1_5a for FI). Looking at the AP the AFR sticks nicely at 11.2 so I don't think fuel is the issue. I switched over to the new baseline tuning map and tried it under boost ( just for troubleshooting purposes). On this map the AFR sits right around 12.4 and the car stutters only slightly but still makes no power under boost. My next course of action is going to have to be to swap back to the stock coils and see if everything goes back to normal just to make sure that its something with the kit setup that's the problem.
#34
I'm thinking the something is not right with the plug wires. Either they are switched or not seated in properly. You have to shove them in pretty hard to get them to seat tightly.
#35
It's Not Easy Being Green
iTrader: (1)
Join Date: Apr 2008
Location: Akron, OH
Posts: 1,846
Likes: 0
Received 0 Likes
on
0 Posts
Install was a bigger PITA then expected but with Jon's help managed it around 4 hours. I'd call it a simple install - but not an easy install. Removing the throttle body would have sped it up. Also removing the big battery wire clipped on just next to the coils helped a ton. Tried putting on the small nuts over the OEM coil frame with that on and lost two nuts. Once we took that off it became significantly easier though still very difficult to thread the nuts on the OEM frame.

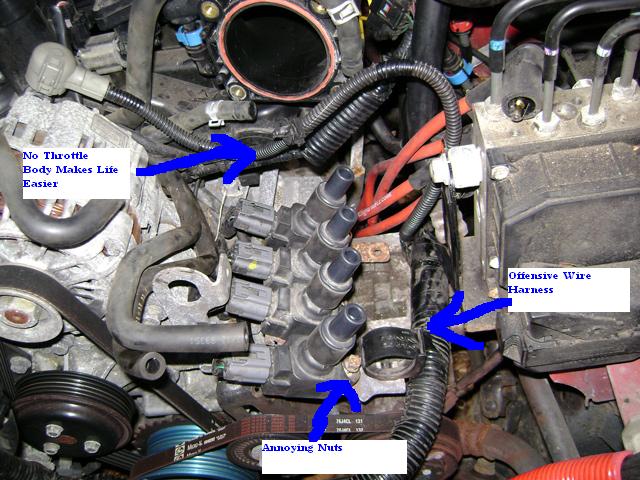

No pics of the after install but I ganked a pic from Jon's stock setup to show the offensive parts.
#36
Grasshopper
iTrader: (1)
Those four nuts holding the BHR coil bracket was the toughest.
Moving the wire loom out of the way helped to reach those nuts.
The graffiti pic RK drew all over is my car while I installed my coils.
I plan on taking a similar pic with the BHR coils installed using the same technique of removing the throttle body and moving the wire loom.
I know the instructions were to make things simple, but with removing as little as possible for the novice person.
If I can remove a couple items to make an install even easier, I'll take that route.
Moving the wire loom out of the way helped to reach those nuts.
The graffiti pic RK drew all over is my car while I installed my coils.
I plan on taking a similar pic with the BHR coils installed using the same technique of removing the throttle body and moving the wire loom.
I know the instructions were to make things simple, but with removing as little as possible for the novice person.
If I can remove a couple items to make an install even easier, I'll take that route.
#39
A video is probably an overkill but including a list of the needed tools, or suggested tools in an instruction booklet is a good idea. Like telling that reaching the leading plugs with the front wheel removed is way easier -> this is a "jackstand recommended":p
#46
Modulated Moderator
iTrader: (3)
I think that if people can't follow relatively simple clear instructions they shouldn't be doing it in the first place. At some point people need to assess there skill set and determine if it is really something that they can do or not
I'm all for DIY..and helping people work on there cars...but sometimes it is dangerous to the car and the person if they get in over there head......
This install is really 4 bolts, 4 plugs and 4 spark plug wires....and removing a few things to get access to it easily........ Problem is ...hooking them up wrong can kill the engine.............People need to ask themselves...is it worth the risk..and can I follow instructions to the letter
Ray...your job is doing the simple clear instructions
I'm all for DIY..and helping people work on there cars...but sometimes it is dangerous to the car and the person if they get in over there head......
This install is really 4 bolts, 4 plugs and 4 spark plug wires....and removing a few things to get access to it easily........ Problem is ...hooking them up wrong can kill the engine.............People need to ask themselves...is it worth the risk..and can I follow instructions to the letter
Ray...your job is doing the simple clear instructions
#47
Registered
iTrader: (2)
I've been a mechanic longer than a lot of you people have been alive. And the one thing that always sticks in my mind is what an old boss of mine told me.
"Always take more tools than you need to do the job"
If these DIY installers don't have the proper tools to do the job then they will have issues.
"Always take more tools than you need to do the job"
If these DIY installers don't have the proper tools to do the job then they will have issues.
#49
That's why telling the necessary tools will make them all ask to themselves, at least "have i got this?".
It probably won't be useful to most, but there's always an idiot ready to make harm to his engine (Don't look at me, please!)
It probably won't be useful to most, but there's always an idiot ready to make harm to his engine (Don't look at me, please!)
#50
Grasshopper
iTrader: (1)
Local guys can tell you that I insist they do the work themselves.
I may stand near to observe and offer tips on how to utilize some tools.
And it might take much longer than usual, but they gain that knowledge.
For BHR to come on here and almost poking fun at people having issues with the installation is the first time I've been disappointed in them.
We should be here to help even the most novice person and not make them feel like an idiot.
Sorry... rant over.
