I just picked up the car from Flatout Motorsports after having a new custom mid-pipe welded up.

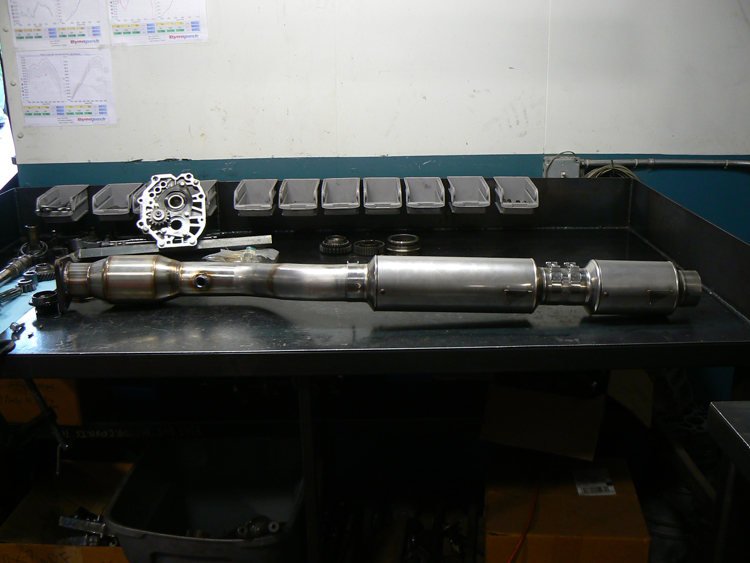

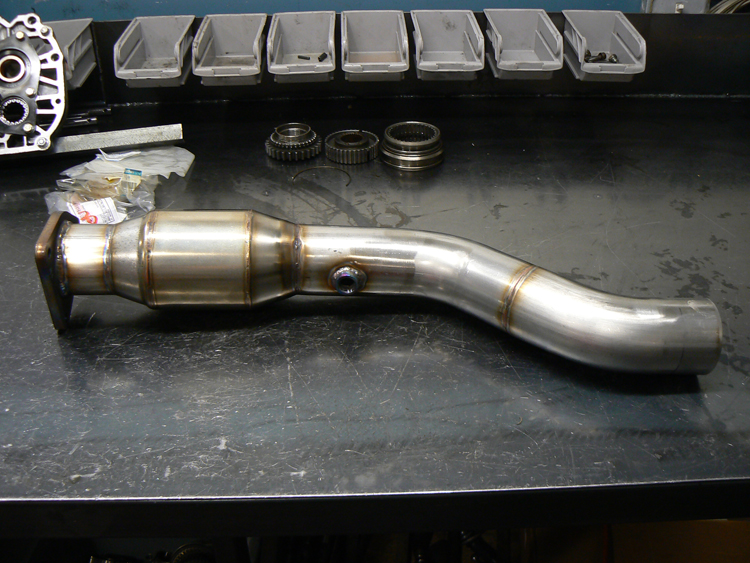

Here is the HJS cat. I saved a few bucks by buying it without the cones / transition pieces, so those were welded on at the shop.



Behind the cat are two Coast Fabrication mufflers. The first is packed with extreme temperature stainless steel mesh. The second smaller muffler is packed with slightly less beefy stainless steel "scrubble".

The second muffler is actually where the flange connecting the mid-pipe to the cat-back would normally sit. Removing that flange makes it a true 3" system, and it was a convenient place to put the second muffler.



You can see in the pictures that mufflers are clamped on rather than welded, which was the recommendation I received from Coast Fabrication. Among other things, this allows the mufflers to be removed with the exhaust still on the car if they should ever need to be repacked.

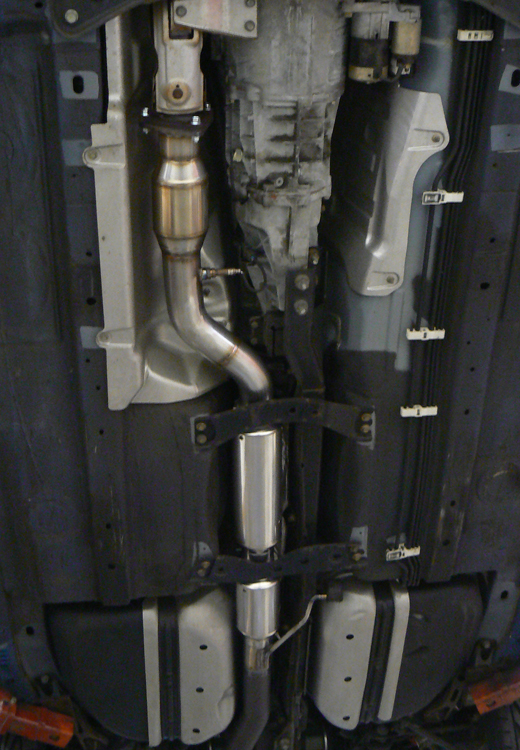

Here you can see what it looks like installed on the car. The second muffler is right where the flange would normally sit. This required cutting off about a foot of pipe from the Borla cat-back and relocating the hanger.

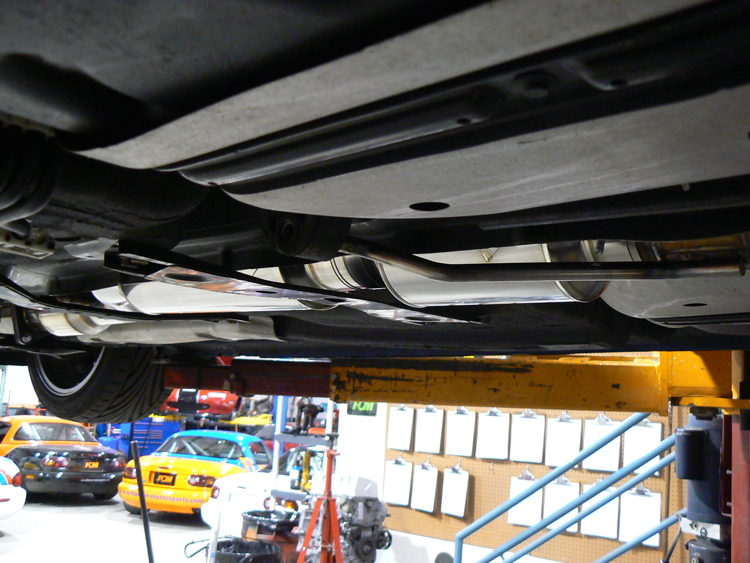

Here is a view from the side showing the ground clearance was not sacrificed:

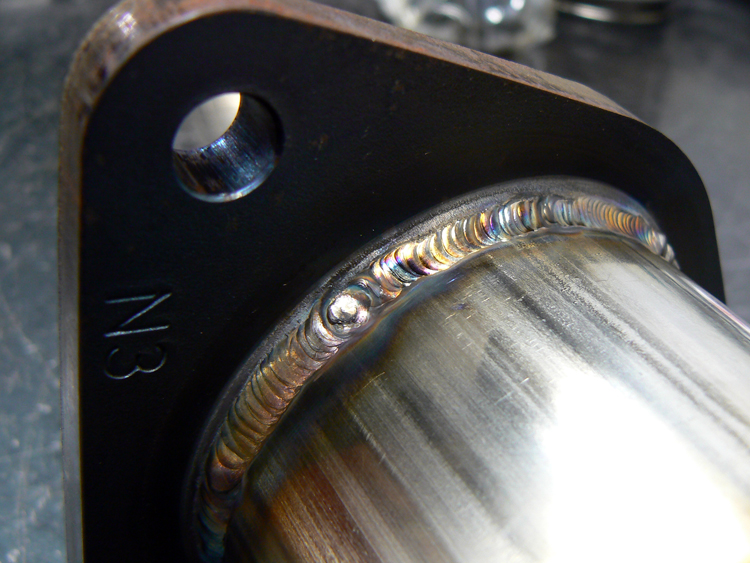

Here are some close-up pictures of the welds. Flatout Motorsports did a simply awesome job putting this together.







There is also an inconel heat shield installed on the cat, but unfortunately I did not think to snap any pictures.

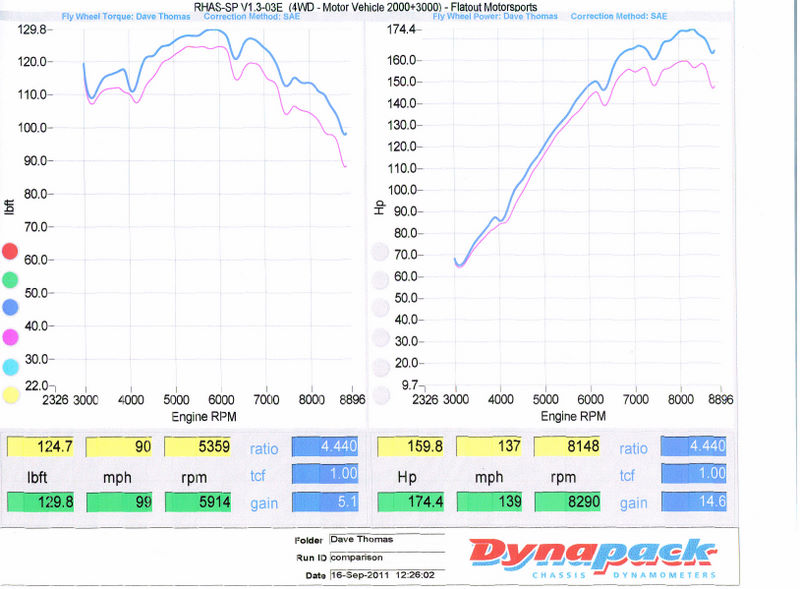

So, despite being way over-budget already, I couldn't help but have them strap the car to the dyno for a few before and after pulls.



The numbers are a bit on the low side, but the shape of the graph looks good, and the horsepower gain (+14.6) is awesome.

The sound is very different than before, despite keeping the same cat-back (Borla). It's also noticeably louder inside the cabin, but that is to be expected from the thin-walled Coast Fab mufflers. I'm taking it to an autocross this Sunday, so I'll get some feedback on how it sounds outside the car. I'll also put it to the test against our region's relatively strict sound limits.

Anyway, I've only driven it home from the shop so far, so it's too early to pass any final judgement on tone or volume. The hp gain and weight loss are what I was really looking for, and I am very pleased in that regard.
