Originally Posted by O'Renesis
That part is called the "Vacuum Chamber". It is part of the VFAD (air intake system). If you have the broken piece why don't you super glue it back together?
Can someone tell me what purpose this part exactly serves? I am not familiar with it and just know that's hooked up to the vacuum hoses and attached to the intake box.
Old 02-04-2007 | 04:01 PM
  #27
O'Renesis's Avatar
Registered

Joined: Jun 2006
Posts: 236
Likes: 0
From: Dublin, Ireland
The VFAD or Variable Fresh Air Duct is the air intake pipe. This pipe has 2 separate intake positions. If the main intake pipe is blocked the vacuum created opens a secondary air inlet. Hope that helps.
Old 02-04-2007 | 07:00 PM
  #28
PSUGreySreet's Avatar
Thread Starter
Registered User

Joined: Jul 2006
Posts: 336
Likes: 0
From: Elverson, PA

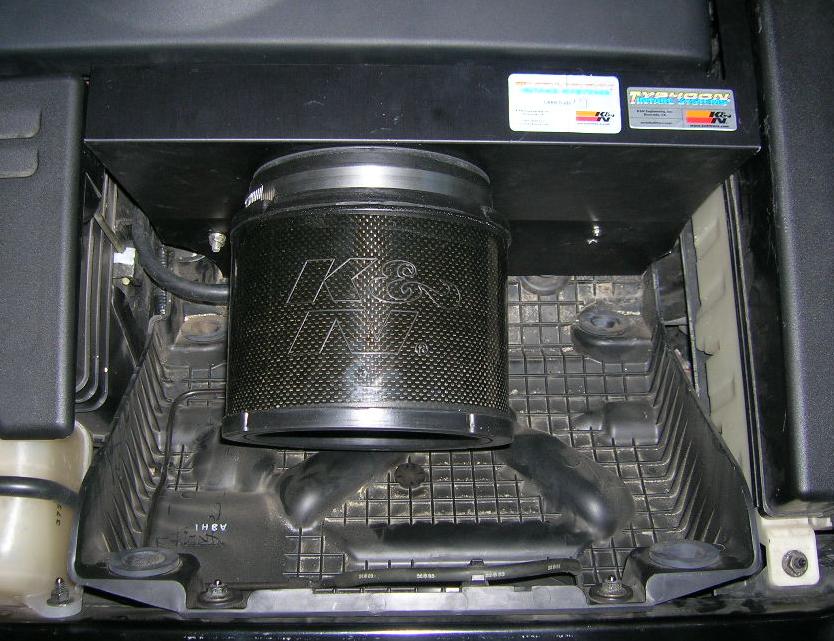

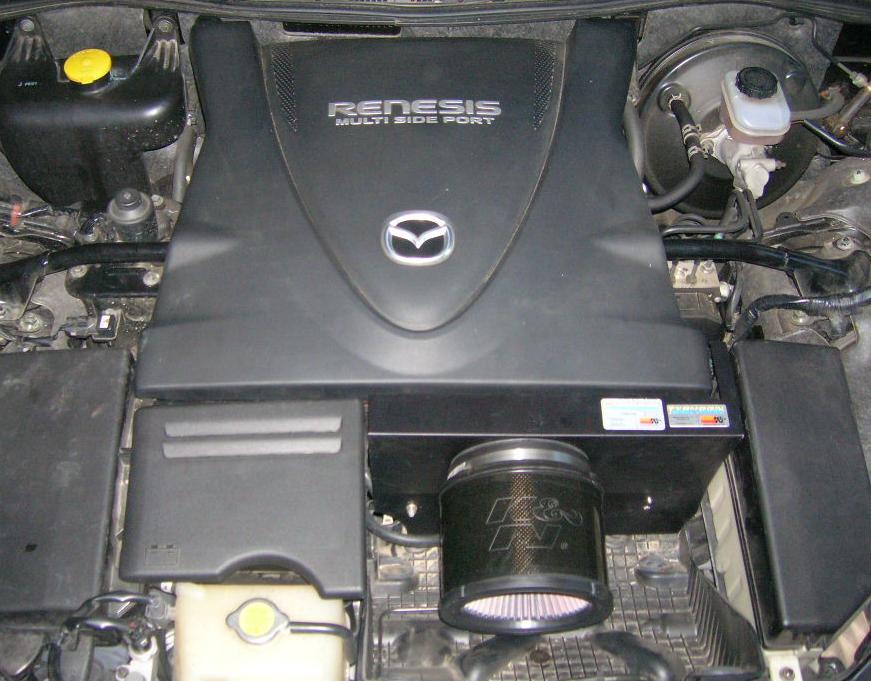

So after working through the weekend, bits of pieces of time for a couple days, I have the intake installed... I still need to go back over my engine bay and clean everything, but I wanted to take the car out for a spin before I came back to school...

I AM IN LOVE with the sound of this intake. It is sooo LOUD, but def. in a good way. My parents took me out for drinks on Sat. and they were driving beside me home and I let it rip out of one of the lights and they called me and said that the car sounded incredibly loud with their windows up... All in all, I am very satisfied... Thanks to all you fellow owners who helped me with my questions.
Attached Thumbnails K&N Typhoon Intake-dscn1546.jpg   K&N Typhoon Intake-dscn1548.jpg
Old 02-04-2007 | 08:40 PM
  #29
snipaz2420's Avatar
the bukkake master!

Joined: Apr 2005
Posts: 1,972
Likes: 1
From: Staten Island, NY
congrats on getting it done. im glad everything worked out and that you are happy with the end result. i remember when i first put mine in i couldnt get the smile off my face. i wasnt expectign it to be as loud as it was but i loved it. enjoy it!
Old 02-05-2007 | 07:13 AM
  #30
nycgps's Avatar
Out of NYC
iTrader: (1)

Joined: Jun 2005
Posts: 19,881
Likes: 32
From: Planet Earth
Oh that piece.

You dont need it, well I took mine out, and used some tape to sealed the tube that goes into the throttle body.

Nothing will go wrong.
Old 02-05-2007 | 07:48 PM
  #31
d j's Avatar
d j
hukbong himpapawid

Joined: Aug 2006
Posts: 689
Likes: 1
From: Schwedelbach, Germany
Originally Posted by nycgps
Oh that piece.

You dont need it, well I took mine out, and used some tape to sealed the tube that goes into the throttle body.

Nothing will go wrong.

^^^+1, 'cept I took all the hoses that'sconnected to it and capped the tube with a rubber vacuum cap.
Old 02-05-2007 | 09:06 PM
  #32
Keef's Avatar
the shit starter

Joined: Mar 2006
Posts: 673
Likes: 0
From: Houston
Have yall gone to K&N's site?

http://www.knfilters.com/search/prod...d=69-6030-1TFK

Says that it gains 10 hp at 8700 RPM...

weird...
Old 02-15-2007 | 02:27 PM
  #33
dgrx8's Avatar
FN GR8

Joined: Apr 2005
Posts: 423
Likes: 1
From: Miami
Originally Posted by Mazda-Rati
^Right, but instead of trying to fix it or going out ang buying a new vacuum cannister. I would just remove the bumper and pull out the VFAD unit. Also, follow the hose from the vacuum cannister to the connection that plugs in after the throttle body and remove that. Then, use something to cover that empty nipple.
i had been running around w/ the VFAD simply disconnected at the green connector but recently pulled the hoses out and capped the nipple behind the throttle body. it seems as if my 8 has been idling very rough since doing this. any reason why this would happen?
Old 02-16-2007 | 07:06 AM
  #34
Mazda-Rati's Avatar
the WANKEL made me do it

Joined: Apr 2005
Posts: 317
Likes: 0
From: Pittsburgh
If you have the K&N ver2 don't you have the VFAD still in place behind the bumper?

If so, I would put the hoses back to where they belong. The typhoon2 will have more than enough air with the VFAD still functional.

If you don't have the VFAD unit in place. Connect the hose into the the nipple behind the throttle body, Connect the cannister, connect the green connector to the seleniod and cap off the metal hose that is screwed into the airbox tray (or plug up the 4in hose connected to that).
Old 02-16-2007 | 07:34 AM
  #35
nycgps's Avatar
Out of NYC
iTrader: (1)

Joined: Jun 2005
Posts: 19,881
Likes: 32
From: Planet Earth
I just pull everything out. Left the Tube from the throttle body alone and tape shut it.

No idle problems since then.

I dont have VFAD
Old 02-16-2007 | 07:38 AM
  #36
mysql101's Avatar
⎝⏠⏝⏠⎠

Joined: Apr 2004
Posts: 8,625
Likes: 5
From: USA
Originally Posted by Mazda-Rati
If you have the K&N ver2 don't you have the VFAD still in place behind the bumper?

If so, I would put the hoses back to where they belong. The typhoon2 will have more than enough air with the VFAD still functional.

Correct - It's sucking in air from the hot engine bay, so it's not going to run out of air..
Old 02-16-2007 | 07:45 AM
  #37
nycgps's Avatar
Out of NYC
iTrader: (1)

Joined: Jun 2005
Posts: 19,881
Likes: 32
From: Planet Earth
it has a heatshield and once the hood is closed, it has very little space for hot air to crawl over. and when the car moves , theres no way hot air can even get in.

No match for AEM/MS CAI of course.
Old 02-16-2007 | 07:53 AM
  #38
mysql101's Avatar
⎝⏠⏝⏠⎠

Joined: Apr 2004
Posts: 8,625
Likes: 5
From: USA
I haven't seen the heat shield, so I can't speak about it, but the car can suck some serious air. Any opening that isn't sealed (like the stock box) will likely have air pulled. Path of least resistance ... so the choice is 1. over a close by unsealed area, or 2. through a long sock in the bumper, and around a 90 degree bend?

How much hot air it gets from it is a different matter, and on a NA car I don't think it'll matter much.
Old 02-16-2007 | 09:16 AM
  #39
dgrx8's Avatar
FN GR8

Joined: Apr 2005
Posts: 423
Likes: 1
From: Miami
Originally Posted by Mazda-Rati
If you have the K&N ver2 don't you have the VFAD still in place behind the bumper?

If so, I would put the hoses back to where they belong. The typhoon2 will have more than enough air with the VFAD still functional.

If you don't have the VFAD unit in place. Connect the hose into the the nipple behind the throttle body, Connect the cannister, connect the green connector to the seleniod and cap off the metal hose that is screwed into the airbox tray (or plug up the 4in hose connected to that).
i have the k&n ver2 w/ the VFAD still intact behind my bumper. i simply had it disconnected at the green connector.
what would be the reason to not remove all the hoses being that it's disconnected anyways? i figured i'd just get them all out since i'm going to be installing the rb duct in the near future...
Old 02-16-2007 | 09:24 AM
  #40
nycgps's Avatar
Out of NYC
iTrader: (1)

Joined: Jun 2005
Posts: 19,881
Likes: 32
From: Planet Earth
I have the RB duct, last time when I had my bumper off I should've just seal shut it so air from the radiator wont come up but it was freezing cold so I just changed my fog light and put it back on.

I think K&N tested their stuff with VFAD intact thats why they did not mention anything about the VFAD ?
Old 02-16-2007 | 10:37 AM
  #41
Rhythmic's Avatar
Laid back in the pocket

Joined: Mar 2006
Posts: 522
Likes: 0
From: Blacksburg, VA
^ to seal off that gap between the duct and the k&n you might try getting a rubber plumbing connector from your local hardware store. With some elbow grease, and maybe some foam weather stripping, you will effectively seal and extend the duct tube right in front of the air filter. thats what I did and it seems to work pretty well, and this can be done from the engine bay with no need to remove the bumber.
Old 02-16-2007 | 02:53 PM
  #42
Mazda-Rati's Avatar
the WANKEL made me do it

Joined: Apr 2005
Posts: 317
Likes: 0
From: Pittsburgh
^Does doing this quiet the intake down some?
Old 02-17-2007 | 12:51 PM
  #43
Rhythmic's Avatar
Laid back in the pocket

Joined: Mar 2006
Posts: 522
Likes: 0
From: Blacksburg, VA
No, I don't think that had any affect on the intake noise. Its really just to provide a more straight and consistent air flow from the duct to the filter (it will fill in the gap between the inner fender and the inlet hole)

Have thought about fabricating some sort of enclosure for the filter element though. The k&n makes so much noise/vibration, that it has caused an intermittent rattle behind my instrument cluster at high rpm (this might be the TSB for the plastic cowl cover that can rattle or squeak but haven't had in the shop to check yet, ANYONE ELSE HAVE THIS WITH THE K&N??)

Last edited by Rhythmic; 02-17-2007 at 12:56 PM.
Old 03-01-2007 | 04:25 PM
  #44
dgrx8's Avatar
FN GR8

Joined: Apr 2005
Posts: 423
Likes: 1
From: Miami
i have a little problem.. busted up my stock airbox screen that goes installed w/ the typhoon kit. i have it off for now til i can get a new one. anybody know where i can order one of these?
Old 03-01-2007 | 10:52 PM
  #45
coolme668's Avatar
Registered User

Joined: Nov 2006
Posts: 22
Likes: 0
nice intake, sounds like an exhaust lol i love it.
Old 03-02-2007 | 11:22 AM
  #46
dgrx8's Avatar
FN GR8

Joined: Apr 2005
Posts: 423
Likes: 1
From: Miami
bump for a new air screen...
anyone?
Old 03-02-2007 | 12:29 PM
  #47
Mazda-Rati's Avatar
the WANKEL made me do it

Joined: Apr 2005
Posts: 317
Likes: 0
From: Pittsburgh
2 screens came with the stock one. Just use that one
Old 03-02-2007 | 01:28 PM
  #48
dgrx8's Avatar
FN GR8

Joined: Apr 2005
Posts: 423
Likes: 1
From: Miami
Originally Posted by Mazda-Rati
2 screens came with the stock one. Just use that one
yeah... that's the problem... i got rid of the stock box so i have no more screens available.
i've been running around w/ my k&n typhoon 2 unscreened now... seems to be fine just idling a little rougher. is there anything really detrimental about now having the screen in place? i mean i don't feel any negative performance...
Old 03-03-2007 | 03:46 PM
  #49
Mazda-Rati's Avatar
the WANKEL made me do it

Joined: Apr 2005
Posts: 317
Likes: 0
From: Pittsburgh
I've read on here that a few have gone without screens using the RB intake with no ill effects. If your not having idle problems or stalling, I wouldn't worry about getting a new screen. All it's there for is to smooth out the airflow across the MAF.
Old 03-03-2007 | 08:12 PM
  #50
dgrx8's Avatar
FN GR8

Joined: Apr 2005
Posts: 423
Likes: 1
From: Miami
Originally Posted by Mazda-Rati
I've read on here that a few have gone without screens using the RB intake with no ill effects. If your not having idle problems or stalling, I wouldn't worry about getting a new screen. All it's there for is to smooth out the airflow across the MAF.
thanks for replying...
would the unsmooth airflow cause my MAF to lean or richen the mixture at all? i'm just not sure as to how much this screen really does... it seems to be a pretty big deal w/ the 8's intake system... so much so that all aftermarket kits have called for its use as well... i just wanna make sure it's cool. if it's just gonna cause a little rougher idle... i can deal w/ it... being that they say each screen robs 1hp from our 8's
