Hi guys,
I need some signals for my wbO2 unit....

I have located most of the signals/wires but I canīt find the source for the GREEN wire... Can you help me out here?

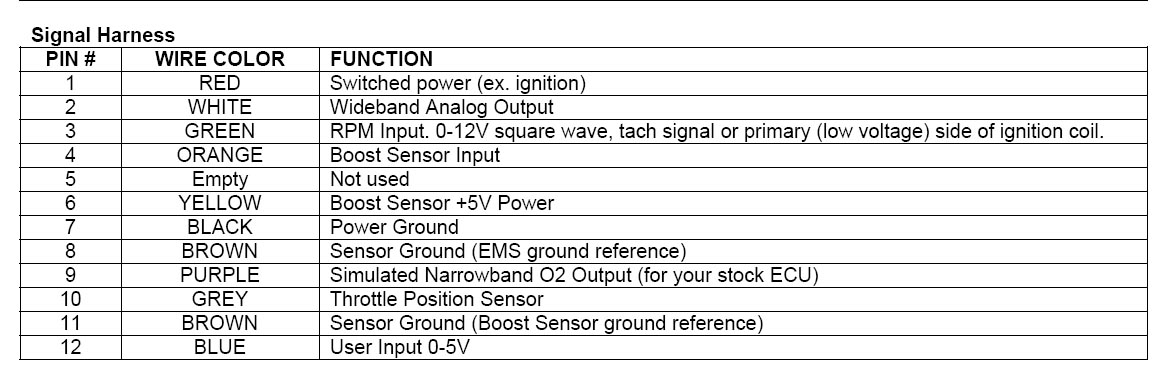

If you know any of the other wires/colors please feel free to post it (then I know for sure if I did it correct)...



Easiest place to tap it is at the ecu. Just look on the wiring diagrams for the rpm wire. If you can't find it I'll look when I get home tonight.



The signal wire for the leading plug ignition coil is the green one of the three in the connector. Or you could tap in at the ECU, in the largest of the ECU plugs, it is the only all green wire.
I can't tell you if the signal you get will be good enough for your wideband, nor if tapping into that signal will fry anything,
....but then, that's NMFP.

S

(....not my_____problem.)



Since you have the Greddy kit, just tap the rpm wire off of the rpm extractor dongle.



Yeah,, Of course I didnīt throw that paper away saying which dongle it is, or what wire. I have 3 dongels so any helt there would be appreciated..
Iīm stating to sound like a pain in the a**...



...found it. Thanks for the help guys, I have located all the signals now. Time to put the Zeitronx unit to work.
