Symptoms of a plugged sock are a steady loss of power during or after a long
steady hill climb or high speed run. The sock pores slowly get plugged by loose
pieces of dirt, and the problem disappears for a while after simply stopping for
lunch or fuel. Note - This condition will NOT post a Check Engine light, or store
a trouble code for the Mazda dealer's computer to read, so if you experience it, you are pretty
much on your own, unless you can convince the mechanic to take some basic troubleshooting steps......

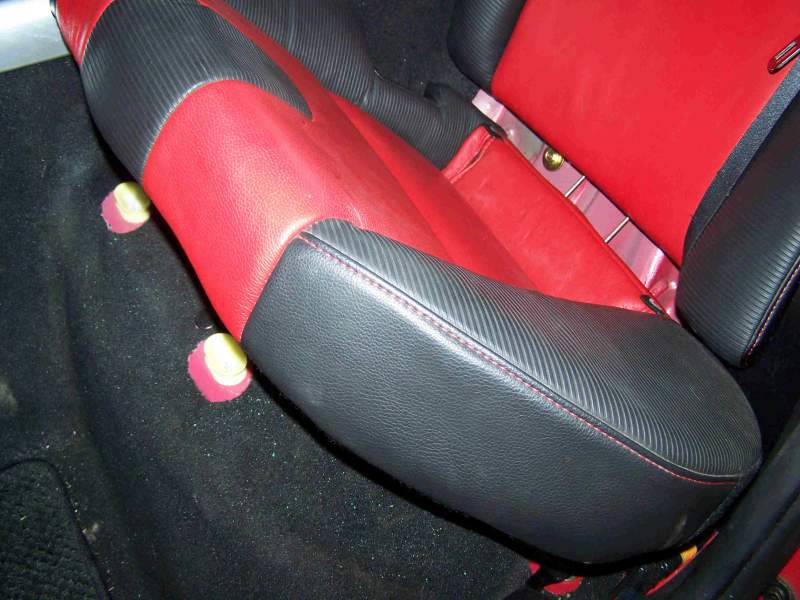

First remove the rear drivers side seat bottom - again, easier than it sounds -
lift the front firmly and it pops out of its clips, then just lift it out, three
seconds, tops.

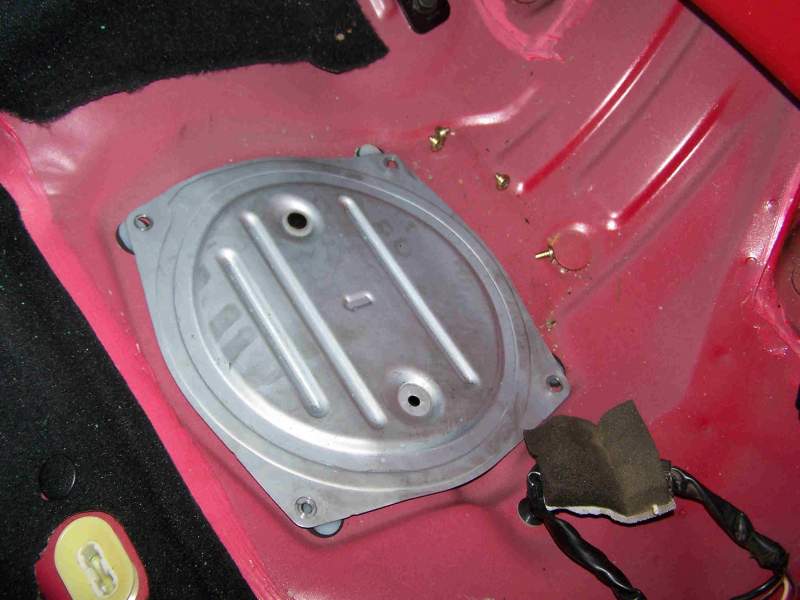

Four philips head screws hold the access panel on, put it aside.


S



The only slightly difficult part is removing the plastic ring that holds the
pump in place. The technique is to gently hammer a large flat screwdriver against the tabs of the ring, counter-clockwise (yes, lefty-loosey!)
It's very tough plastic and can take the beating if you distribute the force
around the tabs.


Here is the re-install section from the factory manual -
Fuel Pump Cap Installation Note
1. Align the fuel pump unit alignment marks and the retainer notch as shown in the figure.


2. Align the positions of the cap and retainer as shown in the figure, and tighten them one full rotation by hand.


• If the retainer and cap cannot be tighten by hand, remove the cap, verify that there is no damage or misalignment on the retainer and cap, and then tighten again.
Caution
• The cap could be damaged if the SST is used with any play between the cap and the SST. Securely attach the SST so that there is no gap between the SST tabs and the side of the cap.
3. While keeping the alignment mark and the retainer notch aligned, tighten the cap to the rotation angle and specified torque using the SST.

• If the specified torque cannot be obtained even when the cap is rotated to the specified rotation angle, replace with a new cap and retainer and repeat Step 3.
Rotation angle
50-140°
(Total angle for Step 2 and Step 3 is 410-500°.)
Cap tightening torque
80-135 N· m {8.2-13.7 kgf·m, 59-99 ft·lbf}

Can't get the pics to copy, however you just align the mark on the lid with the mark on the tank that says 'start' then rotate it thru at least a turn-and-a-quarter, nice and snug.

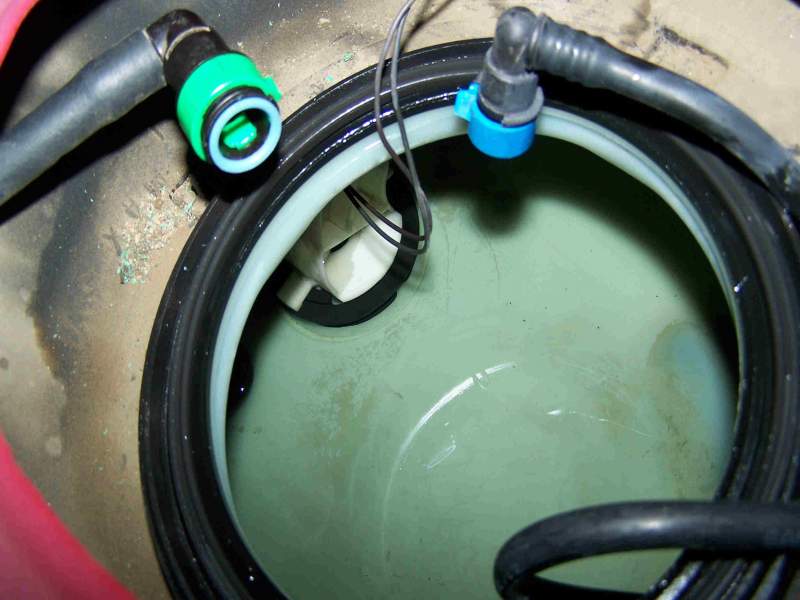

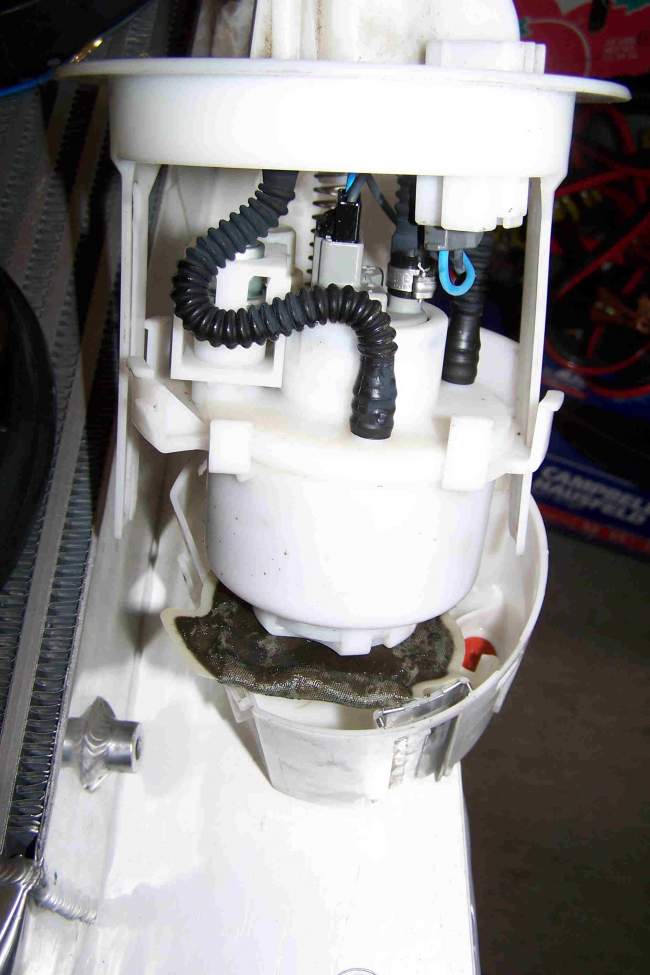

One wire connector and two fuel pipes to unplug, then the whole assembly lifts
out. The pump housing has one-way valves at the bottom, which means that the
tank itself is really clean - all the debris and flotsam get sucked into the
housing, and then trapped by the sock.

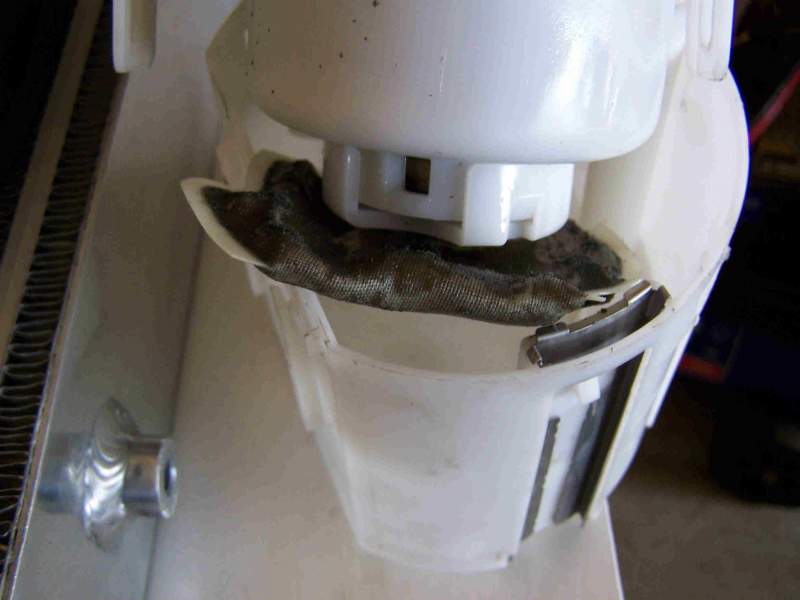

These sliders unclip to reveal the dirty sock, which just pulls off. A blast of
brake cleaner/contact cleaner/compressed air will get the crap out. It would be
difficult to damage with solvents - it lives in gasoline.....
Reclip, attach wires and hoses and put the ring back in place. If you ever
intend to repeat the cleaning, a dab of grease on the threads and 'O' ring will
make it so much easier next time. You don't want to buy a new ring, they're
(shockingly) expensive.
