DIY: Radar Detector hard wired installation
#101
Just a tip, in VA, the state police have radar detector detectors. My brother is a cop and loves pulling people over for speeding and then seeing the dumb look on their face when he asks for the detector and takes it. Just wanted to warn anyone traveling in VA.
#102
Senior "Member"
Join Date: Nov 2003
Location: Kallyforniiya
Posts: 613
Likes: 0
Received 0 Likes
on
0 Posts
I hear they're illegal only in VA and DC, right? I also hear that V1s leak a lot less radiation than most; they MAY be invisible to the police; I'm not sure. I know they have a nice, beefy magnesium case.
#103
Registered User
Join Date: Jul 2004
Location: Palm Beach, FL
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
WHealy...nice installation...am getting an escort and wish to mount it where inspection sticker would usually go (none here in FL). Was the removal of the trim above fuse box difficult? how was it achieved? tnx
#104
Senior "Member"
Join Date: Nov 2003
Location: Kallyforniiya
Posts: 613
Likes: 0
Received 0 Likes
on
0 Posts
If I'm understanding your question, you don't need to remove anything but the cover of the fuse panel to do the job. There's already an opening behind the panel through which you can feed the wire.
#105
Registered User
Join Date: Jul 2004
Location: Palm Beach, FL
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
Thanks so mcuh for that tip Hard8...that sounds like an elegant solution. I'm rather opposed to doing any drilling cutting etc. not from an expertise standpoint but from a purist one. Do you think that the escort 8500 xp50 is a good choice? Do you think my mounting location is viable (performance wise)? I've not owned a detector, don't overly speed, but am concerned mostly when traffic is moving along at 80 in a 65 on the FL tpk and I just don't want to be the unlucky one. PS...they don't use laser I'm told in FL. Thanks again
#106
RX8-Nuendo3 Life is Good
Join Date: Feb 2005
Location: Olney, MD
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
![Thumbs up](https://www.rx8club.com/images/icons/icon14.gif)
Originally Posted by Ajax
great guide. Pulling the map lights out was pretty hard but not too bad. I put the accessory box up inside as well since I don't have the remote display.
Here's a few pics of the final install:
Here's a few pics of the final install:
Thanks for this great post!!!
#107

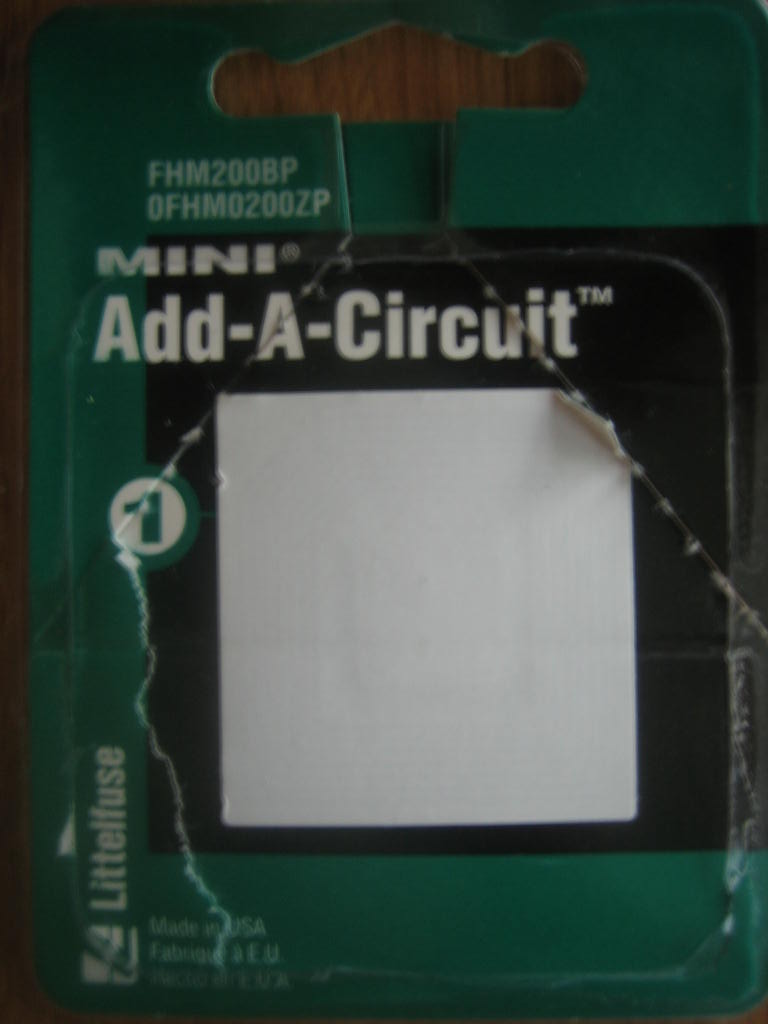

Fuse Adapter Packaging
Thanks to Hard 8 for the find on the fuse adapter. I had no idea such a thing existed. I couldn't find these at Advance Auto, but did find them at Pep Boys as Hard 8 had mentioned.
I had a little trouble finding what I was looking for (since I wasn't sure what they looked like).
Attached are some pics of the packaging card (didn't think about taking the pics until it was already installed).
Hope this helps.
PS - I think Mazda had hard wiring radar detectors in mind with the way they aligned the trim along the path between the fuse box and rear view mirror...the Valentine power cord slipped right in there.
I had a little trouble finding what I was looking for (since I wasn't sure what they looked like).
Attached are some pics of the packaging card (didn't think about taking the pics until it was already installed).
Hope this helps.
PS - I think Mazda had hard wiring radar detectors in mind with the way they aligned the trim along the path between the fuse box and rear view mirror...the Valentine power cord slipped right in there.
Last edited by jkeown; 05-20-2005 at 11:43 AM.
#108

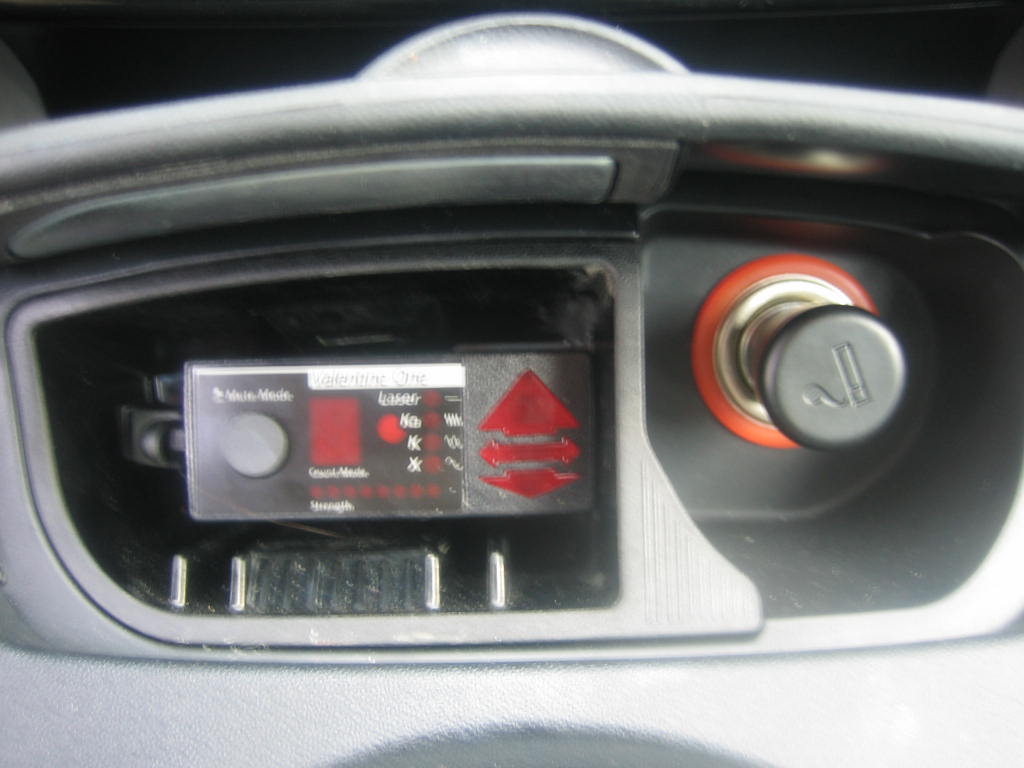

Another good place for the remote display

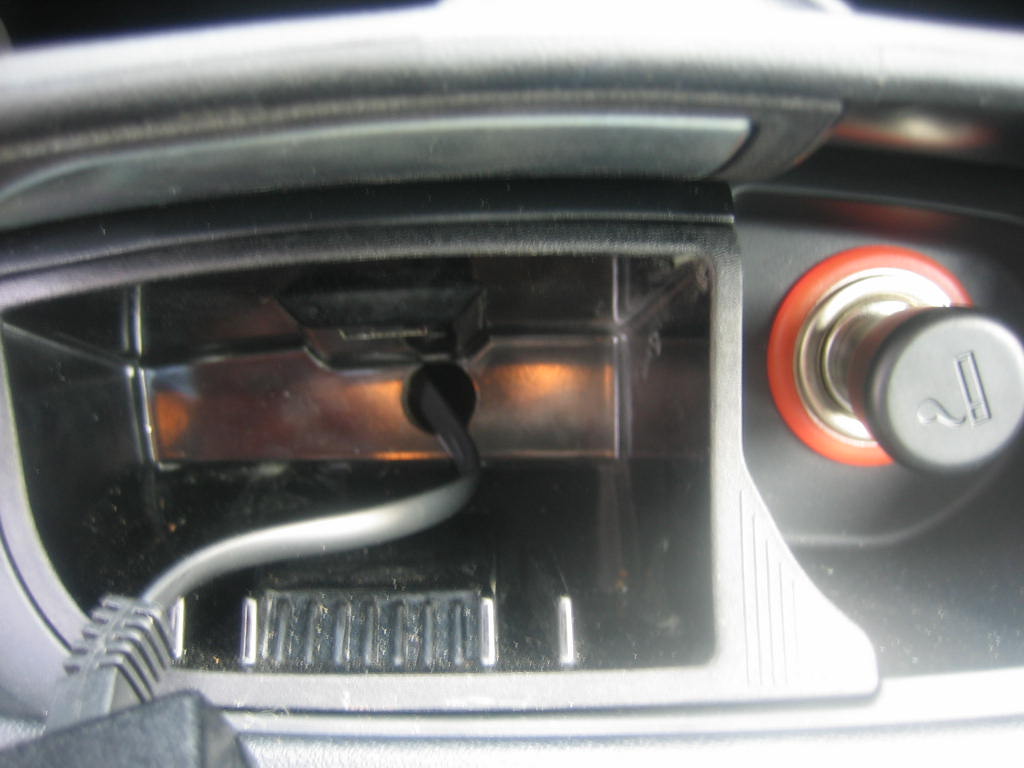

You gotta drill through your baby, but it fits in there nicely. The remote display fits in there so well, I don't have anything mounting it. Sits in the ash tray like it was designed for it...
#110
Originally Posted by jkeown
You gotta drill through your baby, but it fits in there nicely. The remote display fits in there so well, I don't have anything mounting it. Sits in the ash tray like it was designed for it...
Your detector goes off and your eyes naturally jump to the speedo - if you mount the remote display on top of the column or somewhere close by you can check your speed AND access the threat with a single glance. Having to check the speed, glance down, look back up, look back down - not as nice.
Better (stealthy) place to put the display, but worse (usability) location. IMHO.
Dennis
#111
Registered User
Join Date: Jun 2005
Location: Bellevue, WA
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
Great DIY! I installed mine a couple days ago, and now it looks excellent. I didn't have to buy anything extra; I used alsmost everything that came with the V1. There's enough room up there to stuff the super long black telephone cable. I routed the telephone cable behind the powermirror's connector, and it looks like a million bucks. I set the V1 above the powermirror. The powermirror is double jointed, so lower it a little and set the V1 on the dotted area. Placement is perfect for peripheral vision of the V1 display, so is access to the unit, and the black dots don't seem to affect detection range.
#112
I installed my V1 above the rear view mirror and the concealed display in the HU trim plate. It was OK but during the night I couldn't see the mute button and had hard time identifying which band led is active. So I came up with this-installed a couple of blue LED's covered with fabricated reflector. Works great and matches the instrument cluster blue LED's to.
Night
Day
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Night
Day
#113
Originally Posted by nijelSC
I installed my V1 above the rear view mirror and the concealed display in the HU trim plate. It was OK but during the night I couldn't see the mute button and had hard time identifying which band led is active. So I came up with this-installed a couple of blue LED's covered with fabricated reflector. Works great and matches the instrument cluster blue LED's to.
Night
Day
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Night
Day
#115
Registered
iTrader: (6)
Join Date: Mar 2005
Location: Baltimore, MD
Posts: 663
Likes: 0
Received 0 Likes
on
0 Posts
Escort Passport 8500 X50 Hardwire w/Smartcord
Hey guys,

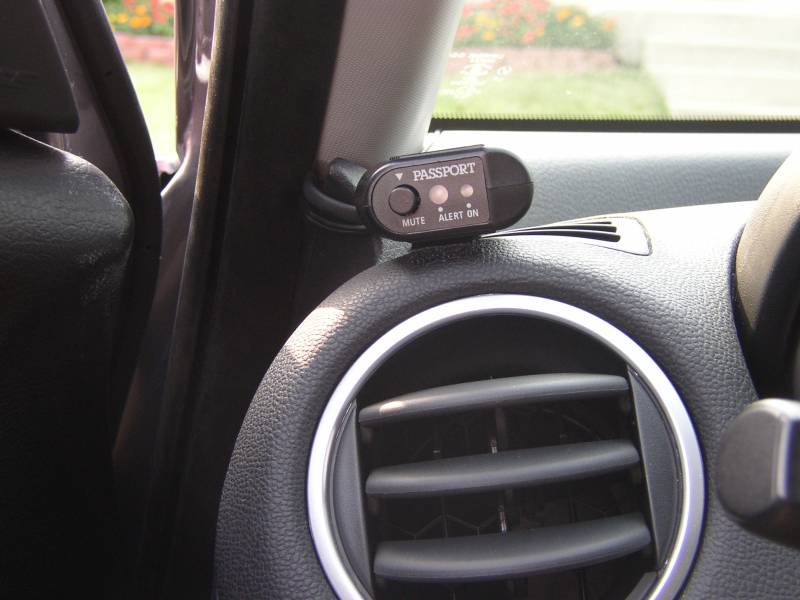

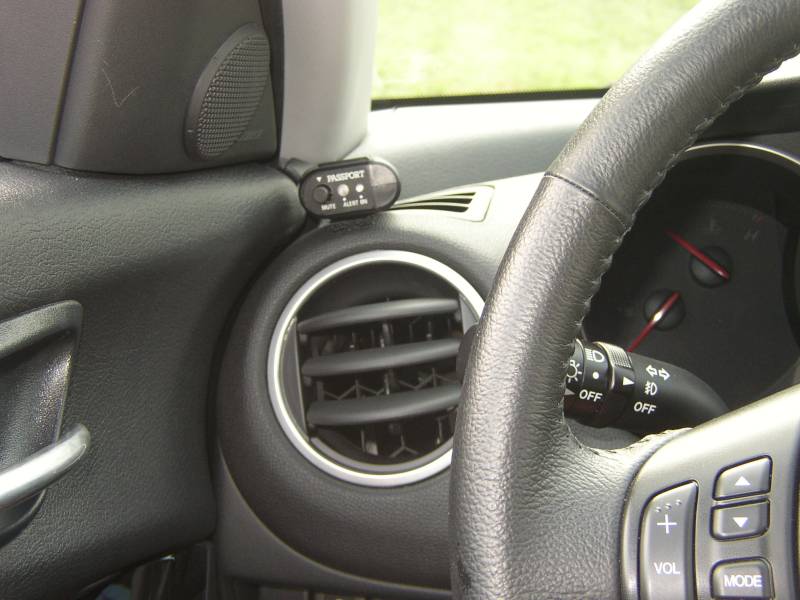

I didn't see anyone post pics of an X50 directwire install with the smartcord, so I thought I'd post a couple pics of mine (the exception being the guy who installed it under the volume ****). I've included a shot of the smartcord placement, and one showing the wire routing. This was really the only place I could see to mount it without cutting into the dash or removing a lot of dash pieces, and also so you wouldn't be able to see wires. As others have done, I used a fuse adapter which worked great.
I didn't see anyone post pics of an X50 directwire install with the smartcord, so I thought I'd post a couple pics of mine (the exception being the guy who installed it under the volume ****). I've included a shot of the smartcord placement, and one showing the wire routing. This was really the only place I could see to mount it without cutting into the dash or removing a lot of dash pieces, and also so you wouldn't be able to see wires. As others have done, I used a fuse adapter which worked great.
#116
Registered
iTrader: (6)
Join Date: Mar 2005
Location: Baltimore, MD
Posts: 663
Likes: 0
Received 0 Likes
on
0 Posts

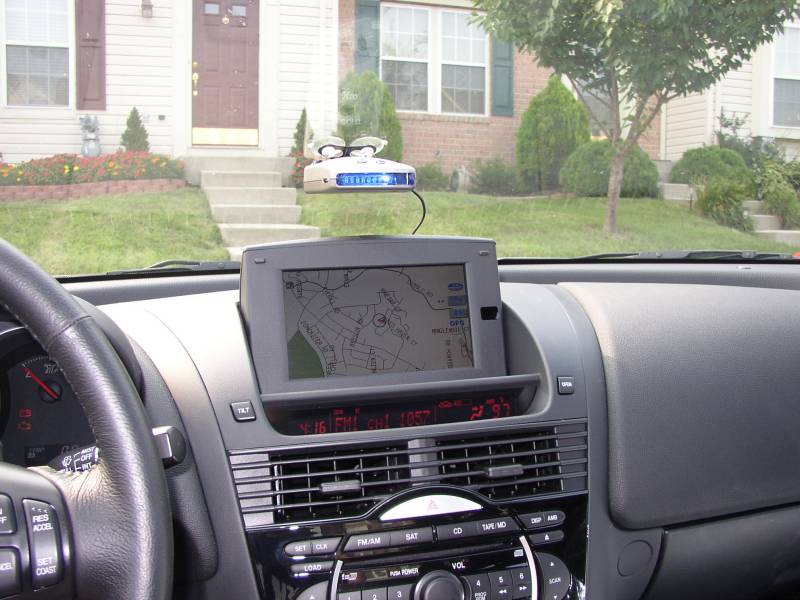

And here are two pics of the detector placement. I was thinking of putting it up near the rearview, but I'm not quite sure yet if I want it way up there. The wire coming up from the dash isn't the cleanest, but it really doesn't look too bad... especially when the NAV screen is up.
Last edited by Olorin2; 07-25-2005 at 04:35 PM.
#118
Registered
iTrader: (6)
Join Date: Mar 2005
Location: Baltimore, MD
Posts: 663
Likes: 0
Received 0 Likes
on
0 Posts
rotor_man: Sorry for the late reply. I just used a piece of the velcro that came with the smartcord. I'd like to use something different, because the velcro is too flexible on the small surface area and the thing moves around a lot.
Btw, I've since moved my detector up to just under the rearview mirror. It was very easy to run the cable up the weather stripping, A-pillar and across the roof lining. Plus, I get a little better radar detection now.
Btw, I've since moved my detector up to just under the rearview mirror. It was very easy to run the cable up the weather stripping, A-pillar and across the roof lining. Plus, I get a little better radar detection now.
#119
Direct-Wire Power Adapter Kit
Item 00030
Direct-wire power adapter (Item 20305) and a Straight power cord (Item 20311) together at a reduced price.
is this the right thing to get if i want to hardwire like the DIY states?
Item 00030
Direct-wire power adapter (Item 20305) and a Straight power cord (Item 20311) together at a reduced price.
is this the right thing to get if i want to hardwire like the DIY states?
#120
Originally Posted by LiL BenNy
Direct-Wire Power Adapter Kit
Item 00030
Direct-wire power adapter (Item 20305) and a Straight power cord (Item 20311) together at a reduced price.
is this the right thing to get if i want to hardwire like the DIY states?
Item 00030
Direct-wire power adapter (Item 20305) and a Straight power cord (Item 20311) together at a reduced price.
is this the right thing to get if i want to hardwire like the DIY states?
A new V1 should come with both of these items - the direct power tap and a couple of non-coiled cords. Did you not get these with yours?
That is what you use to hard-wire a V1, but you should not have to pay extra for them - unless you are hard-wiring more than one car. You need the remote display ($39 and includes another 8' cord and a 3" cord) as well to really make the install slick. Mine is Velcro'd on top of the steering column where I can glance an it easily.
Dennis
#121
i got my used and only came with cig liter so i just want to doubt check if thats teh right item before i purchase it
heres the parts list link
https://store.valentine1.com/store/d...gory=partsdept
i just recieved my radar today so i wanna get this installed asap so once im positive of the parts i need im gonig to place my order.
heres the parts list link
https://store.valentine1.com/store/d...gory=partsdept
i just recieved my radar today so i wanna get this installed asap so once im positive of the parts i need im gonig to place my order.
#122
As long as you have a fairly current V1, then that is what you need. Get that kit (hard wire adapter and 8' cable) and then go ahead at spend the $39 for the remote display. That is what makes it sweet!
Direct-Wire Power Adapter Kit
Item 00030
Mount the V1 up above the mirror and it about can't be seen from behind and will be totally dark (with the remote display). You can also drop down the sunglass holder door to completely concel the detector (but would block rear laser).
Dennis
Direct-Wire Power Adapter Kit
Item 00030
Mount the V1 up above the mirror and it about can't be seen from behind and will be totally dark (with the remote display). You can also drop down the sunglass holder door to completely concel the detector (but would block rear laser).
Dennis
#125
the stig is my hero
Join Date: Feb 2006
Location: NC
Posts: 701
Likes: 0
Received 0 Likes
on
0 Posts
Hey guys, I have a Uniden radar detector that was given to me, and I can't really justify getting a V1. Currently it is powered by the curly cord that came with it, which plugs in with a standard round connector to the unit. I have it suction-cupped to the winsheild under the mirror, with the cord tucked around the center console plastic, and eventually into the cig lighter. It's really ugly, and requires that my lighter door is partway open all the time. Any ideas on how to get this hooked up to some power in a less hideous way?
