DIY: Side-marker "Clear Corner Lights" Installation
#151
Originally Posted by G-ReX
BTW, I was speaking to a patient (who is a cop) about car mods. I asked about the corner markers. He checked with the traffic enforcement guys and they said they'd let the clear corners go if the light was amber. He said they tend to go after those valve stem and windshield washer lights or lights that are off legal colors (like white corners). It looks like federal regs specify amber lights and reflectors at the corners, hence the lights that came on the cars.
For instance, I can have white front turn signals, white clear corner (white corners and white, specifically super-white, bulbs) in the state of Minnesota. In fact there are virtually no regulations regarding lighting in the state of minnesota, most of it has to do with Emergency vehicles, trucks, and RVs.
When it is referring to lighting it states to follow what the Commisioner of Public Safety mandates, the problem is the Commissioner never mandated anything after the regulations were passed in the 60s and 70s...so most things are up in the air.
Up in the air=challengable in court of law :D
I even spoke to the DMV and the Commisioner of Public Safety's office to verify my findings...I thought I'd be wrong (and even laughed at) but shockingly I was right!
#152
A Torque-Free Zone
Join Date: Oct 2004
Location: Virginia Beach
Posts: 859
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by truemagellen

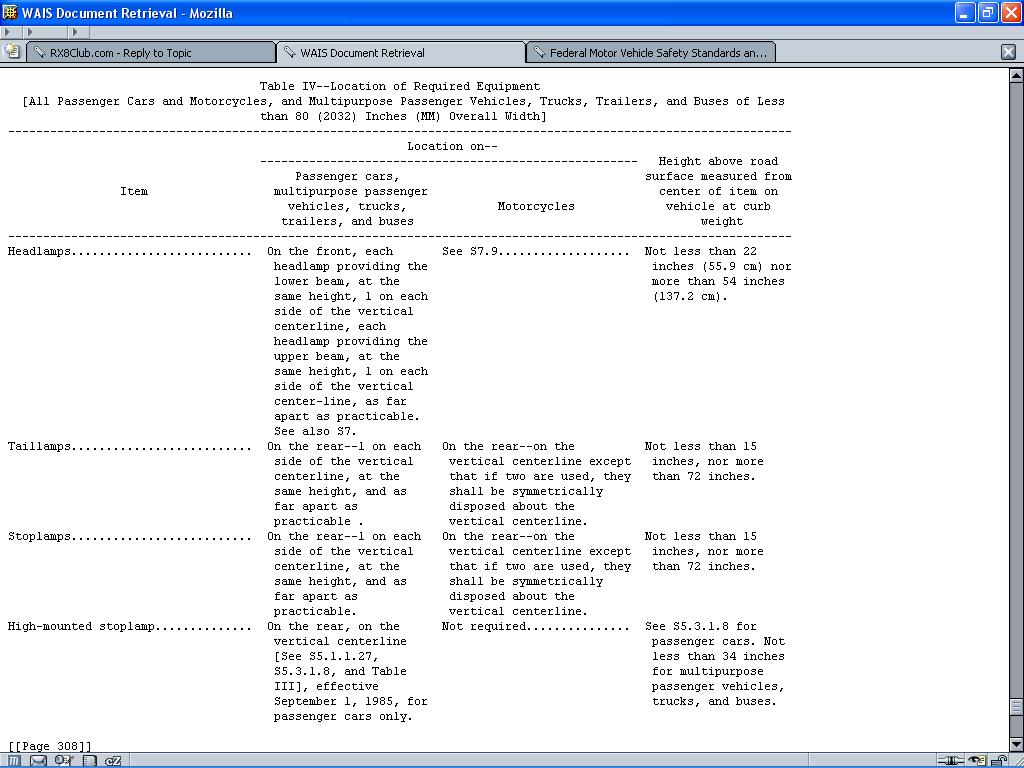

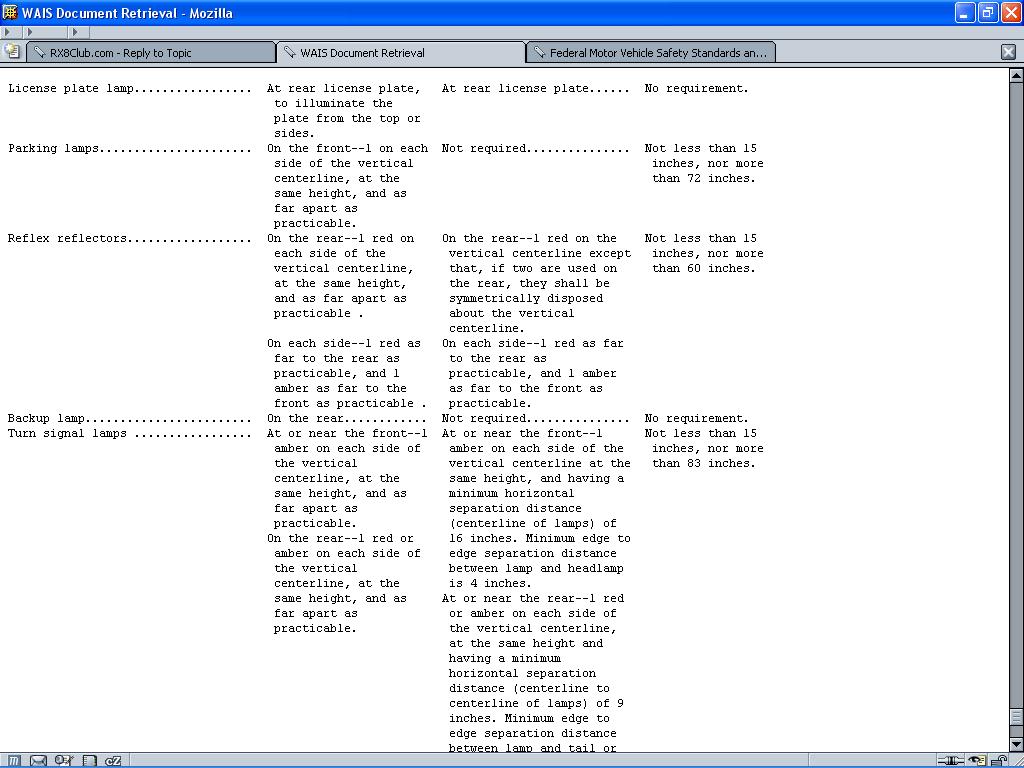

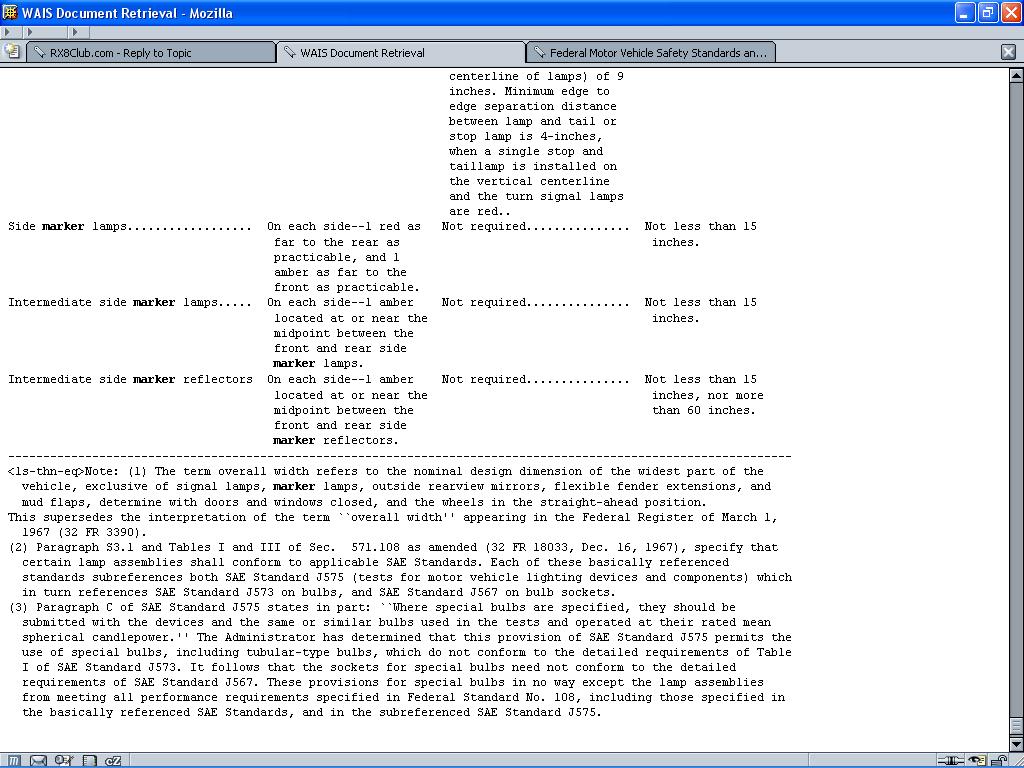

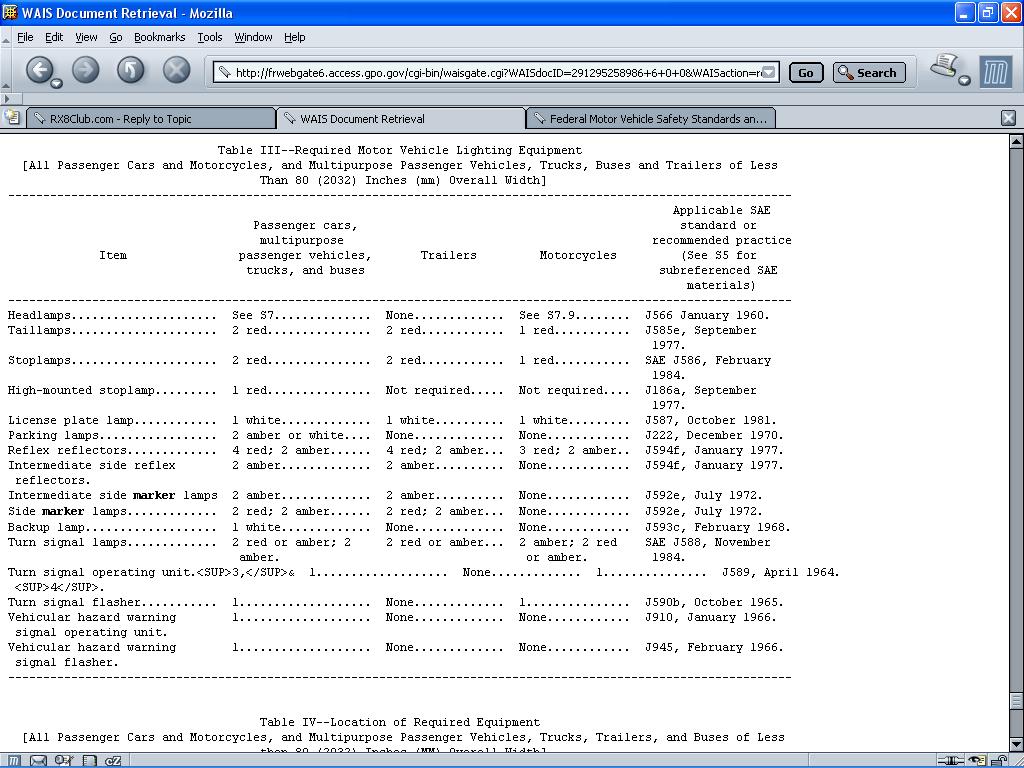

FYI...there are no federal regulations regarding lighting on your car. There are federal recommendations. This is why there is such a variance state to state, because not all state Regulations follow the federal Recommendations.
It's mostly about headlights (hard to believe you can even make a car with all the regs), but it does address all lighting & reflectors. Here's some selected preliminary info:
Sec. 571.108 Standard No. 108; Lamps, reflective devices, and associated equipment.
S1. Scope. This standard specifies requirements for original and
replacement lamps, reflective devices, and associated equipment.
S5.2.1 The words ``it is recommended that,'' ``recommendations,'' or
``should be'' appearing in any SAE Standard or Recommended Practice
referenced or subreferenced in this standard shall be read as setting
forth mandatory requirements, except that the aiming pads on the lens
face and the black area surrounding the signal lamp recommended in SAE
Standard J887, School Bus Red Signal Lamps, July 1964, are not required.
S1. Scope. This standard specifies requirements for original and
replacement lamps, reflective devices, and associated equipment.
S5.2.1 The words ``it is recommended that,'' ``recommendations,'' or
``should be'' appearing in any SAE Standard or Recommended Practice
referenced or subreferenced in this standard shall be read as setting
forth mandatory requirements, except that the aiming pads on the lens
face and the black area surrounding the signal lamp recommended in SAE
Standard J887, School Bus Red Signal Lamps, July 1964, are not required.
#153
Registered
The wording "side marker lamps" and "amber" is confusing to me. (And PA has the same wording, BTW.) Does this wording mean if the clear side markers illuminate in an amber color, they would be considered legal? I suspect this wording would be open to interpretation by the person doing the inspection. What do you think?
#154
Originally Posted by G-ReX
Here's a link to the DOT regs: http://frwebgate6.access.gpo.gov/cgi...ction=retrieve
It's mostly about headlights (hard to believe you can even make a car with all the regs), but it does address all lighting & reflectors. Here's some selected preliminary info:Cut and paste didn't work well for the tables (they are at the very end of the regs), so I did screenshots. Note that intermediate markers/reflectors are only required if the vehicle is over 30ft.
It's mostly about headlights (hard to believe you can even make a car with all the regs), but it does address all lighting & reflectors. Here's some selected preliminary info:Cut and paste didn't work well for the tables (they are at the very end of the regs), so I did screenshots. Note that intermediate markers/reflectors are only required if the vehicle is over 30ft.
also look at your state regs/legislation on these things, that is all that matters
even listening to a police officer is not needed since it is impossible for them to know all the state regs...and you can challenge it in court if it isn't in the state regs.
good luck guys!
#155
A Torque-Free Zone
Join Date: Oct 2004
Location: Virginia Beach
Posts: 859
Likes: 0
Received 0 Likes
on
0 Posts
truemagellan, after I looked again through Virginia code, I guess you're right. The code does list what lights you're allowed to have and thus excludes extra lighting, but doesn't address the markers. The inspection rules here refer back to "approved lights" & "lens color", but that's where your case for vagueness works; there's no reference back to DOT rules specifically. I suppose a **** inspector who actually knew what he was doing could fail clear corners. It's worth looking at each state's code, though, since it's all different. I didn't realize that nitrous was illegal here and you can't have more than 4 foglamps. So much for the rally car look.
DOT regs want an amber light and an amber reflector on the front corners. That's why cars with wrap-around headlamp assemblies sometimes have clear/white marker lenses on the corners with amber bulbs, and amber reflective trim surrounding it. Like truemagellan states, unless PA refers to DOT regs specifically or mandates side reflector color, the clears with amber bulbs (and maybe white bulbs) should be fine.
The wording "side marker lamps" and "amber" is confusing to me. (And PA has the same wording, BTW.) Does this wording mean if the clear side markers illuminate in an amber color, they would be considered legal? I suspect this wording would be open to interpretation by the person doing the inspection. What do you think?
#156
Hubble has been saved!
Thread Starter
Join Date: Aug 2003
Location: Richmond, VA
Posts: 1,221
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by G-ReX
truemagellan, after I looked again through Virginia code, I guess you're right. The code does list what lights you're allowed to have and thus excludes extra lighting, but doesn't address the markers.
Also remember I am not a lawyer!
On the positive side, after 18 months, I have yet to see anyone in any state post that they failed their state inspection (knock on wood) because of having clear corners on their RX-8.
§ 46.2-1017. Dimension or marker lights and reflectors, generally.
All motor vehicles, trailers, or semitrailers exceeding seven feet in width or the widest portion of which extends four inches beyond the front fender extremes shall be equipped with amber lights mounted at the extreme right and left front top corners of such vehicle. Each such light shall be visible in clear weather for a distance of at least 500 feet to the front of such vehicle. Such vehicles shall also be equipped with red lights mounted at the extreme right and left rear top corners of such vehicle. Each such light shall be visible in clear weather for at least 500 feet to the rear of such vehicle. Any tractor truck, however, need not be equipped with rear red dimension or marker lights. If the front or the rear of such vehicle is not the widest portion of the vehicle, the dimension or marker lights required in this section shall be mounted on the widest portions of the vehicle with the amber lights herein required visible from the front as herein required and the red lights herein required visible from the rear as herein required. The lights herein required shall be of a type approved by the Superintendent.
In addition to the lights required in this section, each such vehicle shall be equipped with amber reflectors located on each side thereof, at or near the front. Red reflectors shall be used on the rear of each such vehicle. Such reflectors shall be securely fastened to the vehicle not less than fifteen inches and not more than sixty inches from the ground. For a vehicle that is less than fifteen inches tall, however, such reflectors shall be securely fastened thereto at the highest point the structure of a vehicle will permit. The reflectors shall be of a type approved by the Superintendent.
If any vehicle is so constructed as to make compliance with the requirements of this section impractical, the lights and reflectors shall be placed on the vehicle in accordance with the Superintendent's regulations.
If any vehicle required by this section to be equipped with dimension or marker lights has installed on its rear, as close as practicable to the top of the vehicle and as close as practicable to the vertical centerline of the vehicle, three red identification lights of a type approved by the Superintendent, with the light centers spaced not less than six inches or more than twelve inches apart, the rear dimension or marker lights may be mounted at any height but must indicate as nearly as practicable the extreme width of the vehicle.
(Code 1950, § 46-271; 1952, c. 652; 1958, c. 541, § 46.1-265; 1960, c. 156; 1974, c. 218; 1977, c. 383; 1989, c. 727; 1997, c. 23.)
Last edited by msrecant; 12-29-2004 at 02:49 PM.
#157
A Torque-Free Zone
Join Date: Oct 2004
Location: Virginia Beach
Posts: 859
Likes: 0
Received 0 Likes
on
0 Posts
I saw that one, too, but I read
as indicating big stuff only. It becomes a grammar question.
exceeding seven feet in width or the widest portion of which extends four inches beyond the front fender extremes
Last edited by G-ReX; 12-29-2004 at 09:59 PM.
#158
Hubble has been saved!
Thread Starter
Join Date: Aug 2003
Location: Richmond, VA
Posts: 1,221
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by G-ReX
I saw that one, too, but I read as indicated big stuff only. It becomes a grammar question.
#159
Giant Space Hamster
Join Date: Sep 2004
Location: San Jose, California
Posts: 521
Likes: 0
Received 0 Likes
on
0 Posts
I just finished installing my clear corners with stealth amber bulbs. Once the stock corner was free of the body, there was no third screw holding the corner in place.
A couple of questions:
Did anyone else have a problem getting the bulb assembly to twist into the clear corner? I couldn't do it. I hope it doesn't fall out.
Does the clear corner seem looser than the stock corner? After I got done, I noticed I can wiggle the corner a little from the outside. The stock corner didn't do that.
A couple of questions:
Did anyone else have a problem getting the bulb assembly to twist into the clear corner? I couldn't do it. I hope it doesn't fall out.
Does the clear corner seem looser than the stock corner? After I got done, I noticed I can wiggle the corner a little from the outside. The stock corner didn't do that.
#160
Hubble has been saved!
Thread Starter
Join Date: Aug 2003
Location: Richmond, VA
Posts: 1,221
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by quack_p
I just finished installing my clear corners with stealth amber bulbs. Once the stock corner was free of the body, there was no third screw holding the corner in place.
A couple of questions:
Did anyone else have a problem getting the bulb assembly to twist into the clear corner? I couldn't do it. I hope it doesn't fall out.
Does the clear corner seem looser than the stock corner? After I got done, I noticed I can wiggle the corner a little from the outside. The stock corner didn't do that.
A couple of questions:
Did anyone else have a problem getting the bulb assembly to twist into the clear corner? I couldn't do it. I hope it doesn't fall out.
Does the clear corner seem looser than the stock corner? After I got done, I noticed I can wiggle the corner a little from the outside. The stock corner didn't do that.
2. For me the bulb assembly definitively twisted into place with a clockwise turn.
3. Depends on what you mean by wiggle. I just checked mine and there is a little flex when I push directly on the lens (maybe 1/32nd of an inch) and almost no movement up/down or back/forth. Without the screw there could well be more wiggle.
#161
A Torque-Free Zone
Join Date: Oct 2004
Location: Virginia Beach
Posts: 859
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by quack_p
I just finished installing my clear corners with stealth amber bulbs. Once the stock corner was free of the body, there was no third screw holding the corner in place.
A couple of questions:
Did anyone else have a problem getting the bulb assembly to twist into the clear corner? I couldn't do it. I hope it doesn't fall out.
Does the clear corner seem looser than the stock corner? After I got done, I noticed I can wiggle the corner a little from the outside. The stock corner didn't do that.
A couple of questions:
Did anyone else have a problem getting the bulb assembly to twist into the clear corner? I couldn't do it. I hope it doesn't fall out.
Does the clear corner seem looser than the stock corner? After I got done, I noticed I can wiggle the corner a little from the outside. The stock corner didn't do that.
One more thought on the VA law: It wouldn't make sense to me to not legislate the markers for a small semi-trailer but do it for a little trailer for a lawn tractor, so I've got to think it's all under the 7 foot rule. For sure, though, no clear corners on a full-size Hummer (7'2").
#163
Registered
Originally Posted by quack_p

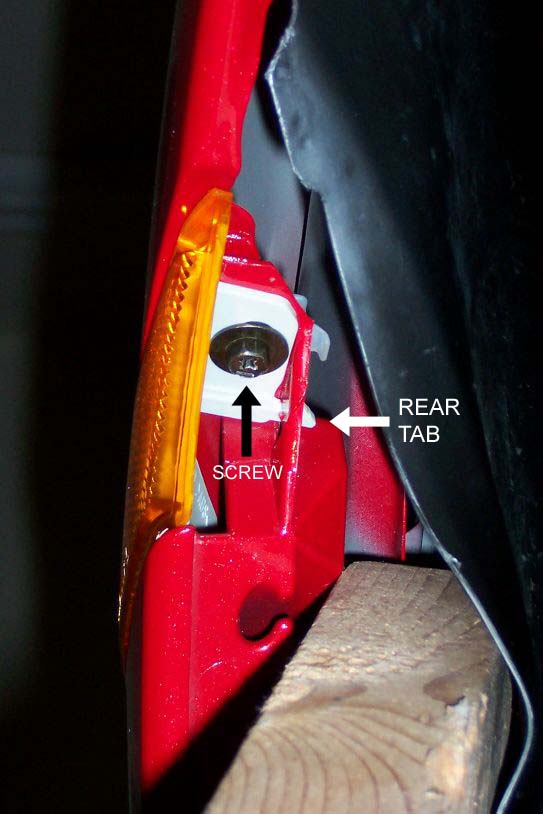

My car (VIN = 33814) does not have this screw on either side.
#164
A Torque-Free Zone
Join Date: Oct 2004
Location: Virginia Beach
Posts: 859
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by quack_p
My car (VIN = 33814) does not have this screw on either side.
#165
Rotary Public
Join Date: Dec 2004
Location: Northern Virginia near DC
Posts: 1,512
Likes: 0
Received 2 Likes
on
2 Posts
Virginia Laws and Clear Corner Lights
Virginians and Honored Guests,
I saw references to this and just had to know the lowdown.
So, by my read, the lights that our Owners Manuals (and the Commonwealth of Virginia) refer to as "parking lights" can be either white or amber. So we can now live in peace and tranquility, life, liberty, pursuit of happiness, etc.
Unfortunately, I kept reading (d'oh!) If you like those sunshades across the top of your windshield, that's fine, but:
Grrr!
![Wink](https://www.rx8club.com/images/smilies/wink.gif)
I saw references to this and just had to know the lowdown.
19VAC30-70-170. Parking lamps.
A. Parking lamps are not required. However, if installed they must operate and be inspected. Parking lamps may burn in conjunction with the headlamps.
B. INSPECT FOR AND REJECT IF:
1. Lamps are not of an approved type or a lamp has been altered;
2. Parking lamps have other than white or amber lenses showing to the front;
3. Parking lamps do not burn with the rear lamps;
4. If lens has a piece broken from it. Lens may have one or more cracks provided no off-color light projects through the crack or cracks;
5. Reject if the vehicle has unapproved lens or plastic covers, any other materials which are not original equipment or any colored material placed on or in front of the parking lamps;
6. Wiring or electrical connections are defective or filaments do not burn.
Statutory Authority
§§46.2-1037 and 46.2-1165 of the Code of Virginia.
A. Parking lamps are not required. However, if installed they must operate and be inspected. Parking lamps may burn in conjunction with the headlamps.
B. INSPECT FOR AND REJECT IF:
1. Lamps are not of an approved type or a lamp has been altered;
2. Parking lamps have other than white or amber lenses showing to the front;
3. Parking lamps do not burn with the rear lamps;
4. If lens has a piece broken from it. Lens may have one or more cracks provided no off-color light projects through the crack or cracks;
5. Reject if the vehicle has unapproved lens or plastic covers, any other materials which are not original equipment or any colored material placed on or in front of the parking lamps;
6. Wiring or electrical connections are defective or filaments do not burn.
Statutory Authority
§§46.2-1037 and 46.2-1165 of the Code of Virginia.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
Unfortunately, I kept reading (d'oh!) If you like those sunshades across the top of your windshield, that's fine, but:
19VAC30-70-210. Glazing.
...
Sunshading material on windshield displaying words, lettering, numbers or pictures is not approved and is not permitted.
...
Sunshading material on windshield displaying words, lettering, numbers or pictures is not approved and is not permitted.
![Mad](https://www.rx8club.com/images/smilies/mad.gif)
#166
Registered
Join Date: Dec 2004
Location: O'Fallon, MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
This might sound like a noob question, but do all of the clear markers for sale thru the various online retailers flare out or are there any that are the "flush" design?
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
#167
Hubble has been saved!
Thread Starter
Join Date: Aug 2003
Location: Richmond, VA
Posts: 1,221
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by WaterLogged
This might sound like a noob question, but do all of the clear markers for sale thru the various online retailers flare out or are there any that are the "flush" design?
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
#168
Respect the Yellow Line!
Join Date: Jun 2004
Location: Charlotte, NC
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by WaterLogged
This might sound like a noob question, but do all of the clear markers for sale thru the various online retailers flare out or are there any that are the "flush" design?
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
I looked for the same thing several months ago and did not find anyone that had for sale the same style marker lights that came with the car. I purchased the clear ones that flared and thought I would give them a try. Once installed I was so happy with the look that the flare did not matter and to be honest with you I think the flare actually adds a bit of distinction to the overall look, it has grown on me. Good luck on your quest.
#169
Registered
Join Date: Dec 2004
Location: O'Fallon, MO
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the quick response guys. I just ordered my set from JT-Imports. I look forward to making this the first "mod" to my new baby... using the fine directions that can be found in this post, of course.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#170
Registered
Join Date: Oct 2004
Location: New York, Northern NYC Burbs
Posts: 601
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by WaterLogged
This might sound like a noob question, but do all of the clear markers for sale thru the various online retailers flare out or are there any that are the "flush" design?
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
Sorry if this answer was somewhere in this thread, but it got a bit too long for me to comb through.
#171
Registered
Originally Posted by salituro64
What do you mean by flare out?
#173
Originally Posted by BigOLundh
I hate all of you.
I have been trying to get one reflector out for over an hour now.
AWWWWWWWW!!!!
I have been trying to get one reflector out for over an hour now.
AWWWWWWWW!!!!
use the very long kind...best part is you can walk into Home Depot with your clear corner...use the pliers to 'test it out' and place it back on the shelf...no purchase necessary
BTW I did not say that
![Wink](https://www.rx8club.com/images/smilies/wink.gif)
#174
#1 Legend
iTrader: (1)
Join Date: May 2004
Location: TEXAS
Posts: 3,904
Likes: 0
Received 0 Likes
on
0 Posts
Thanks.. i eventually got it done...
I had to take it to my friend davids house. He is hte one i go racing with, and is also a mechanic. It took him about 15 seconds. I feel like such a dumba*ss
He took a long set of needle nose plyers, squeezed down, and pushed it down. This caused the reflector to slide right out of its brace. That simple. This is alot easier than the screwdriver/wiggling method described on here. After that the actual install took only a few minutes.
Now i have these in with Piaa Super White LEDs. I will take some pics of the whole set up. It is OEM HIDs, PIAA Xtreme White Bulbs in the Fog Lights, and PIAA Super White LEDs in the driving lights and clear corners.
I had to take it to my friend davids house. He is hte one i go racing with, and is also a mechanic. It took him about 15 seconds. I feel like such a dumba*ss
He took a long set of needle nose plyers, squeezed down, and pushed it down. This caused the reflector to slide right out of its brace. That simple. This is alot easier than the screwdriver/wiggling method described on here. After that the actual install took only a few minutes.
Now i have these in with Piaa Super White LEDs. I will take some pics of the whole set up. It is OEM HIDs, PIAA Xtreme White Bulbs in the Fog Lights, and PIAA Super White LEDs in the driving lights and clear corners.
#175
Hubble has been saved!
Thread Starter
Join Date: Aug 2003
Location: Richmond, VA
Posts: 1,221
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BigOLundh
It took him about 15 seconds. He took a long set of needle nose plyers, squeezed down, and pushed it down. This caused the reflector to slide right out of its brace. That simple. This is alot easier than the screwdriver/wiggling method described on here.
