My progess is going slow right now. My CANscan isn't working for some weird reason. Dan has given me instructions on diagnosing it, but I haven't tried it yet. So much stuff going on with school that my freetime has been dedicated to it.
I have experimented something though and I am still tracking the results. Basically, I added a new column under the airflow matrix. It's called 1500 :D That's right, I'm experimenting the 3000rpm range for MPG gains. So far, the needle has been moving slower than I'm used to. I haven't logged the data on CANscan since I can't... yet.
My goal is to set two kinds of maps, power and MPG maps. If I could get them all in one map, that would be awesome.
I have experimented something though and I am still tracking the results. Basically, I added a new column under the airflow matrix. It's called 1500 :D That's right, I'm experimenting the 3000rpm range for MPG gains. So far, the needle has been moving slower than I'm used to. I haven't logged the data on CANscan since I can't... yet.
My goal is to set two kinds of maps, power and MPG maps. If I could get them all in one map, that would be awesome.
#206
Originally Posted by Xyntax
Basically, I added a new column under the airflow matrix. It's called 1500 :D That's right, I'm experimenting the 3000rpm range for MPG gains. So far, the needle has been moving slower than I'm used to. I haven't logged the data on CANscan since I can't... yet.
#208
Registered User
Join Date: Feb 2004
Location: Atlanta, GA
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
I thought canzoomer added ignition advance tuning so you get slight gains below 5000 (AFR all ready 14.7 in closed loop as previously stated) Maybe try a slight modification of ignition advance at cruise (3500-4000). Watch out for ping though.
#209
THREAD KILLER
Join Date: Sep 2003
Location: San Jose, California
Posts: 1,342
Likes: 0
Received 0 Likes
on
0 Posts
The lower RPM ignition advance you are talking about was there in the stock map. That's what was causing the stupid lugging. And it was only "2" degrees of advance! Yikes!
I did have a slight ping when I set the Airflow adjustment to 3% in the lower RPM. So, I'm sticking with 1% and see if it affects anything. If not, I'll try 2% on the next tank.
I did have a slight ping when I set the Airflow adjustment to 3% in the lower RPM. So, I'm sticking with 1% and see if it affects anything. If not, I'll try 2% on the next tank.
#210
Registered User
Join Date: Feb 2004
Location: Atlanta, GA
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
My car has what may be an occasional very slight ping but no lugging when accelerating slowly in 1st & 2nd at around 2k rpm. This occurs with the canzoomer turned on or off. I hear it more frequently when the car is cold. It may just be a vibration, because the type of gas does not affect it and it has never cut power. Anyway I am waiting for a CANscan unit to investigate.
Are both the ignition and fuel modifications cut off when the CZ unit is off.
Are both the ignition and fuel modifications cut off when the CZ unit is off.
#211
Riot Controller
Join Date: Jan 2004
Location: Orlando, FL
Posts: 2,142
Likes: 0
Received 0 Likes
on
0 Posts

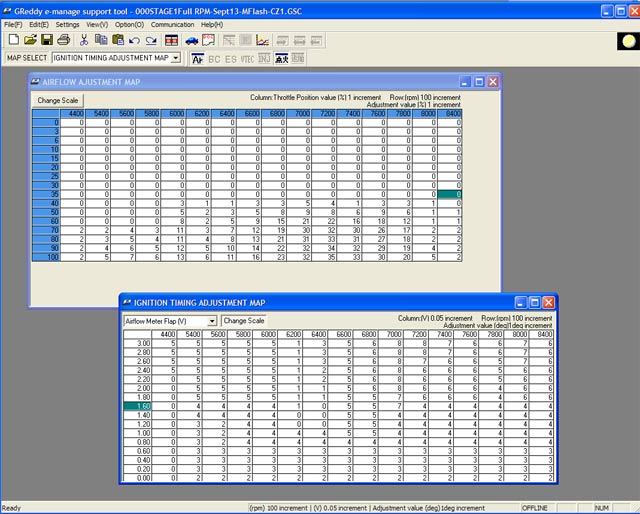

what's the range of MAF V you guys are using for advance? my map is 0-3.00, and many of you are talking about 0-3.3. my rev range is 4400,5400, 5400-8000 in increments of 200, and 8000,8400. and why not go all the way to 9000?
a map or screenshot would be very helpful
I'm also zeroing out the 4400 rpm column so that the emanage doesnt screw with my timing below that (as per genom's suggestion)
a map or screenshot would be very helpful
I'm also zeroing out the 4400 rpm column so that the emanage doesnt screw with my timing below that (as per genom's suggestion)
#212
Mazda Mole
Join Date: Aug 2003
Location: Cincinnati, OH
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by epitrochoid
what's the range of MAF V you guys are using for advance? my map is 0-3.00, and many of you are talking about 0-3.3. my rev range is 4400,5400, 5400-8000 in increments of 200, and 8000,8400. and why not go all the way to 9000?
a map or screenshot would be very helpful
I'm also zeroing out the 4400 rpm column so that the emanage doesnt screw with my timing below that (as per genom's suggestion)
a map or screenshot would be very helpful
I'm also zeroing out the 4400 rpm column so that the emanage doesnt screw with my timing below that (as per genom's suggestion)
For the advance I went from 3.0 to 4.05. I really don't think any setting uder 1.2 is useful. At idle you car is at 1.2 so at 4400 rpm your airflow is already higher than 1.2. Actually I'm going to change the setting to 2 to 3.5 because I never seen the voltages go above 3.8. That what I've observed.
I didn't go beyond 8400 because I actually okay in that range. That's not to say I couldn't improve.
#213
the car's rpms appear to be a bit lower in the computer than displayed. I can redline it and not reach 9,000 rpm in the mapping.
I also found that I can exceed the cutoff point with CZ, and the whole car starts to shut down with lights flashing, so I've been careful to let off the gas when I hear the buzzer.
I also found that I can exceed the cutoff point with CZ, and the whole car starts to shut down with lights flashing, so I've been careful to let off the gas when I hear the buzzer.
#215
Registered
iTrader: (1)
son of a frikkin b!tch..... grrrrr
I'm probably the first person to have an unsucessful installation attempt. It turns out the one of the bolts holding the ecu cover is stripped (well actually its not stripped, the plastic that holds the threaded insert broke so the insert just spins with the bolt). So after an hour and a half i gave up. I have no idea how to get the damn thing off other then trying to chisel the bolt head off...
I'm probably the first person to have an unsucessful installation attempt. It turns out the one of the bolts holding the ecu cover is stripped (well actually its not stripped, the plastic that holds the threaded insert broke so the insert just spins with the bolt). So after an hour and a half i gave up. I have no idea how to get the damn thing off other then trying to chisel the bolt head off...
#216
Mazda Mole
Join Date: Aug 2003
Location: Cincinnati, OH
Posts: 498
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by pr0ber
son of a frikkin b!tch..... grrrrr
I'm probably the first person to have an unsucessful installation attempt. It turns out the one of the bolts holding the ecu cover is stripped (well actually its not stripped, the plastic that holds the threaded insert broke so the insert just spins with the bolt). So after an hour and a half i gave up. I have no idea how to get the damn thing off other then trying to chisel the bolt head off...
I'm probably the first person to have an unsucessful installation attempt. It turns out the one of the bolts holding the ecu cover is stripped (well actually its not stripped, the plastic that holds the threaded insert broke so the insert just spins with the bolt). So after an hour and a half i gave up. I have no idea how to get the damn thing off other then trying to chisel the bolt head off...
#218
Registered User
Join Date: Feb 2004
Location: Atlanta, GA
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by pr0ber
son of a frikkin b!tch..... grrrrr
I'm probably the first person to have an unsucessful installation attempt. It turns out the one of the bolts holding the ecu cover is stripped (well actually its not stripped, the plastic that holds the threaded insert broke so the insert just spins with the bolt). So after an hour and a half i gave up. I have no idea how to get the damn thing off other then trying to chisel the bolt head off...
I'm probably the first person to have an unsucessful installation attempt. It turns out the one of the bolts holding the ecu cover is stripped (well actually its not stripped, the plastic that holds the threaded insert broke so the insert just spins with the bolt). So after an hour and a half i gave up. I have no idea how to get the damn thing off other then trying to chisel the bolt head off...
I got my cable today but the CANScan still has not shipped.
#219
Coming thru in waves...
Join Date: Jun 2003
Location: Somewhere between Yesterday and Tomorrow.
Posts: 1,488
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dannobre
unsolder the brown wire and move it from the 1/2 RPM position and solder to the full RPM position .......make sure the diodes are as pictured and the caps are removed.....end of story!
Anyway, are you guys sure about moving that wire? My reason for asking is that Maurice didn't put it there in the first place. Why didn't he? My unit, fresh from an update still has the wire in the 1/2 rpm location. Why? Seems hard to believe they're putting the wire in the wrong place - they must have a reason.
I could use some good advice on my upcoming laptop purchase too, while you're at it... I have yet to see a laptop for sale with a serial port (for the canscan). How does that work?
My Stage 1 is sitting right here in front of me - cover off, if anyone wants me to ask me anything or take a picture...
#221
Originally Posted by Racer X-8
Anyway, are you guys sure about moving that wire? My reason for asking is that Maurice didn't put it there in the first place. Why didn't he? My unit fresh from an update still has the wire in the 1/2 rpm location. Why? Seems hard to believe they're putting the wire in the wrong place - they must have a reason.
I could use some good advice on my upcoming laptop purchase too, while you're at it... I have yet to see a laptop for sale with a serial port (for the canscan). How does that work?
#222
Coming thru in waves...
Join Date: Jun 2003
Location: Somewhere between Yesterday and Tomorrow.
Posts: 1,488
Likes: 0
Received 0 Likes
on
0 Posts
OK, but, mine just got updated from the old dipswitch version. Got the major update from that version. They still, to this very day, wire it to the 1/2 rpm location. I'm not trying to make waves, it just doesn't make sense...
#223
Coming thru in waves...
Join Date: Jun 2003
Location: Somewhere between Yesterday and Tomorrow.
Posts: 1,488
Likes: 0
Received 0 Likes
on
0 Posts
Update - lookout! Just ordered a laptop using this unbelievable $750 off Dell deal.
https://www.rx8club.com/lounge-4/dell-deal-750-off-1500-all-inspiron-laptops-42413/
Wow, what a deal!
Still waiting on an answer to my above concern... My CZ-1 is still sitting here in front of me, and will go back in as-is pretty soon unless somebody can convince me that moving that wire is definitely ok.
https://www.rx8club.com/lounge-4/dell-deal-750-off-1500-all-inspiron-laptops-42413/
Wow, what a deal!
Still waiting on an answer to my above concern... My CZ-1 is still sitting here in front of me, and will go back in as-is pretty soon unless somebody can convince me that moving that wire is definitely ok.
#225
Coming thru in waves...
Join Date: Jun 2003
Location: Somewhere between Yesterday and Tomorrow.
Posts: 1,488
Likes: 0
Received 0 Likes
on
0 Posts
Ah ha! The maps that are loaded into the unit must be converted to full rpm at the time that the wire is relocated? Am I right?
I need to load my new prog software & get my canscan, me thinks, to gain a much better understanding of what the heck all this banter means that y'all are posting-up around here. You know, until you get some hands-on with this kind of stuff, it just aint gonna sink-in and make much of any kind of sense.
Am I right about the simultaneous tasks thing above though...
I need to load my new prog software & get my canscan, me thinks, to gain a much better understanding of what the heck all this banter means that y'all are posting-up around here. You know, until you get some hands-on with this kind of stuff, it just aint gonna sink-in and make much of any kind of sense.
Am I right about the simultaneous tasks thing above though...
