Mazdaedit
#781
Registered
iTrader: (15)
Fan speed vs coolant temp... this is found in the "Test" section under 2D Maps. There is a graph, but nothing relvant to graph.
Here is what the temp voltages equate to based on my ECT sensor scaling map:
S1 ON : ~97C
S1 OFF: ~94C
S2 ON : ~97C
S2 OFF: ~94C
S3 ON: ~102C
S3 OFF: ~98.7
S4 ON: ~109.6C
S4 OFF: ~106.7C
The expression for calculating the trendline of my coolant to voltage graph is :
y = -0.7544x5 + 10.127x4 - 52.966x3 + 135.17x2 - 191.66x + 172.91
where 'x' is the voltage. (yay math)
Here is what the temp voltages equate to based on my ECT sensor scaling map:
S1 ON : ~97C
S1 OFF: ~94C
S2 ON : ~97C
S2 OFF: ~94C
S3 ON: ~102C
S3 OFF: ~98.7
S4 ON: ~109.6C
S4 OFF: ~106.7C
The expression for calculating the trendline of my coolant to voltage graph is :
y = -0.7544x5 + 10.127x4 - 52.966x3 + 135.17x2 - 191.66x + 172.91
where 'x' is the voltage. (yay math)
S1, S3, and S4 work as designed (low, medium, high).
Unfortunately it doesn't look like S2 does anything, and neither one of the 4 affect the fan turn on after you shut the car off
![Frown](https://www.rx8club.com/images/smilies/frown.gif)
#782
Out of NYC
iTrader: (1)
I think S1 & S2 means Fan 1 and 2.
then S3 means Mid speed, S4 is high speed
I'm not 100% sure about the S2 but it seems logical as they both have the same on/off temp.
as for Fan on after car shut off temp, it should depend on S4. I think. it probably have a setting somewhere else, but based on the Series 1 Rx8 Fan settings, its probably same as High speed mode, which is S4.
then S3 means Mid speed, S4 is high speed
I'm not 100% sure about the S2 but it seems logical as they both have the same on/off temp.
as for Fan on after car shut off temp, it should depend on S4. I think. it probably have a setting somewhere else, but based on the Series 1 Rx8 Fan settings, its probably same as High speed mode, which is S4.
#783
So from listening and playing with mazdaspeed tunes, I have learned that you can add in more break points on the maf cal. the mazdaspeed guys like to use 5-6 break points while we have 3 are there any parameters in the mazdaedit program to add in break points?
#785
LMAO!!!
okay so there are break points in the maf cal, where the LTFT is learned. currently they are
0-9g/s.
10-20g/s
21-430g/s
so 2 break points. 10, 20. that gives us 3 zones

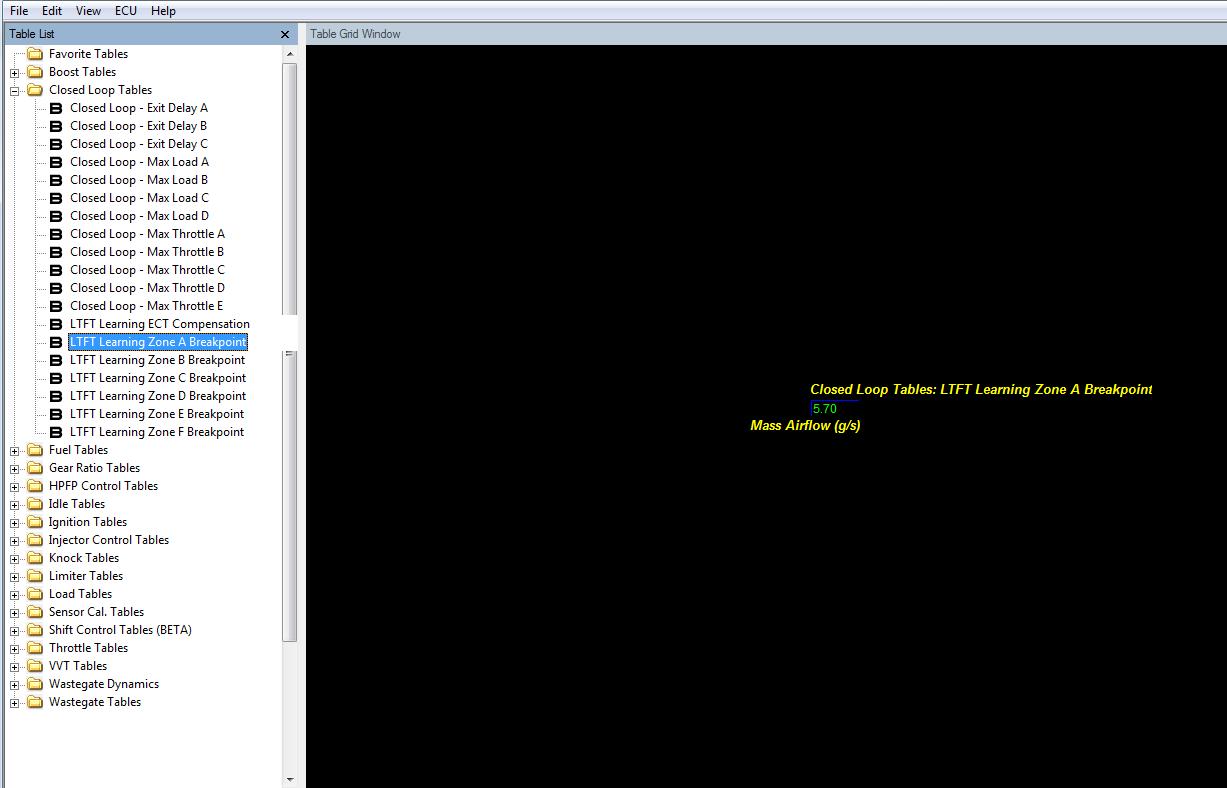

the mazdaspeed 3/6 have settings where you can set the break point and create up to 6 break points, the commen used break points they use are 5.7, 18, 30, 80, 120, 150. this gives them 7 learning zones for LTFT. should be noted they max at 384 or so.
was wondering if you have seen anything like this in the mazdaedit software.
okay so there are break points in the maf cal, where the LTFT is learned. currently they are
0-9g/s.
10-20g/s
21-430g/s
so 2 break points. 10, 20. that gives us 3 zones
the mazdaspeed 3/6 have settings where you can set the break point and create up to 6 break points, the commen used break points they use are 5.7, 18, 30, 80, 120, 150. this gives them 7 learning zones for LTFT. should be noted they max at 384 or so.
was wondering if you have seen anything like this in the mazdaedit software.
#786
LMAO!!!
okay so there are break points in the maf cal, where the LTFT is learned. currently they are
0-9g/s.
10-20g/s
21-430g/s
so 2 break points. 10, 20. that gives us 3 zones
the mazdaspeed 3/6 have settings where you can set the break point and create up to 6 break points, the commen used break points they use are 5.7, 18, 30, 80, 120, 150. this gives them 7 learning zones for LTFT. should be noted they max at 384 or so.
was wondering if you have seen anything like this in the mazdaedit software.
okay so there are break points in the maf cal, where the LTFT is learned. currently they are
0-9g/s.
10-20g/s
21-430g/s
so 2 break points. 10, 20. that gives us 3 zones
the mazdaspeed 3/6 have settings where you can set the break point and create up to 6 break points, the commen used break points they use are 5.7, 18, 30, 80, 120, 150. this gives them 7 learning zones for LTFT. should be noted they max at 384 or so.
was wondering if you have seen anything like this in the mazdaedit software.
#787
Registered
iTrader: (15)
Originally Posted by nycgps
I think S1 & S2 means Fan 1 and 2.
then S3 means Mid speed, S4 is high speed
I'm not 100% sure about the S2 but it seems logical as they both have the same on/off temp.
as for Fan on after car shut off temp, it should depend on S4. I think. it probably have a setting somewhere else, but based on the Series 1 Rx8 Fan settings, its probably same as High speed mode, which is S4.
then S3 means Mid speed, S4 is high speed
I'm not 100% sure about the S2 but it seems logical as they both have the same on/off temp.
as for Fan on after car shut off temp, it should depend on S4. I think. it probably have a setting somewhere else, but based on the Series 1 Rx8 Fan settings, its probably same as High speed mode, which is S4.
Posted From RX8Club.com Android App
#788
Hmmmmmm.........
Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,564
Likes: 0
Received 6 Likes
on
4 Posts
So just to go off topic a little and back to something that Brettus brought up previously. Is everyone aware with MazdaEdit that your initial purchase is locked to both the Tactrix AND your Windows Installation. So if your Tactrix dies OR you reinstall Windows you are SOL.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
#789
weeeeeeeeee
iTrader: (12)
So just to go off topic a little and back to something that Brettus brought up previously. Is everyone aware with MazdaEdit that your initial purchase is locked to both the Tactrix AND your Windows Installation. So if your Tactrix dies OR you reinstall Windows you are SOL.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
#790
Release the twins.
so does anyone know the multi car license price? i saw that i have to ask to get a quote.. is this THE mazdaedit thread and any and all information is buried here in this heap?
#791
So just to go off topic a little and back to something that Brettus brought up previously. Is everyone aware with MazdaEdit that your initial purchase is locked to both the Tactrix AND your Windows Installation. So if your Tactrix dies OR you reinstall Windows you are SOL.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
That and the challenge of getting a hold of this single person is why I haven't jumped on board. I mean one day he could just have a life crisis and be done....
#793
Out of NYC
iTrader: (1)
So just to go off topic a little and back to something that Brettus brought up previously. Is everyone aware with MazdaEdit that your initial purchase is locked to both the Tactrix AND your Windows Installation. So if your Tactrix dies OR you reinstall Windows you are SOL.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
I bought the Pro version over 12 months ago and have just gotten a new laptop only to find I have to pay $250 in order to use the software again.
if you keep paying, he will be more than happy to transfer your license. you can break 2 zillion laptops/tactix and its gonna be fine
but if your license is already a year old and u didn't pay anything, then you found out your laptop/tactix stops working ... well u get the idea.
#794
Out of NYC
iTrader: (1)
the way I tested was to simply put the turn on temp real low. s1 had both fans going at low speed. and neither one of them affected the turn on temp for when the car is off. I set s4 low and when the car was running those fans were roaring lol....shut car off and they stayed off
Posted From RX8Club.com Android App
Posted From RX8Club.com Android App
so if you set S4 temp to say, 80 Celsius, but then your S1/S2/S3 is anything higher, nothing will happen.
I don't have a S2 for me to test right now, but how about this? try to flash the ECU back to stock, heat it up until like 100 Celsius. then shut it down (fan shouldn't come on), flash the thing to some settings like 81/81/84/90 and see what happens.
#795
Registered
iTrader: (15)
I think it has to match all conditions before the fan will come on after shut off.
so if you set S4 temp to say, 80 Celsius, but then your S1/S2/S3 is anything higher, nothing will happen.
I don't have a S2 for me to test right now, but how about this? try to flash the ECU back to stock, heat it up until like 100 Celsius. then shut it down (fan shouldn't come on), flash the thing to some settings like 81/81/84/90 and see what happens.
so if you set S4 temp to say, 80 Celsius, but then your S1/S2/S3 is anything higher, nothing will happen.
I don't have a S2 for me to test right now, but how about this? try to flash the ECU back to stock, heat it up until like 100 Celsius. then shut it down (fan shouldn't come on), flash the thing to some settings like 81/81/84/90 and see what happens.
#796
Hmmmmmm.........
Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,564
Likes: 0
Received 6 Likes
on
4 Posts
That's because the software has a "250 yearly support fee"
if you keep paying, he will be more than happy to transfer your license. you can break 2 zillion laptops/tactix and its gonna be fine
but if your license is already a year old and u didn't pay anything, then you found out your laptop/tactix stops working ... well u get the idea.
if you keep paying, he will be more than happy to transfer your license. you can break 2 zillion laptops/tactix and its gonna be fine
but if your license is already a year old and u didn't pay anything, then you found out your laptop/tactix stops working ... well u get the idea.
#799
Out of NYC
iTrader: (1)
Dunno about the personal version. It probably has the same fee but cheaper?
