Originally Posted by dannobre
If you have the stage 2 full rpm map just released and want to try and get rid of the sub 5K stutter......in the first line of the timing map change the #'s to all zeros. Mine were at 5 deg advance above 2.2V and my car didn't like it. Didn't seem to change performance just got rid of the hesitation
Vince
11-29-2004, 10:05 AM
#52
thanks guys. God bless this forum! Now I just will have to wait for a can scan and cable/software etc to get here. Man I miss the old days when I could just turn the distributor and mess with the carbs to tune! (other things too of course I m just keeping it simple). Course in those days we didnt have a forum like this to share all this great info either.
i appreciate it guys.
olddragger
i appreciate it guys.
olddragger
12-11-2004, 09:00 PM
#53
Coming thru in waves...
Join Date: Jun 2003
Location: Somewhere between Yesterday and Tomorrow.
Posts: 1,488
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dannobre
If you have the stage 2 full rpm map just released and want to try and get rid of the sub 5K stutter......in the first line of the timing map change the #'s to all zeros. Mine were at 5 deg advance above 2.2V and my car didn't like it. Didn't seem to change performance just got rid of the hesitation
12-11-2004, 09:05 PM
#54
If there is any advance on the first column ( effects everything below 4.4K) on some cars it will not like it. Make the first column on the left all zero's......should get rid of the stutter at low throttle/RPM.
You can try decreasing it a few deg at a time....but I tuned mine down in this area and it worked better
You can try decreasing it a few deg at a time....but I tuned mine down in this area and it worked better
Last edited by dannobre; 12-11-2004 at 09:21 PM.
12-14-2004, 05:11 AM
#55
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts

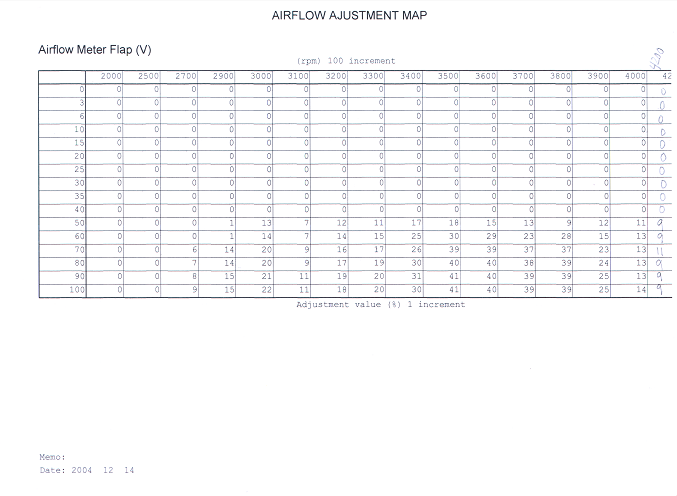

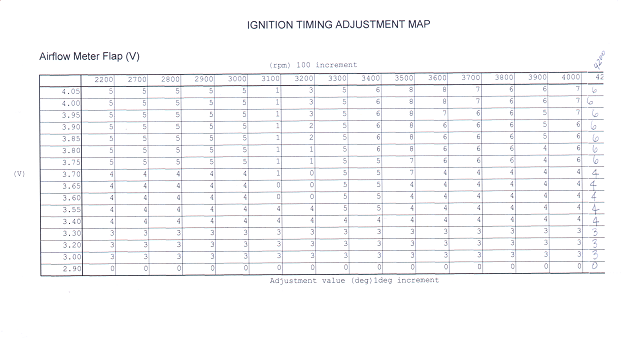

here is my map
I don't know about this map. I have been running my car with this map. It is doing okay w/o knocks and ping. Using shell vpower gas 93 octane. seem to be leaned but I'm not sure, is there something wrong with this map. give me your input please. .......... hopefully I'm doing the maps and chart right so you can read them. 1st time. also I had to write the last column because I could not get it all on the paper. .............1/2 scale for rpm. these are zipped files copy them then open.
12-14-2004, 10:14 AM
#57
Bullshit Detector
Join Date: Oct 2004
Location: Auburn, CA
Posts: 272
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Ralph Brown
I don't know about this map. I have been running my car with this map. It is doing okay w/o knocks and ping. Using shell vpower gas 93 octane. seem to be leaned but I'm not sure, is there something wrong with this map. give me your input please. .......... hopefully I'm doing the maps and chart right so you can read them. 1st time. also I had to write the last column because I could not get it all on the paper. .............1/2 scale for rpm. these are zipped files copy them then open.
Vince
12-16-2004, 01:38 AM
#58
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
stage 1 map
Originally Posted by RX3+5
What map are you running and how does the car run?
Vince
Vince
12-16-2004, 01:46 AM
#59
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by JasonHamilton
posting your map isn't going to help us tell you if there are any problems with it since each car is different. You would have to graph out your AFR readings.
When i made a copy of the graph, the damn thing is 10mb. that is big. it is in jpeg format
12-16-2004, 02:11 AM
#60
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
I just copied the image into paint using print screen and then saved the file as a gif image. It will be less than 100k.
Here is mine..
https://www.rx8club.com/showpost.php...1&postcount=15
Here is mine..
https://www.rx8club.com/showpost.php...1&postcount=15
12-16-2004, 02:57 AM
#61
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Ralph Brown
I have the graph, for some reason I cant post it on the thread. I would love for everyone to see it. Maybe if somebody can instruct my on the proper way to do it.
When i made a copy of the graph, the damn thing is 10mb. that is big. it is in jpeg format
When i made a copy of the graph, the damn thing is 10mb. that is big. it is in jpeg format
Last edited by Ralph Brown; 12-16-2004 at 05:00 AM.
12-16-2004, 10:48 AM
#62
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
Damn thats aggressive
I dont think I am going to push mine that far... I liked your graph Jason.. It was very linear and predictable... Did you share that map earlier in the thread or are you selling it on the parts for sale page... :p
I dont think I am going to push mine that far... I liked your graph Jason.. It was very linear and predictable... Did you share that map earlier in the thread or are you selling it on the parts for sale page... :p
12-16-2004, 06:00 PM
#63
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by JasonHamilton
Ralph, if those numbers are correct, your running way too lean. See the green line that goes up and down? That's the target area. The bottom of that line is the minimum area desired, the upper area is the max. Your AFR graph shows much leaner - and in the highest rpm levels, you're extremely lean. That isn't good, but you should really feel the power with that setting....
If I'm running too lean. and I do feel more power. I drive my car aggressive shitfting gear in 6000 rpm range. I burn more fuel but I like the feel. You say that this is not good what do you mean. Will it blow my engine or something like that. I'm a newbie at this stuff and I do like the feel but i don't want to blowup anything. if it reduces the cat's life only , than i'm not worried. the car is running fine,idling fine, no pings, knocks. using 93octane shell vpower only. 13k miles. using this map for 2 months. what happens with a RX8 running too lean.
12-16-2004, 06:19 PM
#64
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by JasonHamilton
Ralph, to activate your CZ properly, floor the throttle - put the peddle all the way down. That's called WOT. When you do that, you're going to get the full CZ power. Your CZ will be fully activated when over 5000 rpm and with your peddle to the metal.
The top of that green line is the leanest AFR that you can safely run. Going above that isn't going to kill your car right away, and there is a safeguard that prevents your car from going above 20 AFR.... but I recommend not running that map anymore.
The top of that green line is the leanest AFR that you can safely run. Going above that isn't going to kill your car right away, and there is a safeguard that prevents your car from going above 20 AFR.... but I recommend not running that map anymore.
thank you for the info. I have not driven the car in 2 weeks
12-16-2004, 06:19 PM
#65
Registered
iTrader: (1)
Join Date: May 2003
Location: PA
Posts: 3,754
Likes: 0
Received 0 Likes
on
0 Posts

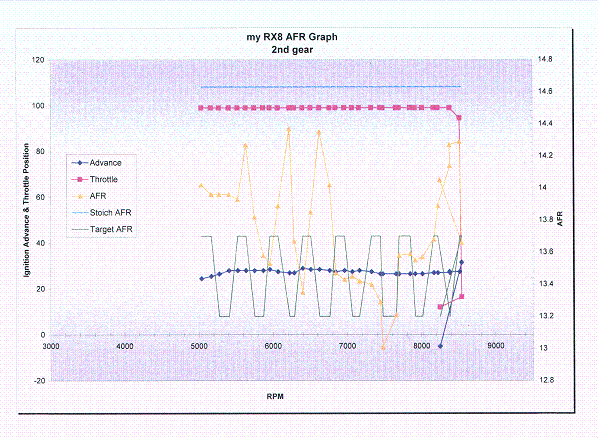

His car went lean at the end of his graph most likely because he got off of the gas. I would make another run and see if that repeats - my guess is it won't as i don't see anything in his map that would cause a spike like that.
I would tone things down a bit around 6600 rpms when you get the teriary ports closing and an instant of very lean conditions. Your timing advance is also pushing the limits so make sure you always fill up with some good gas.
I would tone things down a bit around 6600 rpms when you get the teriary ports closing and an instant of very lean conditions. Your timing advance is also pushing the limits so make sure you always fill up with some good gas.
12-16-2004, 06:33 PM
#66
MY-T-IAM
Join Date: Apr 2004
Location: Upper Marlboro Md.
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by pr0ber
His car went lean at the end of his graph most likely because he got off of the gas. I would make another run and see if that repeats - my guess is it won't as i don't see anything in his map that would cause a spike like that.
I would tone things down a bit around 6600 rpms when you get the teriary ports closing and an instant of very lean conditions. Your timing advance is also pushing the limits so make sure you always fill up with some good gas.
I would tone things down a bit around 6600 rpms when you get the teriary ports closing and an instant of very lean conditions. Your timing advance is also pushing the limits so make sure you always fill up with some good gas.

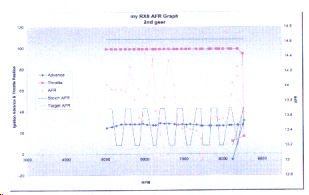

That is correct about the graph i did take my foot off the gas. See i have the laptop,in the driver seat and trying to push the stop button ,watching traffic,looking at rpm gauge, ithink Iwill have to do this with someone in the car with me. I have been running alone at night.
12-16-2004, 08:43 PM
#67
I would check 3rd gear....I agree with Jason....overall too lean..esp 8K area. I tuned mine to give me 13.6 and 13.2 above 8K. Watch 4th and fifth...they seem to run a leaner map under load.....they may go very lean on you with second that lean
12-16-2004, 08:43 PM
#68
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by JasonHamilton
This is very strange....
I used the default "Stage 2" map, and saw it had some dips that needed to be corrected on my car. So I moved the dip point up by one point, and a point that was in excess of 14 AFR down by one point. The resulting map was just as bad as before...
So I changed my CZ to full rpm, and ran the same exact map without any changes other than changing the half RPM scale to full RPM.
The result looks pretty damn nice. What do you guys think? I also attach the map used (rename .txt to .GSC)
I used the default "Stage 2" map, and saw it had some dips that needed to be corrected on my car. So I moved the dip point up by one point, and a point that was in excess of 14 AFR down by one point. The resulting map was just as bad as before...
So I changed my CZ to full rpm, and ran the same exact map without any changes other than changing the half RPM scale to full RPM.
The result looks pretty damn nice. What do you guys think? I also attach the map used (rename .txt to .GSC)
01-07-2005, 12:49 AM
#69
~~> Next 10 miles
Join Date: Apr 2004
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
When you say you changed the scale from half RPM to full RPM...are you talking about the scale when editing the CZ map itself using the EManage software...while plugged into the CZ unit itself?
01-07-2005, 01:28 AM
#70
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
He's talking about the daughter board inside your Canzoomer unit. His write up explains how to do it.
http://tyrannical.org/page-15
http://tyrannical.org/page-15
01-22-2005, 10:15 PM
#71
Go Texas Longhorns!
Rev_2_9K and I have been experimenting with different maps for his CZ box for about the last 2 weeks. We’ve gotten pretty familiar with the canscan software and the emanage program, but we are having issues with getting consistent logs of our runs. We use the same map, but yet its like the ECU somehow learns what were doing and overrides the emanage. So in other words, we could get the A/F in the nice 13.xxx’s and then two days later its down in the low 12’s, with the same map.
1. Who else has been getting these kinds of inconsistencies? Do most of you guys get a good map to be stable and log consistent A/F’s?
2. We have been getting a A/F spike in the 17-18 range at about 6200-6400rpm, that we can’t seem to dial out. Even with the map set pretty low (in the 10-15 range) this is still an issue. How much of an effect do you guys notice from the port opening.
3. Rev’s unit is currently operating in the ½ RPM mode, would altering the unit improve our consistency issues (can’t really see how but….) or just make the math in our head easier?
4. Can the ignition maps cause issues? I believe Rev is running the most aggressive ignition map from CZ while we are trying to tune the A/F.
5. How important is the partial throttle portion of the map?
Our biggest issue is really getting a map to return consistent canscan logs over time. I know that the emanage must be able to work consistently, or the greddy turbo kit among others would have real issues. Its really frustrating to spend hours tweaking a map to only see it made useless two days later in our logs.
I appreciate your insight on this.
1. Who else has been getting these kinds of inconsistencies? Do most of you guys get a good map to be stable and log consistent A/F’s?
2. We have been getting a A/F spike in the 17-18 range at about 6200-6400rpm, that we can’t seem to dial out. Even with the map set pretty low (in the 10-15 range) this is still an issue. How much of an effect do you guys notice from the port opening.
3. Rev’s unit is currently operating in the ½ RPM mode, would altering the unit improve our consistency issues (can’t really see how but….) or just make the math in our head easier?
4. Can the ignition maps cause issues? I believe Rev is running the most aggressive ignition map from CZ while we are trying to tune the A/F.
5. How important is the partial throttle portion of the map?
Our biggest issue is really getting a map to return consistent canscan logs over time. I know that the emanage must be able to work consistently, or the greddy turbo kit among others would have real issues. Its really frustrating to spend hours tweaking a map to only see it made useless two days later in our logs.
I appreciate your insight on this.
01-22-2005, 10:59 PM
#72
Bummed, but bring on OU!
Same problem over in the auto tuning thread. After the ECU undoes your map, what happens if you turn off the unit? Does the A/F really go into the toilet?
01-22-2005, 11:29 PM
#73
Registered
Join Date: Oct 2001
Location: Boulder County, Colorado
Posts: 7,966
Likes: 0
Received 4 Likes
on
3 Posts
I can't really be much help here, as once I got the map to where I liked it, I haven't done much monitoring of it with my CanScan. Guess I need to check it.
Damned if this blasted PCM doesn't seem like it's too smart for it's own good!
Damned if this blasted PCM doesn't seem like it's too smart for it's own good!
01-23-2005, 12:57 AM
#74
Go Texas Longhorns!
Originally Posted by Omicron
I can't really be much help here, as once I got the map to where I liked it, I haven't done much monitoring of it with my CanScan. Guess I need to check it.
Damned if this blasted PCM doesn't seem like it's too smart for it's own good!
Damned if this blasted PCM doesn't seem like it's too smart for it's own good!
I'm wondering if you get to aggressive if the car somehow changes the mixture, I don't see how thats possible if your in open loop and your able to change the maf voltage, but who knows.
In addition, the base CZ maps seem really weak given that to get our results, we were using 35-43 at one point to get our results, is that them just being conservative?
01-23-2005, 01:19 AM
#75
Registered
Join Date: Nov 2003
Location: Vancouver, WA
Posts: 166
Likes: 0
Received 0 Likes
on
0 Posts
I did today, recheck. Mine catscan graph looks identical to stock car with no CZ. Bummer, I am wondering if I am doing something wrong, or perhpas it is true the PCM is sensing the change, and adjusting the fuel. Now I have 0 gain. I am wondering how long it takes for the PCM to sense the new maps? We need Maurice's help on this one.
Mark
Mark
