Anyone have Tein hood dampers?
#27
Originally Posted by Tamas
Thanks for the pics!

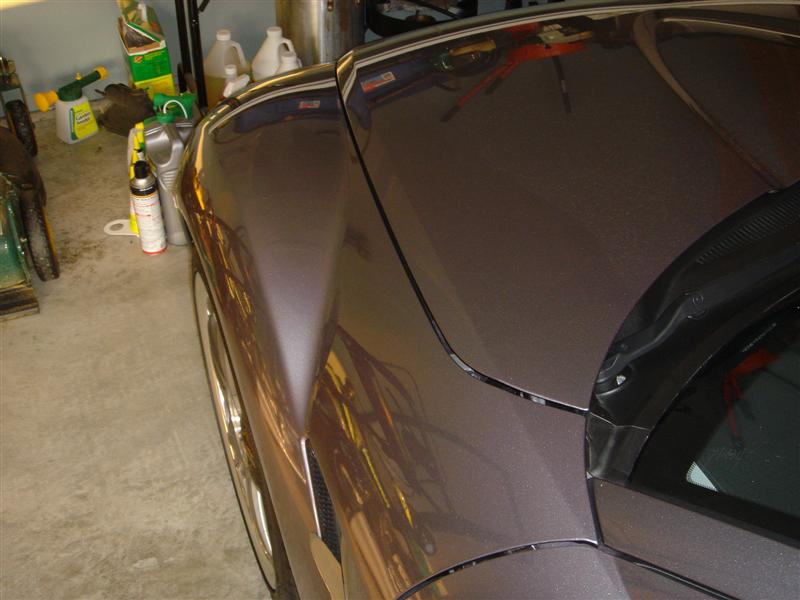

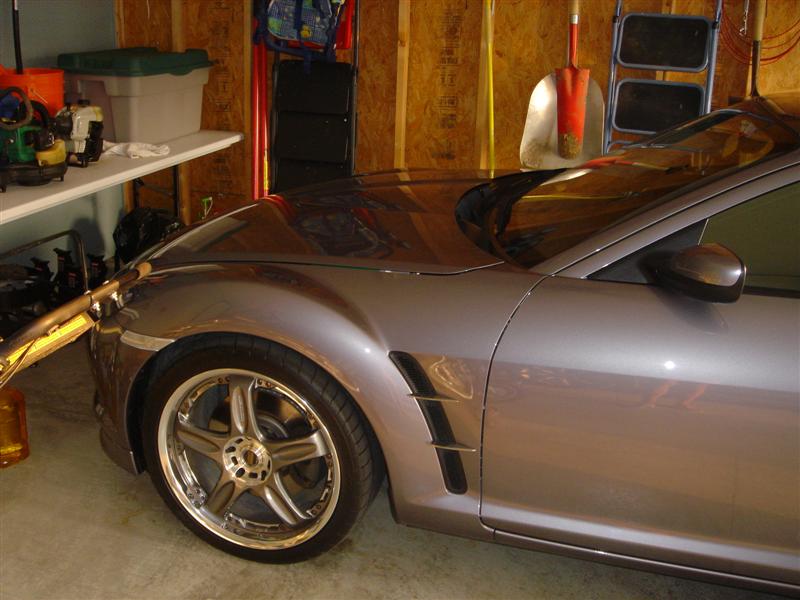

Just one question: from the last shot, it appears the struts push the hood up a little bit (there's more gap than usual). Is that the case, or is the hood not completely closed?
Or is it just the angle of the pic?
Just one question: from the last shot, it appears the struts push the hood up a little bit (there's more gap than usual). Is that the case, or is the hood not completely closed?
Or is it just the angle of the pic?
All of the above.... (Hood was closed)
That’s the reason I posted the picture.
Seems like the "bracket" lifts the hood up a bit.
Tein calls it a structural problem… says so in the instructions.
You have good eyes
Last edited by modena; 08-02-2005 at 06:29 PM.
#28
Metatron
iTrader: (1)
Crazy!......
That is insane!

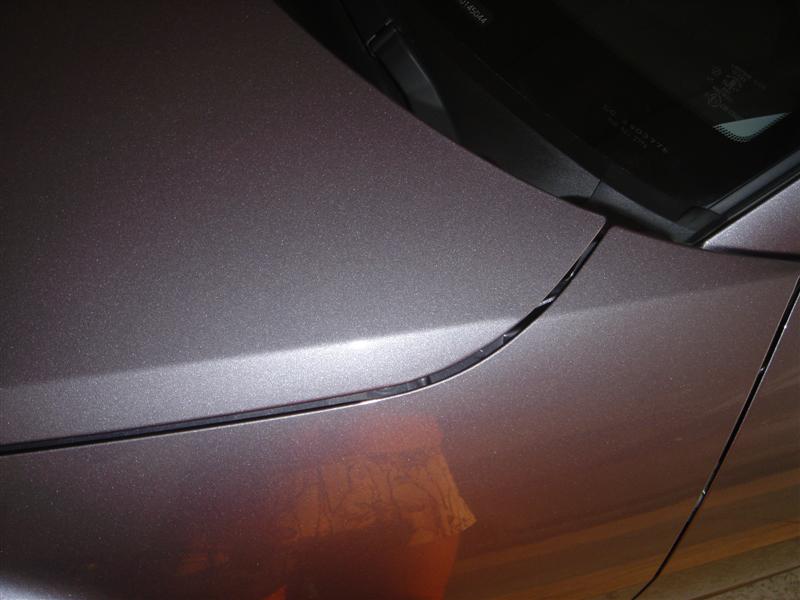

It lifts the hood, like 1/4" at the hinges!

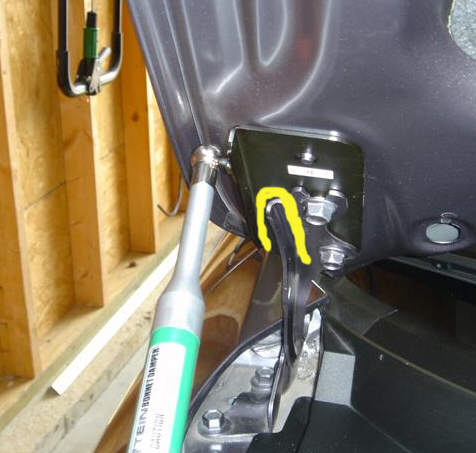

You can see why in the second picture....they put the metal plate between the hood and the hood bracket - obviously that will lift it at the windshield. Amateurs! :D :D
S
It lifts the hood, like 1/4" at the hinges!
You can see why in the second picture....they put the metal plate between the hood and the hood bracket - obviously that will lift it at the windshield. Amateurs! :D :D
S
#29
Momentum Keeps Me Going
Originally Posted by modena
All of the above.... (Hood was closed)
That’s the reason I posted the picture.
Seems like the "bracket" lifts the hood up a bit.
Tein calls it a structural problem… says so in the instructions.
You have good eyes
That’s the reason I posted the picture.
Seems like the "bracket" lifts the hood up a bit.
Tein calls it a structural problem… says so in the instructions.
You have good eyes
Do you think there is any solution? ...maybe some adjustment? cut some of the mounting plate something like that?
#30
Registered Lunatic
iTrader: (1)
One way to avoid that would be to have a bracket that goes over the factory bracket. In that case however, the strut bracket would be more complicated to manufacture (not just a simple rectangular footprint). You have to push out the pivot point of the strut towards the edge of the hood because otherwise you end up with clearance problems at the underhood rubber seal (located a few inches towards the front of the car). When the hood is closed, you'll want the strut to lay beside this seal, not over it.
In other words, the bracket needs to be sort of "P" shaped. Also, if you mount it over the factory bracket, you have to support it's underside so that it rests against the hood, because if you have a gap between it and the hood, it will flex.
(yes, I tinkered with this already a bit, but still didn't complete my own fabrication yet).
In other words, the bracket needs to be sort of "P" shaped. Also, if you mount it over the factory bracket, you have to support it's underside so that it rests against the hood, because if you have a gap between it and the hood, it will flex.
(yes, I tinkered with this already a bit, but still didn't complete my own fabrication yet).
#32
Momentum Keeps Me Going
How about this. Cut a slot out of the bracket to allow the original hood bracket to fit through when the bracket is slid on top (really the down side) of the existing bracket. This would eliminate the additional height.
#33
Registered
Thread Starter
Join Date: May 2005
Location: Worc. Mass.
Posts: 734
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by modena
Mine came in earlier today,
Install takes about 20 minutes.
Gone is the hood-prop!
Install takes about 20 minutes.
Gone is the hood-prop!
Bob
#34
Registered Lunatic
iTrader: (1)
Originally Posted by Spin9k
How about this. Cut a slot out of the bracket to allow the original hood bracket to fit through when the bracket is slid on top (really the down side) of the existing bracket. This would eliminate the additional height.
BUT - the idea of buying this set and paying $113 plus shipping for it is to have a bolt-on piece in 20 minutes.
If you have to buy the thing and then go at it with your hacksaw, that almost negates the advantage... In that case, it may be a bit better to buy the struts, four threaded ball studs and two pieces of sheetmetal, and start fabricating - which you would have to do anyway if you want to modify the TEIN brackets.
Now, if TEIN would choose to mod their brackets, that'd be the best solution.
Last edited by Tamas; 08-02-2005 at 10:37 PM.
#35
Originally Posted by Spin9k
How about this. Cut a slot out of the bracket to allow the original hood bracket to fit through when the bracket is slid on top (really the down side) of the existing bracket. This would eliminate the additional height.
Will give it a shot this weekend,
Keep you guys posted!
Need to install a RB Ram duct Thursday first.
#38
Driving Me Crazy
Join Date: Sep 2004
Location: Singapore
Posts: 1,453
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by adrian-1

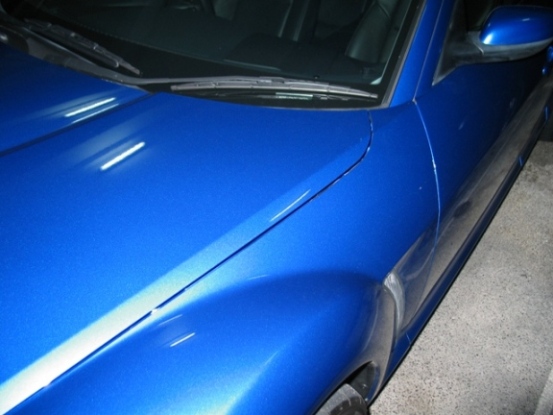

Hey Modena, any update on the lifting hood? Genesis's doesn't look too bad. Can't even see it on his pic, may be the angle.
#39
Originally Posted by Genesis
You can just see the green dampers if your at the right angle while the hood is closed. Modena's earlier pic captures that. I was only pointing out that yes, there is a slight rise in the hood due to the bracket, no question about it, but it's just not something that is really noticeable from day to day. In fact, I really like this little mod, every time I open my hood So Modena...did you keep yours and if so, have you found a solution?
Got used to it now and kind of like the Green dampers look even when the hood is closed.
You need to look at it from an angle, but the color matches my coilovers.
It is possible to change the brackets, but that might be a winter project!
Dealer was impressed when he opened the hood; his face was priceless when he was looking for the hood prop....
#40
Driving Me Crazy
Join Date: Sep 2004
Location: Singapore
Posts: 1,453
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by modena
Yes kept mine and removed the OEM hood stand
Got used to it now and kind of like the Green dampers look even when the hood is closed.
You need to look at it from an angle, but the color matches my coilovers.
It is possible to change the brackets, but that might be a winter project!
Dealer was impressed when he opened the hood; his face was priceless when he was looking for the hood prop....
Got used to it now and kind of like the Green dampers look even when the hood is closed.
You need to look at it from an angle, but the color matches my coilovers.
It is possible to change the brackets, but that might be a winter project!
Dealer was impressed when he opened the hood; his face was priceless when he was looking for the hood prop....
#41
beyond the ultraworld
Join Date: Oct 2003
Location: Southampton, UK
Posts: 479
Likes: 0
Received 0 Likes
on
0 Posts

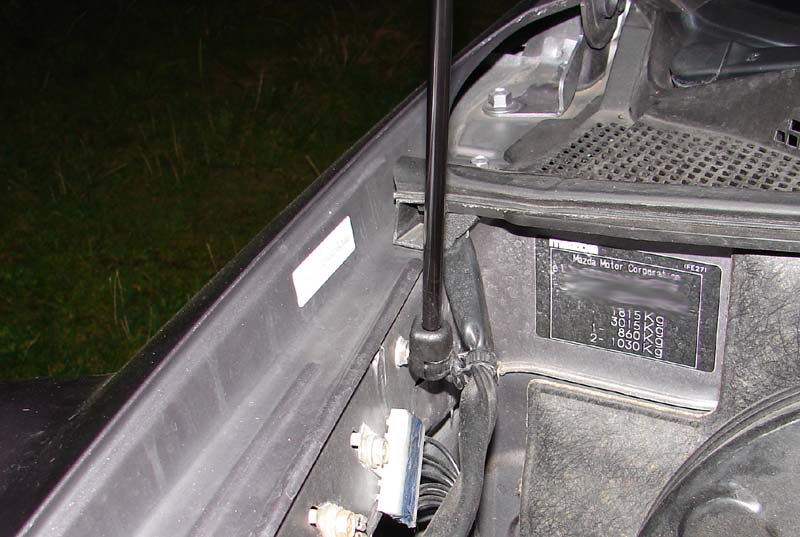

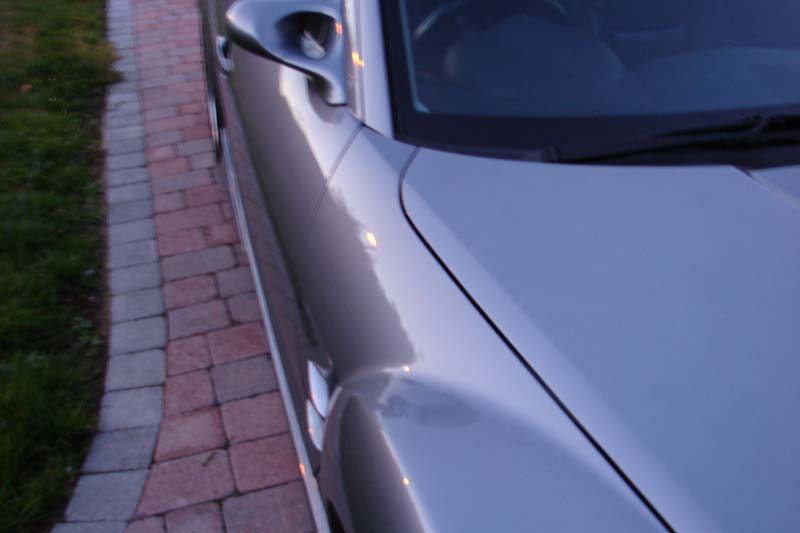

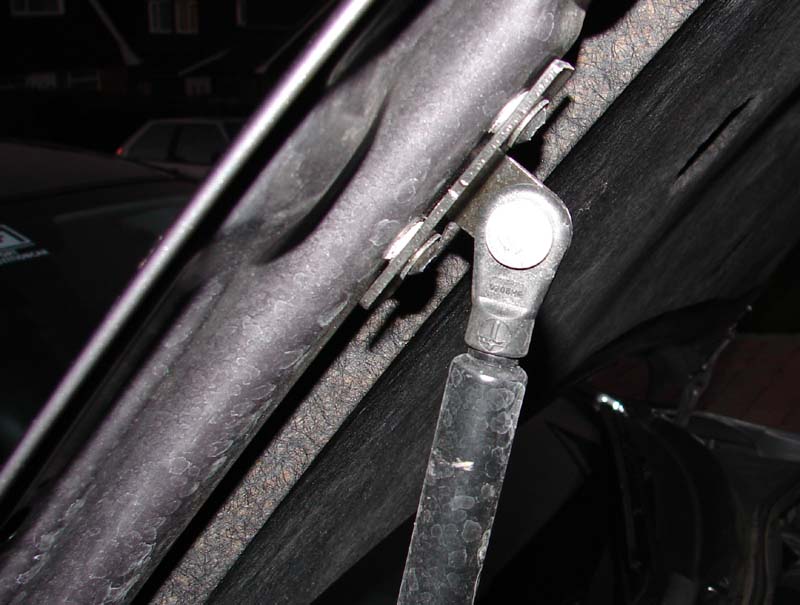

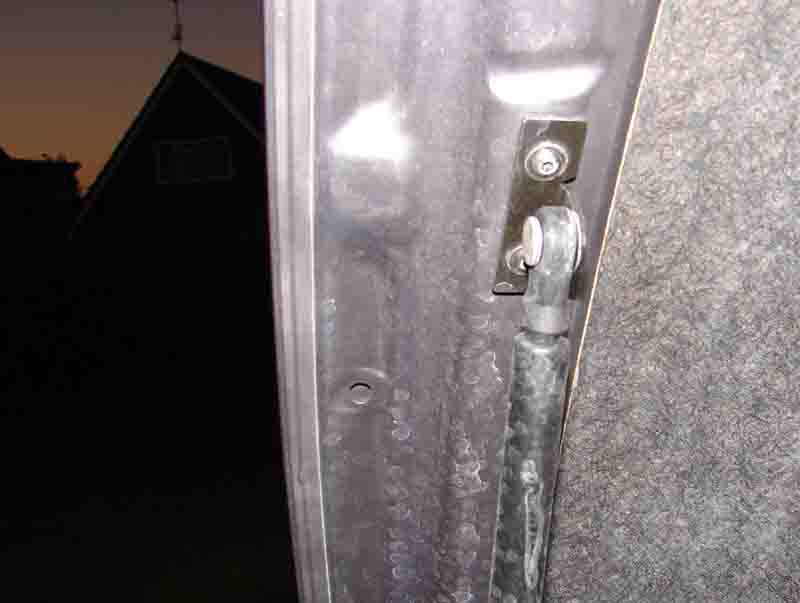

I've got the OEM hood struts from Mazda, they are great - for a car that your under the hood checking the oil so often, they should have been standard. Anyway, here's the mouting points and brackets that they come with - no increase in panel gap over stock. (Last pic a bit out of focus / shaky as its getting dark here and had to use a 2 second exposure!)
#43
beyond the ultraworld
Join Date: Oct 2003
Location: Southampton, UK
Posts: 479
Likes: 0
Received 0 Likes
on
0 Posts
I think they are £115 from Mazda dealers, I say think as I got them for free as a replacement when my 8th Illuminated stick went bad! They even replaced it with number 9 which has just fallen apart again!
Check on ebay at items for sale in Europe, as they come up quite a bit and usually go for about £50
Check on ebay at items for sale in Europe, as they come up quite a bit and usually go for about £50
#47
Registered
Thread Starter
Join Date: May 2005
Location: Worc. Mass.
Posts: 734
Likes: 0
Received 0 Likes
on
0 Posts
WOW, talk about a thread from the dead. I had to go back to see who started it and it was me. Well. I am happy to say I have them on my 8 and am very pleased. It was a very easy mod and as far as the hood gap thing goes, I think the size of the gap didn't change that much. It's just that the damper is so close to the edge that you can see it a bit. But it doesn't bother me at all. It's worth it not to have that prop rod any more.
Bob
Bob
#49
Little off topic here, but there is a prototype 8 on "Modern Marvels Rotary Engine." The hood opened reverse like an 18 wheeler. It looked great but got scrapped I guess. I would love to do this but probably too difficult to engineer.
Last edited by tjbourgoyne; 06-06-2006 at 01:27 AM.
#50
Pettit fangurl <3
Join Date: Mar 2005
Location: Aston, PA
Posts: 5,386
Likes: 0
Received 0 Likes
on
0 Posts
I revived the thread cuz i just put them on myself yesterday.....now I already had a little gap because of the CF Seibon KS hood....i dont think the gap is bigger...it just looks that way cuz now I can see the damper....but they do work really well...
I think it will have to grow on me just the like hood....
I think it will have to grow on me just the like hood....
