Mazdaspeed Front Bumper Grill Material?
#26
Registered
iTrader: (1)
Join Date: May 2003
Location: PA
Posts: 3,754
Likes: 0
Received 0 Likes
on
0 Posts
I wish someone would really produce a mesh kit for the oil coolers that attaches to the back of the bumper (unlike RB). Man my oil coolers are starting to look rough.
...i tried making one for my old probe and actually wound up scarthcing the bejesus out or it trying to fit it so I'm pretty reluctant to try it again.
...i tried making one for my old probe and actually wound up scarthcing the bejesus out or it trying to fit it so I'm pretty reluctant to try it again.
#27
Moderator with a mycocardium
Originally Posted by pr0ber
I wish someone would really produce a mesh kit for the oil coolers that attaches to the back of the bumper (unlike RB). Man my oil coolers are starting to look rough.
...i tried making one for my old probe and actually wound up scarthcing the bejesus out or it trying to fit it so I'm pretty reluctant to try it again.
...i tried making one for my old probe and actually wound up scarthcing the bejesus out or it trying to fit it so I'm pretty reluctant to try it again.
#28
Cones need lovin' too!
Join Date: Aug 2003
Location: Beavercreek, Ohio
Posts: 649
Likes: 0
Received 0 Likes
on
0 Posts
Just mount the mesh to the oil cooler shroud mounting tabs (2 on the top, one on the bottom). Use somewhat pliable mesh so you can bend 90 degree lips on the top and bottom to screw the mesh into the holes in the tabs and you're set. If you measure it out right you'll have about 1/4" clearance between the cooler and the mesh, and the mesh will slip behind the fog lamp and not need trimming. I had this arrangement for months (have MS front now) and it worked great. The mesh was taut and everything just bounced off. I used black aluminum mesh from a craft store. The potential downside to this is you must remove the front bumper to install it, but it isn't THAT hard. I posted instructions once in the oil cooler thread and a couple photos.
You don't need to buy a solution for this when it is very simple to do yourself. Chances are doing it yourself will be a better solution anyway.
You don't need to buy a solution for this when it is very simple to do yourself. Chances are doing it yourself will be a better solution anyway.
#29
Registered
iTrader: (1)
Join Date: May 2003
Location: PA
Posts: 3,754
Likes: 0
Received 0 Likes
on
0 Posts
D MENAC 7 - definately give me a heads up when your done (I have fog lights)
ranger4277 - I know they are not that hard to do... like I tried to say above (just noticed the really bad spelling) last time I did them it just didn't look right and I ended up messing my car up pretty good building the prototype. Plus I don't have mush free time on my hands anymore.
bumper removal - I've been there and done that already to install the front air dam
ranger4277 - I know they are not that hard to do... like I tried to say above (just noticed the really bad spelling) last time I did them it just didn't look right and I ended up messing my car up pretty good building the prototype. Plus I don't have mush free time on my hands anymore.
bumper removal - I've been there and done that already to install the front air dam
#30
Bored thread resuscitator
Join Date: Jan 2004
Location: Lurking in the lounge since selling my 8
Posts: 274
Likes: 0
Received 3 Likes
on
2 Posts

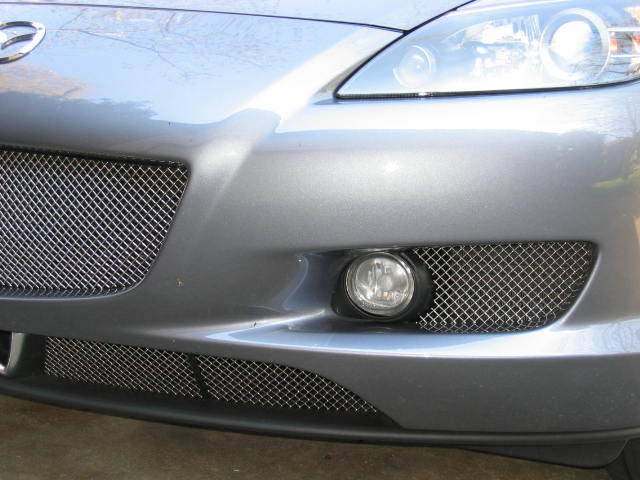

There are already stanchions on the back of the bumper aurrounding the oil cooler openings. All you need to do is cut some mesh, then use self-tapping screws with washers to attach it. The result looks like this:
#31
Moderator with a mycocardium
Yeah, I have found the two that are there, they attach the top part of the grille just fine but there isn't really a good place to attach the bottom part to. The other problem with those mounting points is that they do not line up with the rear of the fog light. This means you get the rough screening line that is at the edge of the lamp as you can see in your picture, this makes it appear unfinished in that area. Otherwise it is tucked away behind the front cover. What I am going to attempt to do is fabricate something that will finish that side of the mounting edge and possibly frame the rear part of the nose while allowing the attachment of the screening material.
#32
You would have thought that somebody would be making this by now. There IS a market for replacement grille's and oil cooler covers (as there aren't any of these ).
Anybody know of any manufacturers that are doing this?
Anybody know of any manufacturers that are doing this?
#33
Moderator with a mycocardium
Originally Posted by tokenbrit
You would have thought that somebody would be making this by now. There IS a market for replacement grille's and oil cooler covers (as there aren't any of these ).
Anybody know of any manufacturers that are doing this?
Anybody know of any manufacturers that are doing this?
#34

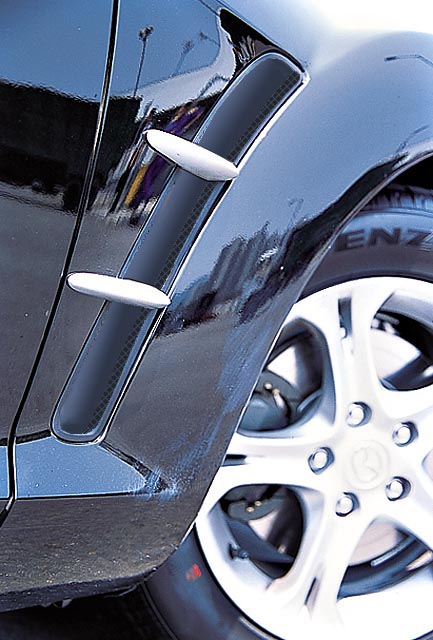

Cool. I assume you are going to use some kind of powder back steel mesh (similiar to the Mazdaspeed grille? ). Have you thought about doing replacement side vents to match too? :p
Please keep me updated. I am sure you are onto a winning product if the demand is as great as this forum might suggest. :D
Please keep me updated. I am sure you are onto a winning product if the demand is as great as this forum might suggest. :D
#35
Moderator with a mycocardium
Originally Posted by tokenbrit
Cool. I assume you are going to use some kind of powder back steel mesh (similiar to the Mazdaspeed grille? ). Have you thought about doing replacement side vents to match too? :p
Please keep me updated. I am sure you are onto a winning product if the demand is as great as this forum might suggest. :D
Please keep me updated. I am sure you are onto a winning product if the demand is as great as this forum might suggest. :D
#36
Registered
Join Date: Sep 2003
Location: Diamond Bar, Ca
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
Hey Adrian or anyone..... Do you have the MazdaSpeed front fender? If so.. why does it look different than this one...
I noticed that your car has an opening underneath the front fender where the stock rotary symbol is but in the picture I posted that is not there...
Why is it different?
thankx...
I noticed that your car has an opening underneath the front fender where the stock rotary symbol is but in the picture I posted that is not there...
Why is it different?
thankx...
