10 inch sub enclosure

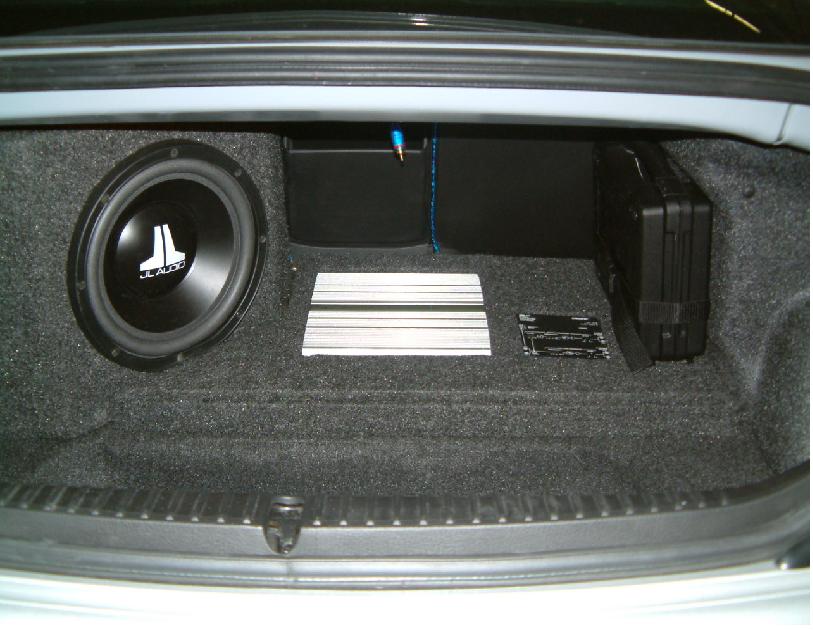

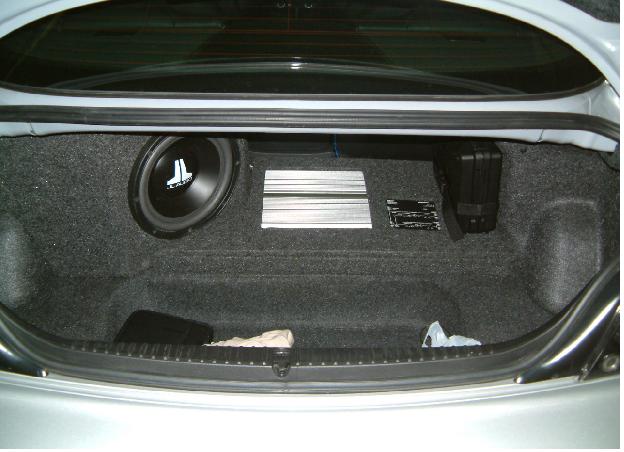

Just finished installing a sub in the back of the car!! Wanted to keep the trunck space and have use of the opening in the back seats - this is what I cam up with!! Still have a couple finishing touches to do - what do you think?
Attached Thumbnails 10 inch sub enclosure-car1.jpg   10 inch sub enclosure-car2.jpg
Old 07-28-2004 | 07:20 PM
  #2
Tigerfootball's Avatar
Clemson, NOT Auburn

Joined: Jun 2004
Posts: 565
Likes: 0
From: Greenville, SC
Looks great man. I like the amp rack especially. it is different than anything else i've seen in this car. good job. how does it sound?
Old 07-28-2004 | 07:53 PM
  #3
snowrydr01's Avatar
Registered

Joined: Jun 2004
Posts: 304
Likes: 0
From: Havertown PA
nice work, not too fancy, very functional for a small car
Old 07-28-2004 | 09:20 PM
  #4
DreRX8's Avatar
Registered User

Joined: Jun 2004
Posts: 1,959
Likes: 0
From: Houston, TX
Actually I'm doing the same thing--however my amps are mounted in the depression in the bottom of the trunk--and I'm going with an 8in sub.
Old 07-28-2004 | 11:53 PM
  #5
ammachama's Avatar
Thread Starter
Registered User

Joined: Jun 2004
Posts: 45
Likes: 0
From: Vancouver, BC, Canada
it sounds pretty good - I screwed up some of the wires originally, but once I figured that out, no problems - I personally don't need anything too loud, but this can pound if I want it too!!
Old 07-29-2004 | 01:01 PM
  #6
bossnikon23's Avatar
Registered User

Joined: May 2004
Posts: 29
Likes: 0
From: dirty jerzee
stupid question, but were did u get the carpet to cover the box and amp rack..it matches perfectly...!! Great Job BTW~!
Old 07-29-2004 | 01:29 PM
  #7
ammachama's Avatar
Thread Starter
Registered User

Joined: Jun 2004
Posts: 45
Likes: 0
From: Vancouver, BC, Canada
HI - I just got it at a local car audio shop - from there install area - i think it's called salt and pepper - but there are 2 shades - you need the darker one - you will be abe to tell if you saw them!!
Old 07-29-2004 | 04:53 PM
  #8
mikeb's Avatar
100% Italian

Joined: Jul 2003
Posts: 9,422
Likes: 0
From: orange,ca
very nice

I hardly use my trunk though
Old 07-29-2004 | 06:19 PM
  #9
Tigerfootball's Avatar
Clemson, NOT Auburn

Joined: Jun 2004
Posts: 565
Likes: 0
From: Greenville, SC
Can i ask, what is the cubic feet on the inside of youre box for that sub? would a box like that be able to be made for a JL 10W7? (1.25 cuft.) That is very space conserving and i need space in the trunk.
Old 07-29-2004 | 10:31 PM
  #10
ROTORTHUG's Avatar
Registered User

Joined: Apr 2004
Posts: 25
Likes: 0
From: OrangeCounty
that's sweet,simple but unique..
Old 07-29-2004 | 10:33 PM
  #11
Omicron's Avatar
Registered

Joined: Oct 2001
Posts: 7,966
Likes: 4
From: Boulder County, Colorado
Originally Posted by mikeb
very nice

I hardly use my trunk though
Then that makes it a perfect place for a sub... :D
Old 07-30-2004 | 12:24 AM
  #12
Juxagent's Avatar
Registered User

Joined: Jul 2004
Posts: 67
Likes: 0
Are you by chance using a 2-ohm amp or i should say do you have to? Im also wondering if you get a clean signal off the bose system using the LOC. The bose system runs on funny voltages and uses a 2-ohm load.

let me know
thanks

Last edited by Juxagent; 07-30-2004 at 12:25 AM. Reason: werd
Old 07-30-2004 | 01:13 AM
  #13
ammachama's Avatar
Thread Starter
Registered User

Joined: Jun 2004
Posts: 45
Likes: 0
From: Vancouver, BC, Canada
Originally Posted by Tigerfootball
Can i ask, what is the cubic feet on the inside of youre box for that sub? would a box like that be able to be made for a JL 10W7? (1.25 cuft.) That is very space conserving and i need space in the trunk.
hi - unfortunately, I don't think its any more than.6 cubic feet - if that - if you know how to fibreglass a box, you can get more area by making the back sides of the box a perfect fit - but I still doubt it would be 1.25 - maby if you encloes the amp rack, it would increase the size aswell!!
Old 07-31-2004 | 10:54 AM
  #14
bossnikon23's Avatar
Registered User

Joined: May 2004
Posts: 29
Likes: 0
From: dirty jerzee
Originally Posted by ammachama
HI - I just got it at a local car audio shop - from there install area - i think it's called salt and pepper - but there are 2 shades - you need the darker one - you will be abe to tell if you saw them!!


thank you!!
Old 07-31-2004 | 03:21 PM
  #15
truemagellen's Avatar
Attracts tree branches

Joined: Jun 2004
Posts: 5,940
Likes: 3
you know what...there is no DIY or specific information on this...guess it is something you just 'know' I've been told...well I have no clue so I'm with you in that help is needed: )

I need it for the Bose system...it would be nice for the non-bose owners too

thanks
Old 08-01-2004 | 01:56 PM
  #16
ammachama's Avatar
Thread Starter
Registered User

Joined: Jun 2004
Posts: 45
Likes: 0
From: Vancouver, BC, Canada
hey - the way I hooked up the RCA cables was to splice into the rear speakers and get myself a high to low level converter - they are availble at any car audio shop and electronics shop. I paid $50 for mine beacause this is the place where I hear all the problems can happen(cutting out, etc), so I decided to pay more for it. The converter has RCA outputs which you just attach to your amp, or crossover, then you are pretty much ready to go.
Gound the amp somewhere in the trunck, run a power cable from the battery, and use the power adapter from the centre console as your remote wire - then you are set to go!!

have fun!!
Old 09-09-2004 | 01:15 AM
  #17
irfan's Avatar
ElusiveSasquatch

Joined: Sep 2004
Posts: 196
Likes: 2
I have a box i used in my saab, i'll see if it fits .. its 2 infinity perfect kappa 10.1s and a jbl 600W amp.. i will splice into the 6x9s and run a line into the speaker level inputs.. my Q is.. where id u splice into? do the 6x9s in the rear shelf (BOSE system) get all of the lows, or are they filtered out?
Old 09-12-2004 | 05:19 PM
  #18
Liquid Rhino's Avatar
Keepin' It Real Since '79

Joined: Jun 2004
Posts: 159
Likes: 0
From: Miami, FL
Sweet setup... simple and clean!
Old 09-13-2004 | 01:59 PM
  #19
ammachama's Avatar
Thread Starter
Registered User

Joined: Jun 2004
Posts: 45
Likes: 0
From: Vancouver, BC, Canada
Originally Posted by irfan
I have a box i used in my saab, i'll see if it fits .. its 2 infinity perfect kappa 10.1s and a jbl 600W amp.. i will splice into the 6x9s and run a line into the speaker level inputs.. my Q is.. where id u splice into? do the 6x9s in the rear shelf (BOSE system) get all of the lows, or are they filtered out?

Hey - I don't think that the rear 6*9s are filtered, but I have no idea. That is where I spliced the signal from - if you have a high level input on your amp, you might as well try and use it, it should work out!!

post some pics!!

later
Old 09-21-2004 | 11:33 PM
  #20
JeRKy 8 Owner's Avatar
Stuck in a love triangle

Joined: Aug 2003
Posts: 2,201
Likes: 3
From: Miami, FL
I may considerchanging my setup to somethinglike that b/c right now I have no spacein my trunk at all. Also I bet that single JL 10" sub probably hits harderthan my two Kenwood 12s do.

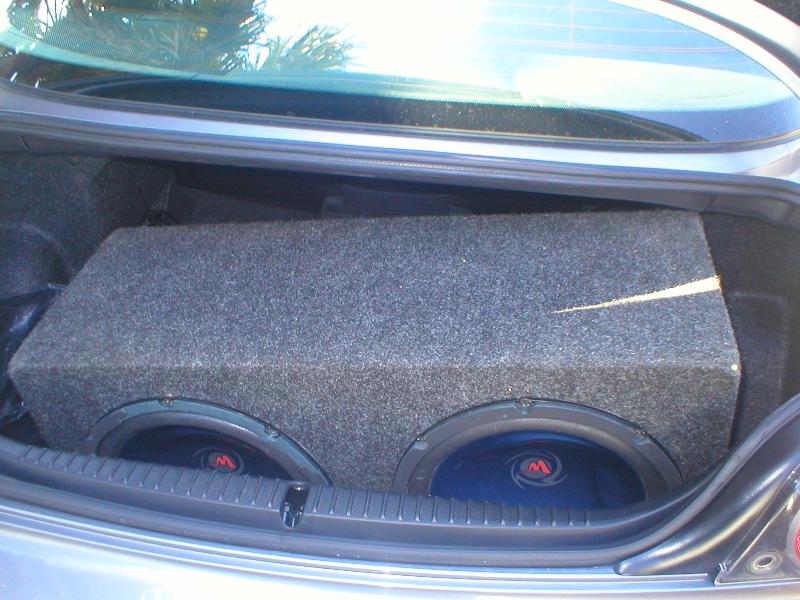

Heres a 1 year old pic (again for thoseof you who have probably seen it before) of the completely impractical butloud system in my car -- and yes my trunk still looks like this right now -- that is pretty much stuck in my trunk
Attached Thumbnails 10 inch sub enclosure-box.jpg
Old 09-23-2004 | 10:17 AM
  #21
reddragonmd's Avatar
Registered User

Joined: Jul 2002
Posts: 114
Likes: 0
From: Baltimore, MD
Originally Posted by JeRKy 8 Owner
I may considerchanging my setup to somethinglike that b/c right now I have no spacein my trunk at all. Also I bet that single JL 10" sub probably hits harderthan my two Kenwood 12s do.

Heres a 1 year old pic (again for thoseof you who have probably seen it before) of the completely impractical butloud system in my car -- and yes my trunk still looks like this right now -- that is pretty much stuck in my trunk
lol thats awesome. just plopped in there :D
