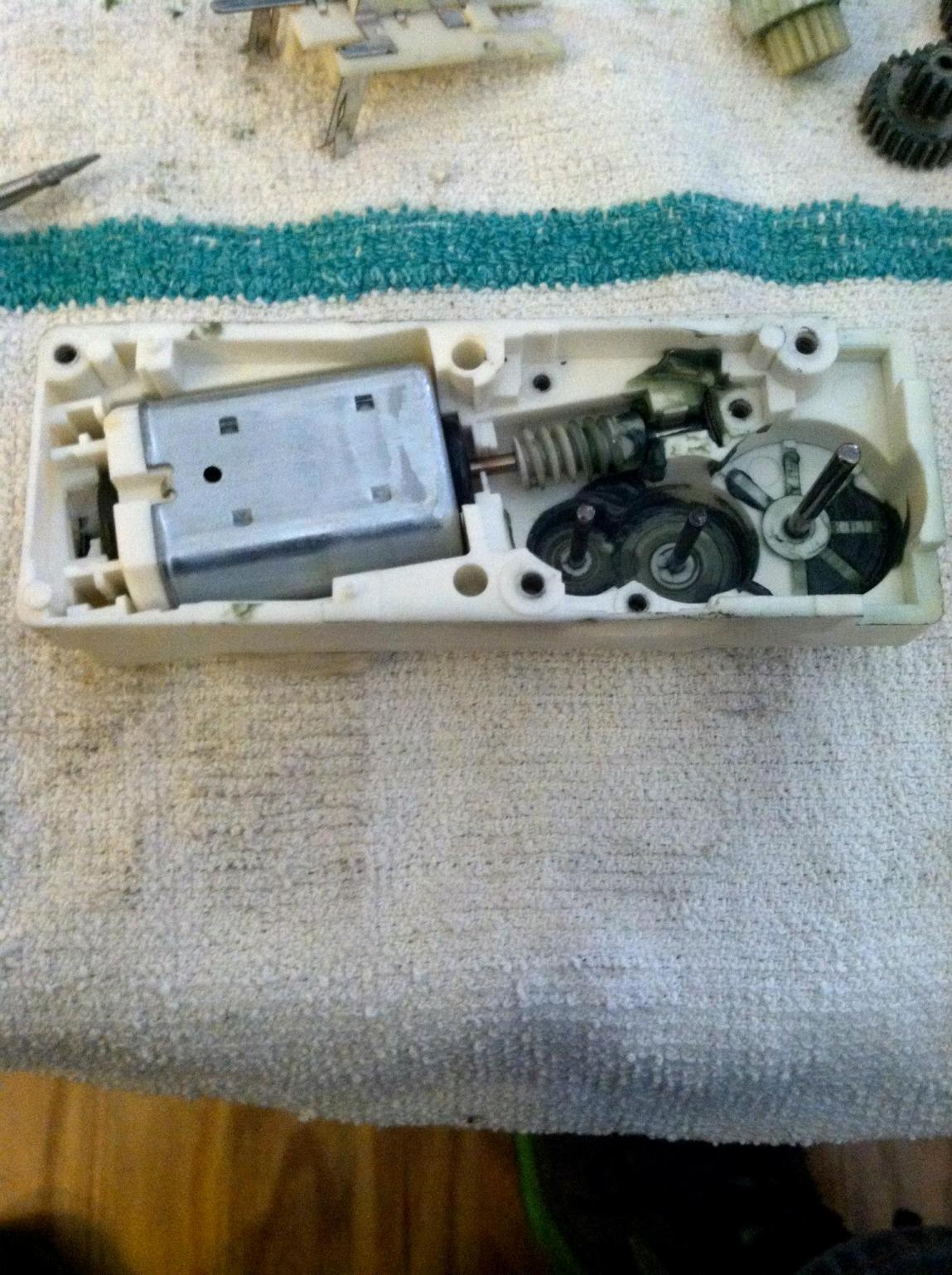

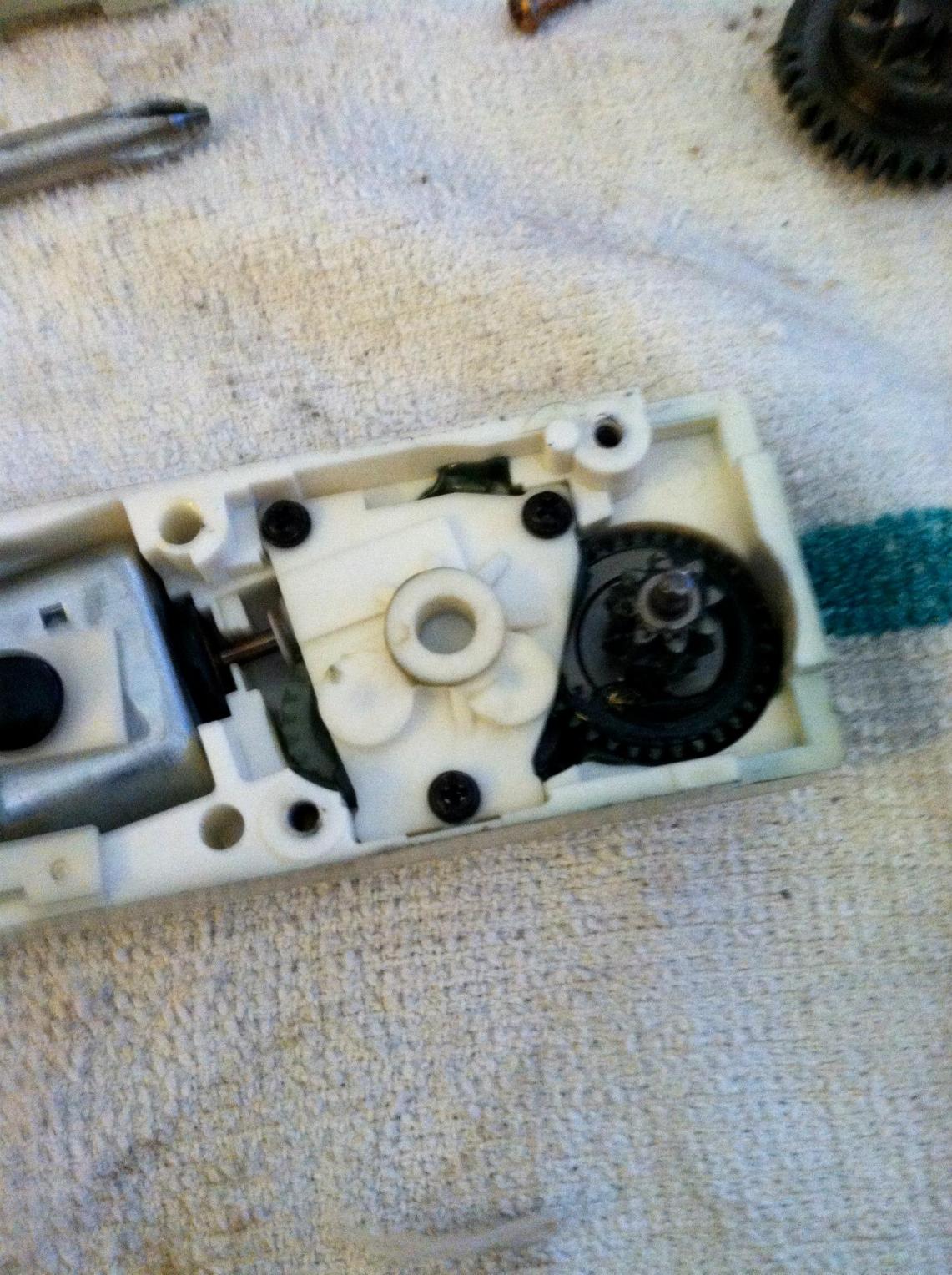

i pulled my seat apart to fix the lumbar, which didn't work, and it turned out to be a broken wire, so i took the lumbar motor apart for no reason, and these pics are mostly just for fun.

after taking it apart though, it does seem like the fellow who designed the thing had RC cars as a kid



Have you reassembled the seat? Would like to see how the seat warmer looks, my warmer stopped working this past winter.



i did put it back together, mine pulled the wires out of the seat back warmer, which was a HUGE pita to get to, but i'm glad it works now.

there is a DIY on the seat bottom warmer, which is easy.
