Installed: Custom stealth sub box between the rear seats, MP3 player, amp
Here are the pics of my new system that was installed at MotorMusic Inc. When I dropped off the car, I only told them that I would like the sub to sit between the rear seats firing into the cabin and my existing Neo MP3 player installed in place of the ashtray. They recommended the Alpine MRV-F450 5-channel amplifier which then I supplied - this drives all my Focal speakers (already there) plus the subwoofer. I never thought of trying to mimic the shiny black stock surface of the radio bezel or molding the Neo's wired remote into the ashtray - this was their idea.
And now about the details:
The sub box is a custom creation with a Diamond Audio D308D4 8" woofer in a small sealed enclosure. The enclosure itself is made of wood, carpeted, and takes up very little trunk space.
The faceplate is made of fiberglass and was modeled directly from the front of the pass-through box. The surface is sanded smooth and is painted with automotive high-gloss black paint that is polished to give the shiny look. The ring around the speaker is wood, and it is painted silver to follow the theme of the trim rings on the front vents and the silver ring on the radio.
And now about the details:
The sub box is a custom creation with a Diamond Audio D308D4 8" woofer in a small sealed enclosure. The enclosure itself is made of wood, carpeted, and takes up very little trunk space.
The faceplate is made of fiberglass and was modeled directly from the front of the pass-through box. The surface is sanded smooth and is painted with automotive high-gloss black paint that is polished to give the shiny look. The ring around the speaker is wood, and it is painted silver to follow the theme of the trim rings on the front vents and the silver ring on the radio.
Last edited by Tamas; 11-02-2005 at 10:17 PM.
09-07-2004, 05:10 AM
#4
Integrated remote

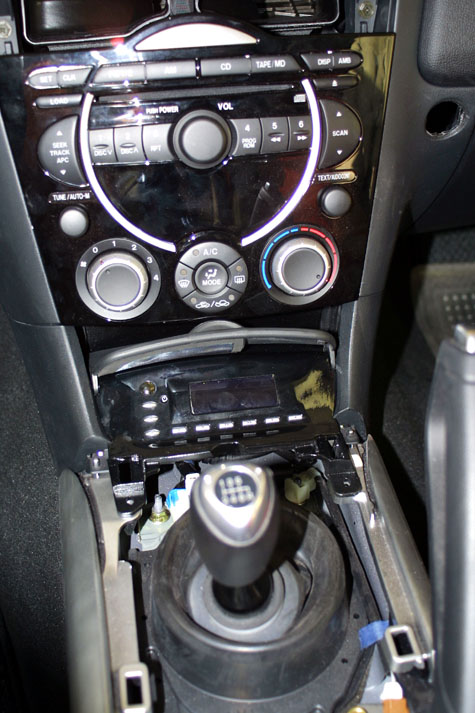

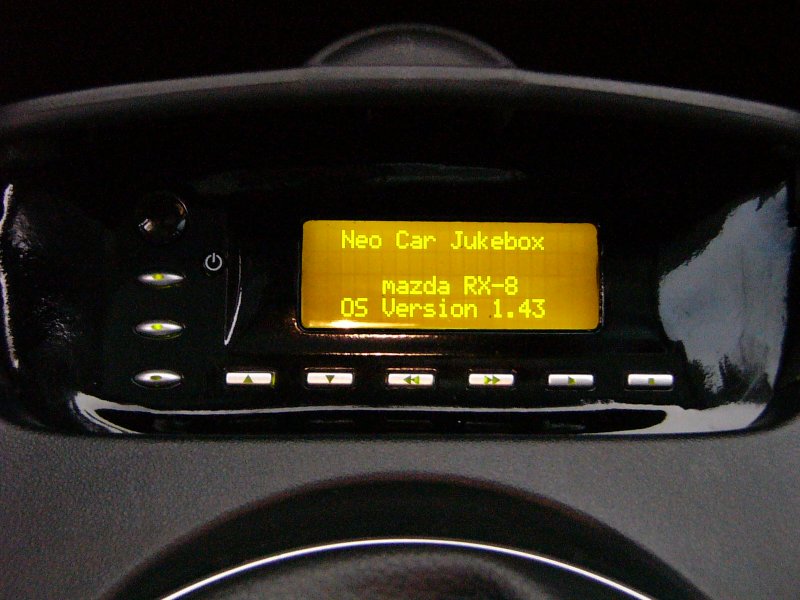

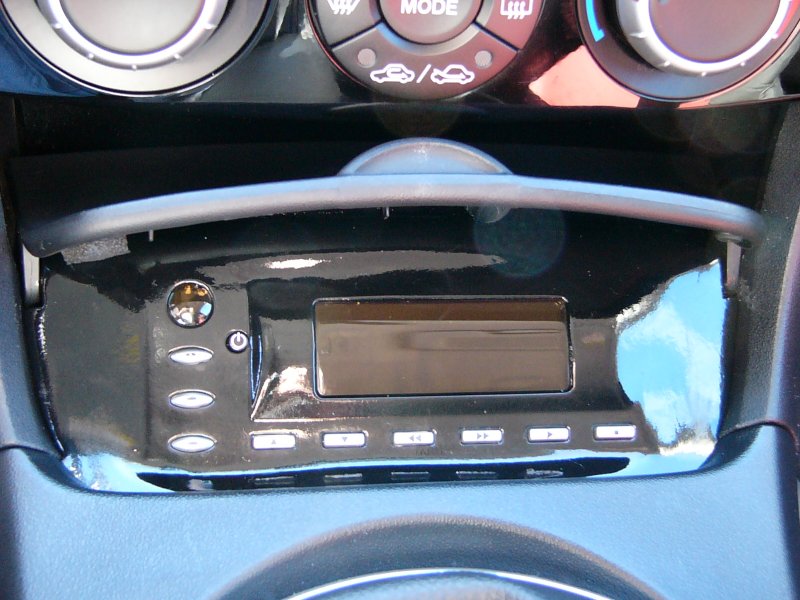

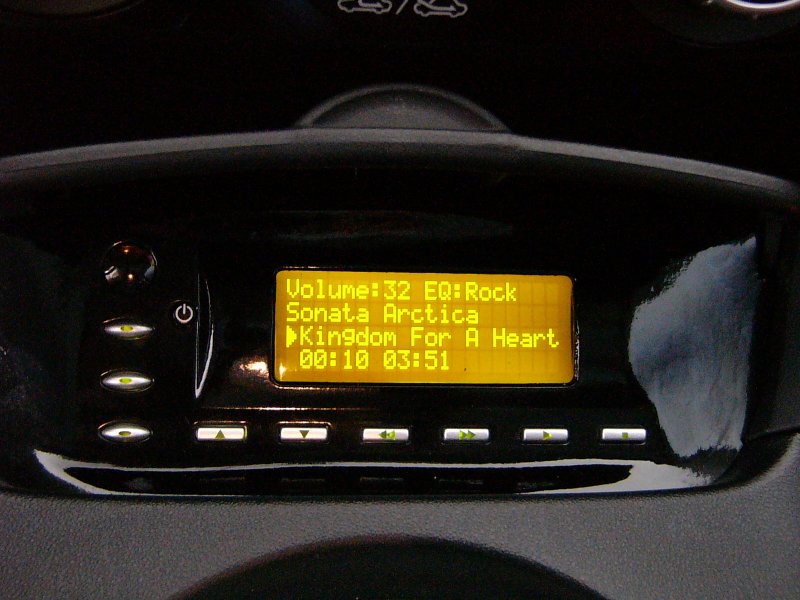

These shots show how the wired remote of the Neo was integrated into the ashtray. When I asked the installers to do this, I was simply thinking of cutting out the ashtray and mount the small box in there - instead, they did this fiberglass faceplate and molded the front of the unit to be totally part of the ashtray. The surface is also smoothed out and painted the same way like the subwoofer faceplate.
The ashtray cover can certainly be still closed and so the remote is completely hidden if so desired.
The ashtray cover can certainly be still closed and so the remote is completely hidden if so desired.
Last edited by Tamas; 11-02-2005 at 10:13 PM.
09-07-2004, 05:14 AM
#6
Cigarette lighter relocation

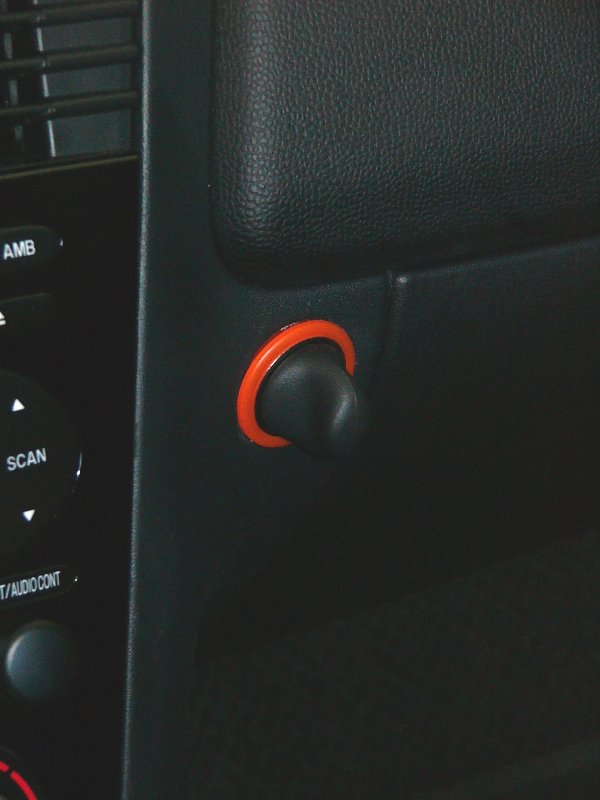

Finally, since the ashtray was eliminated, that required the power outlet to be relocated. I definitely wanted to keep this since it is often needed to power something. I wanted the outlet to go to the hole that's next to the glove box.
The installers didn't do this part, so just went ahead and did the relocation myself. Used a round file and carefully shaped the hole. It wasn't too bad and the result looks decent IMO (apart from the lame plug I had handy - need to find a better looking one). It still lights up with the dashboard just like before. It stays in place really firmly too - so much so, that I'd have a hard time now to take it out again - not that I'd really want to
The installers didn't do this part, so just went ahead and did the relocation myself. Used a round file and carefully shaped the hole. It wasn't too bad and the result looks decent IMO (apart from the lame plug I had handy - need to find a better looking one). It still lights up with the dashboard just like before. It stays in place really firmly too - so much so, that I'd have a hard time now to take it out again - not that I'd really want to
Last edited by Tamas; 03-29-2006 at 07:52 PM.
09-07-2004, 11:47 AM
#9
Registered User
Join Date: Jan 2003
Location: SF Bay Area
Posts: 1,286
Likes: 0
Received 0 Likes
on
0 Posts
Last edited by PUR NRG; 05-01-2011 at 04:32 AM.
09-07-2004, 12:23 PM
#10
Registered User
Join Date: Aug 2004
Posts: 23
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by sjt
Very nice Tamas!!
I think they did better on yours than mine!! ARGGH!!!
I'm jealous now!!! damn you!!! That's cool!!!
I think they did better on yours than mine!! ARGGH!!!
I'm jealous now!!! damn you!!! That's cool!!!

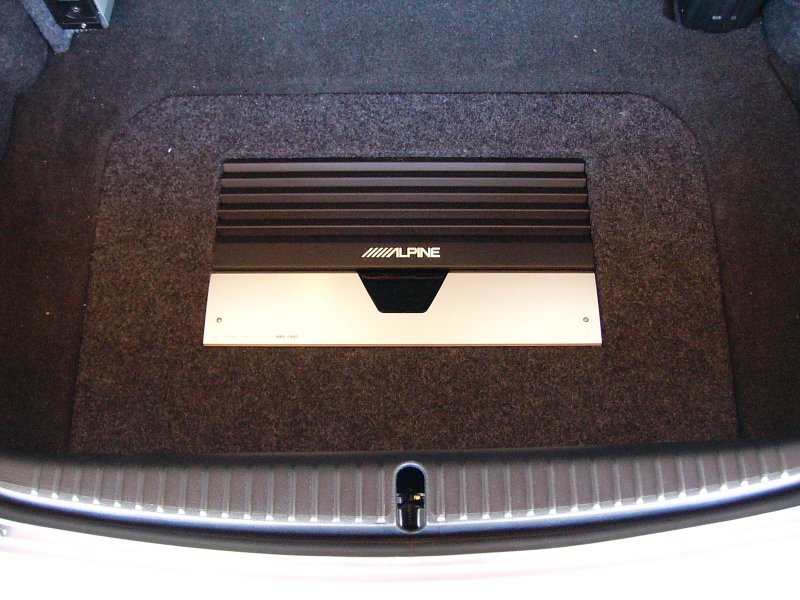

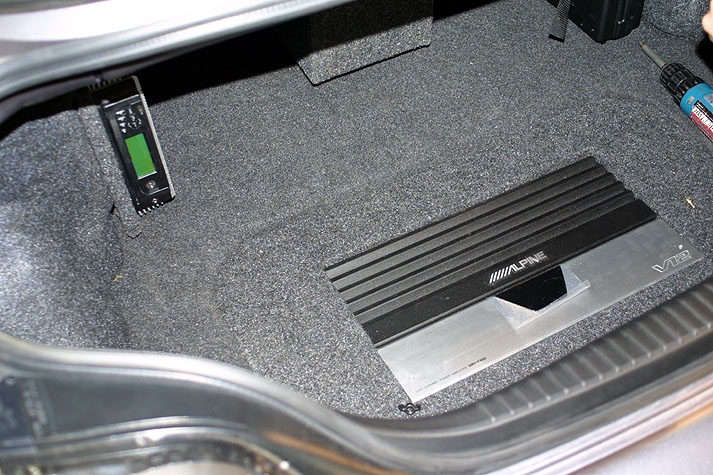

Tamas, thanks for the write up! your camera is way better than mine. As for the fabrication, Tamas has the break down on each item. The gloss black/silver accents and moded Mp3 controls were not initially in the price quote but my installers felt that it would look way better if those two pieces were done that way instead of the standard install. We threw those touches in there for free. As for the rest of the install, we have modes and specs on the same type of box if anyone is interested and would gladly make the same thing for anyone that asks. The amp rack is pretty typical, with the only diffrence being we decided to leave the control cover free to be opened instead of leaving it flushed and having to undo the amp every time you want to adjust it. Here are a few more pictures for you guys.
