Let's see your Audio setup.
I've always been a connoisseur of car audio since I had my first car. Been through a hundred different setups, going everywhere from RF and Alpine to Memphis and JL. I've heard it all and even used to do sound competitions with my old Honda.
It's time to see what you guys have set up in the Rx8!
Lets format it like so:
subwoofer(s) name and size and if the box is sealed or ported
amp name and watt RMS @ "x" ohms
speaker name (if applicable)
headunit brand (if you have one)
Then any extra information or accessories you would like to include!
and a picture!
I'll start-
12" JL Audio W3v3 sealed box
JL Audio 250.1 amp @ 2ohms with Bass control ****
MB Quart speakers
stock headunit with AuxMod
This is my first JL setup and I can honestly say I don't think I will ever switch back to another brand. I've never had such a small amount of power produce this clean of a clean sound and deliver such a powerful punch . It's so clean and LOUD if I turn the bass up, I normally keep it at about 60%
It's time to see what you guys have set up in the Rx8!
Lets format it like so:
subwoofer(s) name and size and if the box is sealed or ported
amp name and watt RMS @ "x" ohms
speaker name (if applicable)
headunit brand (if you have one)
Then any extra information or accessories you would like to include!
and a picture!
I'll start-
12" JL Audio W3v3 sealed box
JL Audio 250.1 amp @ 2ohms with Bass control ****
MB Quart speakers
stock headunit with AuxMod
This is my first JL setup and I can honestly say I don't think I will ever switch back to another brand. I've never had such a small amount of power produce this clean of a clean sound and deliver such a powerful punch . It's so clean and LOUD if I turn the bass up, I normally keep it at about 60%
Last edited by Danmn858; 06-30-2013 at 12:17 AM.
#3
Registered
iTrader: (1)
Custom fit box from half price car audio in Springfield mo

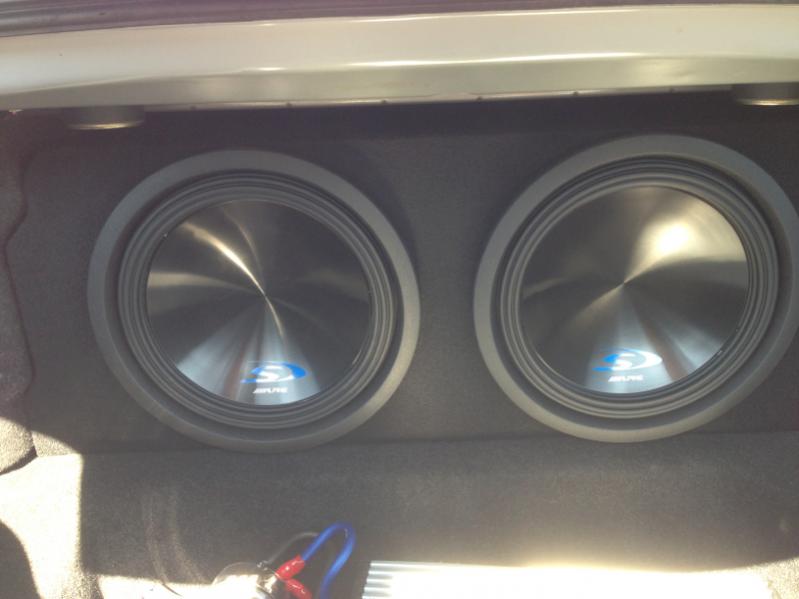

2 12 inch alpine type s's new style

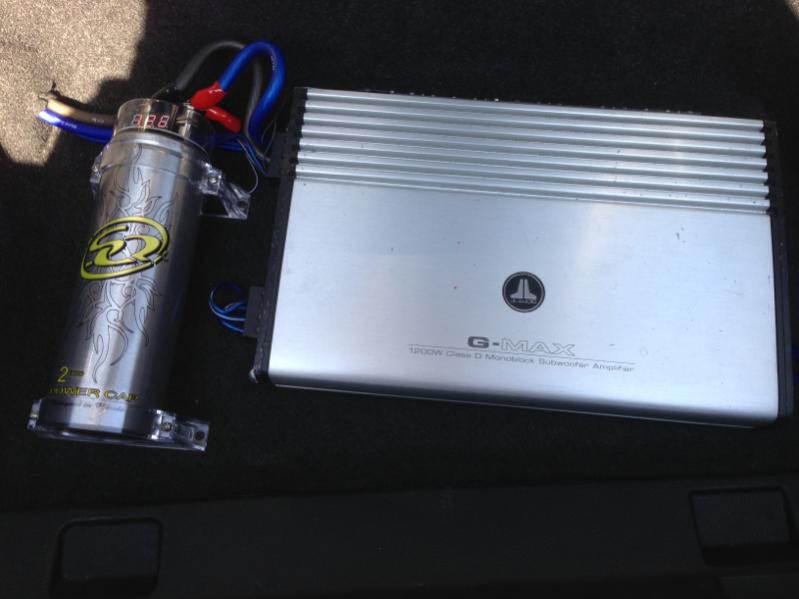

Jl audio 1200 watt amp
Sound quest power, ground and pre outs
Digital 2 farad cap

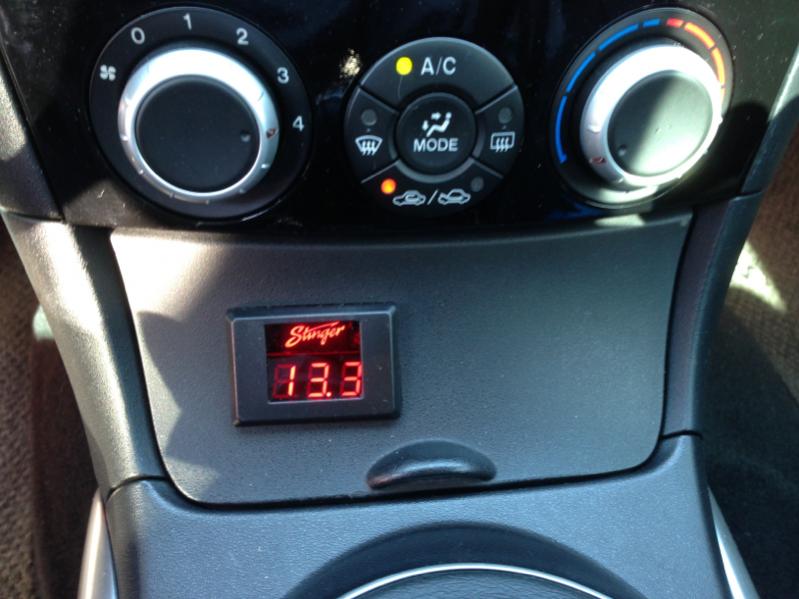

Stinger digital amp gauge custom location

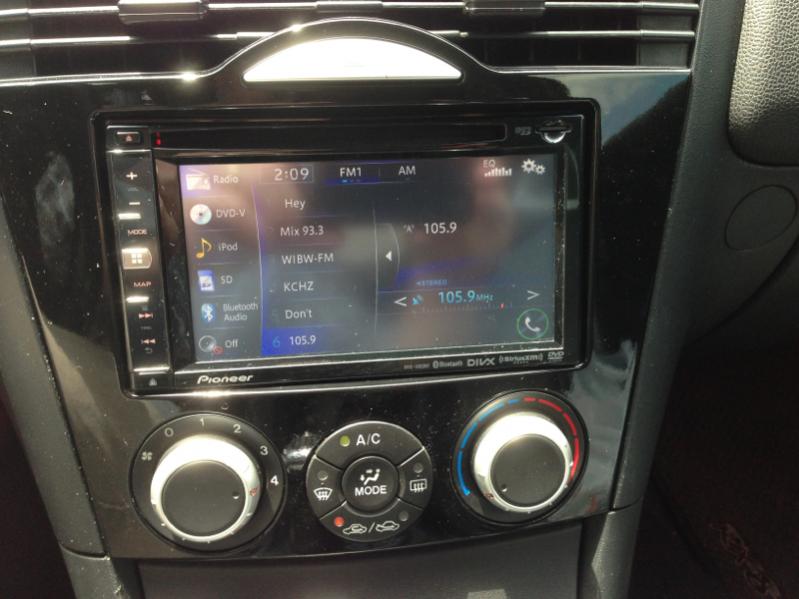

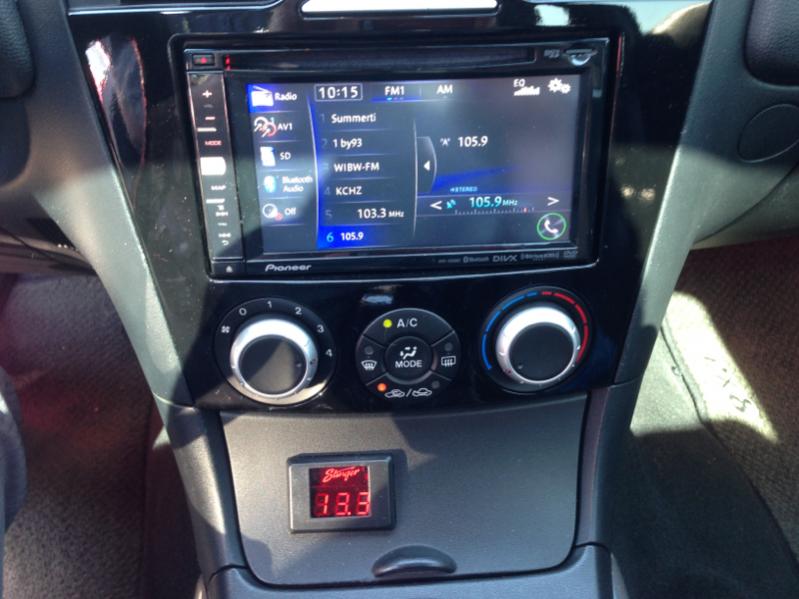

Pioneer avic-x850bt nav unit

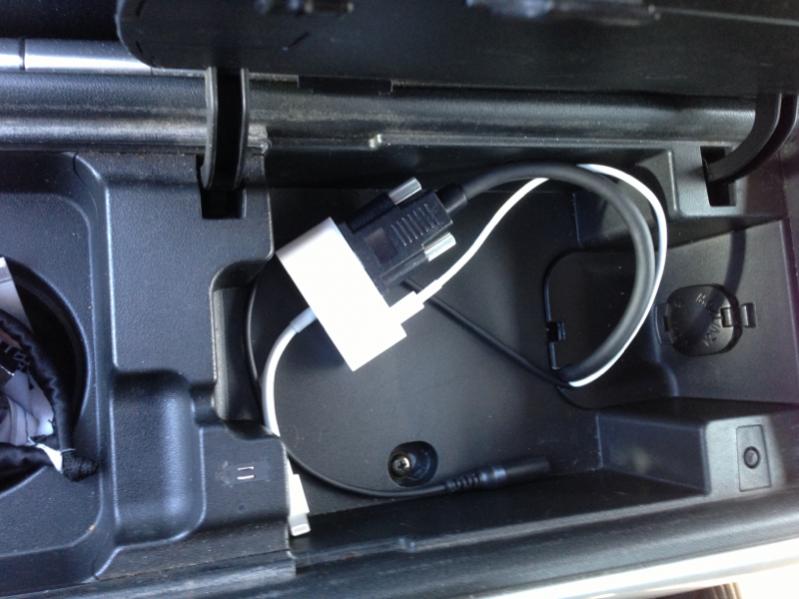

Cd-iv202navi cable kit/waiting on firmware to work
Pioneer Back up camera
Stock Bose components- I like the way they sound

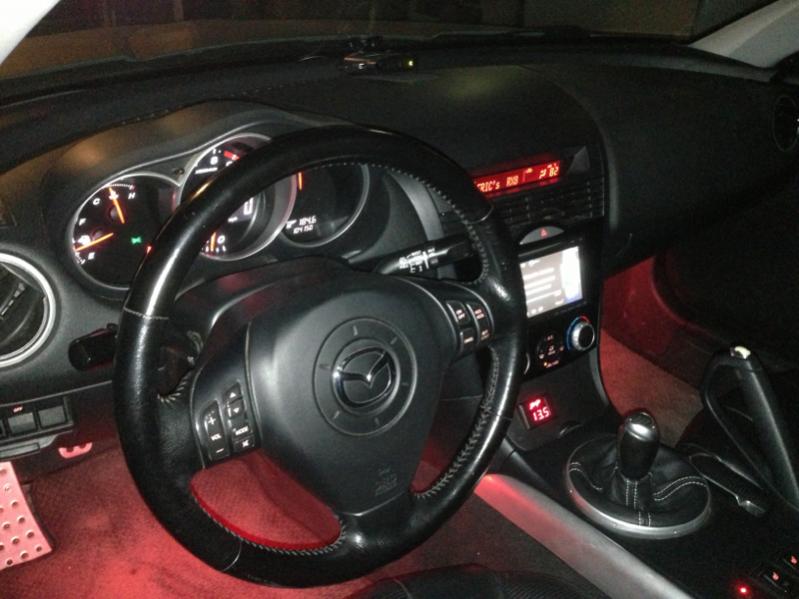

PAC steering wheels controller
#7
Administrator
iTrader: (7)
can I play?

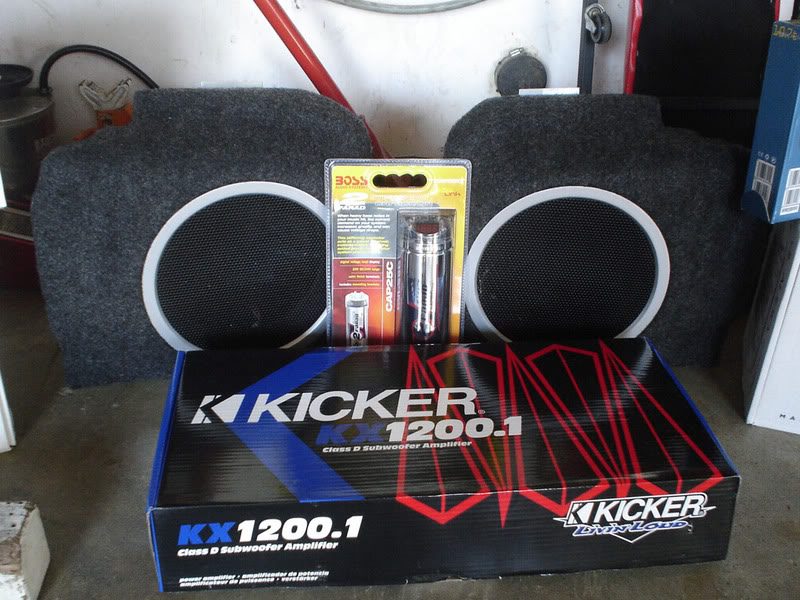

Two JLw6vs
4080 boxes
Kicker Class D 1200 watt amp
Infinity Kappa 6x9's
(2 pairs) Infinity Kappa 1" tweeters One set up front, and 2nd set for rear deck
Boss 2 Farad Capacitor
50 amp circuit (instead of a traditional fuse)
Soundgate LOCB.2 Bose Line Output Converter
here's my build thread from back in '06 when I did the upgrade: https://www.rx8club.com/series-i-int...pgrade-103771/
Two JLw6vs
4080 boxes
Kicker Class D 1200 watt amp

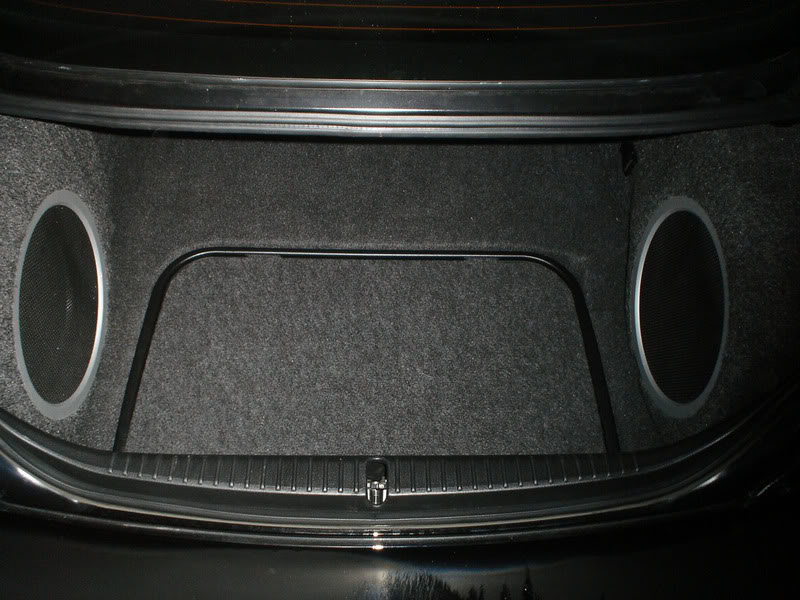

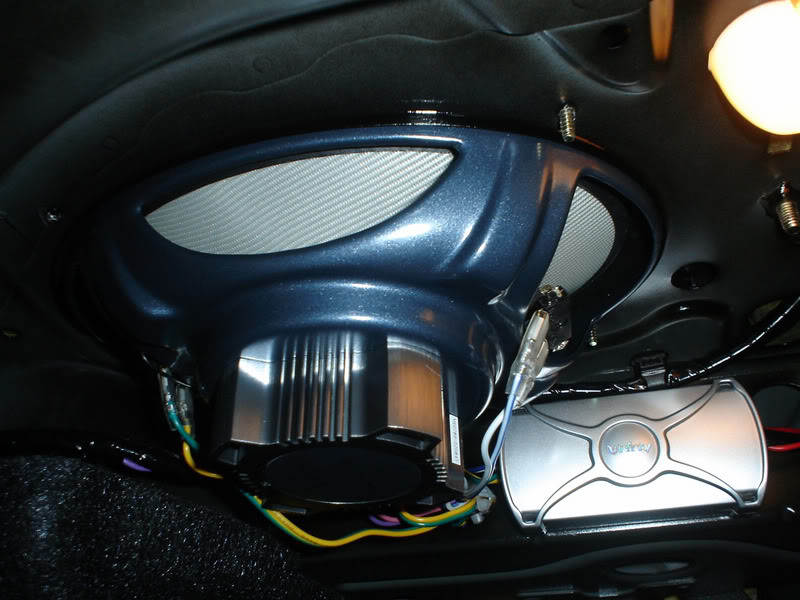

Infinity Kappa 6x9's
(2 pairs) Infinity Kappa 1" tweeters One set up front, and 2nd set for rear deck
Boss 2 Farad Capacitor
50 amp circuit (instead of a traditional fuse)
Soundgate LOCB.2 Bose Line Output Converter
here's my build thread from back in '06 when I did the upgrade: https://www.rx8club.com/series-i-int...pgrade-103771/
#10
Registered
iTrader: (1)
X series update
Avic-x850bt Iphone 5 support Firmware available now! - General - AVIC411.com
I posted this just yeserday on the avic 411 forum.
I got the upodate and love it! I need to buy a BT or WIFI OBDII dongle so I can use the dashboard app.
I posted this just yeserday on the avic 411 forum.
I got the upodate and love it! I need to buy a BT or WIFI OBDII dongle so I can use the dashboard app.
#12
Administrator
iTrader: (7)
I took a break from here for quite some time but you guys can't get rid of me THAT easily.

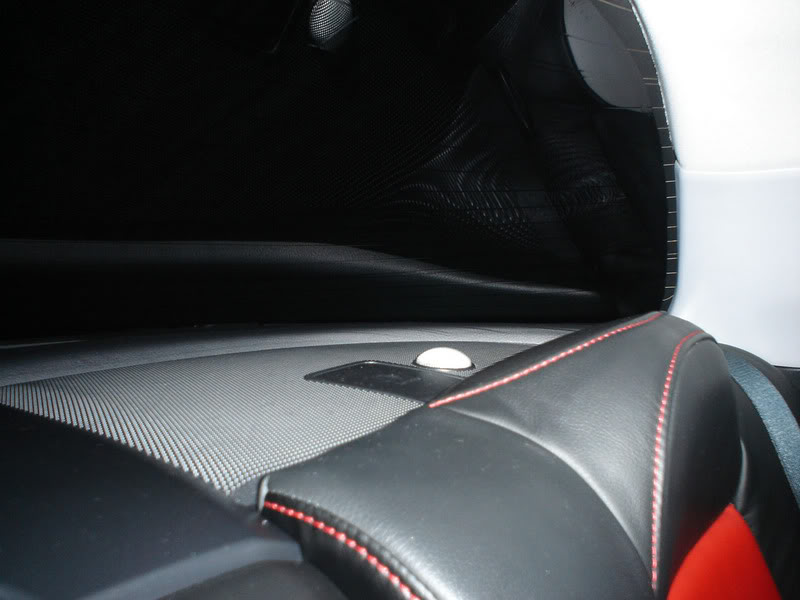

thats' the top / cover for the 1" Infinity I used to replace the bose speaker.
thats' the top / cover for the 1" Infinity I used to replace the bose speaker.
Last edited by Jedi54; 07-03-2013 at 12:55 PM.
#15
Registered
Ok ill go...
I've got a stock 7 speaker Bose (still sounds great)

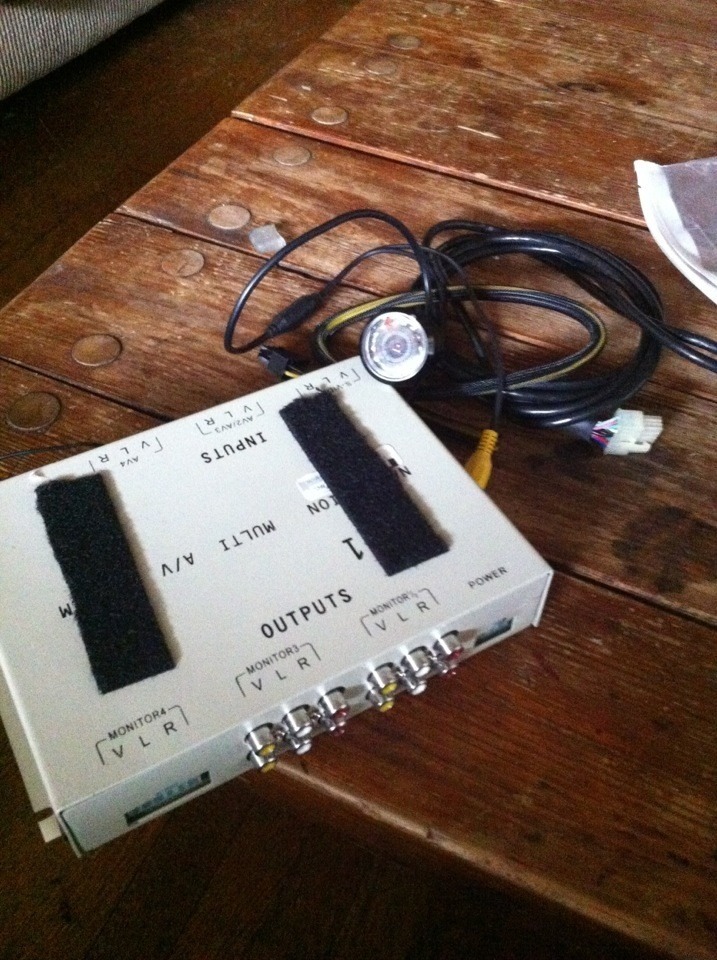

A stock nav screen with a 4in/out av switch conversion
6in pioneer touchscreen double din
500-1 Rockford prime amp

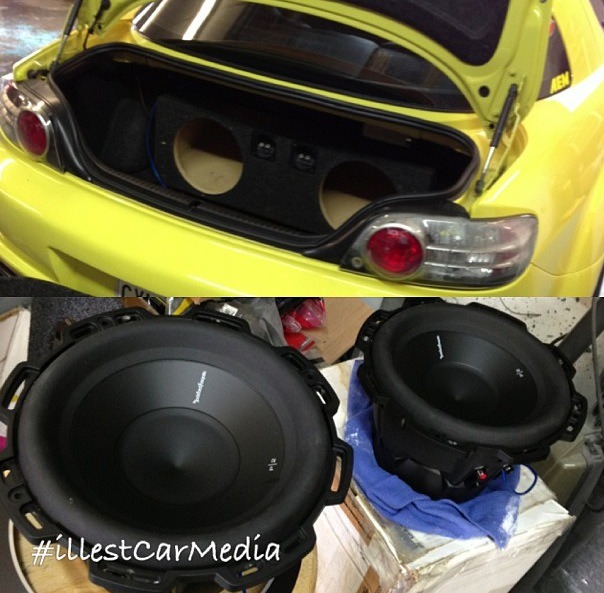

2 - Rockford P|2 10's (sealed box)
(Replaced a pair of soundstream 10's)
800w inverter ( for game consoles and little vacuum for shows)
I've got a stock 7 speaker Bose (still sounds great)
A stock nav screen with a 4in/out av switch conversion
6in pioneer touchscreen double din
500-1 Rockford prime amp
2 - Rockford P|2 10's (sealed box)
(Replaced a pair of soundstream 10's)
800w inverter ( for game consoles and little vacuum for shows)
Last edited by ableobject; 07-21-2013 at 02:11 AM.
#18
I have a little project I have worked on the past year. Still a work in progress, but I thought you guys might want to take a look
Headunit is a Google Nexus 7 connected to a mosconi 6to8 DSP wich again is connected to:
2x Massive Audio N4 (2x2kw) powering 2x Digital Designs 9512 (12") in a 6,5 cu.feet ported box tuned to 27hz. Playing 20-50hz range
Sub box is 4 parts bolted together inside the car to provide the neccesary air volume.
2x Massive Audio N3 (2x1,4kw) powering 2x Clarion WF2510 (10") in 0.5 cu.feet ported box in doors tuned to 50 hz. Playing 50-100hz range
2x Rockford Fosgate rockford fosgate r400-4d (2x500w)powering 2x Digital Designs VO 6x9 in kickpanel. Playing 100-300hz range.
and powering 2xTang Band W4-1757SB 4" full range in dash. Playing 300-20khz
Headunit is a Google Nexus 7 connected to a mosconi 6to8 DSP wich again is connected to:
2x Massive Audio N4 (2x2kw) powering 2x Digital Designs 9512 (12") in a 6,5 cu.feet ported box tuned to 27hz. Playing 20-50hz range
Sub box is 4 parts bolted together inside the car to provide the neccesary air volume.
2x Massive Audio N3 (2x1,4kw) powering 2x Clarion WF2510 (10") in 0.5 cu.feet ported box in doors tuned to 50 hz. Playing 50-100hz range
2x Rockford Fosgate rockford fosgate r400-4d (2x500w)powering 2x Digital Designs VO 6x9 in kickpanel. Playing 100-300hz range.
and powering 2xTang Band W4-1757SB 4" full range in dash. Playing 300-20khz
Last edited by Trustnoone; 07-22-2013 at 05:08 PM.
#21
Danny Rotstein
Thread Starter
iTrader: (10)
Join Date: Dec 2009
Location: Chicago
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
Wow that is extremely impressive! I would love to build **** like this when I had my old car. Such a rewarding project. I LOVE the Nexus in the dashboard. Do you mind me asking how you got that to work with the OE wiring harness?
#22
I have the metra kit wich is providing power when ignition is turned on. This is connected to a relay wich is powering a usb 12v charger.
For audio i have connected a usb DAC wich has an tos optical output. Then a optical cable to the 6to8 dsp.
I also have a JoyCon Exr wich takes resisitive steering wheel control and convert the signal to a simulated programmable usb keyboard. This makes me able to control volum and previous/next track on the steering wheel.
Sorry for my grammar, english is not my native language.
#25
I sit on phone books!
Join Date: Apr 2011
Location: Riverside
Posts: 169
Likes: 0
Received 0 Likes
on
0 Posts

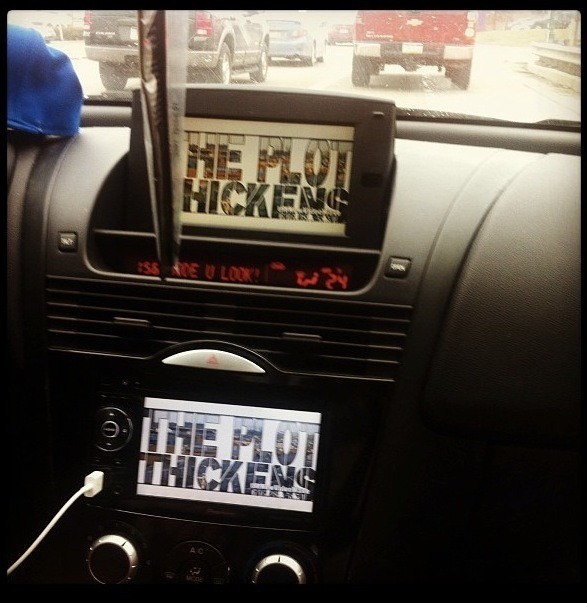

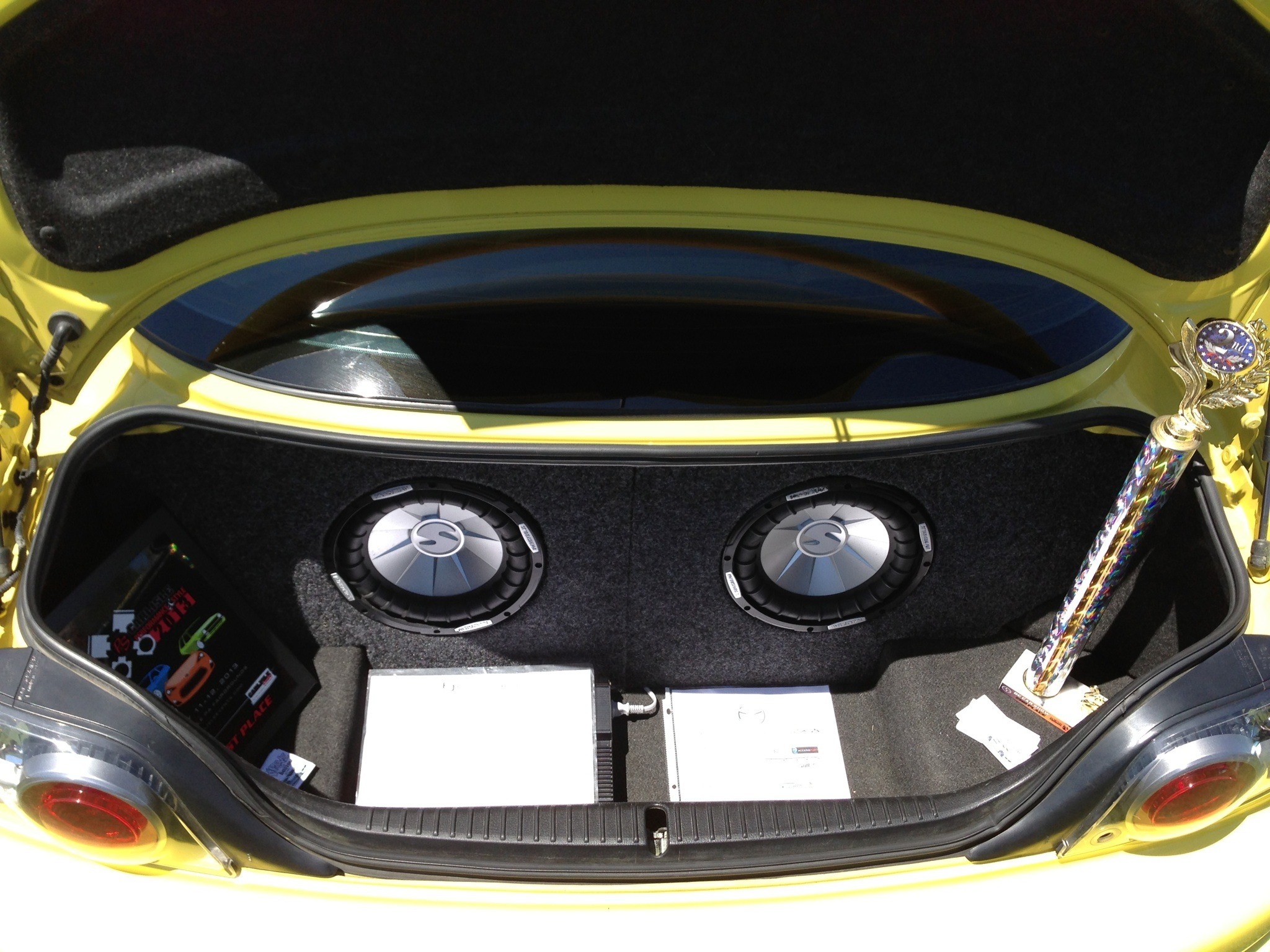

Just finished mine a few weeks ago. Didn't go too crazy.
JL 10w1v3-2 sealed box soon to be a fiberglass box when I get a chance to make it.
Focal Access 165 6.5 components up front
Alpine Type R 6x9 in the rear deck
Pioneer AVH X5500BHS
Fosgate 600 5 channel @ 4 ohms
Sirius XM tuner
Steering wheel control adapter (can't remember which)
Already thinking of upgrading the amp (plan changed half through the build) and adding a second 10.
JL 10w1v3-2 sealed box soon to be a fiberglass box when I get a chance to make it.
Focal Access 165 6.5 components up front
Alpine Type R 6x9 in the rear deck
Pioneer AVH X5500BHS
Fosgate 600 5 channel @ 4 ohms
Sirius XM tuner
Steering wheel control adapter (can't remember which)
Already thinking of upgrading the amp (plan changed half through the build) and adding a second 10.
