Originally Posted by howardteets
That's what I planned on doing. There was a grommet through the firewall, near where you are describing. I'm pretty sure it's the same spot.
Got a question though. For the Prosport gages the daytime color and nighttime color are determined by where you connect certain wires. For White for the daytime color you connect the white wire to the "ACC" and for Red (they call it amber in the schematic) at nighttime you connect the Orange wire to the "Parking Lamp". Any idea on where to tap into to get these?
Got a question though. For the Prosport gages the daytime color and nighttime color are determined by where you connect certain wires. For White for the daytime color you connect the white wire to the "ACC" and for Red (they call it amber in the schematic) at nighttime you connect the Orange wire to the "Parking Lamp". Any idea on where to tap into to get these?
Hmmm, my bet would be either, A) you can go to the turn signal switch lever (where the lights are controlled) and find the wire the controls the parking light signal and tap into that, or you can, B) goto the fuse box and find the fuse for Parking Lights and tap into the power off that fuse. But I'm not possitive if the 8 has a fuse just for it's parking lights (might be tied into the whole headlights, but then you will get your gauges to illuminate red only when the headlights are switched on), but I would bet it does.
Basically what they are saying is you need to tap power to something that only comes on when you have your headlights or parking lights on. So even the light in the ash tray that comes on with the lights on would be a switched power source. That would be the easiest bet and what I will probably do. Tommorow I'll check that possitive wire coming from the ashtray light to make sure there isn't power to it unless the head/parking lights are on with my multimeter.
Dave
#103
Originally Posted by chickenwafer
oh I forgot to add Howard- how well do those ProSports seem to match the stock gauges??
Another option would be to disable the leds that give the OEM gages the purple color. I think I saw a DIY on here somewhere to do that.
I personally like the purple color at night. Maybe some LED's can be rigged up to do the same to the Prosport gages.
Thanks for the tips on where to tap for power.
#104
Did some checking with the voltmeter. Not sure if I'm telling you guys something you already know but...
Both of the small connectors on the ashtray get 12V when the lights are turned on. One is the ashtray light and the other is the lighted ring around the lighter.
The bigger connector gets 12V when the key is in the Accesory position to send power to the lighter.
These are the easiest sources to get to I see.
Both of the small connectors on the ashtray get 12V when the lights are turned on. One is the ashtray light and the other is the lighted ring around the lighter.
The bigger connector gets 12V when the key is in the Accesory position to send power to the lighter.
These are the easiest sources to get to I see.
#105
Nope
iTrader: (9)
Originally Posted by howardteets
Did some checking with the voltmeter. Not sure if I'm telling you guys something you already know but...
Both of the small connectors on the ashtray get 12V when the lights are turned on. One is the ashtray light and the other is the lighted ring around the lighter.
The bigger connector gets 12V when the key is in the Accesory position to send power to the lighter.
These are the easiest sources to get to I see.
Both of the small connectors on the ashtray get 12V when the lights are turned on. One is the ashtray light and the other is the lighted ring around the lighter.
The bigger connector gets 12V when the key is in the Accesory position to send power to the lighter.
These are the easiest sources to get to I see.
Yeah I have my radar detector and 7" monitor hardwired to my cigg lighter. But I don't want to overload the circut so I might go somewhere else for main power, but the ashtray light is where I'll go for parking light power (to turn the gauges red)
Dave
#107
Originally Posted by auzoom
I wish they would do one of these in RHD ![Frown](https://www.rx8club.com/images/smilies/frown.gif)
![Frown](https://www.rx8club.com/images/smilies/frown.gif)
Check out here for the RHD:
http://www.japanparts.com/db/partsli...maker=&volkey=
#108
Originally Posted by chickenwafer
Yeah I have my radar detector and 7" monitor hardwired to my cigg lighter. But I don't want to overload the circut so I might go somewhere else for main power, but the ashtray light is where I'll go for parking light power (to turn the gauges red)
Dave
Dave
I think I'm going here for the battery. There are some settings with the gauges you can change. Going to the radio power, I've got constant power to the gauges to keep the settings active after vehicle shutdown.
Does anyone know how difficult to back pin these connectors? I've done this before at work for projects but I had a specific tool made for that specific brand of connector to remove the pins. It's a little cleaner but am I better off cutting, splicing and soldering?
#109
The Chief
Thread Starter
iTrader: (7)
Join Date: Jun 2005
Location: Virginia Beach, VA
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts
Some gauges such as the NEXUS gauges require an accessory wire which maintains power through engine cranking. Neither any ashtray or radio/ac wiring accomplishes this. I forget the color of the wire, but there is one going into the TPMS module right under where the LOTEK pod is.
#112
Nope
iTrader: (9)
Originally Posted by jskup1
Some gauges such as the NEXUS gauges require an accessory wire which maintains power through engine cranking. Neither any ashtray or radio/ac wiring accomplishes this. I forget the color of the wire, but there is one going into the TPMS module right under where the LOTEK pod is.
But from I gather the gauges need a constant 12v source for memory and such, correct? I'll have to hunt around the fuse box for that.
Dave
#113
The Chief
Thread Starter
iTrader: (7)
Join Date: Jun 2005
Location: Virginia Beach, VA
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts
It needs a constant 12V and a 12V accessory source which stays on during cranking because the Nexus gauge self-calibrate when they receive power and if there is an interuption in that (during engine cranking) they won't calibrate. If you take a meter and check and the wires to the lighter, you will see that you temporarily lose power when you turn the key from acc to on. You don't need to do this for all gauges though. Check the install instructions.
#114
From what I saw with the voltmeter and experience when I've tried to charge a cell phone the cig lighter only gets 12V when the key is in the acc position. I was going to go there for the gauges to be white as indicated in the instructions with the gauges. The light in the cig lighter/ashtray get 12V when the lights are turned on. Here's where I was going to get my red color for night time use.
For the constant 12V I'm tapping into the black and red/blue wires on the radio harness. I had the key out of the ignition and in my pocket and was picking up 12V at these to wires. I would assume these would still have 12V during cranking for the memory in the headunit.
I just got home from work and finished eating and am on the way out to thegarage to do some splicing and soldering. Probably won't run the wiring for the sending units tonight though. But I will be able to connect them at get atmospheric readings. I'll let you guys know how it goes.
For the constant 12V I'm tapping into the black and red/blue wires on the radio harness. I had the key out of the ignition and in my pocket and was picking up 12V at these to wires. I would assume these would still have 12V during cranking for the memory in the headunit.
I just got home from work and finished eating and am on the way out to thegarage to do some splicing and soldering. Probably won't run the wiring for the sending units tonight though. But I will be able to connect them at get atmospheric readings. I'll let you guys know how it goes.
#116

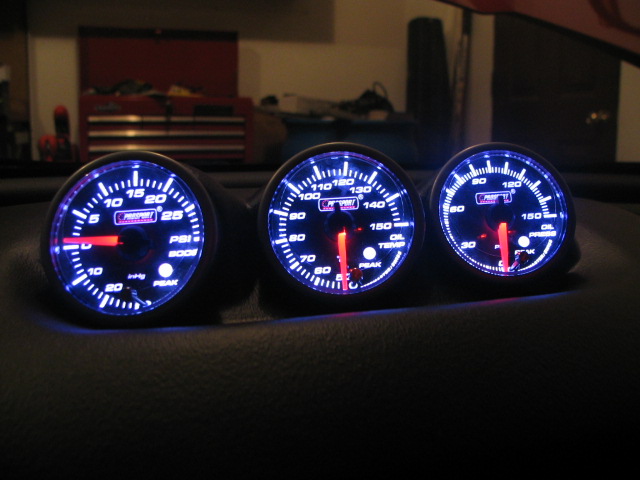

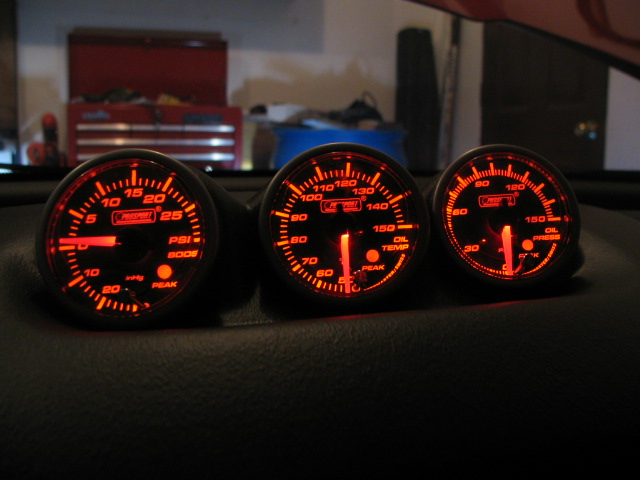

Well almost all done. Got all the wiring done. That's all for tonight. Probably gonna get the sender wiring through the firewall on Sunday. For now though here's some pics of what they look like. White is with the headlights turned off and the reddish orange is with the headlights on.
Wiring was pretty easy. Took about 2.5 hours with about 1.5 hours attributed to phone calls.
I did find something I really like about these gauges. If one of the sending units were ever to fail you're going to know it. The gauge flashes and beeps to let you know of the failure. Once I got all the power and lighting wiring all done I turned to key to admire my work. Once they went through their opening sequence all the gauges flashed and beeped. I turned the key off and plugged in all the senders and they now work as they should. Of course with the exception that oil pressure & temp and manifold pressure are all zero (for obvious reasons since I had them sitting on the floor).
Now I just have to get that turbo kit to actually use the boost half of the vacuum/boost gauge.
Wiring was pretty easy. Took about 2.5 hours with about 1.5 hours attributed to phone calls.
I did find something I really like about these gauges. If one of the sending units were ever to fail you're going to know it. The gauge flashes and beeps to let you know of the failure. Once I got all the power and lighting wiring all done I turned to key to admire my work. Once they went through their opening sequence all the gauges flashed and beeped. I turned the key off and plugged in all the senders and they now work as they should. Of course with the exception that oil pressure & temp and manifold pressure are all zero (for obvious reasons since I had them sitting on the floor).
Now I just have to get that turbo kit to actually use the boost half of the vacuum/boost gauge.
#117
Sorry guys couple more things.

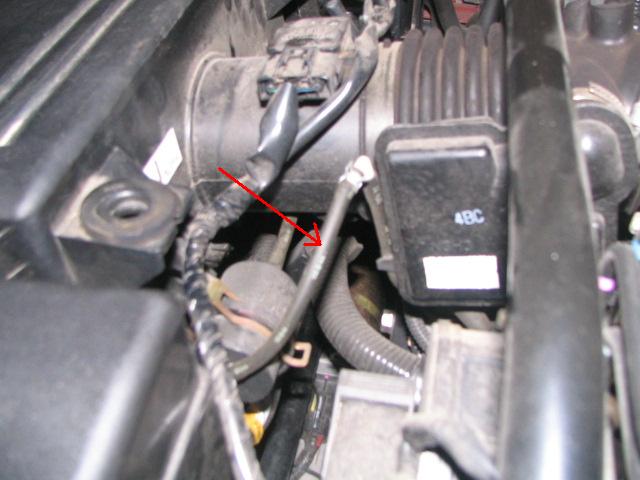

1) I pointed out a hose in one of the pics attached. Can I tap into this for manifold pressure? The gauge came with a T fitting that is about this size. I'm not up on my intake knowledge so I wanted to be sure before I go cutting hoses.

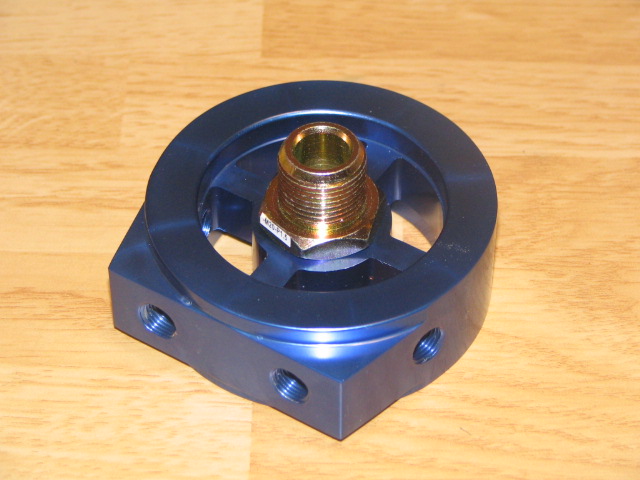

2) Not sure what you guys are using for oil filter sandwich adapters but I came across this one in the pic. I bought it from GlowShift Gauge's Ebay store. I'm pretty sure it's the same one on the Prosport website but it was cheaper on Ebay.
1) I pointed out a hose in one of the pics attached. Can I tap into this for manifold pressure? The gauge came with a T fitting that is about this size. I'm not up on my intake knowledge so I wanted to be sure before I go cutting hoses.
2) Not sure what you guys are using for oil filter sandwich adapters but I came across this one in the pic. I bought it from GlowShift Gauge's Ebay store. I'm pretty sure it's the same one on the Prosport website but it was cheaper on Ebay.
#118
Nope
iTrader: (9)
howard let me know if the Glowshift adaptor works- I was looking at it but I was thinking I would just go with RB because it's a garranteed thing, but it's $68 bucks vs, what, $20 for the glowshift adaptor?
I'll have to chech about that hose- not sure but it looks like you could read vaccum off it.
I'll have to chech about that hose- not sure but it looks like you could read vaccum off it.
#119
2JZ Powered
Join Date: Sep 2005
Location: Meridian, MS
Posts: 185
Likes: 0
Received 0 Likes
on
0 Posts
it will, thats the hose that goes to the little accuator thing on the intake , no real sure what it does
basically it restricts air flow under a particular amount vaccum
i nerver under stood why things like that excist on cars, i guess its just a fuel economy or emissions thing
basically it restricts air flow under a particular amount vaccum
i nerver under stood why things like that excist on cars, i guess its just a fuel economy or emissions thing
#120
Originally Posted by sixgen3sgte
it will, thats the hose that goes to the little accuator thing on the intake , no real sure what it does
basically it restricts air flow under a particular amount vaccum
i nerver under stood why things like that excist on cars, i guess its just a fuel economy or emissions thing
basically it restricts air flow under a particular amount vaccum
i nerver under stood why things like that excist on cars, i guess its just a fuel economy or emissions thing
#121
The Chief
Thread Starter
iTrader: (7)
Join Date: Jun 2005
Location: Virginia Beach, VA
Posts: 827
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by chickenwafer
I bet the radio memory has constant 12v during engine cranking, otherwise your radio presets would be gone when you cranked the engine! And I know the radio doesn't have a flash memory because you loose your presets when you disconnect the batt or pull the room fuse.
#122
Originally Posted by jskup1
Nope, it doesn't either. It has a constant 12V which is always on for the memory funtions. When you crank the engine, it temporarily goes out as well. I was really surprised at what little keeps power the whole time from turning the key from acc to on and starting the engine. If you use the sport comp 2s or the carbon fiber series, you shouldn't have to worry about this though, you should be able to use a standard 12V acc connection. I believe the Nexus gauges are the only Autometer gauges which require this.
#123
to finsh everything off i ordered 6 prosport gauges and the racing beat gauge pod to go with everything..
Personally ive delt with expensive gauges. i think its a pain trying to find a place for the main control box to go.
Personally ive delt with expensive gauges. i think its a pain trying to find a place for the main control box to go.
#124
Originally Posted by jskup1
Nope, it doesn't either. It has a constant 12V which is always on for the memory funtions. When you crank the engine, it temporarily goes out as well. I was really surprised at what little keeps power the whole time from turning the key from acc to on and starting the engine. If you use the sport comp 2s or the carbon fiber series, you shouldn't have to worry about this though, you should be able to use a standard 12V acc connection. I believe the Nexus gauges are the only Autometer gauges which require this.
