need alternate footwell light wiring
#1
ShinkaMan #748 SV6P
Thread Starter
Join Date: May 2005
Location: Lake Worth, FL
Posts: 536
Likes: 0
Received 0 Likes
on
0 Posts
need alternate footwell light wiring
I got the footwell light installed and read all threads concerning this using the search feature.
I don't like the lights to go on/off with the door. It is useless during daytime anyway. I like to find a way to wire them so they can be turned on/off with the parking lights/headlights. I like the lights to be on at night where it can be better appreciated.
Can somebody point to me which color wire and where I can tap into the parking lights wiring (or any alternate wiring)? Is the wire in the same harness where the lights are normally tapped into? I would like to keep the mod closed to the original one so no engine bay ideas... :D
I don't like the lights to go on/off with the door. It is useless during daytime anyway. I like to find a way to wire them so they can be turned on/off with the parking lights/headlights. I like the lights to be on at night where it can be better appreciated.
Can somebody point to me which color wire and where I can tap into the parking lights wiring (or any alternate wiring)? Is the wire in the same harness where the lights are normally tapped into? I would like to keep the mod closed to the original one so no engine bay ideas... :D
#3
Registered User
Join Date: Jul 2004
Location: Broomfield, Colorado
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
I bought a 7 LED round "light button" from Fry's and installed it in the footwells, and the LEDs are brighter than the Mazda footwells. I connected the lights to a new switch I mounted next to the DSC switch. My footwell lights stay on whenever I want.
I connected the power to the ACC terminal in the fuse box (inside the cockpit, next to the driver's left leg). Then, when you turn off the engine, the lights go out. The entire job took me about 30 minutes. I have pictures at home (if you want to see them, I could post some later).
I connected the power to the ACC terminal in the fuse box (inside the cockpit, next to the driver's left leg). Then, when you turn off the engine, the lights go out. The entire job took me about 30 minutes. I have pictures at home (if you want to see them, I could post some later).
#4
Registered
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
If you want to hook it up to the dimmer lights, without going into the engine bay, pull out your dimmer switch, measure with a DMM and find a wire that goes active when you turn on the parking lights - just probe around till you find it. Then using a solid state relay with a low current draw tap into it.
#5
ShinkaMan #748 SV6P
Thread Starter
Join Date: May 2005
Location: Lake Worth, FL
Posts: 536
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CUE2's RX-8
I bought a 7 LED round "light button" from Fry's and installed it in the footwells, and the LEDs are brighter than the Mazda footwells. I connected the lights to a new switch I mounted next to the DSC switch. My footwell lights stay on whenever I want.
I connected the power to the ACC terminal in the fuse box (inside the cockpit, next to the driver's left leg). Then, when you turn off the engine, the lights go out. The entire job took me about 30 minutes. I have pictures at home (if you want to see them, I could post some later).
I connected the power to the ACC terminal in the fuse box (inside the cockpit, next to the driver's left leg). Then, when you turn off the engine, the lights go out. The entire job took me about 30 minutes. I have pictures at home (if you want to see them, I could post some later).
#6
503wtq Boosted Bimmer
iTrader: (2)
Join Date: Oct 2004
Location: Los Angeles, California
Posts: 3,038
Likes: 0
Received 0 Likes
on
0 Posts
Maybe this will help you. I think the last post has what you're looking for.
https://www.rx8club.com/series-i-interior-audio-electronics-24/adding-interior-lights-42714/
https://www.rx8club.com/series-i-interior-audio-electronics-24/adding-interior-lights-42714/
#7
ShinkaMan #748 SV6P
Thread Starter
Join Date: May 2005
Location: Lake Worth, FL
Posts: 536
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rotary Rasp
Maybe this will help you. I think the last post has what you're looking for.
https://www.rx8club.com/showthread.php?t=42714
https://www.rx8club.com/showthread.php?t=42714
Thanks again.
#8
Registered User
Join Date: Jul 2004
Location: Broomfield, Colorado
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
wedge: I put a fuse spade next on the ACC fuse (4th fuse from the top), which is located in the fusebox next to the driver's leg. I put the spade on the left side of the fuse, the side nearest the door.
Here are some pictures:

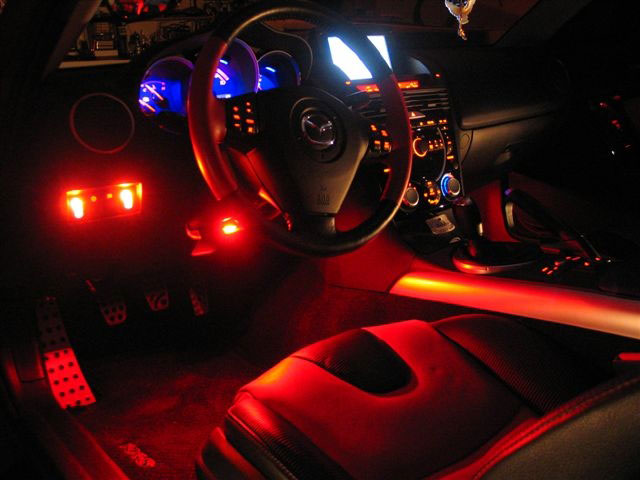

- The first picture (Footwells-1)shows my lighted switches (on the left) for activating different lights. You can see my "LED button light" just below the steering column.

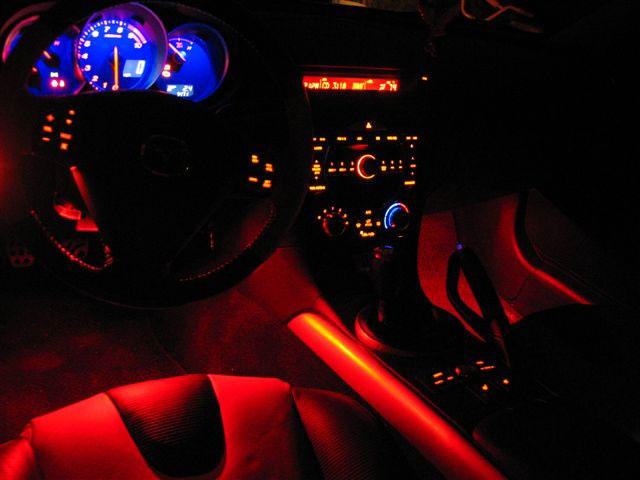

- The second picture (Footwells-2) shows a better picture of the footwell light. That is a pretty accurate picture of the amount of light I see.
Here are some pictures:
- The first picture (Footwells-1)shows my lighted switches (on the left) for activating different lights. You can see my "LED button light" just below the steering column.
- The second picture (Footwells-2) shows a better picture of the footwell light. That is a pretty accurate picture of the amount of light I see.
