Where is the ground strap bolted?
#1
Registered
Thread Starter
Join Date: Jul 2008
Location: Flemington, NJ
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
Where is the ground strap bolted?
I'm trying to measure the wire lengths in my engine for a "big three upgrade". The battery positive to alternator and battery negative to engine block are no-brainers, but I'm having trouble locating the stock engine block to chassis cable. I thought it would continue from the same point where the battery negative to engine block cable terminated, but I don't see it there. Any instruction/pics would be appreciated.

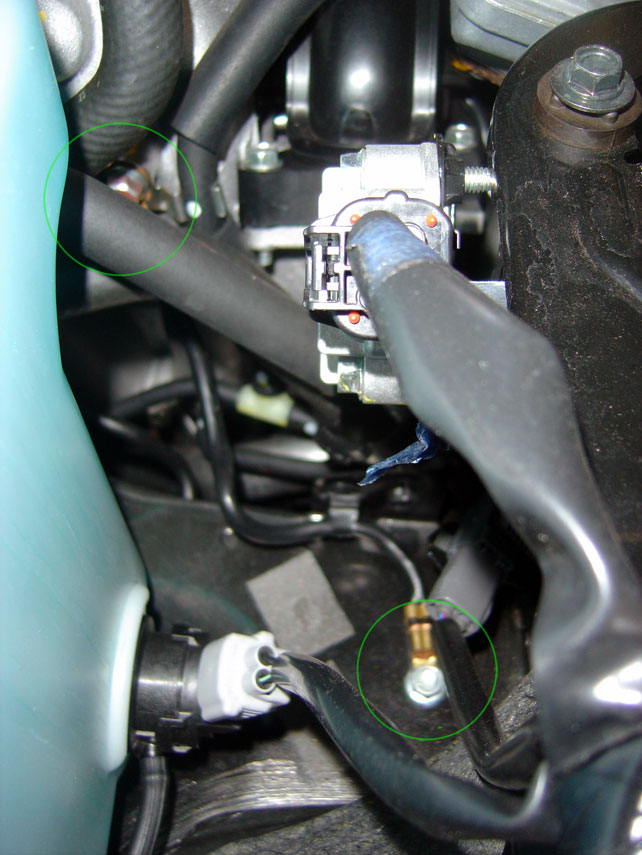

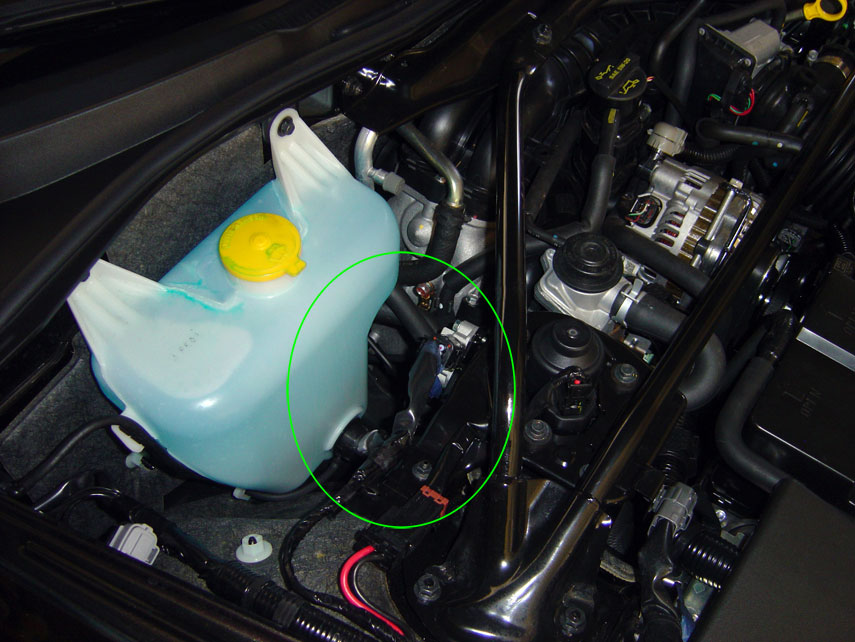

EDIT: Okay, on my latest search, I think I may have found the culprit. I'll attach some pictures, and if anyone would be willing to simply confirm whether I've identified it, that would be super.
EDIT: Okay, on my latest search, I think I may have found the culprit. I'll attach some pictures, and if anyone would be willing to simply confirm whether I've identified it, that would be super.
Last edited by d05; 10-20-2008 at 12:54 PM. Reason: Update
#2
I made some poos
iTrader: (1)
Join Date: Sep 2005
Location: Pittsburgh, PA
Posts: 841
Likes: 0
Received 0 Likes
on
0 Posts
Thats where I put my Ground, from the lower intake manifold to the chassis. Lurch519 did a good DIY for a grounding kit. You should look in there, that is what I based mine off of.
#3
ಠ_ಠ
Join Date: Aug 2007
Location: Under the Dumbarton Bridge
Posts: 2,228
Likes: 0
Received 6 Likes
on
5 Posts
yeah, thats it. My grounding kit hits all kinds of different grounding points. Not sure how much benefit I see from all that 4 gauge running around the engine bay, but it sure looks shiny.
![](http://isomerica.net/%7Efluffy/Ren/groundingkitf.jpg)
![](http://isomerica.net/%7Efluffy/Ren/groundingkitf.jpg)
![](http://isomerica.net/%7Efluffy/Ren/groundingkitr.jpg)
Last edited by Socket7; 10-20-2008 at 04:24 PM.
#4
Metatron
iTrader: (1)
You should use some black shrink-wrap on the ones that run to the negative terminal - Some dealermonkey or AAARoadGuy will boost you in reverse and blow up your ECU, and then blame the whole thing on you.....
Hear me now, and believe me later.
![](https://www.rx8club.com/attachments/series-i-interior-audio-electronics-24/8434d1072252136-grounding-kit-install-z7-008.jpg)
I have TWO of those cables to each ground point, but BLACK at the battery!
S
Hear me now, and believe me later.
![](https://www.rx8club.com/attachments/series-i-interior-audio-electronics-24/8434d1072252136-grounding-kit-install-z7-008.jpg)
I have TWO of those cables to each ground point, but BLACK at the battery!
S
#5
ಠ_ಠ
Join Date: Aug 2007
Location: Under the Dumbarton Bridge
Posts: 2,228
Likes: 0
Received 6 Likes
on
5 Posts
You make a good point stealth, and since the terminal is covered by the battery lid, I think I can stoop to ruining the color scheme to prevent someone from being an idiot.
I happen to like the idea of all red wires. Keeps people on their toes.
I happen to like the idea of all red wires. Keeps people on their toes.
