how about two of these?
http://store.summitracing.com/partde...5&autoview=sku
and for the fuel tank side, do you have two AN-8 aluminum tubings sticking into the space where oem pump was used to be?
http://store.summitracing.com/partde...5&autoview=sku
and for the fuel tank side, do you have two AN-8 aluminum tubings sticking into the space where oem pump was used to be?
#210
Unregistered User
Thread Starter
Join Date: Apr 2006
Posts: 824
Likes: 0
Received 0 Likes
on
0 Posts
what exactly is the venturi valve?

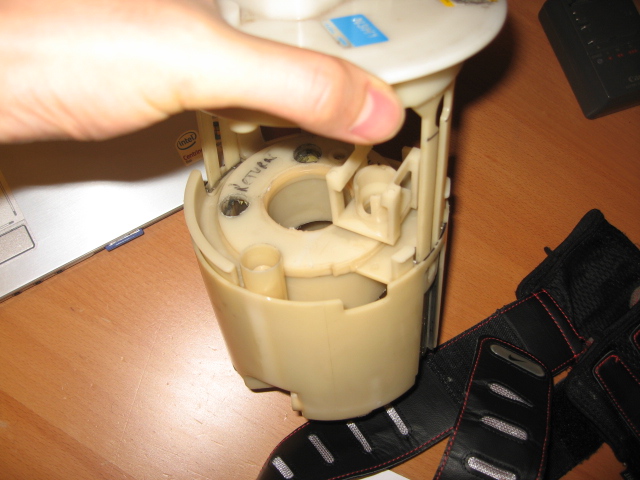

can you point it out from this photo?
all this is mechanical stuff right? none of it is operating with sensor or electrical signals?
can you point it out from this photo?
all this is mechanical stuff right? none of it is operating with sensor or electrical signals?
#211
Modulated Moderator
iTrader: (3)
Do you have a picture of the canister cup without anything else? Post it and I'll show you...otherwise....it is the other end of the tube that the connector to the other side of the tank goes on.....there is a black tube that connects to the other side of the fuel tank to return fuel..I'll see if I can find a picture on my end as well....
#214
Modulated Moderator
iTrader: (3)

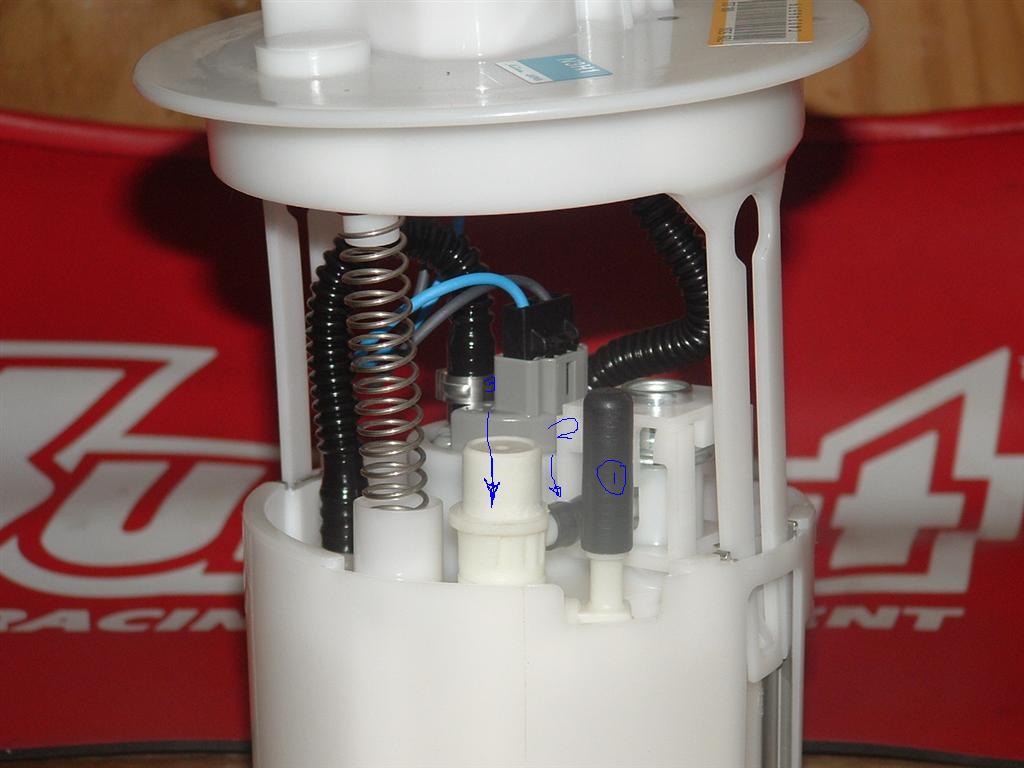

OK...here's a picture courtesy of Swoope from an earlier thread
#1 is the where you hook to line from the passenger tank....there is a black rubber cap on top... yours wouldn't have the cap..it's only on new pumps ....the hose clicks on there ( snap on connector line the OEM fuel line but smaller
#2 is where your fuel return NEEDS to hook up too...
#3 is the venturi suction mechanism that pumps the fuel from the passenger side
You can use the filter or not...but if you don't hook it up this way it WON'T work..unless you put another way to pump the fuel from the passenger side
The fuel pickups need bulkhead fitting like you showed earlier...with lines that run so the screens are almost on the bottom of the cup when the tank is installed. Be careful they aren't too long...the assembly shortens when it goes in the tank
Yopu also want to make sure whatever you use inside the pump won't collapse when it is closed as well...the little corrugated hoses in the OEM assembly would work well on the return line
#1 is the where you hook to line from the passenger tank....there is a black rubber cap on top... yours wouldn't have the cap..it's only on new pumps ....the hose clicks on there ( snap on connector line the OEM fuel line but smaller
#2 is where your fuel return NEEDS to hook up too...
#3 is the venturi suction mechanism that pumps the fuel from the passenger side
You can use the filter or not...but if you don't hook it up this way it WON'T work..unless you put another way to pump the fuel from the passenger side
The fuel pickups need bulkhead fitting like you showed earlier...with lines that run so the screens are almost on the bottom of the cup when the tank is installed. Be careful they aren't too long...the assembly shortens when it goes in the tank
Yopu also want to make sure whatever you use inside the pump won't collapse when it is closed as well...the little corrugated hoses in the OEM assembly would work well on the return line
#217
Thats exactly how mine is. I just took the oem pump out and put the pumps to suck fuel from that tank.. The rest of the conectiopns are exacty the same. Remember, even thought you take the pump mechanism out the ventury stays. It is not part of it. In oyher words the first picture u showed me saying that was what you thought the canister was, That has to go... The actual canister stays and the ventury mech stays with it..
Last edited by angeljoelv; 01-04-2009 at 07:20 PM.
#219
Like I said before stick, Ill take my actual assy out and take pics. Ill send them to you and dannobre ( to make sure it is the same) and youll go from there. We all want to have something that works and Im willing to change mine if theres something better out there..... But it works..
#220
Modulated Moderator
iTrader: (3)
Just a poke....I was just saying that if it was different it wouldn't work...I was sure yours would be the same
The filter doesn't matte one way or another...r..I prefer an inline canister type anyway that can be changed..and that filters better than the stock filter
The filter doesn't matte one way or another...r..I prefer an inline canister type anyway that can be changed..and that filters better than the stock filter
#221
SR Dubbed Rx8
Join Date: Aug 2007
Location: Jacksonville FL.
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts
IM going to try just running my return to the venturi pump and having my pump outlet go straight to a bulkhead bypassing the oem filter. i take it this will work right?
#223
Rotary Runner Redux
iTrader: (3)
I am really late to this party, so throw out the suggestions if need be.
A lot of the AN- hardware you folks are looking for can be found online here:
http://www.aircraftspruce.com/menus/ha/anfittings.html
Might help with some of the material transitions (flex - hard Al - bulkhead) I think I've seen. The entire catalog used to be thick enough to hurt your foot if you dropped it, I know this from the days when I played with experimentals.
A lot of the AN- hardware you folks are looking for can be found online here:
http://www.aircraftspruce.com/menus/ha/anfittings.html
Might help with some of the material transitions (flex - hard Al - bulkhead) I think I've seen. The entire catalog used to be thick enough to hurt your foot if you dropped it, I know this from the days when I played with experimentals.
#225
Hey stick.. this is my neighbore from Ruff Racing. 10.6 all day long.. http://www.youtube.com/watch?v=gY85zjXdeYY
