baysj

iTrader: (1)

You still on the stock greddy?

Brettus

iTrader: (2)

no - never have been. Compressor wheel is upgraded .

swoope

iTrader: (5)

but by whom????

nice #s..

i think i am working on a shipping project for you!

beers

Brettus

iTrader: (2)

/\ You bringing all your relatives to NZ ?

swoope

iTrader: (5)

nope,

but that is an idea.. ship myself. with something that weighs about the same as me!!!!

btw, i got some mad skills!!! and cocktail well!

beers

Easy_E1

iTrader: (2)

That's like half of Florida.

Brettus

iTrader: (2)

I like the way you think

Brettus

iTrader: (2)

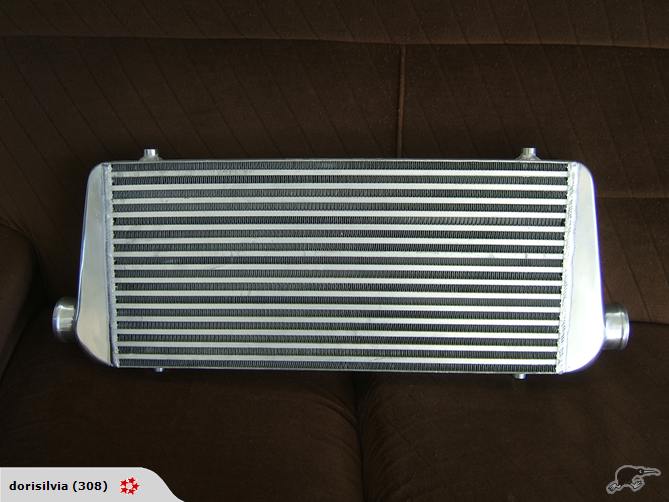

Got this coming - will do some nice before and after tests to see what difference it makes .

chickenwafer

iTrader: (9)

Nice Bret, looks almost exactly like mine

Brettus

iTrader: (2)

It's a 600x280x76 . Did you take any photos of yours installed ?

chickenwafer

iTrader: (9)

Mine is 32"x13"x3" I believe...

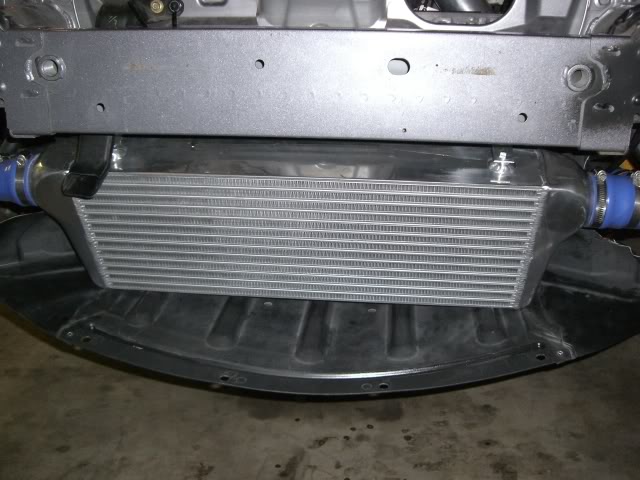

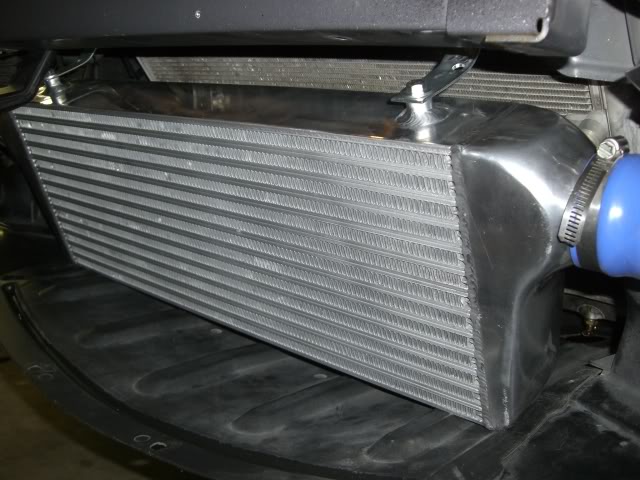

Pics:





Due to it's height and the location of the GReddy pipes I had to angle the intercooler back..I think it works awesome, though, because it creates more of a "dam" effect in front of the intercooler forcing air thru it while at the same time angling the air up towards the radiator...

Brettus

iTrader: (2)

thanks for that . I may copy if i it wont fit vertically although mine is 2" shorter so should be ok ....

blackenedwings

Which intercoolers do you guys have?

olddragger

iTrader: (3)

are yall doing any motor mount work?
OD

Brettus

iTrader: (2)

/\ no - i have never noticed any issues with mine .

chickenwafer

iTrader: (9)

I'm not sure what intercooler mine is- it came with the used kit I bought. I had to make some mounting brackets for it to work tho- easy enough, just some L-brackets bent into shape.

I haven't had any issues with my motor mounts yet, you do you ask, OD?

Brettus

iTrader: (2)

i think it was made by a chinese fella - won hung lo

blackenedwings

Sounds like the Godspeed one then. That's the same one I have, which I also got with my used GReddy kit. My intercooler is mounted the same way, with some L-brackets bent into shape. I'm pretty happy with it so far. It's known as the "eBay intercooler" but apparently performs pretty well.

Brettus

iTrader: (2)

Just took my engine out again to fix a persistent oil leak (same crack as what MYSQL had ) dating back to when I blew the engine a year ago . So It's time for some new upgrades .

Starting with
Esmeril apex seals + stress relief dowel area
Mild Porting work - (done by me so it wont be anything special )
New 2nd hand clutch (thanks to Swoope)
Bigger injectors (have run out of fuel at 350 whp)

Still really happy with the turbo and it looks to be in great shape (after 22000 km) so nothing much there - think the 360degree thrust bearing was a good investment.
Just measured the inducer diameter at 56.5mm (2.22") and exducer at 75mm .This seems to corelate to a T04e 57 trim . If this is the case then it is flowing way more air than the compressor map would suggest it is capable of .

Also notice that my turbine has been clipped - somewhere around 10 degrees but hard to tell without pulling it to bits .

Brettus

iTrader: (2)

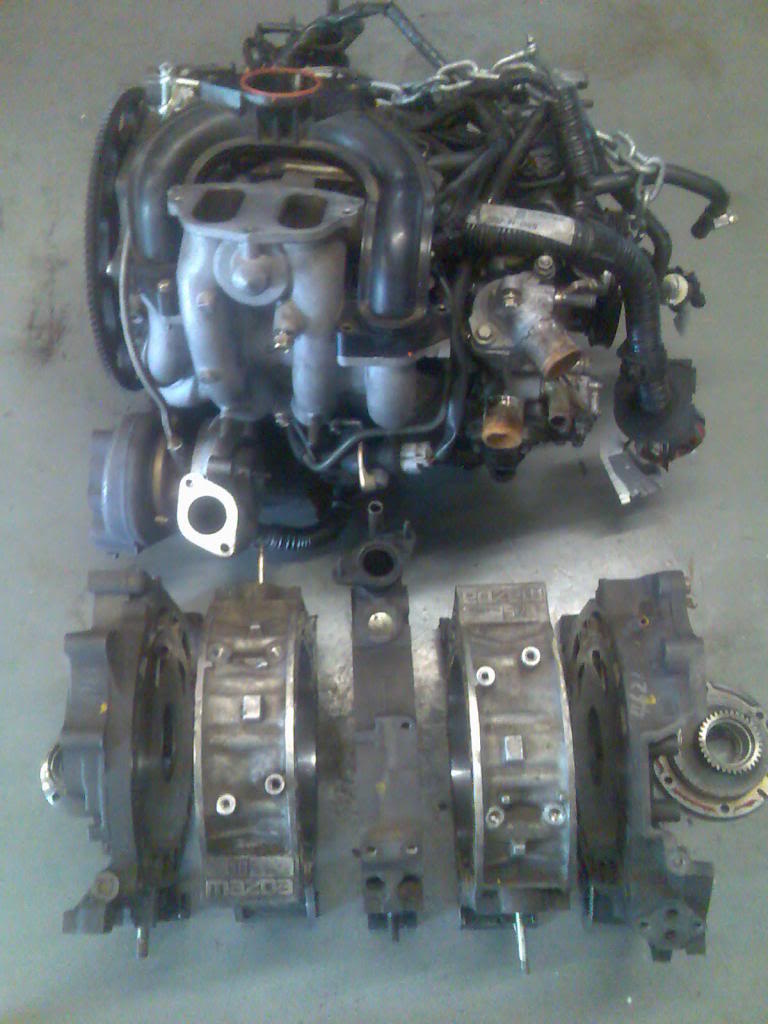

Got an entire set of good housings and irons + stationary gears for cheap so going to have a play ...

stinksause

iTrader: (5)

how much did you pay out of curiosity?

Brettus

iTrader: (2)

nice bump

around nz$600 for that lot IIRC which is about US$10................ . JK

Been a year and 30,000km since my rebuild running sweet as at a conservative 310 ish whp

YAY !!!!!!

stinksause

iTrader: (5)

thread revival .... I doez it haha ...that's good stuff man! I am trying to pick up a blown shortblock to mess around/learn from

awesome to hear it is running strong! Did you rebuild using stock configuration?

Brettus

iTrader: (2)

some very minor porting + esmeril seals + oil gallery bypass for front bearing . That was about it for internal mods .

Brettus

iTrader: (2)

After a clean ....
