Dondo's Second Supercharger Build
#54
Registered
iTrader: (3)
behind the front bumper support--its tight but it does fit--then just ever so slightly angle it backwards.

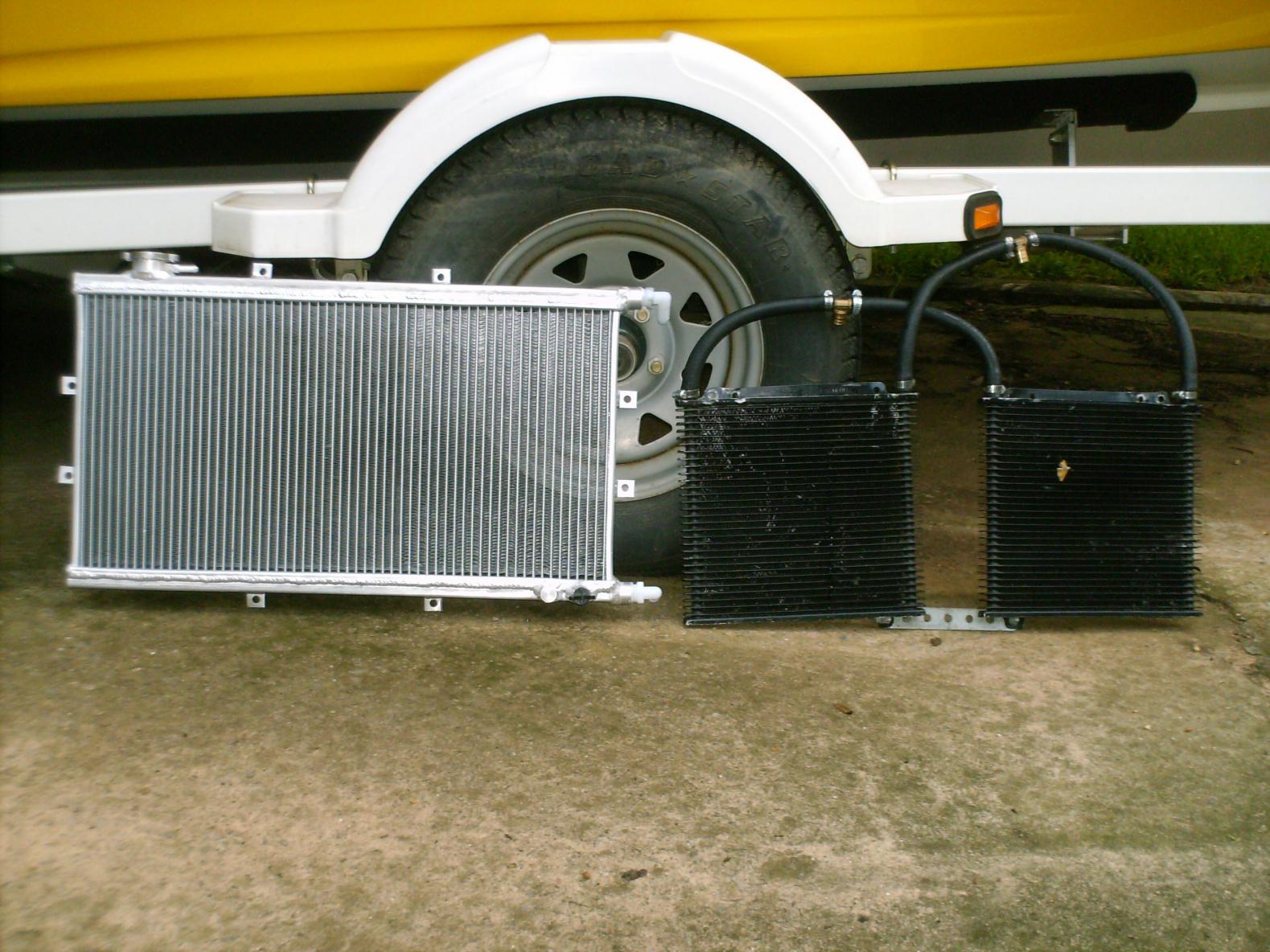

It has a built in bung for a temperature sensor at the bottom--which is nice to have. Also cut the top half off the front bumper support--it is internally separated by a solid sheet of metal, for more airflow across the top of the cooler and that support acts like a large heatsink
It has a built in bung for a temperature sensor at the bottom--which is nice to have. Also cut the top half off the front bumper support--it is internally separated by a solid sheet of metal, for more airflow across the top of the cooler and that support acts like a large heatsink
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#56
Registered
iTrader: (3)
https://www.rx8club.com/attachment.p...1&d=1343835024

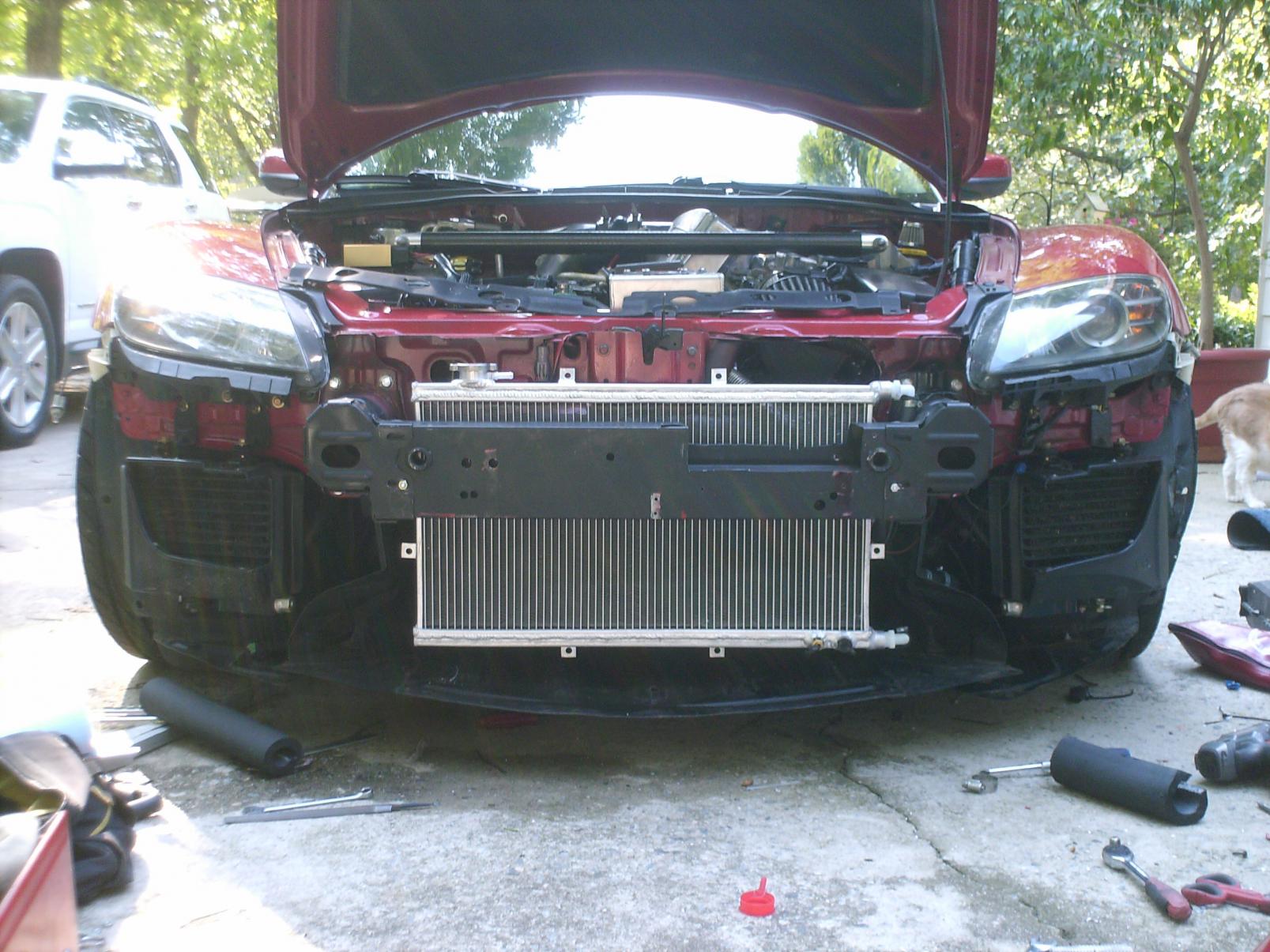

heres a little better pic of the way its mounted and what the front support looks like after cutting--since that picture i have extended the cut all the way across. My secondary radiator is mounted on the front side of the same beam--its a 21X7 cooler. So it is not very tall.
I now have my intake outside the engine bay too. Cutting that support bar gave me much more room so I could use a regular AEM filter.
heres a little better pic of the way its mounted and what the front support looks like after cutting--since that picture i have extended the cut all the way across. My secondary radiator is mounted on the front side of the same beam--its a 21X7 cooler. So it is not very tall.
I now have my intake outside the engine bay too. Cutting that support bar gave me much more room so I could use a regular AEM filter.
Last edited by olddragger; 08-01-2012 at 10:36 AM.
#65
Mr. Örange
Well here are some pics and vids of the dyno day.

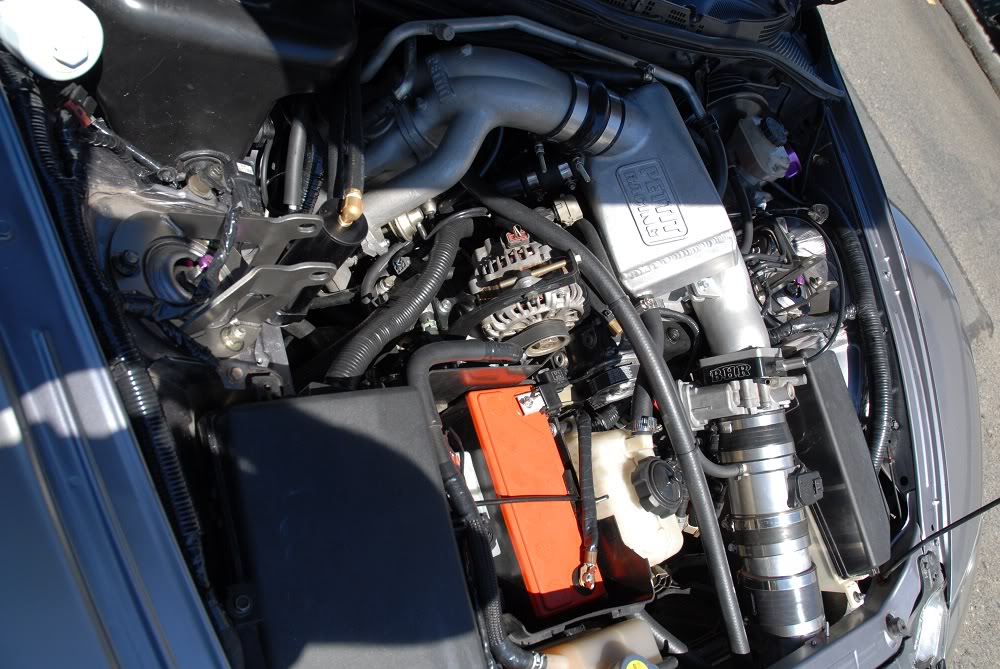

![Name: DondosSC.jpg
Views: 102
Size: 141.7 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231129d1501230914-dondos-second-supercharger-build-dondossc.jpg)
![Name: SC8.jpg
Views: 101
Size: 113.9 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231130d1501230914-dondos-second-supercharger-build-sc8.jpg)

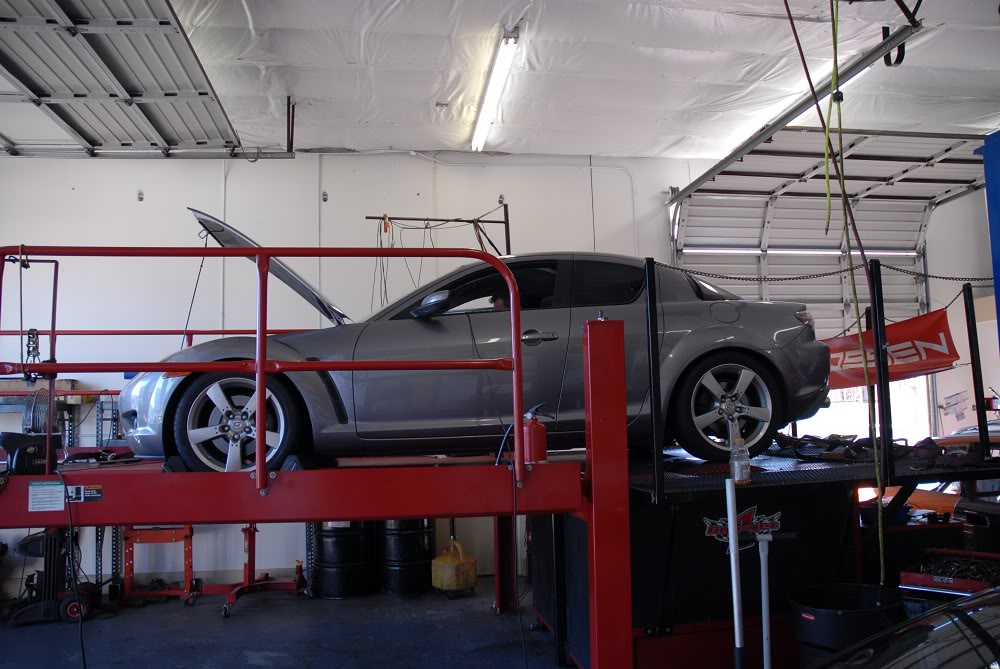

On the dyno
![Name: MM.jpg
Views: 86
Size: 40.2 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231131d1501230914-dondos-second-supercharger-build-mm.jpg)
MM doing his business
![Name: BHRMidPipe.jpg
Views: 70
Size: 44.1 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231132d1501230914-dondos-second-supercharger-build-bhrmidpipe.jpg)

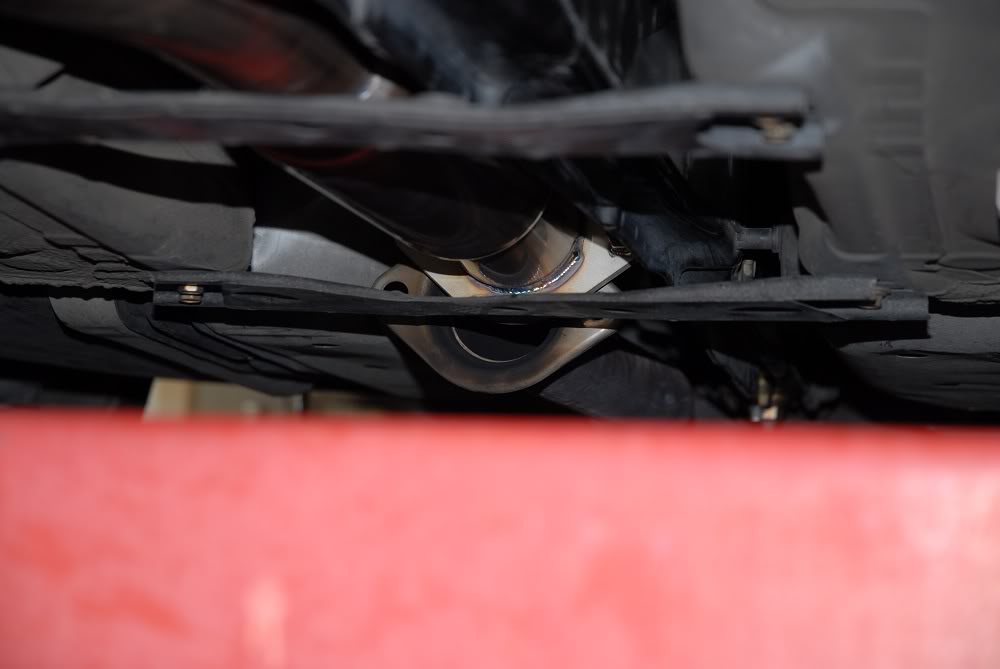

The flange bolts broke off during the dyno process
![Name: DondosSC.jpg
Views: 102
Size: 141.7 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231129d1501230914-dondos-second-supercharger-build-dondossc.jpg)
![Name: SC8.jpg
Views: 101
Size: 113.9 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231130d1501230914-dondos-second-supercharger-build-sc8.jpg)
On the dyno
![Name: MM.jpg
Views: 86
Size: 40.2 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231131d1501230914-dondos-second-supercharger-build-mm.jpg)
MM doing his business
![Name: BHRMidPipe.jpg
Views: 70
Size: 44.1 KB](https://www.rx8club.com/attachments/series-i-major-horsepower-upgrades-93/231132d1501230914-dondos-second-supercharger-build-bhrmidpipe.jpg)
The flange bolts broke off during the dyno process
Last edited by TANKERG; 08-06-2012 at 10:23 PM.
#73
catback is ordered
oil leak in relo kit is fixed
GOODbox gauges are installed
Turbosmart bypass to blowoff valve is up next. The inlet/outlet diameters are different that the one I was running so I am making some silicon reducers today to mate with the 1" in/out on the blower kit. I have some proper ones ordered for arrival next week.
oil leak in relo kit is fixed
GOODbox gauges are installed
Turbosmart bypass to blowoff valve is up next. The inlet/outlet diameters are different that the one I was running so I am making some silicon reducers today to mate with the 1" in/out on the blower kit. I have some proper ones ordered for arrival next week.
