Hymee gets Supercharged (Part 2)
#776
Hymee I love the intercooler options and the whole supercharger idea you've been working on. Just a few questions now.
1) Do you have any sort of timeframe breakdown on when we'll start getting close to production or anything.
2) Will you have a "clutched" option for your supercharger. As in other cars I have seen there is a toggle for having the supercharger completly off and then if you want to have the extra power you can just flip a switch and have the supercharger basically "turn-on".
I personally love that option and it would definately keep me out of a lot of trouble and tickets.
1) Do you have any sort of timeframe breakdown on when we'll start getting close to production or anything.
2) Will you have a "clutched" option for your supercharger. As in other cars I have seen there is a toggle for having the supercharger completly off and then if you want to have the extra power you can just flip a switch and have the supercharger basically "turn-on".
I personally love that option and it would definately keep me out of a lot of trouble and tickets.
#778
Originally Posted by california style
Why turn it off?
If it boosts the torque at low end, its actually nicer to have it on if you are just crusing in traffic etc.........
If it boosts the torque at low end, its actually nicer to have it on if you are just crusing in traffic etc.........
cops
etc.
#779
We don't plan to clutch it in/out like an AC compressor.
There is a bypass valve that effectively allows the supercharger to freewheel, not pumping any boost into the engine. It is still spinning with the engine, so it is ready to release its boost into the engine when the throttle is opened. This valve is controlled by manifold pressure/vacuum. In this case, the throttle acts as the switch. This bypass valve arrangement is recommended by the blower manufacturer. In fact, we are using their bypass valve.
I do know that some installations have the supercharger enganged via an electromagnetic clutch. My main worry about this, especially on a "small capacity" engine that is low on torque anyway, is the inertia hit taken when the clutch engages, and the blower rotors need to spin up to speed.
From my experience with what we have done to date, the bypass valve works well. Squeeze the throttle, the boost comes on. You feel it, you hear it, and if you look at the boost gauge, you can see it. :D
Cheers,
Hymee.
There is a bypass valve that effectively allows the supercharger to freewheel, not pumping any boost into the engine. It is still spinning with the engine, so it is ready to release its boost into the engine when the throttle is opened. This valve is controlled by manifold pressure/vacuum. In this case, the throttle acts as the switch. This bypass valve arrangement is recommended by the blower manufacturer. In fact, we are using their bypass valve.
I do know that some installations have the supercharger enganged via an electromagnetic clutch. My main worry about this, especially on a "small capacity" engine that is low on torque anyway, is the inertia hit taken when the clutch engages, and the blower rotors need to spin up to speed.
From my experience with what we have done to date, the bypass valve works well. Squeeze the throttle, the boost comes on. You feel it, you hear it, and if you look at the boost gauge, you can see it. :D
Cheers,
Hymee.
#780
Registered User
Join Date: May 2004
Location: Sydney
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts
I beleive that this SC can be "switched on" via application of the throttle. My understanding is that if you are only part throttle you won't be on boost. but lets just say you stomp on the pedal then you'll go 100% boost but of you go only 75% throttle then you may only go 50% boost. I think there is an actuator which is controlled via throttle postion.
Apparently the twin screw are very easy to turn so when not on boost, they'll virtually rob no power from your engine.
Hymee will correct me if I'm wrong.
EDIT: bugger he beat me too it :p
Apparently the twin screw are very easy to turn so when not on boost, they'll virtually rob no power from your engine.
Hymee will correct me if I'm wrong.
EDIT: bugger he beat me too it :p
#781
Registered
iTrader: (5)
You can blame all this switch it on/off stuff on that movie made with one of your countrymen, made down there and a damn switch for a 8-71. Now there's a fantasy, to clutch one of those you'd need a triple disc.
Who am I to talk, that man now has more money then your government.
Who am I to talk, that man now has more money then your government.
#789
Originally Posted by Nemesis8
Sorry
OK, will the Racing Beat REVi have to go with the Hymee SC install?
OK, will the Racing Beat REVi have to go with the Hymee SC install?
At the end of the day, the filtered air just needs to be plumbed into the blower intake (which has the throttle body attached).
But of course it all needs to be genuine Hymee
Cheers,
Hymee.
#790
Originally Posted by Hymee
We don't plan to clutch it in/out like an AC compressor.
There is a bypass valve that effectively allows the supercharger to freewheel, not pumping any boost into the engine. It is still spinning with the engine, so it is ready to release its boost into the engine when the throttle is opened. This valve is controlled by manifold pressure/vacuum. In this case, the throttle acts as the switch. This bypass valve arrangement is recommended by the blower manufacturer. In fact, we are using their bypass valve.
I do know that some installations have the supercharger enganged via an electromagnetic clutch. My main worry about this, especially on a "small capacity" engine that is low on torque anyway, is the inertia hit taken when the clutch engages, and the blower rotors need to spin up to speed.
From my experience with what we have done to date, the bypass valve works well. Squeeze the throttle, the boost comes on. You feel it, you hear it, and if you look at the boost gauge, you can see it. :D
Cheers,
Hymee.
There is a bypass valve that effectively allows the supercharger to freewheel, not pumping any boost into the engine. It is still spinning with the engine, so it is ready to release its boost into the engine when the throttle is opened. This valve is controlled by manifold pressure/vacuum. In this case, the throttle acts as the switch. This bypass valve arrangement is recommended by the blower manufacturer. In fact, we are using their bypass valve.
I do know that some installations have the supercharger enganged via an electromagnetic clutch. My main worry about this, especially on a "small capacity" engine that is low on torque anyway, is the inertia hit taken when the clutch engages, and the blower rotors need to spin up to speed.
From my experience with what we have done to date, the bypass valve works well. Squeeze the throttle, the boost comes on. You feel it, you hear it, and if you look at the boost gauge, you can see it. :D
Cheers,
Hymee.
Fabrice
#792
Some new parts take shape
Now we have got past the initial prototype stage, we are gearing up to fit this to the first customer's car.
Part of that is the evolution of the parts, as R&D is on-going
Here are some pics from some CNC work done the other day...

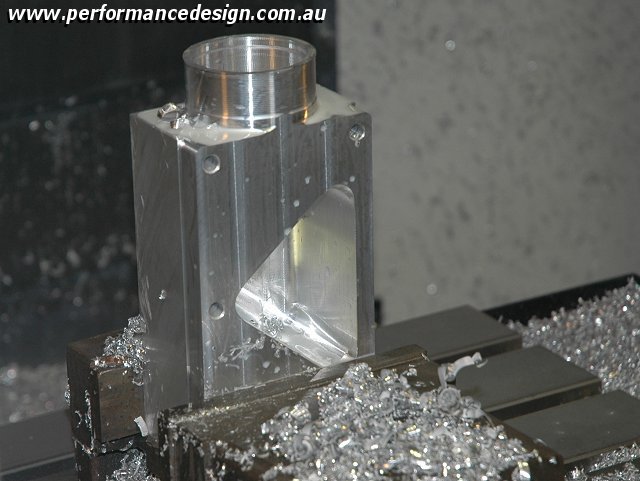

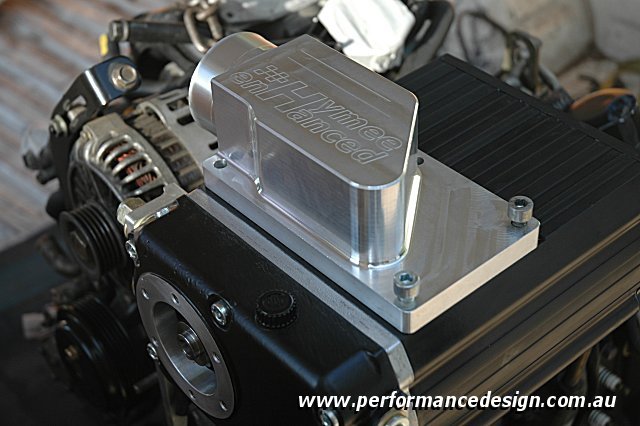

New discharge adaptor. 1st couple of machining operations.

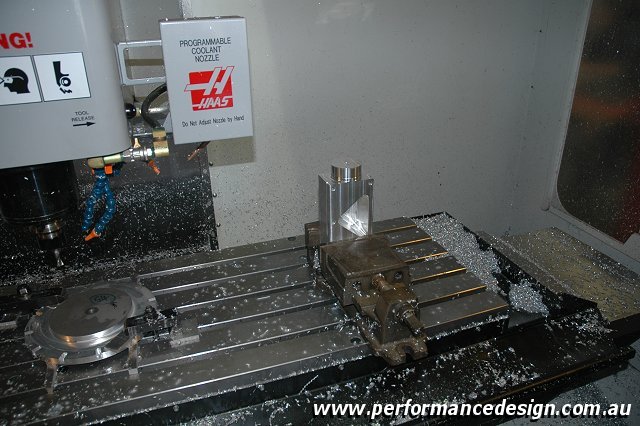

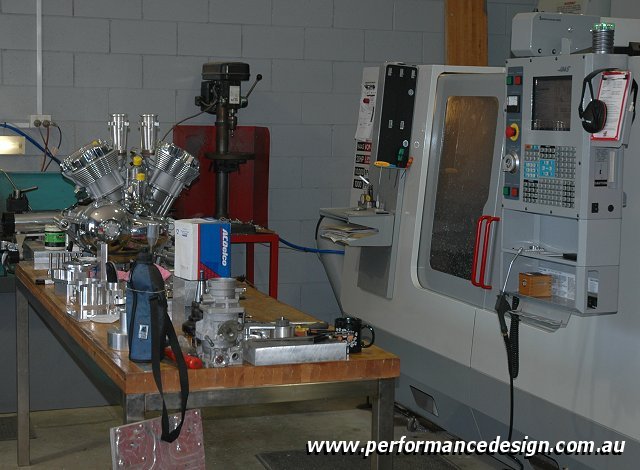

The CNC shop. They do some lovely work!

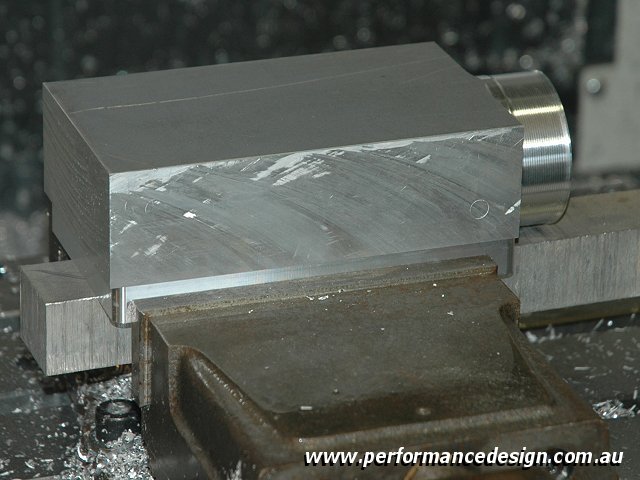

Another operation done.

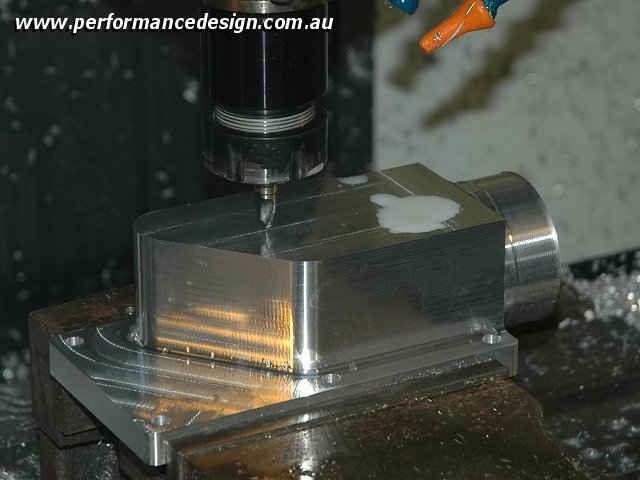

Getting ready for another.

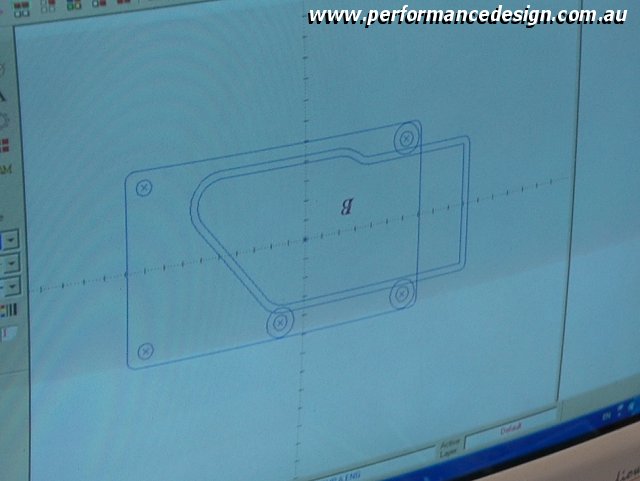

CAD Drawing for the next operation.
Cheers,
Hymee.
Part of that is the evolution of the parts, as R&D is on-going
Here are some pics from some CNC work done the other day...
New discharge adaptor. 1st couple of machining operations.
The CNC shop. They do some lovely work!
Another operation done.
Getting ready for another.
CAD Drawing for the next operation.
Cheers,
Hymee.
Last edited by Hymee; 10-06-2005 at 05:50 AM.
#797
Registered User
Join Date: May 2004
Location: Sydney
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by smrx8
10000 Thats crazy look at sr engineering they cant even sell 1 turbo kit on this forum from what i saw and there only asking 7000. greddy stole all the market
Thats'AUD.. Hymee lives down under but yes 10K is alot.. I assume that will be with a Motec ECU
#798
rock-->o<--hard place
Join Date: Sep 2003
Location: Canberra, AUSTRALIA
Posts: 3,242
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Hymee
Now we have got past the initial prototype stage, we are gearing up to fit this to the first customer's car.
Looking good, will be great to see at the Nats...just 13 sleeps to go
#799
Shifty Bastard.
Join Date: Feb 2004
Location: Melbourne, Australia.
Posts: 4,835
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by LittleJohn
Dude,
Thats'AUD.. Hymee lives down under but yes 10K is alot.. I assume that will be with a Motec ECU
Thats'AUD.. Hymee lives down under but yes 10K is alot.. I assume that will be with a Motec ECU
#800
Registered User
Join Date: May 2004
Location: Sydney
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Gomez
Hymee has never mentioned a figure. All figures are speculation at this stage. Hymee won't be in a position to speculate on cost until the project is finalised and he's had a chance to buy Mrs Hymee a shitload of roses so she'll allow him to stay up late building S/C kits..... .
Yes indeed... my post was meant to read "EVEN if it was....."
sorry .. my bad..
If roses are what's needed to help the twins along...
Then what address should I get "Flowers R Us" to send the roses :D :D :D
