Yes, there is no BOV. There is also no digital boost controller. I was told the reason that there is no BOV is due to CARB exemption rules. Something about intake air venting into the atmosphere. I wonder why GReddy doesn't include a re-circulating BOV?

Charles



Well, I am going to use a BOV with my kit. I've decided to go with teh Greddy Type-S BOV. It does vent to atmosphere. If I start to have MAF issues because of it I can always get an outlet adapter to turn the BOV into a Diverter Valve. They are pretty cheap and simple to do

http://www.racingworks.com/greddy_bo...et_adapter.htm



maybe to keep cost down?



I was re-reading the GReddy catalog that has the RX-8 listing in it and they discuss how their turbo kits are designed to be a good start for stock engines with plenty of room for future performance increases. Perhaps they figure oil pans and BOV's are for those who are truly serious about their performance and can be included in the kit for a slight upcharge? What about those who already have the E-manage? Does/Will/Should GReddy offer a kit w/o the E-Man at a discount with the capability to download the proper maps?

Charles



Just looked at the e-manage that came with my turbo kit. There are only 3 ports on it, 2 to connect it to the cars ECU, and a smaller port labled "boost".. I'm guessing that one is for a boost controller?



did you get it yet????????????



I take most folks have seen this???

http://www.hopupracing.com/grtukitmarx.html

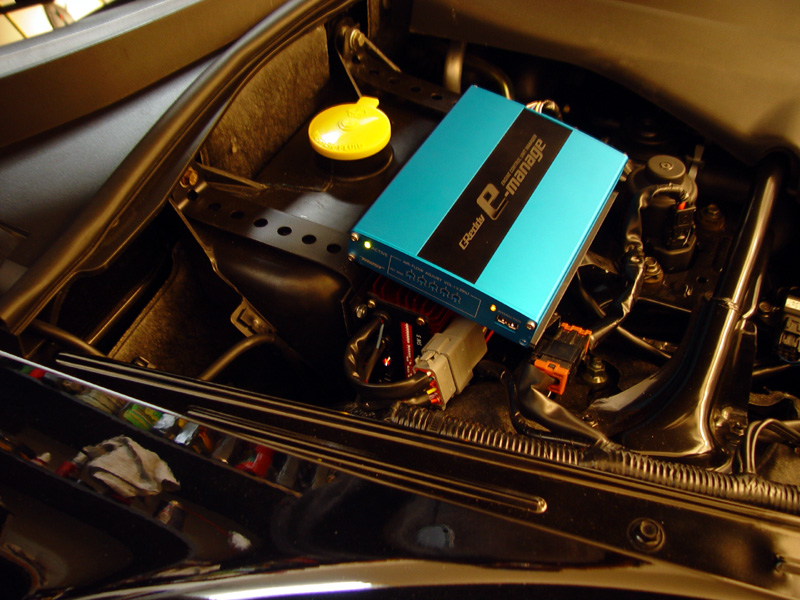

Does the other end look like this:



Nope, not like that at all



I wonder if it has the new Japanese version of the E-manage with the acceleration map??



that's what ours looks like without the "do not remove" sticker on the side over the holes.



Ahh. They put a "Do Not Remove" sticker over the ports?
Does this sticker also make it impossible to unscrew the end panels at either end of the unit?



Jeff, underneath your E-Man you have what appears to be an ignition box. I have been preparing to upgrade with an ignition amp/coils when I go with a turbo and/or more nitrous. If that is, indeed, an ignition related item what is it and how well does it work for you? Might I find that you have authored a thread on that topic already? Thanks.

Charles



yeah, it went over the OTHER side, not the side with the inputs for the computer harnes. Looks like some rotary switches. Don't have a pic of it but i might by tonight. Install is going well, im a little farther along than philodox, but i have been working on it in my garage at home for 3 days as time allows. Also, be careful with the o2 sensor (you have to remove the front one, there are two), mine was friction welded in and i stripped the threads, 300 bux, OUCH....



The box under the E-Manage was an MSD DIS ignition box. I have removed it because it only controlled two plugs and I intend to replace it with an AEM C2DI.

That front (and rear, for that matter) O2 sensor are always "friction-welded" as you put it, If you work them out and back in a few threads at a time, it is possible to get it out without completely destroying the threads. Just clean them up with a die afterwards.



I'm not sure of the spelling and I'll look tomorrow but there is a product on the market called Kroyal, not spelled that way. It is amazing for loosining things. I think you have to buy it direct, I've never seen it sold anywhere. It smells though, I mean really smells. When you walk into the shop you know someone has used it. This may be the answer to the O2 sensor problem.
