Mawnee's Custom Turbo build
#226
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
#228
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts

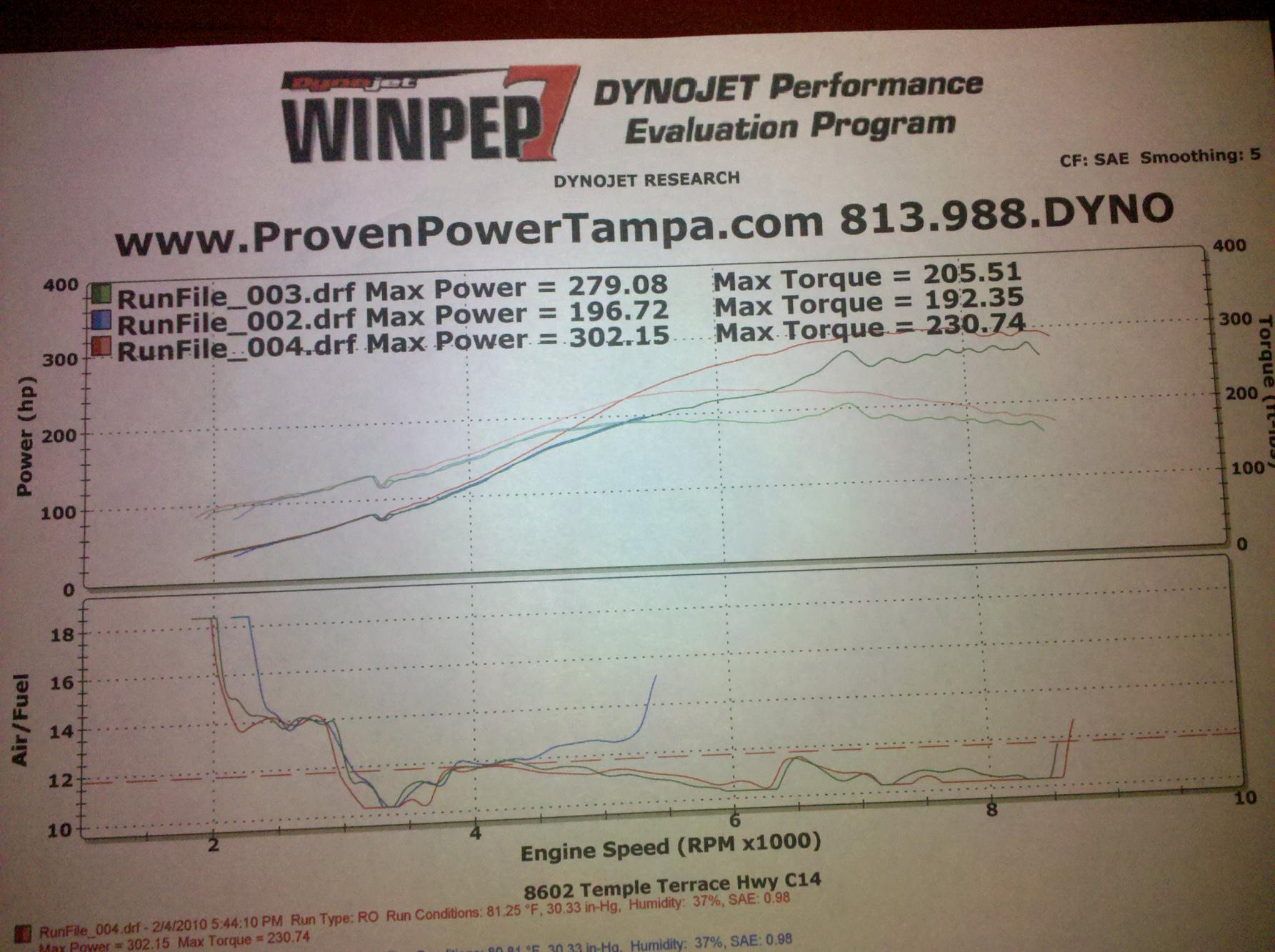

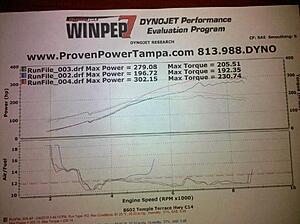

Ok my scanner is being a pain int he ****, so heres a picture of it.
On the interstate ont he way there I did some 4th gear pulls and found the car running super rich. So on the first run I tried a completely new maf setting(halfway between what I've been running and Stock). As you can see, that didnt work it went way lean and he let off.
So the 2nd and 3rd runs I went back to the tune I drove there on. Crazy rich, but good enoguh to see how things look. Unfortunately he couldnt log boost. 2nd run had my boost controller set for 10% duty cycle giving about 7.5psi peak. We saw the car was pig rich and figured, lets give it more air! 3rd run was at 75% duty cycle, peaked at 11.5psi. This is with my WG set at 6.5psi and the WG cracking pressure in the BC also set at 6.5.
On the interstate ont he way there I did some 4th gear pulls and found the car running super rich. So on the first run I tried a completely new maf setting(halfway between what I've been running and Stock). As you can see, that didnt work it went way lean and he let off.
So the 2nd and 3rd runs I went back to the tune I drove there on. Crazy rich, but good enoguh to see how things look. Unfortunately he couldnt log boost. 2nd run had my boost controller set for 10% duty cycle giving about 7.5psi peak. We saw the car was pig rich and figured, lets give it more air! 3rd run was at 75% duty cycle, peaked at 11.5psi. This is with my WG set at 6.5psi and the WG cracking pressure in the BC also set at 6.5.
#231
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
7.5 PSI run
[EMBED]<object width="425" height="344"><param name="movie" value="http://www.youtube.com/v/Mj3hpCJe9Us&hl=en_US&fs=1&"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/Mj3hpCJe9Us&hl=en_US&fs=1&" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object>[/EMBED]
11.5psi run
[EMBED]<object width="425" height="344"><param name="movie" value="http://www.youtube.com/v/NiJpZTn6kVY&hl=en_US&fs=1&"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/NiJpZTn6kVY&hl=en_US&fs=1&" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object>[/EMBED]
[EMBED]<object width="425" height="344"><param name="movie" value="http://www.youtube.com/v/Mj3hpCJe9Us&hl=en_US&fs=1&"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/Mj3hpCJe9Us&hl=en_US&fs=1&" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object>[/EMBED]
11.5psi run
[EMBED]<object width="425" height="344"><param name="movie" value="http://www.youtube.com/v/NiJpZTn6kVY&hl=en_US&fs=1&"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/v/NiJpZTn6kVY&hl=en_US&fs=1&" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object>[/EMBED]
#233
Registered User
iTrader: (2)
Join Date: Oct 2008
Location: Dallas, Texas
Posts: 726
Likes: 0
Received 0 Likes
on
0 Posts
lol very nice man, sounded beastly. Was this all welded with a Mig welder and what gas? Im going to try and take vacation time in about 2 months and really sit down a weld up the STS kit ive been trying to make work. This has inspired me
#235
No respecter of malarkey
iTrader: (25)
he needs to scale his noggin first .... it's pegged as fail
https://www.rx8club.com/showpost.php...&postcount=232
https://www.rx8club.com/showpost.php...&postcount=232
#237
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
When I went to leave the place my ABS light was on and I thought nothing of it. It went out once I got on the road.
#239
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Ahhh well, I'll make a real effort to get my Maf right and go back in a few weeks. I've got a couple of days off next week to go do some logging if the weather cooperates.
This setup is ment to be my prototype. My hope is to get a good TIG welder at some point and redo the whole setup making improvements and corrections based on what I've learned.
Last edited by Mawnee; 02-05-2010 at 09:08 AM.
#240
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
he needs to scale his noggin first .... it's pegged as fail
https://www.rx8club.com/showpost.php...&postcount=232
https://www.rx8club.com/showpost.php...&postcount=232
#241
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
You know, initially I was disappointed with my numbers. But the more I look at that chart, the more encouraged I am. Even with my crappy tune(and traction control on?) I made more power than a greddy kit. And if you look at my power curve, it didnt peak and fall off a cliff. If I get my WG and BC tuned right to get up to full boost sooner I should have one hell of a Powerband.
Looking in the Dynos thread, my curve compares pretty well to the SFR kit, even tuned as it is. And I built my setup for half the cost of the SFR.
Looking in the Dynos thread, my curve compares pretty well to the SFR kit, even tuned as it is. And I built my setup for half the cost of the SFR.
Last edited by Mawnee; 02-05-2010 at 10:45 AM.
#242
Registered User
iTrader: (2)
Join Date: Oct 2008
Location: Dallas, Texas
Posts: 726
Likes: 0
Received 0 Likes
on
0 Posts
Those are good numbers considering the boost and circumstances. Quick kind of random question but im just trying to feed of some of your info for when i do my STS build. Can you run a blow through setup and use the AP to tune or would you need some other EM?
#243
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Supposedly it will work just fine blow through, though noone here has actually done it that I am aware of.
#244
Boosted Kiwi
iTrader: (2)
I garantee you that the dyno operator turned off the traction control for each pull - They soon realise something is up when they start to accelerate .
And yeah you should be happy with your numbers - very few people get over 300whp on their very first time at the dyno .
And yeah you should be happy with your numbers - very few people get over 300whp on their very first time at the dyno .
#245
Registered User
iTrader: (2)
Join Date: Oct 2008
Location: Dallas, Texas
Posts: 726
Likes: 0
Received 0 Likes
on
0 Posts
I have seen one setup that was a blowthrough but i was unsure of what EM he was using. Thanks for the extra help and im sure once i start my setup i will be PM'ing you alot. And i will be trying out the blowthrough setup as every other car i have built a kit for has also been a blowthrough with no problems.
Look forward to seeing the things to come with your setup
#246
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Small update. Been working on the tune with some help from Kane and his Baseline program. Huge Thanks to Kane for all his advice and support!
I've at least got the higher load working pretty well. Car holds pretty steady in the lower 11s under boost now instead of bottoming out my guage(10.1). Still seeing around 400g/s in my logs and baseline doesnt think my scale is that far off anymore. Still lots of work to do, but progress is being made
I think this weekend I'm going to relocate my OBD connector to my ashtray. Tired of reaching under the dash to feel for it and the AP cable laying on my leg while I'm collecting logs
I've at least got the higher load working pretty well. Car holds pretty steady in the lower 11s under boost now instead of bottoming out my guage(10.1). Still seeing around 400g/s in my logs and baseline doesnt think my scale is that far off anymore. Still lots of work to do, but progress is being made
I think this weekend I'm going to relocate my OBD connector to my ashtray. Tired of reaching under the dash to feel for it and the AP cable laying on my leg while I'm collecting logs
#249
I divide by zero
Thread Starter
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
There was a walkthrough somewhere in the DIY where someone did the relocation. I'm just going to solder extensions into the harness and cut properly shaped hole behind the ashtray for the stock connector to pop into. Then if I ever go back to stock I can put the connector back and put the ashtray back in to cover the hole.
