The newest 100% bolt on Greddy Hybrid turbocharger!
#102
1st RX8 BNR Turbo Owner..
iTrader: (1)
I am going to install this when I get..the turbo that Bryan is showing is the mine. I am supposed to receive it here real soon. I will then have a few things installed as well, then tune it with Kane's PPO2. I will post a dyno, etc. Maybe even do a pull at 14psi, with Meth of course and see what kind of numbers this thing will put out.
#104
1st RX8 BNR Turbo Owner..
iTrader: (1)
Bryan,
Very nice job you have done with the turbo I sent you. I didnt have a doubt in my mind that you wouldnt come through and do such great work. Let me know if you need anything from me. Like I said I will dyno this and so off your work of what this badboy can do.
Very nice job you have done with the turbo I sent you. I didnt have a doubt in my mind that you wouldnt come through and do such great work. Let me know if you need anything from me. Like I said I will dyno this and so off your work of what this badboy can do.
#111
Turbocharger Guru
Thread Starter

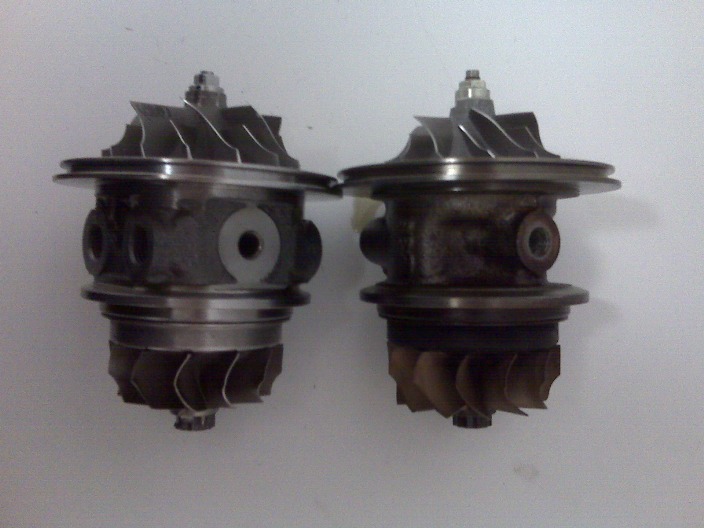

It seems like there would be enough room for the oil drain tube. If not, the water tube can be simply cut and use a rubber line to reroute. I know one water line will work. The tubes can also be moved with a screw driver and bend them whichever way you want it to point to a certain extent. The oil supply fitting I have to rethread it with a die and it bolts up to this center housing w/o any adapters or extra fittings which makes it a nice and clean install.
Last edited by Bryan@BNR; 03-25-2009 at 10:34 AM.
#112
Turbocharger Guru
Thread Starter
I will be going to a better turbine wheel design so you have that option if you don't want to stay with the factory greddy turbine wheel. If the turbo is "new", there will be a discount issued to the customer.
#116
Turbocharger Guru
Thread Starter
#117
Turbocharger Guru
Thread Starter
#119
Life begins @ 30 psi
Join Date: Mar 2008
Location: Columbia, MD
Posts: 1,745
Likes: 0
Received 0 Likes
on
0 Posts
Hey Jason, how much would it cost for the fully upgraded turbo with the best compressor etc, water cooled and fully ported without having the original TD06 to upgrade? Just an "out the door" turbo that will work with the GReddy manifold.
I have a full GReddy kit, and a 3071R arriving by the second week of April, but if things fall through this would be my next choice. I don't have a TD06 though.
I have a full GReddy kit, and a 3071R arriving by the second week of April, but if things fall through this would be my next choice. I don't have a TD06 though.
#120
Turbocharger Guru
Thread Starter
Hey Jason, how much would it cost for the fully upgraded turbo with the best compressor etc, water cooled and fully ported without having the original TD06 to upgrade? Just an "out the door" turbo that will work with the GReddy manifold.
I have a full GReddy kit, and a 3071R arriving by the second week of April, but if things fall through this would be my next choice. I don't have a TD06 though.
I have a full GReddy kit, and a 3071R arriving by the second week of April, but if things fall through this would be my next choice. I don't have a TD06 though.
There isn't an option if you don't have the greddy turbine housing. Sure you can find another turbine housing that will bolt up to the exhaust manifold, but all your pipes will not work. Also the clearancing will change if the turbine housing is taller. They will have to be custom made which isn't worth the hastle. Just try and find someone selling a Greddy turbo. It doesn't matter if it is trashed.
#122
Life begins @ 30 psi
Join Date: Mar 2008
Location: Columbia, MD
Posts: 1,745
Likes: 0
Received 0 Likes
on
0 Posts
There isn't an option if you don't have the greddy turbine housing. Sure you can find another turbine housing that will bolt up to the exhaust manifold, but all your pipes will not work. Also the clearancing will change if the turbine housing is taller. They will have to be custom made which isn't worth the hastle. Just try and find someone selling a Greddy turbo. It doesn't matter if it is trashed.
#124
