Just got a call/email earlier today from Cam.
Engine built details:
PETTIT BUILT 13B RENESIS ENGINE, BLUEPRINTED AND STREET
PORTED W/ PETTIT COOLING SYSTEM MODS, PETTIT ROTOR
HOUSING MODS WHICH BOTH IMPROVE COOLING AROUND
EXHAUST PORT AND MINIMIZE SURFACE PROTRUSION AROUND
LEAD PLUGS, OIL SYSTEM MODS IMPROVE OILING, MAIN &
ROTOR BEARINGS CLEARANCED TO RACE PSPECS, MICRO FINISH
ON ALL CRITICAL SURFACES, CLEAN ROOM ASSEMBLED AND
STATIC COMPRESSION TESTED, CAPPED AND SKIN SEALED FOR
SHIPPING.
Parts that need replacement:
ENGINE OIL PUMP
FRONT HOUSING
REAR SIDE HOUSING
ROTORS OUTSIDE SERVICE LASER CNC MACHINE APEX GROOVE
Engine should be done by the end of next week (give or take two or three). I'm not in a hurry.
Spent the week prepping and cleaning all parts. Tranny came down today and engine bay/wire harness cleaning will be next after a short trip to the panhandle this week.
Last edited by marsredr100; 01-23-2011 at 08:53 PM.
#8382
Registered
I did wrap mine, and Bastage's is also wrapped with DEI silver heat shield sticky-back wrap.
My blower does seem to stay a bit cooler, being shielded from the oil line.
A stainless steel heat shield plate under the blower, and over the oil line would be the next step, or just re-route the oil line in some nice stainless braided line.
#8383
Registered User
iTrader: (1)
Join Date: Jun 2007
Location: Houston, TX
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts

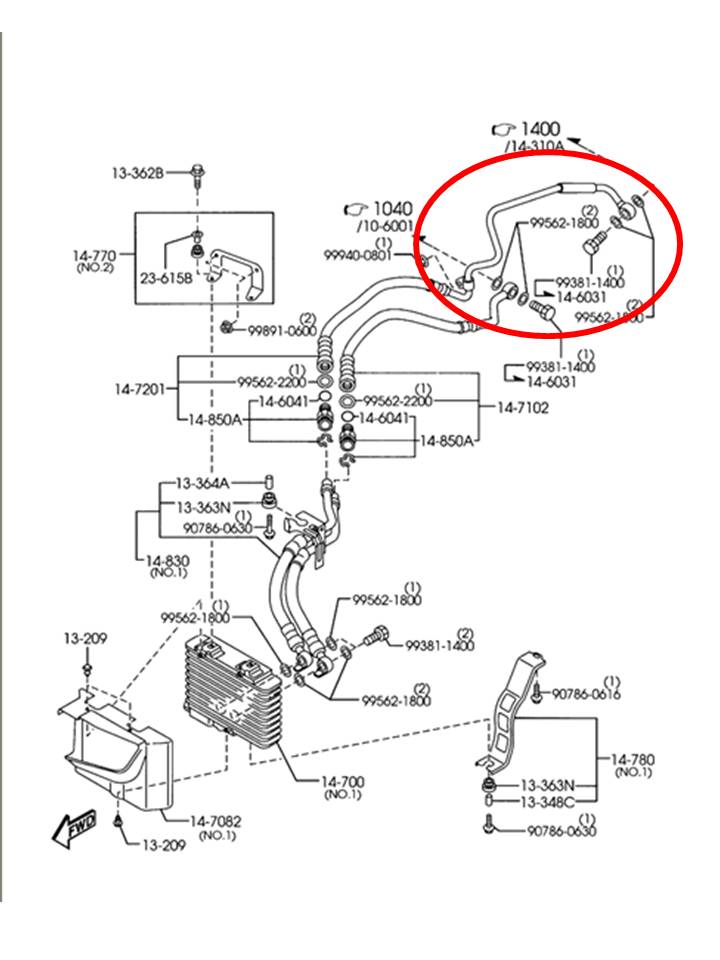

I did wrap mine, and Bastage's is also wrapped with DEI silver heat shield sticky-back wrap.
My blower does seem to stay a bit cooler, being shielded from the oil line.
A stainless steel heat shield plate under the blower, and over the oil line would be the next step, or just re-route the oil line in some nice stainless braided line.
My blower does seem to stay a bit cooler, being shielded from the oil line.
A stainless steel heat shield plate under the blower, and over the oil line would be the next step, or just re-route the oil line in some nice stainless braided line.
http://www.racingbeat.com/RX8/Oil-System/11911.html
http://www.racingbeat.com/manuals/11...0Set-COLOR.pdf
#8386
Registered
iTrader: (3)
I also placed the stickly heat shield on the bottom of my blower some time back. But while I was putting this engine in ( so nice to not to have to be in any hurry doing this), i noticed how many things that oil line heat could affect.
So I got some tube wrap stuff from DEI and put it on. Also keeping the SC shield.
I also installed a "grounding" kit, self made. I used the engine harness grounding points(x2), the EPS grounding, the oem body ground (both sides), I ground my coils to the passenger side frame, and the neg battery cable grounding point, all attached per a "circle". You really cant see it. Its all made out of black 4 gauge battery wires bought at Advanced Auto. Ended up costing maybe $15-20?
I also went through the engine harness looking for anything that may cause a future problem and actually found a couple things. Fixed those.
I ran my innovate o2 sensor to the far bung on the mazsport midpipe to try and help it stay a little cooler. Made a much better spot to hang the lc2 unit etc etc.
I also took that big ole oem vacuum chamber that we have to use for the SSV? And moved it out from the back of the engine to the passenger side fender well area--so its hardy seen. I had to make a little longer connecter wire and make some vacuum lines but that wasnt hard to do at all. That sure opened up the back part of the engine.
Oh yea --i found that my passenger side oil cooler thermostat was NOT working. So I shimmed it open.
Goal is to keep the return oil temps never over 190F.
LS2 coil pack in and am waiting for Steve Kan to come to atlanta to reset the dwell etc. He has the Cobb pro tuner set up. But I should be OK with the oem dwell for now since I am backing off boost and will not be running hard.
Sure am getting tired of working outside in the 20-30F temps!
I dont have thick enough long johns. WHile on the ground I lay on an electric blanket!
OD
So I got some tube wrap stuff from DEI and put it on. Also keeping the SC shield.
I also installed a "grounding" kit, self made. I used the engine harness grounding points(x2), the EPS grounding, the oem body ground (both sides), I ground my coils to the passenger side frame, and the neg battery cable grounding point, all attached per a "circle". You really cant see it. Its all made out of black 4 gauge battery wires bought at Advanced Auto. Ended up costing maybe $15-20?
I also went through the engine harness looking for anything that may cause a future problem and actually found a couple things. Fixed those.
I ran my innovate o2 sensor to the far bung on the mazsport midpipe to try and help it stay a little cooler. Made a much better spot to hang the lc2 unit etc etc.
I also took that big ole oem vacuum chamber that we have to use for the SSV? And moved it out from the back of the engine to the passenger side fender well area--so its hardy seen. I had to make a little longer connecter wire and make some vacuum lines but that wasnt hard to do at all. That sure opened up the back part of the engine.
Oh yea --i found that my passenger side oil cooler thermostat was NOT working. So I shimmed it open.
Goal is to keep the return oil temps never over 190F.
LS2 coil pack in and am waiting for Steve Kan to come to atlanta to reset the dwell etc. He has the Cobb pro tuner set up. But I should be OK with the oem dwell for now since I am backing off boost and will not be running hard.
Sure am getting tired of working outside in the 20-30F temps!
I dont have thick enough long johns. WHile on the ground I lay on an electric blanket!
OD
#8391
Registered User
iTrader: (1)
Join Date: Jun 2007
Location: Houston, TX
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts
So, wondering if I should remove them since temps here in Central Floriduh don't drop normaly below 50F during the day plus I always wait for my car to fully warm up before driving. BTW, it is not a DD car.
#8394
I divide by zero
Join Date: Aug 2007
Location: Spring Hill, FL
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Defuzing for explosives/ordnance hence bomb fuze and not bomb fuse
Just got a call/email earlier today from Cam.
Engine built details:
PETTIT BUILT 13B RENESIS ENGINE, BLUEPRINTED AND STREET
PORTED W/ PETTIT COOLING SYSTEM MODS, PETTIT ROTOR
HOUSING MODS WHICH BOTH IMPROVE COOLING AROUND
EXHAUST PORT AND MINIMIZE SURFACE PROTRUSION AROUND
LEAD PLUGS, OIL SYSTEM MODS IMPROVE OILING, MAIN &
ROTOR BEARINGS CLEARANCED TO RACE PSPECS, MICRO FINISH
ON ALL CRITICAL SURFACES, CLEAN ROOM ASSEMBLED AND
STATIC COMPRESSION TESTED, CAPPED AND SKIN SEALED FOR
SHIPPING.
Parts that need replacement:
ENGINE OIL PUMP
FRONT HOUSING
REAR SIDE HOUSING
ROTORS OUTSIDE SERVICE LASER CNC MACHINE APEX GROOVE
Engine should be done by the end of next week (give or take two or three). I'm not in a hurry.
Spent the week prepping and cleaning all parts. Tranny came down today and engine bay/wire harness cleaning will be next after a short trip to the panhandle this week.
Just got a call/email earlier today from Cam.
Engine built details:
PETTIT BUILT 13B RENESIS ENGINE, BLUEPRINTED AND STREET
PORTED W/ PETTIT COOLING SYSTEM MODS, PETTIT ROTOR
HOUSING MODS WHICH BOTH IMPROVE COOLING AROUND
EXHAUST PORT AND MINIMIZE SURFACE PROTRUSION AROUND
LEAD PLUGS, OIL SYSTEM MODS IMPROVE OILING, MAIN &
ROTOR BEARINGS CLEARANCED TO RACE PSPECS, MICRO FINISH
ON ALL CRITICAL SURFACES, CLEAN ROOM ASSEMBLED AND
STATIC COMPRESSION TESTED, CAPPED AND SKIN SEALED FOR
SHIPPING.
Parts that need replacement:
ENGINE OIL PUMP
FRONT HOUSING
REAR SIDE HOUSING
ROTORS OUTSIDE SERVICE LASER CNC MACHINE APEX GROOVE
Engine should be done by the end of next week (give or take two or three). I'm not in a hurry.
Spent the week prepping and cleaning all parts. Tranny came down today and engine bay/wire harness cleaning will be next after a short trip to the panhandle this week.
#8397
Registered User
iTrader: (1)
Join Date: Jun 2007
Location: Houston, TX
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts
Nope, just a new OEM oil pump. There was some wear on the old one and we want to make sure that the engine will get a good supply of oil. Cam knows first hand that I do road race the car and plan to keep doing it. We want to make sure that everything is top notch for the future road race events. For example all bearings will be replaced and the eccentric shaft will be micro polished.
#8399
Registered User
iTrader: (1)
Join Date: Jun 2007
Location: Houston, TX
Posts: 1,112
Likes: 0
Received 0 Likes
on
0 Posts
Enlarge the water jackets around the exhaust port and the combustion chamber area. Not much material can be removed but every once/millimeter counts. Nothing I would like to try to do myself since I don't know the weak points of the areas in question.
#8400
Registered
iTrader: (3)
That is what Cam told me also. I dont know if he waffes them too? Every little bit helps. You didnt have any spark plug cracks did you?
Oil pump had wear? Your the first I have heard off. Hmmmm. How many miles on your engine?
I wonder if he also enlarged oil passages some--old sly dog that he is.
I forget which one but there is an upgrade for the oil pump. ASH posted about it--its from one of the older model turbo cars I think.
Are you running the Mazmart oil pressure regulator?
Was there any oil varnish stuff around the oil pump area? I had some on mine--sign that is possibily have gotten to hot there? But my overall oil temps have always be great.
You are not going to do any coatings?
What is the benefit of going with the 3 mm seals?
Sorry for so many questions----they just come out........
Oil pump had wear? Your the first I have heard off. Hmmmm. How many miles on your engine?
I wonder if he also enlarged oil passages some--old sly dog that he is.
I forget which one but there is an upgrade for the oil pump. ASH posted about it--its from one of the older model turbo cars I think.
Are you running the Mazmart oil pressure regulator?
Was there any oil varnish stuff around the oil pump area? I had some on mine--sign that is possibily have gotten to hot there? But my overall oil temps have always be great.
You are not going to do any coatings?
What is the benefit of going with the 3 mm seals?
Sorry for so many questions----they just come out........
