Is the BNR turbo on the Dyno thread? Whats the difference in laymans terms between the BNR and MM's 3071?
Edit:
Well after reading some more it seems the BNR flows about 10lbs more = moe powa? I also heard we might need to upgrade the greddy's intercooler if we want more then 16 psi? Also, I read issues with a 3" vs 3.5" MAF? Can anyone enlighten me?
Edit:
Well after reading some more it seems the BNR flows about 10lbs more = moe powa? I also heard we might need to upgrade the greddy's intercooler if we want more then 16 psi? Also, I read issues with a 3" vs 3.5" MAF? Can anyone enlighten me?
Last edited by cavemancan; 11-20-2010 at 11:46 PM.
#104
Banned
iTrader: (3)
You can use ONLY a 3.375" i.d. MAF tube and expect the MAF to work properly because that is the ONLY diameter that puts the sample pickup of the MAF in the center of the tube.
At that diameter, the MAF is accurate out to about 460 g/sec of air (±40).
Is that a threat?
#107
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
Charles...let's do this!
Yet? Is it really a limitation of the turbo or the Greddy system design? (Waits for Brettus to chime in on the "...restritive bend /"volute" coming off the compressor..." argument that causes MM "volute" issues)
I am guessing in this case size does not matter? I am being serious and cracking a joke.
Ok so what do I need to do to resolve this issue? Buy an AEM and modify it or something? (This is under the impression I do not go BHR which there is a 99.9% chance I will cause I trust you mongrels to take care of business!)
I have this theory that you enjoy watching MM's blow off valve release pressure. To a certain extent I do to, and pretend I understand 50% of what anyone is saying.
I am guessing your car is the testing platform for the BHR/MM turbo system.
I am guessing your car is the testing platform for the BHR/MM turbo system.
Last edited by cavemancan; 11-21-2010 at 07:41 PM.
#108
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
Whole new array of questioning
So I have a whole new array of questioning. Since my blabbering up there /\/\/\ I've moved up in the world and got myself a reman from Mazda...Not to mention a few other goodies thanks to BHR, MM, and Mazmart. So here is the thing:
I talked to a budy of mine and he is willing to build me a custom Turbo kit. Tuning will be done by MM so no issues there except getting it tuned quick enough based on the obvious timing issues with online tuning. Amongest the unknowns is turbo sizing. He wants me to ask if the following turbo's would be any good in the Rx8 world:
- HOLSET HX40W: used in diesel trucks Diesel Truck Turbo and Diesel Truck Turbo
- Borgwarner EFR: AWESOME TURBO Perhaps the EFR 6758? (67mm cold...58mm hot...not sure if I know what I am saying here just repeating what I see on there sizing chart)
- EVO 8 16 g Turbo: he said he has two of these suckers in his garage so wondering if any good in our application?
I also read somewhere about internal wastegate issues. If I got the BorgWarner would this be an issue? Anything you would recommend?
I know some will advise me to read up and turbo sizing and let's be honest. I'm not dumb but that thread scared me...LMAO! Can I understand some of it...Sure...but I'm still lost a bit. Cold side...hot side...what size is best etc etc.
Additional note since you all will ask what are my goals: 350 wHP, cooling (mazmart water pump installed currently with remedy thermostat...we plan to build a v-mount rad/intercooler like MM's), capable of long racing sessions (new to this so not sure what long is...20 min?), dayly driven still, preventative measures to prevent any accidents (much like MM did with dumping boost preasure during a unforseen lean condition), etc.
Mods currently: AEM intake, BHR ignition/midpipe, greddy exhaust, ACT flywheel/clutch, Cobb on 4th NA tune, Mazmart Remedy water pump and thermostat.
I talked to a budy of mine and he is willing to build me a custom Turbo kit. Tuning will be done by MM so no issues there except getting it tuned quick enough based on the obvious timing issues with online tuning. Amongest the unknowns is turbo sizing. He wants me to ask if the following turbo's would be any good in the Rx8 world:
- HOLSET HX40W: used in diesel trucks Diesel Truck Turbo and Diesel Truck Turbo
- Borgwarner EFR: AWESOME TURBO Perhaps the EFR 6758? (67mm cold...58mm hot...not sure if I know what I am saying here just repeating what I see on there sizing chart)
- EVO 8 16 g Turbo: he said he has two of these suckers in his garage so wondering if any good in our application?
I also read somewhere about internal wastegate issues. If I got the BorgWarner would this be an issue? Anything you would recommend?
I know some will advise me to read up and turbo sizing and let's be honest. I'm not dumb but that thread scared me...LMAO! Can I understand some of it...Sure...but I'm still lost a bit. Cold side...hot side...what size is best etc etc.
Additional note since you all will ask what are my goals: 350 wHP, cooling (mazmart water pump installed currently with remedy thermostat...we plan to build a v-mount rad/intercooler like MM's), capable of long racing sessions (new to this so not sure what long is...20 min?), dayly driven still, preventative measures to prevent any accidents (much like MM did with dumping boost preasure during a unforseen lean condition), etc.
Mods currently: AEM intake, BHR ignition/midpipe, greddy exhaust, ACT flywheel/clutch, Cobb on 4th NA tune, Mazmart Remedy water pump and thermostat.
Last edited by cavemancan; 02-29-2012 at 12:16 AM.
#110
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
Team...It's a good thing Teddie tells me your a nice guy in real life! Edit: translated your sig...trying not to stick out too much.
Everyone else...I have more infoz (lol) on the EFR Turbo mentioned above:
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 67mm
Compressor Wheel Inducer: 53.9mm
Max Flow Rate: 49 lb/min
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Compressor Housing: 2.5" inlet, 2.0" hose coupler outlet
Turbine Specifications
Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
Turbine Wheel OD: 58mm
Stainless Steel Investment cast Housing
Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
EFR 6758 Turbo Link
Or would a EFR 7064 be better?

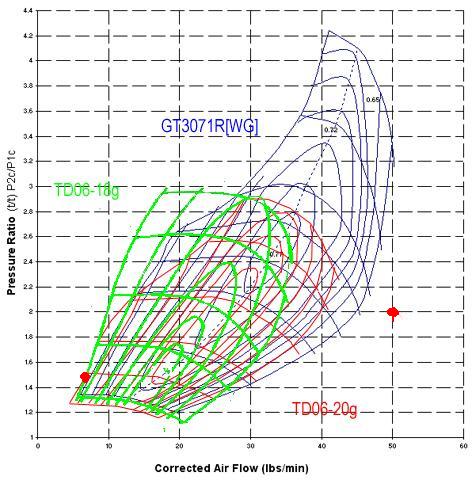

I am basing these questions on the Turbo sizing thread that yielded this graph:
How do these compare to Turblown's? Turblown GT35R
If I were to guess based on what I've read the GT35R is best??
Everyone else...I have more infoz (lol) on the EFR Turbo mentioned above:
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (exducer): 67mm
Compressor Wheel Inducer: 53.9mm
Max Flow Rate: 49 lb/min
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Compressor Housing: 2.5" inlet, 2.0" hose coupler outlet
Turbine Specifications
Turbine Type: Low Inertia Gamma-Ti Turbine Wheel
Turbine Wheel OD: 58mm
Stainless Steel Investment cast Housing
Turbine outlet: GT-Vband (aka small 3" vband) ~92mm OD for all EFR turbos
EFR 6758 Turbo Link
Or would a EFR 7064 be better?
I am basing these questions on the Turbo sizing thread that yielded this graph:
Originally Posted by Kane
So we want a turbo that will boost to 7 PSI at 1500 RPM's and Hold 16 PSI at Redline Efficiently.
So
7 lb/min @ 1500 = PR of 1.5
50 lb/min @ 9000 = PR of 2
Now go find this magical turbo that will be efficient in this range......
Or more realistically - go find the one that is the best fit.
So we want a turbo that will boost to 7 PSI at 1500 RPM's and Hold 16 PSI at Redline Efficiently.
So
7 lb/min @ 1500 = PR of 1.5
50 lb/min @ 9000 = PR of 2
Now go find this magical turbo that will be efficient in this range......
Or more realistically - go find the one that is the best fit.
If I were to guess based on what I've read the GT35R is best??
Last edited by cavemancan; 02-29-2012 at 01:47 AM.
#113
SPOOLN8
iTrader: (1)
Join Date: Nov 2008
Location: Edmonton, Alberta, Canada
Posts: 2,240
Received 214 Likes
on
161 Posts
Wtf dude.... what does that even mean??
Caveman posts his power level goals, the type of driving style he wants to incorporate and different turbo options; WITH flow maps, turbo dimensions and all the info you could ask for (plus some) to answer his questions and you reply with this???
I'd rather see 100 more threads started of "What exhaust is best for my Rx8?" than see you reach 13, 095 posts of that nonsense......
#114
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
Subliminal message: you should have had BHR rebuild your engine!
Smartass!
Last edited by cavemancan; 02-29-2012 at 11:39 AM.
#117
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
Everyone...I was shown this website and it looks cool! It helps you pick the right size turbo for your application but to be honest I am not sure how to derive the figures it requires here for the calulation. Some help is appreciated...
Borg Warner MatchBot
Last edited by cavemancan; 02-29-2012 at 03:14 PM.
#118
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
#119
Yeah, you are tracking.
Your goal flow is at a PR that is too high for your engine.
45-50lb MIN is what you should be aiming for and those turbo's you posted needed a PR of 3 or more to be efficient. Diesel turbo's are typically like that, high PR in a narrow operating range.
Ideally, getting a Variable Vane Turbo would be what you wanted.
Your goal flow is at a PR that is too high for your engine.
45-50lb MIN is what you should be aiming for and those turbo's you posted needed a PR of 3 or more to be efficient. Diesel turbo's are typically like that, high PR in a narrow operating range.
Ideally, getting a Variable Vane Turbo would be what you wanted.
#120
Registered
iTrader: (25)
that means he wasn't interested in hearing about it so I bowed out gracefully. Damned if I do or don't I suppose.
What he posted was a bunch of big plans when anyone knowledgeable can see he doesn't have a good grasp on the subject. I didn't want to rain on his parade and wouldn't have said anything else, but as usual some dipwad has to go and start blaming me for not doing anything more than trying to be nice about. If you're not interested in what someone has to say then only a complete f'ing idiot goes out of their way to antagonize that person, but I suppose you consider yourself smarter than this ...
What he posted was a bunch of big plans when anyone knowledgeable can see he doesn't have a good grasp on the subject. I didn't want to rain on his parade and wouldn't have said anything else, but as usual some dipwad has to go and start blaming me for not doing anything more than trying to be nice about. If you're not interested in what someone has to say then only a complete f'ing idiot goes out of their way to antagonize that person, but I suppose you consider yourself smarter than this ...
#121
EFR 7670 could be quite good fit for your application http://www.turbodriven.com//performa...6_wrsin=92044&
In the end, you will find out, that Borg Warner EFR stuff is oriented rather for high pressure ratios. Garrett compressors of similar dimensions are more efficient at lower PR.
For example, EFR 7670 at 50 lbs/min and 2 PR works with about 60% efficiency. GTX3076R of similar dimensions and comparable peak flow is 70% efficient at same point. GT3582R is even more efficient, as it should be, its substantially bigger compressor. On the other hand, even smaller GTX3071R operates at 60% with same requirements.
GTX3071R, GTX3076R and GT3582R meets your compressor requirements with good efficiency. Turbine sizing is bit more complicated... 82mm compressor has been proven to be little too much for GT35 turbine for rotary application, same applies to GTX3076R. Interesting would be newly released GTX3576R as it has better wheel match. Its not just about wheel sizes, but about speed at which turbine operates, and this is dependent on compressor speed in given conditions. Its very complex
#122
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, you are tracking.
Your goal flow is at a PR that is too high for your engine.
45-50lb MIN is what you should be aiming for and those turbo's you posted needed a PR of 3 or more to be efficient. Diesel turbo's are typically like that, high PR in a narrow operating range.
Ideally, getting a Variable Vane Turbo would be what you wanted.
Your goal flow is at a PR that is too high for your engine.
45-50lb MIN is what you should be aiming for and those turbo's you posted needed a PR of 3 or more to be efficient. Diesel turbo's are typically like that, high PR in a narrow operating range.
Ideally, getting a Variable Vane Turbo would be what you wanted.
Last edited by cavemancan; 02-29-2012 at 10:11 PM.
#123
Boostin'
No reason in even talking about BW EFR turbos, no one can get their hands on them.
GTX3576R is what you want, if money is no issue
or this @ a much cheaper price
http://turblown.net/store/index.php?productID=257
we also offer it in a To4E compressor housing; no extra charge
I have all of them in stock, and ready to ship.
GTX3576R is what you want, if money is no issue
or this @ a much cheaper price
http://turblown.net/store/index.php?productID=257
we also offer it in a To4E compressor housing; no extra charge
I have all of them in stock, and ready to ship.
#124
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
No reason in even talking about BW EFR turbos, no one can get their hands on them.
GTX3576R is what you want, if money is no issue
or this @ a much cheaper price
http://turblown.net/store/index.php?productID=257
we also offer it in a To4E compressor housing; no extra charge
I have all of them in stock, and ready to ship.
GTX3576R is what you want, if money is no issue
or this @ a much cheaper price
http://turblown.net/store/index.php?productID=257
we also offer it in a To4E compressor housing; no extra charge
I have all of them in stock, and ready to ship.
Edit: Well according to this compareson it's not worth the extra money nor would it spool a significant amount quicker in our application and you lose a little efficency up top.
Last edited by cavemancan; 02-29-2012 at 09:57 PM.
#125
The forgestar be with you
Join Date: Jan 2006
Location: Miami, Florida
Posts: 1,237
Likes: 0
Received 0 Likes
on
0 Posts
In the end, you will find out, that Borg Warner EFR stuff is oriented rather for high pressure ratios. Garrett compressors of similar dimensions are more efficient at lower PR.
For example, EFR 7670 at 50 lbs/min and 2 PR works with about 60% efficiency. GTX3076R of similar dimensions and comparable peak flow is 70% efficient at same point. GT3582R is even more efficient, as it should be, its substantially bigger compressor. On the other hand, even smaller GTX3071R operates at 60% with same requirements.
GTX3071R, GTX3076R and GT3582R meets your compressor requirements with good efficiency. Turbine sizing is bit more complicated... 82mm compressor has been proven to be little too much for GT35 turbine for rotary application, same applies to GTX3076R. Interesting would be newly released GTX3576R as it has better wheel match. Its not just about wheel sizes, but about speed at which turbine operates, and this is dependent on compressor speed in given conditions. Its very complex
