Replaced Greddy turbo hoses/reducers/clamps
09-10-2005, 05:50 PM
#1
Ex- member.
Thread Starter
Replaced Greddy turbo hoses/reducers/clamps
I plan to up the boost soon and I decided to checkout the condition of my reducers/hoses. About half of them were cracking although none had cracked all the way through yet.
I replaced all the blue hoses and reducers that connected the piping for the Greddy turbo kit. I purchased the new ones from http://www.hightempsilicone.com/ , the total bill was around $150.

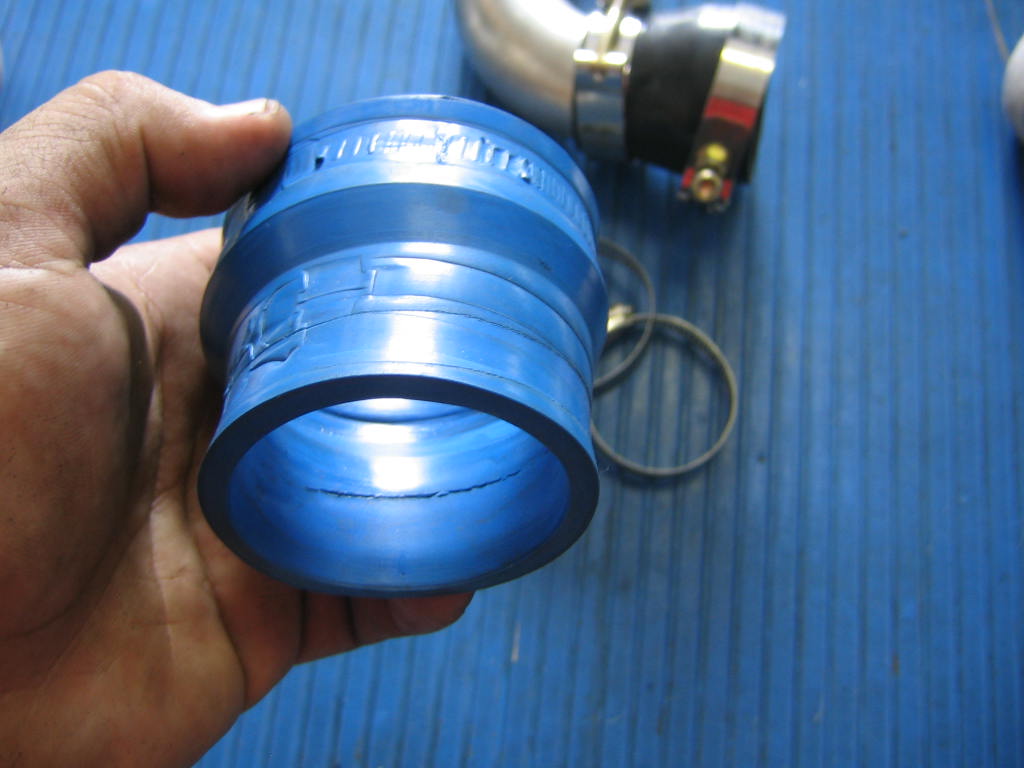

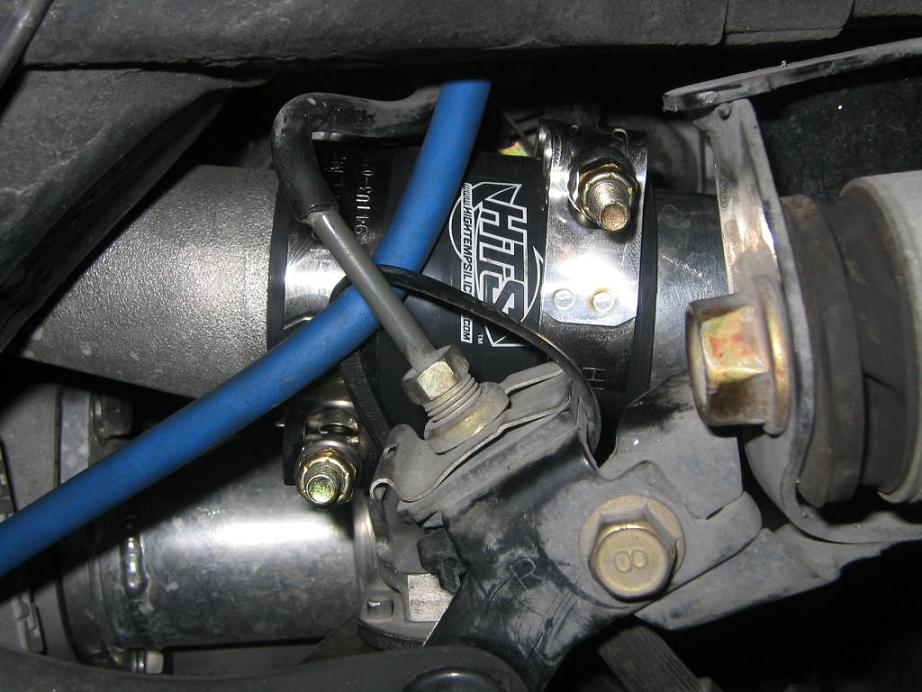

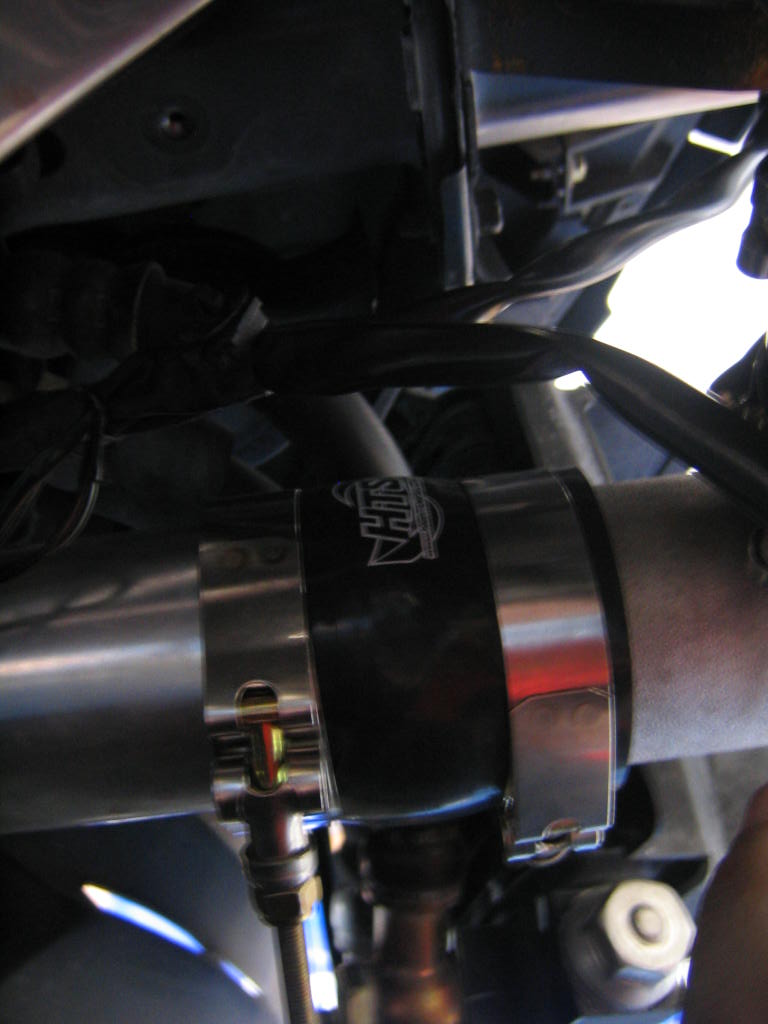

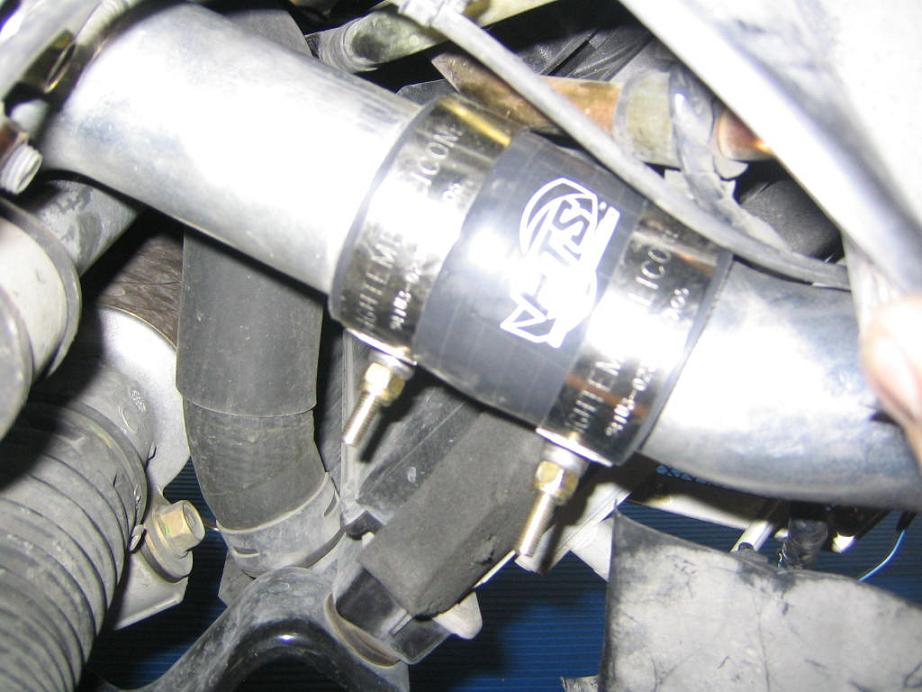

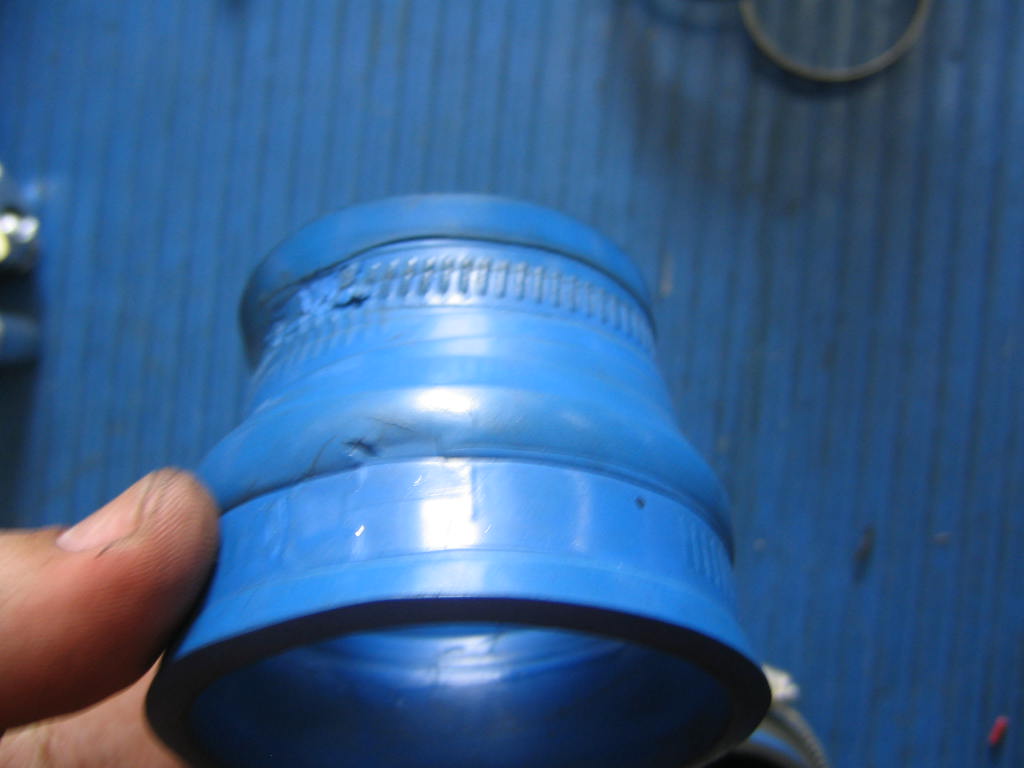

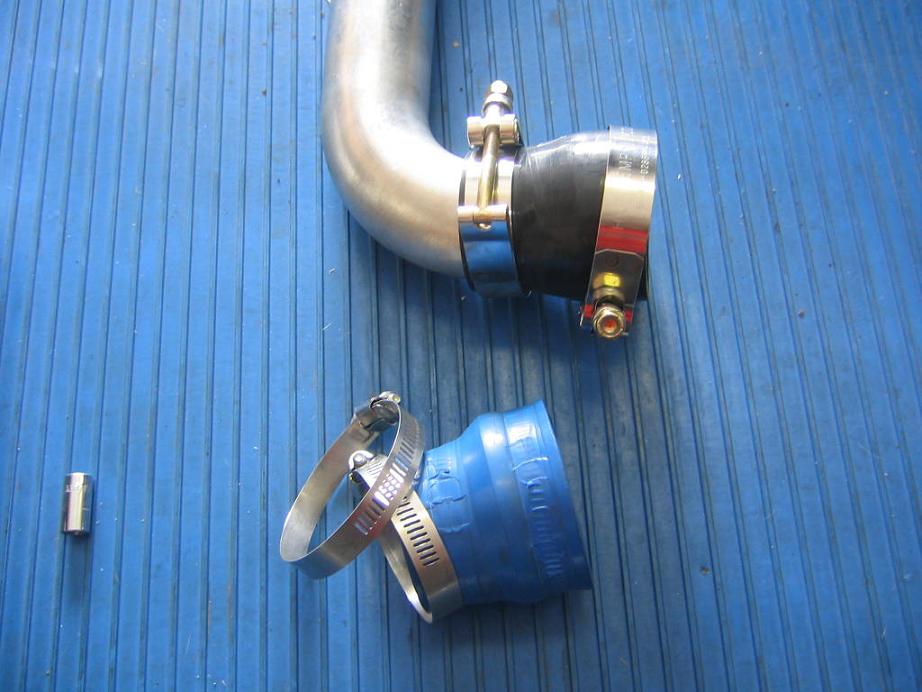

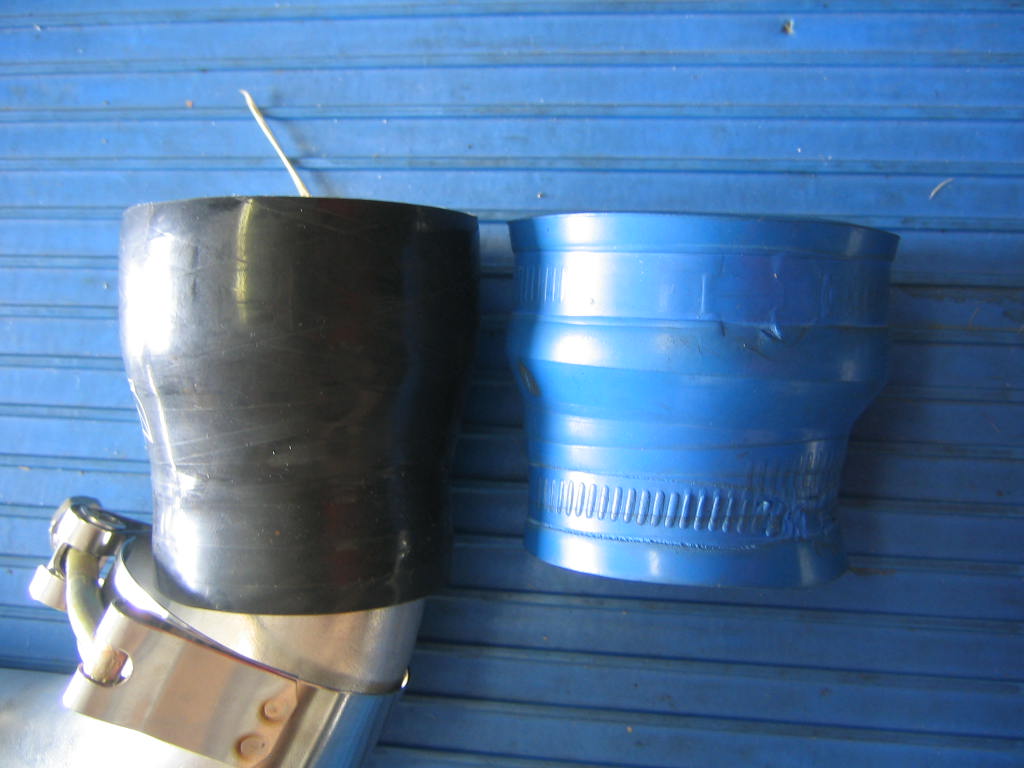

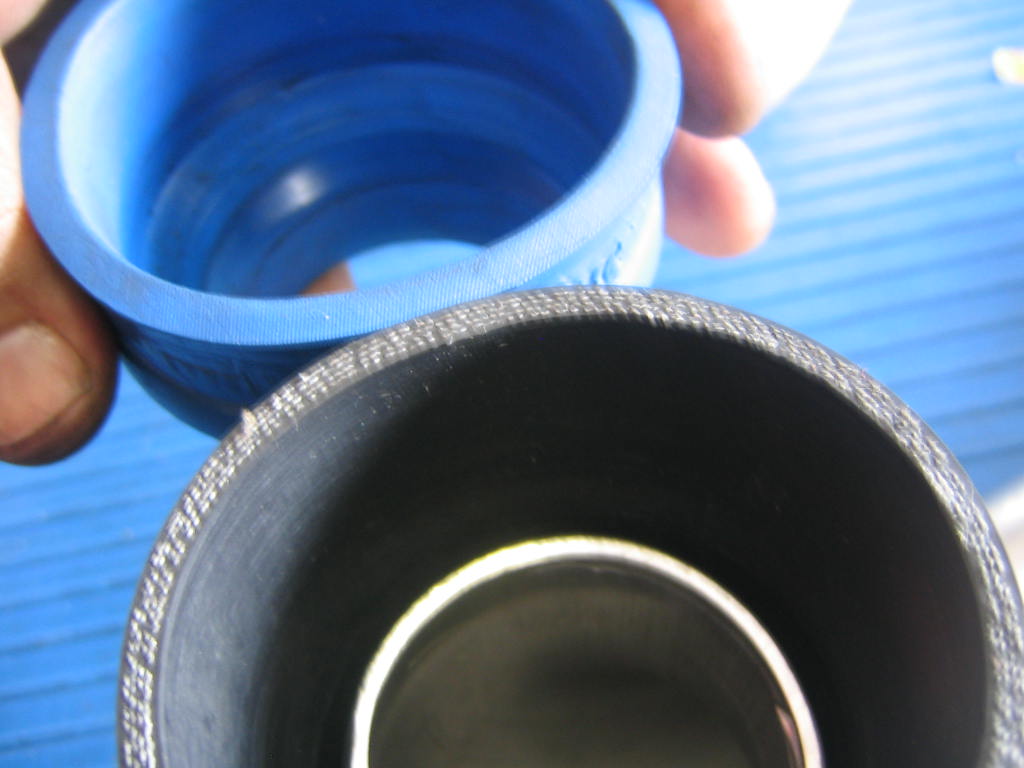

I've only had my kit 7 months and there was noticeable wear/tear on the reducers/hoses. The worm clamps bit into the silicone and there were cracks on a few, even on the inside. The new clamps I used are T-clamps and do not bite into the silicone like worm clamps.
I replaced all the blue hoses and reducers that connected the piping for the Greddy turbo kit. I purchased the new ones from http://www.hightempsilicone.com/ , the total bill was around $150.
I've only had my kit 7 months and there was noticeable wear/tear on the reducers/hoses. The worm clamps bit into the silicone and there were cracks on a few, even on the inside. The new clamps I used are T-clamps and do not bite into the silicone like worm clamps.
09-10-2005, 07:42 PM
#5
Ex- member.
Thread Starter

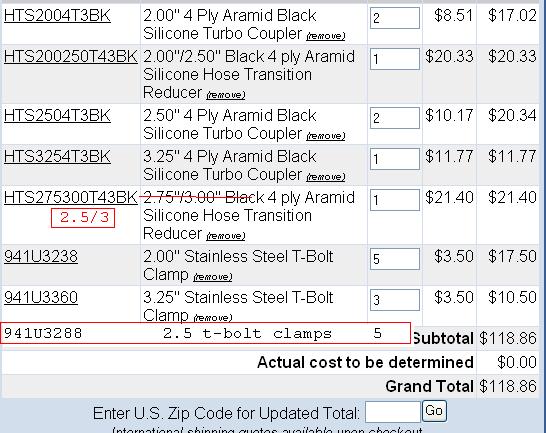

I'll get the shopping list together and post.
The reducer on the pipe going down from the throttle body was alittle too big. I believe they were out of the correct size on all colors (2.5 to 3). I got 2.75 to 3 and made it work.
The reducer on the pipe going down from the throttle body was alittle too big. I believe they were out of the correct size on all colors (2.5 to 3). I got 2.75 to 3 and made it work.
09-11-2005, 12:39 PM
#6
Registered User
Join Date: Jan 2003
Location: SF Bay Area
Posts: 1,286
Likes: 0
Received 0 Likes
on
0 Posts
Interesting find. Did you contact Benny to get his opinion?
I wasn't impressed with the kit hoses to begin with and used silicone ones from HoseTechniques instead. Nice to know I made the right choice.
________
Free themes
I wasn't impressed with the kit hoses to begin with and used silicone ones from HoseTechniques instead. Nice to know I made the right choice.
________
Free themes
Last edited by PUR NRG; 05-01-2011 at 06:47 AM.
09-11-2005, 06:05 PM
#7
Ex- member.
Thread Starter
No, I didn't talk to Benny.
I read a thread where the puerto rico member's reducer split open when he increased the boost (10psi?). So I decided to check mine out.
I read a thread where the puerto rico member's reducer split open when he increased the boost (10psi?). So I decided to check mine out.
09-11-2005, 09:42 PM
#10
Ex- member.
Thread Starter

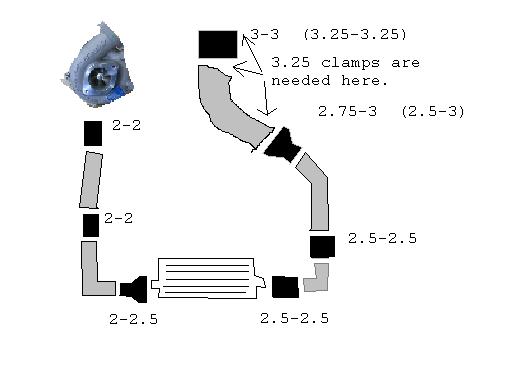

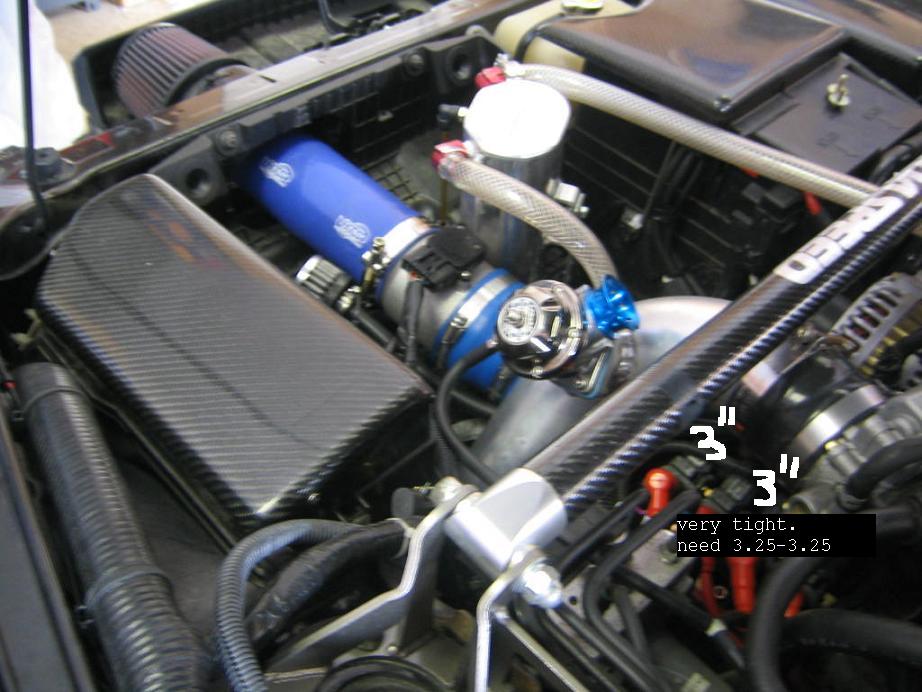

Diagram of couplers/reducers below. The numbers in parenthesis would fit better than the ones I got.

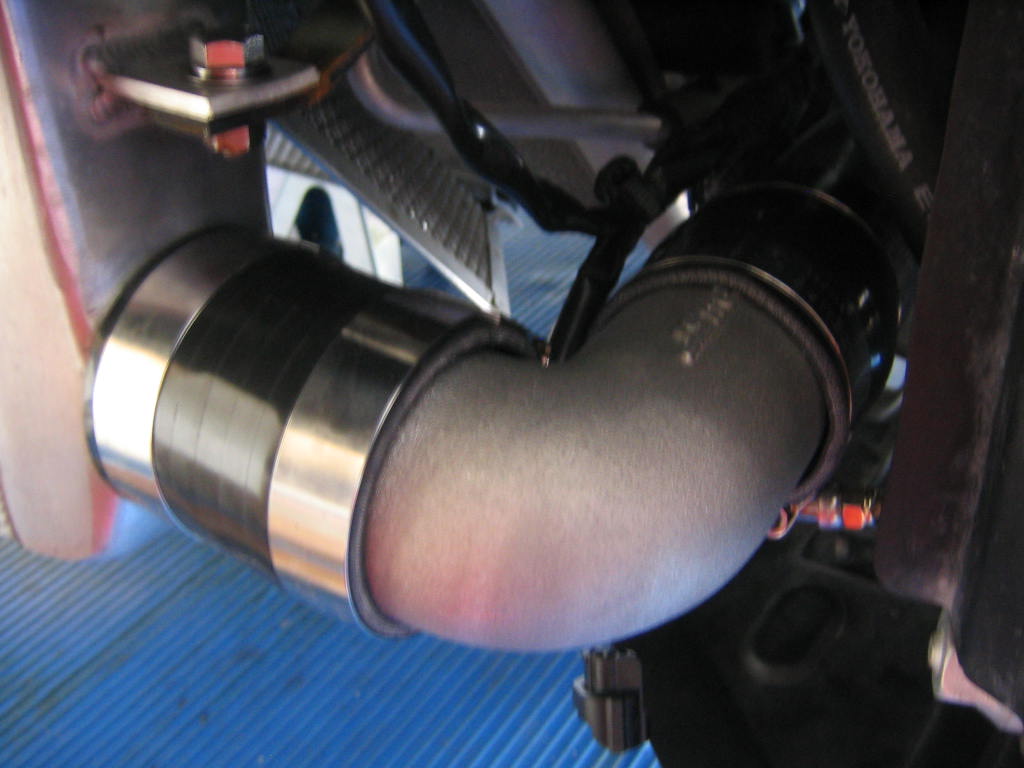

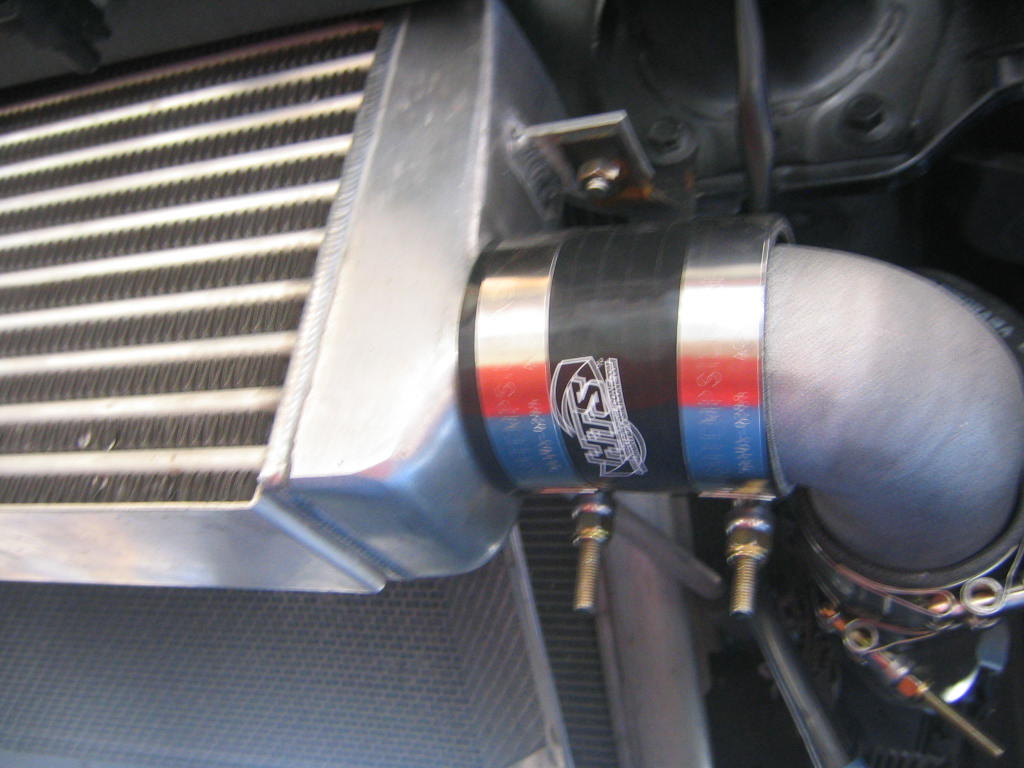

If you want to replace the 3 hoses on the air intake , you'll have to measure those yourself. I didn't replace those since they're not pressurized. Also, I relocated my filter behind the bumper using the websites intercooler 12" hose.
If you want to replace the 3 hoses on the air intake , you'll have to measure those yourself. I didn't replace those since they're not pressurized. Also, I relocated my filter behind the bumper using the websites intercooler 12" hose.
09-12-2005, 10:34 AM
#11
Registered User
Join Date: Jan 2003
Location: SF Bay Area
Posts: 1,286
Likes: 0
Received 0 Likes
on
0 Posts
How did you clamp the intercooler hose to the intake filter? And is that a 3" or 3.25" ID?
________
Depakote attorneys
________
Depakote attorneys
Last edited by PUR NRG; 05-01-2011 at 06:48 AM.
08-19-2006, 01:17 PM
#13
This is a highly recommended mod for the stock greddy kit.

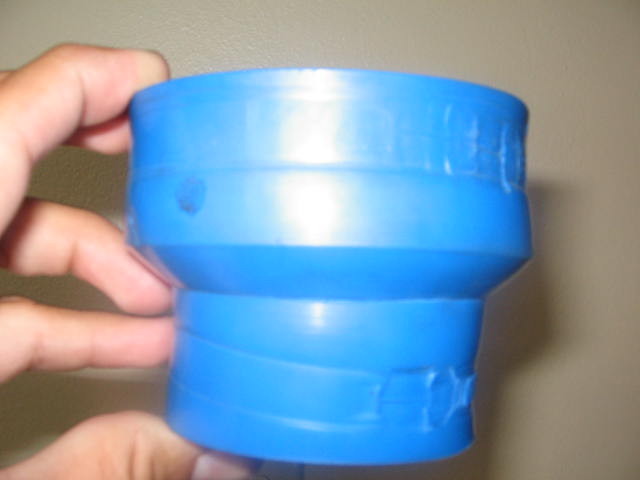

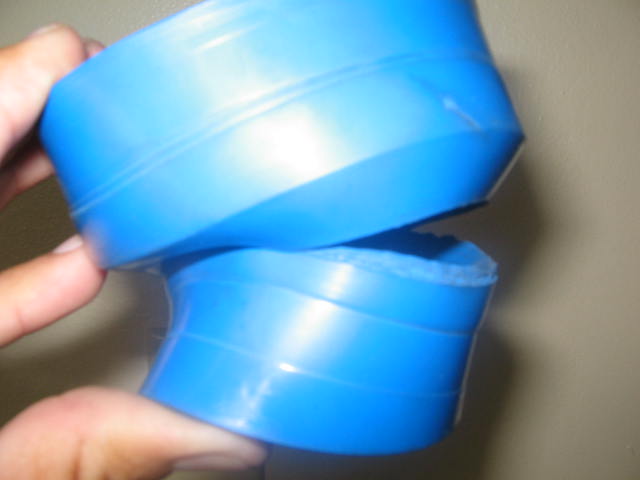

Mine also burst: http://proxy.searchirc.com/turbo/brokencoupler2.jpg
I tried to order from HTS, but they are out of transition hoses. I ended up going with MazworxRaceSupply.com (Located in Orlando).
Plus all the t-clamps came up to a total of $130 including shipping.
Edit: I replaced all hoses and all clamps, including clamps on the intake. So I spent around 200.
Mine also burst: http://proxy.searchirc.com/turbo/brokencoupler2.jpg
I tried to order from HTS, but they are out of transition hoses. I ended up going with MazworxRaceSupply.com (Located in Orlando).
Plus all the t-clamps came up to a total of $130 including shipping.
Edit: I replaced all hoses and all clamps, including clamps on the intake. So I spent around 200.
Last edited by mysql101; 09-04-2006 at 11:19 PM.
12-27-2006, 10:15 PM
#16
Registered
Join Date: Oct 2004
Location: Philly
Posts: 332
Likes: 0
Received 0 Likes
on
0 Posts
Here's a pull from the Greddy Turbo Manual with the dimensions converted from Metric to English
33. Rubber Hose 50D x 70mm – 2 --> 2”D x 2-3/4” – 2
34. " 60D x 70mm – 3 --> 2-3/8”D x 2-3/4” – 3
35. " 80D x 60mm – 1 --> 3”D x 2-3/8” – 1
36. Silicone Hose 50D – 60D Reducer – 1 --> 2”D - 2-3/8”D – 1
37. “ 80D x 80D Reducer – 1 --> 3”D x 3”D – 1
38. “ 80D – 90D Reducer – 1 --> 3”D - 3-1/2”D – 1
39. Hose Band 16D #10 – 2 --> 5/8”D – 2
40. “ 50D #32 – 5 --> 2”D – 5
41. “ 60D #36 – 8 --> 2-3/8”D – 8
42. “ 80D #48 – 4 --> 3”D – 4
43. “ 90D #56 – 1 --> 3-1/2”D – 1
33. Rubber Hose 50D x 70mm – 2 --> 2”D x 2-3/4” – 2
34. " 60D x 70mm – 3 --> 2-3/8”D x 2-3/4” – 3
35. " 80D x 60mm – 1 --> 3”D x 2-3/8” – 1
36. Silicone Hose 50D – 60D Reducer – 1 --> 2”D - 2-3/8”D – 1
37. “ 80D x 80D Reducer – 1 --> 3”D x 3”D – 1
38. “ 80D – 90D Reducer – 1 --> 3”D - 3-1/2”D – 1
39. Hose Band 16D #10 – 2 --> 5/8”D – 2
40. “ 50D #32 – 5 --> 2”D – 5
41. “ 60D #36 – 8 --> 2-3/8”D – 8
42. “ 80D #48 – 4 --> 3”D – 4
43. “ 90D #56 – 1 --> 3-1/2”D – 1
12-27-2006, 10:26 PM
#17
Registered
Join Date: Oct 2004
Location: Philly
Posts: 332
Likes: 0
Received 0 Likes
on
0 Posts
In case you were wondering... I decided to replace everything including the vacuum hoses and came across this.
Vacuum hose reliabilty test (scientific experiment): Viton vs. Neoprene vs. Silicone (thanks TracyRX7)
http://www.geocities.com/MotorCity/G...5/hosetest.pdf
Vacuum hose reliabilty test (scientific experiment): Viton vs. Neoprene vs. Silicone (thanks TracyRX7)
http://www.geocities.com/MotorCity/G...5/hosetest.pdf
12-28-2006, 07:06 AM
#19
you can get it here:
http://hightempsilicone.com/category/vacuumhoseviton/
They cost about 5x more than silicone hoses...
I wouldn't bother. The vacuum hoses aren't in locations where it gets really hot.
I did buy pure silicone hoses (red), cost me about $50. It looks great.
http://hightempsilicone.com/category/vacuumhoseviton/
They cost about 5x more than silicone hoses...
I wouldn't bother. The vacuum hoses aren't in locations where it gets really hot.
I did buy pure silicone hoses (red), cost me about $50. It looks great.
02-08-2007, 09:51 PM
#20
Bubblicious? DEF.
Join Date: Mar 2004
Posts: 4,062
Likes: 0
Received 0 Likes
on
0 Posts
anyone who needs coupler..... HTS seems to be out of stock on a few hoses... i googled and found this place.... http://www.extremepsi.com/store/cust...me.php?cat=772
found it a bit cheaper (few cents off most hoses) but there is at 7.50 handling fee, no biggie got everything + 14 clamps for 126
found it a bit cheaper (few cents off most hoses) but there is at 7.50 handling fee, no biggie got everything + 14 clamps for 126
02-12-2007, 11:44 AM
#21
Bubblicious? DEF.
Join Date: Mar 2004
Posts: 4,062
Likes: 0
Received 0 Likes
on
0 Posts
i just recieve my hoses today from extremepsi, shipping was fast!
hoses look kinda small... from what i last remember the piping was bigger? i hope these are the right sizes... we'll see tomorrow...
hoses look kinda small... from what i last remember the piping was bigger? i hope these are the right sizes... we'll see tomorrow...
