Theoretical maximum Renesis porting....
Porting a Renesis will never yield full potential until the apex and corner seals are redesigned. Anyone who has seen a Bridgeported engine can see the problem.
The problem is the seals' design lets them move when they pass over the ports - they are held in place by the wall of the rotor housing. They need to be held in place, so that the sideports can be enlarged to their full potential. No streetports, no bridgeports, just huge gaping sideports, as large as theory allows.
The apex/corner seals could be held with pins or redesigned to stay in place, and the little side seals of spring steel could be made as one-piece triangular assemblies (didn't say it would be easy!), but once the seals are prevented from exiting the motor through the exhaust port, then we can get some serious porting results......
Am I out to lunch, or just drunk again?
S
The problem is the seals' design lets them move when they pass over the ports - they are held in place by the wall of the rotor housing. They need to be held in place, so that the sideports can be enlarged to their full potential. No streetports, no bridgeports, just huge gaping sideports, as large as theory allows.
The apex/corner seals could be held with pins or redesigned to stay in place, and the little side seals of spring steel could be made as one-piece triangular assemblies (didn't say it would be easy!), but once the seals are prevented from exiting the motor through the exhaust port, then we can get some serious porting results......
Am I out to lunch, or just drunk again?
S
#5
Originally Posted by chickenwafer
^ I heard that too. The internal passage of the intake port passes very close to the water jacket for the liquid cooling system. It's the exhaust port that has the most potential, in theory (after looking at GuitarJunkie's thread......)
#7
Registered
You really need to compare the stock Renesis intake ports to even a large streetported 13B intake port. You'd be quite shocked at how large they are on the Renesis. A 13B only wishes it could get that much intake area without a bridge. I see no reason to make the secondary or auxiliary ports any larger than they already are. The primary port can be closed a little bit later bit that's about it. Mazda gave you just about all that you can get.
The exhaust ports do need the most work. I did not agree with Dave's (RIP) exhaust porting style as there is no excuse to hit water. From looking at his pictures I suspect he didn't actually go into the water jacket but rather confused the edge of the exhaust sleeve for the housing. His pictures seem to show the sleeve being welded to the housings rather than a patch job. Overall I wasn't happy with his exhaust port shapes. They could have been much smoother. There still isn't a whole lot you can do to the exhaust port timing anyways but there is work that can be done that can increase flow.
Unlike previous rotaries, don't expect too much more power from porting. You'll get some but the overall percent gain will be very low compared to previous motors that still had so much potential left in them. Proof of this is in the horsepower numbers between the Renesis and the older engines. You've already got stock what most of theose engines only wish they could get and you can do it far more cleanly.
The exhaust ports do need the most work. I did not agree with Dave's (RIP) exhaust porting style as there is no excuse to hit water. From looking at his pictures I suspect he didn't actually go into the water jacket but rather confused the edge of the exhaust sleeve for the housing. His pictures seem to show the sleeve being welded to the housings rather than a patch job. Overall I wasn't happy with his exhaust port shapes. They could have been much smoother. There still isn't a whole lot you can do to the exhaust port timing anyways but there is work that can be done that can increase flow.
Unlike previous rotaries, don't expect too much more power from porting. You'll get some but the overall percent gain will be very low compared to previous motors that still had so much potential left in them. Proof of this is in the horsepower numbers between the Renesis and the older engines. You've already got stock what most of theose engines only wish they could get and you can do it far more cleanly.
The following users liked this post:
Bob Ruiz (04-13-2020)
#8
Registered
Originally Posted by Nemesis8
There is plenty of intake area for forced induction. I say redesign the intake manifold and get rid of all the actuators. Who needs them if you have a blower on that sucka
The following users liked this post:
Bob Ruiz (04-13-2020)
#10
Consiglieri
Join Date: Feb 2004
Location: yourI'mgirl
Posts: 1,275
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rotarygod
You really need to compare the stock Renesis intake ports to even a large streetported 13B intake port...
Your wish is my command... sort of. Here are the stockers primary intake ports.
EDIT: removing FUBAR
Last edited by MadDog; 04-02-2007 at 01:15 PM.
#11
Registered
Stealth's picture is of a 13B bridgeport.

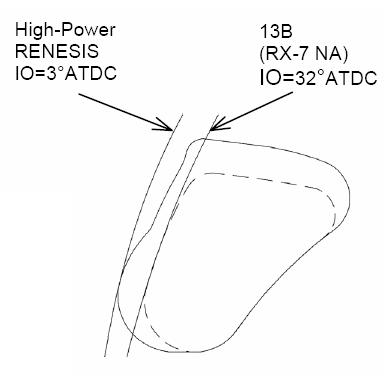

This really does show how much larger the ports are in relation to each other. The Renesis side seals are moved outward slightly on the rotor so they can get more opening. It is possible to open the 13B intake ports earlier than they come stock but still not as far as the Renesis port open. You can clearly see that the Renesis intake port closes later too. On a streetported 13b primary you might only get out to this timing level. Maybe slightly past it depending on your casting thickness. The Renesis primaries could be closed a little bit later still. They are some pretty large ports.
This really does show how much larger the ports are in relation to each other. The Renesis side seals are moved outward slightly on the rotor so they can get more opening. It is possible to open the 13B intake ports earlier than they come stock but still not as far as the Renesis port open. You can clearly see that the Renesis intake port closes later too. On a streetported 13b primary you might only get out to this timing level. Maybe slightly past it depending on your casting thickness. The Renesis primaries could be closed a little bit later still. They are some pretty large ports.
#12
Lasse wankel
Join Date: Aug 2006
Location: Stockholm,Sweden
Posts: 164
Likes: 0
Received 0 Likes
on
0 Posts
I think i have posted here before the intake and exhausts flow of the Renesis engine. But of course i can post some numbers comparing stock to stage 1 once again(only reshaping and smoothing out the ports). What i can remember so was overall gain approx 8-12% more flow after reshaping.
/Lasse
/Lasse
#13
Go Texas Longhorns!
One of the great things about 7stock was the ability to compare the 13B housings to the Renesis. You can really see the difference in port size and design that pics don't do justice.
Frankly, porting to me for the Renesis would be the last thing I would do, unless I just had a motor sitting around I wasn't using. For the money and time, your better off throwing on a lightweight flywheel and a mid pipe, if you want some power you can feel.
I'd like to see what cleaning up the exahust port design might do at some point, but frankly I'm not expecting much. I wouldn't port the intake side at all, the only thing I would do there would be to polish it.
Frankly, porting to me for the Renesis would be the last thing I would do, unless I just had a motor sitting around I wasn't using. For the money and time, your better off throwing on a lightweight flywheel and a mid pipe, if you want some power you can feel.
I'd like to see what cleaning up the exahust port design might do at some point, but frankly I'm not expecting much. I wouldn't port the intake side at all, the only thing I would do there would be to polish it.
#15
Registered
Strangely enough I'm against that idea. I feel that there is alot more to zero overlap than people think there is and that we haven't fully exploited it yet. It could be a good experiment though.
#16
Registered User
Join Date: Mar 2004
Location: New Orleans
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Exactly what is the restriction in the exhaust sleeves? Are they simply too small? Also, do we have the restrictive sound diffusers in our exhaust sleeves similar to the older rx7 6 ports? What can be done here to gain more power and why hasn't anyone really tried yet? Any pics of Renesis exhaust ports?
#17
Registered
The Renesis exhaust ports just have a terrible transition from port to runner. They go straight in and then quite literally make a 90 degree turn out of the engine. There is no gradual bend. It's a corner with an edge. Not good. The port runner in the sleeve is actually larger in area than the port opening itself. I feel that it's too large and needs to be made smaller. However the main focus should be on the port to runner transition point. This really needs to be addressed in some way. Only after that gets taken care of does the runner volume need to be messed with. This may sound easy and straight forward but when you look at one up close, it's not as easy as it sounds. That probably explains why they are done the way they are.
The following users liked this post:
Bob Ruiz (04-13-2020)
#18
unfortunately i have not yet had the opportunity to get a Renesis to pull apart and play with, so forgive me if it's not something that can be done, but what if one were to bridgeport the exhausts only? i mean for street applications, might that help get more exhaust out without upsetting drivability and fuel economy too much?
#19
Registered User
Join Date: Oct 2005
Location: Toronto, Canada
Posts: 2,047
Likes: 0
Received 0 Likes
on
0 Posts
A thicker intermediate plate would provide some space to mess with. (more weight tho) They could make it semi hollow, think brake rotors.
And about smoothing the edges of intake and exhaust ports, is there anyway Mazda can do it on a production engine?
________
Virgin
And about smoothing the edges of intake and exhaust ports, is there anyway Mazda can do it on a production engine?
________
Virgin
Last edited by Renesis_8; 09-11-2011 at 01:02 PM.
#22
well jus as a thought about portin to make it simple i think that someone, should design an individual throttle body setup......... use a map sensor which coudl be a challenge in it self to get it to work with our pain in the A$$ pcm....... clean up the intake ports a bit....... n then clean up the exhaust ports to flow better, but i only recommend this to someone with a flow bench, n enough time and money to **** with a ITB setup..............im down in my free time to help out if anyone else is.........
#24
that is a good point neit although mazda did a good job of tryin to flow as much on the exhaust ports, from what i read that ports r very jagged you have to try n clean up the ports as much as possible but other then that theres not much left on n/a power from this exhaust port design........am i right
#25
Registered
Originally Posted by neit_jnf
how bout aux port bridge? didn't Ito do this and got a lot of top end?
