My new install project.
#229
So you cut up your wire harness, located the wires for the OMP plug, moved those wires/plug to the glove box and then patched up your wire harness? I'm just tryin' to get a visual here of how you accomplished this.
#230
Original Turbo 'd Auto !!
Thread Starter
Elliot had wire from a left over motec harness that was used for this extension. All the connections were cleaned, soldered, heat shrunk and wrapped.
Last edited by 09Factor; 07-22-2010 at 02:36 PM. Reason: meh khant spiel
#232
Original Turbo 'd Auto !!
Thread Starter

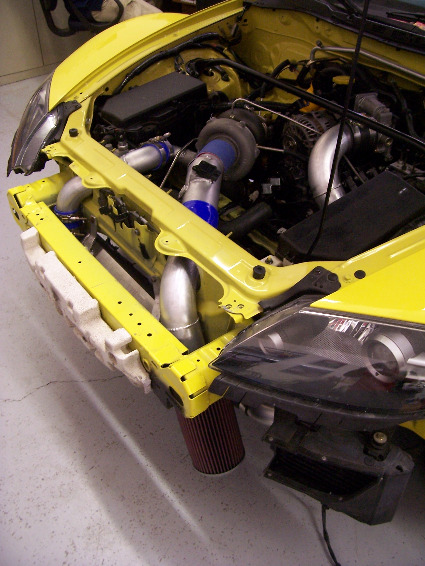

Oh so close now!
So this intake better pass the MM Airflow Path certification process.
Still waiting on a updated basemap. So since the intake is done, maybe the map will "show up" soon.
So this intake better pass the MM Airflow Path certification process.
Still waiting on a updated basemap. So since the intake is done, maybe the map will "show up" soon.
Last edited by 09Factor; 07-22-2010 at 02:33 PM.
#236
#237
Wait, are the thermostat housings for automatics/manuals different? Just saw a picture of another t-housing that didn't have the nipples at all, don't know if it was an auto or not.
#238
Boostin'

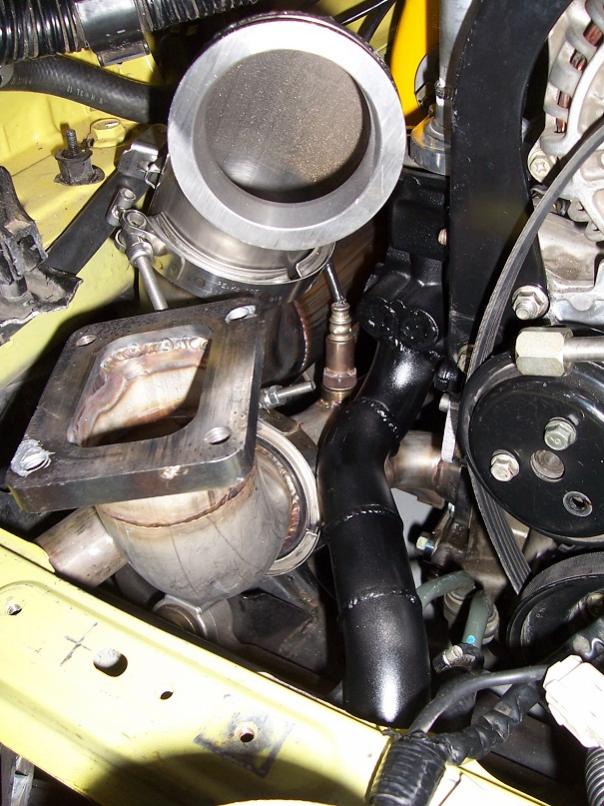

I am just moving that little nipple far away from the turbo manifold. I don't want ANY rubber/silicone hoses within 5" of the turbo system. I do not know if there are any differences in the T-stat neck, all of the cars I have worked on have been the same. Maybe the Euro cars don't have it?
#239
Original Turbo 'd Auto !!
Thread Starter
![Angry](https://www.rx8club.com/images/icons/icon8.gif)
Well, I updated the AP Dongle, Loaded the new map MM did for me. Turblown and Nick filled the oil. Connected the batt, voltage looked good and when we went to turn it over all we got was a click of a relay.
Error Codes:
Tcm
P0748 Pressure control soleniod
P0753 Solenoid "A"
P0758 Solenoid "B"
P0763 Solenoid "C"
P0768 Solenoid "D"
I thinking either the TCM gave up the ghost(gawd I hope not) or something some where isn't plugged in right.
The Immobilizer flashses like it should with the batt connected. And I do have a Viper alarm plugged in.
NOW it did start up 3 months ago when Turblown did a comp test.
Change between then and now:
extended the omp harness
fed a 8 ga. ground wire through the harness boot
fed a 4 ga positive wire through the harness boot
I get no errors pertaining to the OMP. I didn't get a chance to unplug the OMP just in case i DID wire something sdrawkcab (backwards).![Eyetwitch](https://www.rx8club.com/images/smilies/eyetwitch.gif)
I also still have to look at the wire map and see if any of the stuff that changed interacts with other sensors hot and ground busses.
I did unplug and rest the connections on the TCM. No luck there. Hmmm.
Oh so very damn close and then this happens. Damn computers.![Rant](https://www.rx8club.com/images/smilies/rant.gif)
just thought of this:
maybe with all of the jacking of the engine up and down it loosened the AT harness.
Error Codes:
Tcm
P0748 Pressure control soleniod
P0753 Solenoid "A"
P0758 Solenoid "B"
P0763 Solenoid "C"
P0768 Solenoid "D"
I thinking either the TCM gave up the ghost(gawd I hope not) or something some where isn't plugged in right.
The Immobilizer flashses like it should with the batt connected. And I do have a Viper alarm plugged in.
NOW it did start up 3 months ago when Turblown did a comp test.
Change between then and now:
extended the omp harness
fed a 8 ga. ground wire through the harness boot
fed a 4 ga positive wire through the harness boot
I get no errors pertaining to the OMP. I didn't get a chance to unplug the OMP just in case i DID wire something sdrawkcab (backwards).
![Eyetwitch](https://www.rx8club.com/images/smilies/eyetwitch.gif)
I also still have to look at the wire map and see if any of the stuff that changed interacts with other sensors hot and ground busses.
I did unplug and rest the connections on the TCM. No luck there. Hmmm.
Oh so very damn close and then this happens. Damn computers.
![Rant](https://www.rx8club.com/images/smilies/rant.gif)
just thought of this:
maybe with all of the jacking of the engine up and down it loosened the AT harness.
![Scratchhead](https://www.rx8club.com/images/smilies/scratchhead.gif)
Last edited by 09Factor; 08-07-2010 at 10:24 PM.
#240
#241
I'll snap his neck.
My guess is a wiring problem. We had a problem where the car wouldn't start, wouldn't turn over, etc. It would throw the eshaft position sensor code. Long story short, an indentation in the insultation of the wire going from the eshaft sensor to the PCM had a small indentation in it. Not a crack, not a broken wire, etc, just a small indentation in the insulation. When you pulled that wire away from the rest of the harness, the car ran fine. So we replaced that wire and the problem hasn't occured since.
#242
Original Turbo 'd Auto !!
Thread Starter
![Dunno](https://www.rx8club.com/images/smilies/dunno.gif)
My guess is a wiring problem. We had a problem where the car wouldn't start, wouldn't turn over, etc. It would throw the eshaft position sensor code. Long story short, an indentation in the insultation of the wire going from the eshaft sensor to the PCM had a small indentation in it. Not a crack, not a broken wire, etc, just a small indentation in the insulation. When you pulled that wire away from the rest of the harness, the car ran fine. So we replaced that wire and the problem hasn't occured since.
#244
Registered User
iTrader: (1)
Join Date: Jan 2005
Location: Bronx, New York
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
nice, i just started reading this thread, i went thru a full custom build too, i actually need to tune my car still to see how much i can get out of it. question, anything tryed to melt with the build? i had to replace some plastic oil lines on mine make them in copper. they leaked oil all over the manifold and smoked all over.
#245
Original Turbo 'd Auto !!
Thread Starter
nice, i just started reading this thread, i went thru a full custom build too, i actually need to tune my car still to see how much i can get out of it. question, anything tryed to melt with the build? i had to replace some plastic oil lines on mine make them in copper. they leaked oil all over the manifold and smoked all over.
If it was a top mount how close was the downpipe to the OMP?
Now on the Greddy when i had it installed it burned up the under body sound damping spray on tar crap.
Oh and Ritchie, I have changed my mind on the HP goal.
= more than what I know what to do with.
![Mdrmed](https://www.rx8club.com/images/smilies/mdrmed.gif)
Last edited by 09Factor; 08-09-2010 at 03:19 PM.
#246
#247
Original Turbo 'd Auto !!
Thread Starter
Damn F*%king electronics!
Well the TR Switch continuity passes. I did find a loose ground, fixed it and same codes. Still have to check the harness, kinda hard to do that with one person.
So If it makes it SSXIII, cool. if not, oh well. There is next year.
Well the TR Switch continuity passes. I did find a loose ground, fixed it and same codes. Still have to check the harness, kinda hard to do that with one person.
So If it makes it SSXIII, cool. if not, oh well. There is next year.
#248
Administrator
iTrader: (7)
sorry to hear about the electrical gremlins 09, that sucks.
hopefully you make it out to SS, you've got plenty of time still.
hopefully you make it out to SS, you've got plenty of time still.
#249
Original Turbo 'd Auto !!
Thread Starter
Thanks Jorge.
It makes it difficult to TS only having Saturday and it being at Turblown's shop. Also the current AZ heat saps the willingness to work it also.
I know many people want to see it, as do I. I'm not willing to rush fixing this "bug" just to have the Turbo'ed Banana at SSXIII.
My Wife and Son are coming as well so we can hit up Disney Land after SSXIII.
A proper shake down of the systems is crucial. I'll never hear the end of it other wise.
So I need to trust my ride to get us there and back with no issues.
It makes it difficult to TS only having Saturday and it being at Turblown's shop. Also the current AZ heat saps the willingness to work it also.
I know many people want to see it, as do I. I'm not willing to rush fixing this "bug" just to have the Turbo'ed Banana at SSXIII.
My Wife and Son are coming as well so we can hit up Disney Land after SSXIII.
A proper shake down of the systems is crucial. I'll never hear the end of it other wise.
So I need to trust my ride to get us there and back with no issues.
