Air/Fuel Ratio Gauge
Was wondering if anyone knew which wire on the o2 sensor i connect to the air/fuel ratio gauge. The wire is located right behind the air intake manifold. Its a grey connector with four wires.
#2
Modulated Moderator
iTrader: (3)
You can't hook up a normal "A/F" guage on this car. It uses a WBo2 sensor that outputs current insted of voltage. I supposed you could hook it up to the post CAT narrowband.....but what good is that![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
You should put in a stand alone WBO2 that will give you values that mean something
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
You should put in a stand alone WBO2 that will give you values that mean something
#5
TwIsTeD KrE8iOnS
Thread Starter
Join Date: Jan 2006
Location: Pottstown, PA
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
do you know which wire that would be. Anyone out there have a diagram????
Originally Posted by dannobre
You can hook it up to the narrowband...but like most of those guages they don't give you great data
#7
TwIsTeD KrE8iOnS
Thread Starter
Join Date: Jan 2006
Location: Pottstown, PA
Posts: 106
Likes: 0
Received 0 Likes
on
0 Posts
Thank You
![Worship](https://www.rx8club.com/images/smilies/worship.gif)
Originally Posted by MazdaManiac

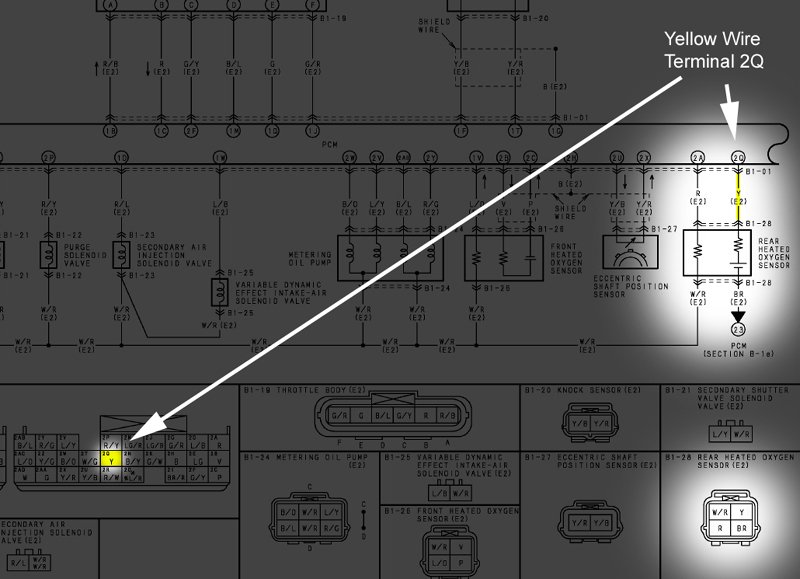

The entire shop manual is on my site, but here is the wire labled on the PCM loom.
However, the info you gather from the rear O2S is useless, unless you are just concerned with your emissions efficiency.
![](https://www.rx8club.com/attachments/series-i-tech-garage-22/78027-air-fuel-ratio-gauge-iviewcapture_date_24_05_2006_time_13_37_39.jpg)
However, the info you gather from the rear O2S is useless, unless you are just concerned with your emissions efficiency.
![](https://www.rx8club.com/attachments/series-i-tech-garage-22/78027-air-fuel-ratio-gauge-iviewcapture_date_24_05_2006_time_13_37_39.jpg)
