Changing Belts need help
I have felt various power loss and rough idles along with a slight tapping noise. Various members listened and Chrism told me its probably the belts
My question is what's the best way to replace the belts. I saw the DIY for the AP pulley install. But I am not sure if that works for this as well to replace the power steering and alternator belts
thanks
My question is what's the best way to replace the belts. I saw the DIY for the AP pulley install. But I am not sure if that works for this as well to replace the power steering and alternator belts
thanks
#4
The Former PSNTLSS
Thread Starter
iTrader: (3)
Join Date: Jun 2007
Location: South Plainfield, NJ/ Center Valley, PA
Posts: 1,094
Likes: 0
Received 0 Likes
on
0 Posts
I changed my belts while installing the AP pulley.
Not hard at all.

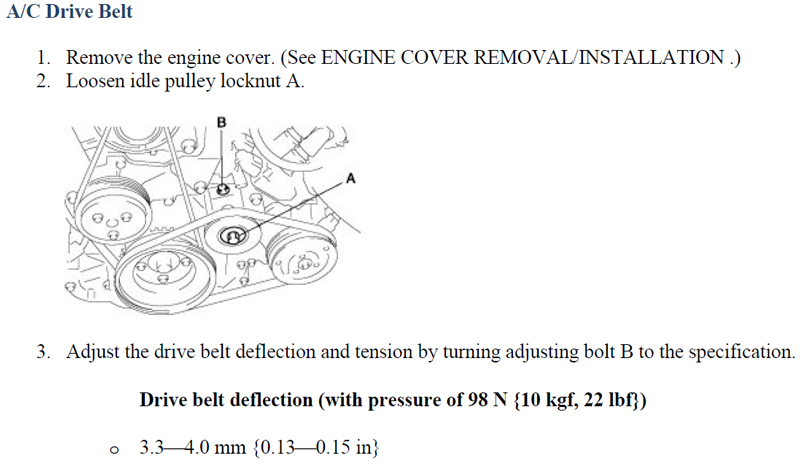

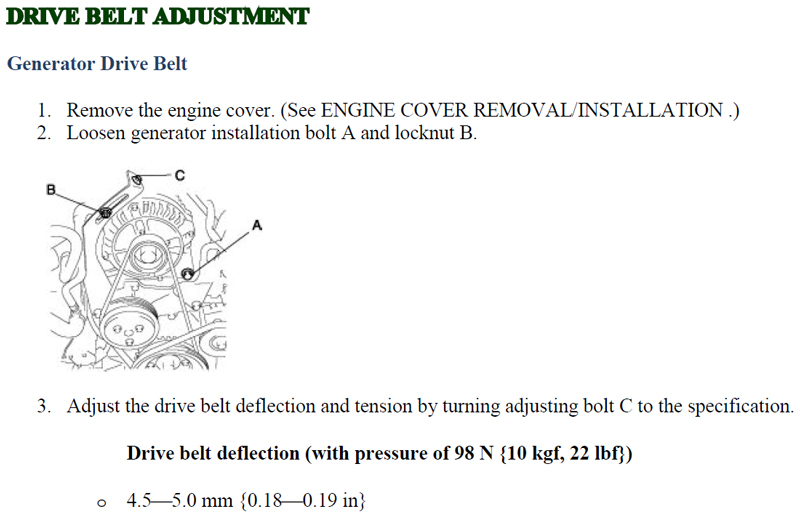

These are from the service manual:
Attachment 142403 Attachment 142404
Not hard at all.
These are from the service manual:
Attachment 142403 Attachment 142404
thanks, thats what the AP install says so I wasnt sure if there was a way to remove belts without that
#6
Dodging those Corollas
iTrader: (2)
In the service manual, it says to adjust tension the bolt C to a certain torque spec. Are they tightening it to the some tension on the belt itself, or so I just set the bolt C's torque and stop when it clicks?
Mazda seems to have some sort of belt tension test tool that applies force downwards onto the belt, I don't have a tool like that.
Mazda seems to have some sort of belt tension test tool that applies force downwards onto the belt, I don't have a tool like that.
#8
2005 White GT
iTrader: (1)
Join Date: Feb 2006
Location: Spokane Valley, Washington
Posts: 1,210
Likes: 0
Received 2 Likes
on
2 Posts
The C bolt is what you turn to get the required deflection at the specified pressure. I don't have the tool either, just do it by feel.
