clutch assembly reinforcement, mazsport clutch bracket
#53
Grasshopper
iTrader: (1)
I can... or you can attach the pics here ![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
1) To attach it, click on the 'Go Advanced' button below the message box.
2) Then click on the paper clip icon and a Manage Attachments window pops-up.
3) Click 'Choose File', navigate to where your picture is, click on the file and click 'Open'.
4) Once you choose all your files (up to 5) click 'Upload'.
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
1) To attach it, click on the 'Go Advanced' button below the message box.
2) Then click on the paper clip icon and a Manage Attachments window pops-up.
3) Click 'Choose File', navigate to where your picture is, click on the file and click 'Open'.
4) Once you choose all your files (up to 5) click 'Upload'.
Last edited by Jon316G; 06-28-2010 at 08:49 PM.
#55
Grasshopper
iTrader: (1)
Sorry for the late replay... got called out to repair something at work...
I had a chance to look at the pics you sent.
They were a little blurry, but it does appear the white plunger is pushed in further than it should.

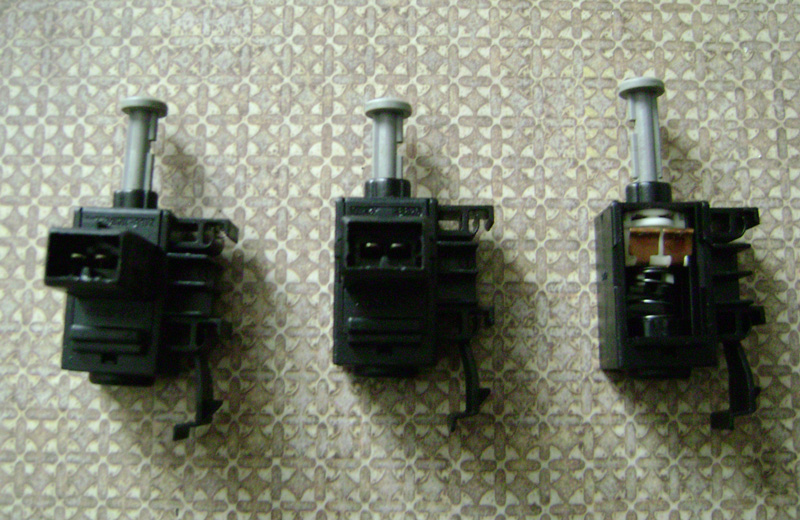

Here is a pic I took when our locals took their's off when we had our pedal assemblies welded:
![clutch assembly reinforcement, mazsport clutch bracket-clutch-switch.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/158479d1277782052t-clutch-assembly-reinforcement-mazsport-clutch-bracket-clutch-switch.jpg)
You can see how each one is a different length and how far out it can be.
I recall it took a little "tug" to pull the plunger out... so maybe you weren't pulling hard enough.
Obviously, don't put too much muscle into it if it doesn't appear like its going to budge.
I had a chance to look at the pics you sent.
They were a little blurry, but it does appear the white plunger is pushed in further than it should.
Here is a pic I took when our locals took their's off when we had our pedal assemblies welded:
![clutch assembly reinforcement, mazsport clutch bracket-clutch-switch.jpg](https://www.rx8club.com/attachments/series-i-tech-garage-22/158479d1277782052t-clutch-assembly-reinforcement-mazsport-clutch-bracket-clutch-switch.jpg)
You can see how each one is a different length and how far out it can be.
I recall it took a little "tug" to pull the plunger out... so maybe you weren't pulling hard enough.
Obviously, don't put too much muscle into it if it doesn't appear like its going to budge.
#57
Bad Ass
iTrader: (1)
Join Date: May 2008
Location: Kyle, Tx
Posts: 450
Likes: 0
Received 0 Likes
on
0 Posts
That worked great man, thanks for all your help! WHen I took the switch off, I gave it a couple good pulls and it did nothing. So I was like, oh well, if I break it, Ill take the wifes car and go get a new one. Gave it a really good pull and then it finally gave. Put it back in and it readjusted itself. Starts every time now. Thanks again man!
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
#59
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 12 Likes
on
9 Posts
That worked great man, thanks for all your help! WHen I took the switch off, I gave it a couple good pulls and it did nothing. So I was like, oh well, if I break it, Ill take the wifes car and go get a new one. Gave it a really good pull and then it finally gave. Put it back in and it readjusted itself. Starts every time now. Thanks again man! ![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
![Smilie](https://www.rx8club.com/images/smilies/smile.gif)
![Sweatdrop](https://www.rx8club.com/images/smilies/sweatdrop.gif)
![Scared](https://www.rx8club.com/images/smilies/scared.gif)
It's a fifty-fifty shot sometimes as you know. At least you got all the info you could first before just went for it. That was a good move.
Glad it worked out for you as well.
![Rock](https://www.rx8club.com/images/smilies/rock.gif)
#61
Obake no Q-chan
iTrader: (1)
Join Date: Jan 2005
Location: Newton, MA
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
I installed the reinforced pedal yesterday. I went for the pre-assembled reinforced new OEM pedal from Race Roots since I didn't feel confident of pre-welding my torn-apart old pedal before installing a brace.
Installation was a pain (by Mazda's design and screw locations), but the result is more than rewarding. My RX-8 shifted never as smooth as now. I always had the feeling of the clutch not disengaging completely, even with a well-adjusted and full depressed pedal. Now that all the bad elasticity is elided from the system, shifting is smooth like butter...
Highly recommended!
Installation was a pain (by Mazda's design and screw locations), but the result is more than rewarding. My RX-8 shifted never as smooth as now. I always had the feeling of the clutch not disengaging completely, even with a well-adjusted and full depressed pedal. Now that all the bad elasticity is elided from the system, shifting is smooth like butter...
Highly recommended!
#62
Registered
Join Date: Jul 2010
Location: Huntington Beach, CA
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Cool bro! That worked. I got the car started and took it for a ride to verify that it shifted ok, but the car still wont start on its own. I tried to pull the plunger out and it didnt budge. When the pedal is out, its not touching the plunger. I didnt want to pull in it to hard cause it looks like cheap plastic. Can I move that sensor?? Thanks for your help!! I at least got my car back in the garage, theres a huge storm coming!
can we pull that, white plunger completely to overwrite the sensor, so that we don't have to step on the clutch every time we start the car?
#63
Bad Ass
iTrader: (1)
Join Date: May 2008
Location: Kyle, Tx
Posts: 450
Likes: 0
Received 0 Likes
on
0 Posts
Why would you want to pull the neutral safety switch? I highly doubt you would be able to do that on a computer controlled car. I dont have a NSS on my 69 Camaro, but thats not computer controlled. You can try and undo the harness off the pedal and try to start it....
#64
Registered
Why would you want to pull the neutral safety switch? I highly doubt you would be able to do that on a computer controlled car. I dont have a NSS on my 69 Camaro, but thats not computer controlled. You can try and undo the harness off the pedal and try to start it....
#65
Yeep RX8
iTrader: (1)
So my clutch pedal bracket broke but its still drivable it just moves a little to the right. I want to get it fixed and not driving it currently and I'm looking for the BHR or Mazsport Clutch Pedal bracket Assembly but when I go to their sites they don't show anything.
Do you guys have a link of where it is? Very much appreciated. Thanks.
Do you guys have a link of where it is? Very much appreciated. Thanks.
#66
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 12 Likes
on
9 Posts
So my clutch pedal bracket broke but its still drivable it just moves a little to the right. I want to get it fixed and not driving it currently and I'm looking for the BHR or Mazsport Clutch Pedal bracket Assembly but when I go to their sites they don't show anything.
Do you guys have a link of where it is? Very much appreciated. Thanks.
Do you guys have a link of where it is? Very much appreciated. Thanks.
![Freak Anim](https://www.rx8club.com/images/smilies/Freak_anim.gif)
http://raceroots.com/index.php/produ...cessories.html
To be honest, I'm not sure Ray and the boys at BHR are still doing the clutch as I didn't seem to find it either. You used to send them your clutch and they would weld it and send it back if I remember correctly. At one time they were sending out re-enforced ones and you would send your broken one in, but I believe they got burned enough times by a-holes not sending the cores, that they quit. Correct me if I'm wrong somebody.
Last edited by Mazurfer; 08-27-2010 at 07:38 PM.
#67
Extraordinary Engineering
Your internet skills are severely lacking! ![Freak Anim](https://www.rx8club.com/images/smilies/Freak_anim.gif)
http://raceroots.com/index.php/produ...cessories.html
To be honest, I'm not sure Ray and the boys at BHR are still doing the clutch as I didn't seem to find it either. You used to send them your clutch and they would weld it and send it back if I remeber correctly. At one time they were sending out re-enforced ones and you would send you broken on in, but I believe they got burned enough times by a-holes not sending the cores, that they quit. Correct me if I'm wrong somebody.
![Freak Anim](https://www.rx8club.com/images/smilies/Freak_anim.gif)
http://raceroots.com/index.php/produ...cessories.html
To be honest, I'm not sure Ray and the boys at BHR are still doing the clutch as I didn't seem to find it either. You used to send them your clutch and they would weld it and send it back if I remeber correctly. At one time they were sending out re-enforced ones and you would send you broken on in, but I believe they got burned enough times by a-holes not sending the cores, that they quit. Correct me if I'm wrong somebody.
There's a nice post with pictures here
https://www.rx8club.com/showthread.p...ghlight=clutch
#68
Yeep RX8
iTrader: (1)
Your internet skills are severely lacking! ![Freak Anim](https://www.rx8club.com/images/smilies/Freak_anim.gif)
http://raceroots.com/index.php/produ...cessories.html
To be honest, I'm not sure Ray and the boys at BHR are still doing the clutch as I didn't seem to find it either. You used to send them your clutch and they would weld it and send it back if I remember correctly. At one time they were sending out re-enforced ones and you would send your broken one in, but I believe they got burned enough times by a-holes not sending the cores, that they quit. Correct me if I'm wrong somebody.
![Freak Anim](https://www.rx8club.com/images/smilies/Freak_anim.gif)
http://raceroots.com/index.php/produ...cessories.html
To be honest, I'm not sure Ray and the boys at BHR are still doing the clutch as I didn't seem to find it either. You used to send them your clutch and they would weld it and send it back if I remember correctly. At one time they were sending out re-enforced ones and you would send your broken one in, but I believe they got burned enough times by a-holes not sending the cores, that they quit. Correct me if I'm wrong somebody.
Well, I searched for awhile before i posted and i saw ones for BHR and Mazsport but the only product that comes up was Race Roots. so I'm guessing they don't do it anymore like you said.
Has anyone sent in their own OEM broken Clutch Pedal Bracket and got it back and worked perfectly? No sense in spending $95 when they said they can fix it.
![Yesnod](https://www.rx8club.com/images/smilies/yesnod.gif)
#70
Extraordinary Engineering
https://www.rx8club.com/series-i-trouble-shooting-95/clutch-pedal-snap-off-8-year-warranty-recall-%7E%7E%7E-132912/page38/
#71
s0o i this mornin i pressed on the clutch n it wouldnt come back up. After readin this thread I thought that the bracket was broken. I had it towed to the mazda dealer since there is a bulletin for the bracket and they cover all costs.
Guy just called me nd says tht it mite not be the bracket that it probably has to do something w/ the slave cylinder????
I think this guy is Bullshittin, idk any ideas or comments would be appreciated
Guy just called me nd says tht it mite not be the bracket that it probably has to do something w/ the slave cylinder????
I think this guy is Bullshittin, idk any ideas or comments would be appreciated
#72
Extraordinary Engineering
s0o i this mornin i pressed on the clutch n it wouldnt come back up. After readin this thread I thought that the bracket was broken. I had it towed to the mazda dealer since there is a bulletin for the bracket and they cover all costs.
Guy just called me nd says tht it mite not be the bracket that it probably has to do something w/ the slave cylinder????
I think this guy is Bullshittin, idk any ideas or comments would be appreciated
Guy just called me nd says tht it mite not be the bracket that it probably has to do something w/ the slave cylinder????
I think this guy is Bullshittin, idk any ideas or comments would be appreciated
Some people have had failures of the master or slave cylinders.
Best thing to do is inspect the clutch bracket; take a photo from the foot well in macro mode with flash. We'll let you know quickly.
Or you could just remove it and see if it's broken
Reference phots here https://www.rx8club.com/showthread.p...ghlight=clutch
#73
yeaa the mazda dealer called me n they said that the slave cylinder is leaking n it has to be replaced n tht im better off replacing the master cylinder as well... ugghhh this blowss. their cost is ova $400
#74
Extraordinary Engineering
Not to throw crap on the pile but make sure they check the pedal for cracks around the bolts.
#75
Registered User
Join Date: Dec 2009
Location: Tulsa, Ok
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
When my clutch bracket went broke the clutch still worked mostly, as long as u kept everything moving smoothely on it, the main problem was that it wiggles and cracked when you pushed it in. You would have to look at it yourself to know for sure because for all you know there is absolutely nothin wrong with the car and the dealer just wants more money... but i am very against dealers so i would say that. It sounds like it could very well be the slave cylendar. I had a 350Z that did the same thing, the clutch went in and never came back out. Cost several hundred dollars but when it was all said and done they just replaced the pivot ball on the inside of the transmission. So in all reality you never know but unless you can fix it yourself then honestly the only thing you can do is trust the dealer. My 8's CEL came on and everyone in town that i asked if they had anyone to work on a rotary said "Good luck with that". So its not easy to find people who will even touch the car!
