Custom yukon(d585) coil install.....
hey guys just thought i would show you my coils project. all together it took me 4 hours.
2.5 to fabricate the Yukon brackets
1.5 to install

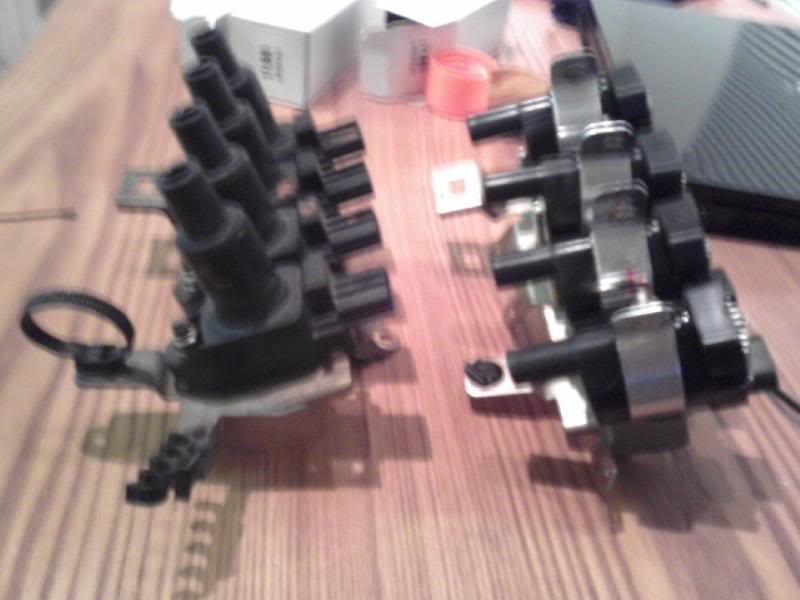

i started by getting an old oem bracket and some aluminum.
cut the aluminum into bendable strips and bent them to hold the coils about 3/4 an inch off the oem bracket. i then test fitted the coils on the oem bracket and they fit beautifully so i drilled/riveted the aluminum brackets to the oem one and bolted them in. could be a little cleaner but overall they look decent.
install was a snap.
all together i spent 300 dollars on everything.

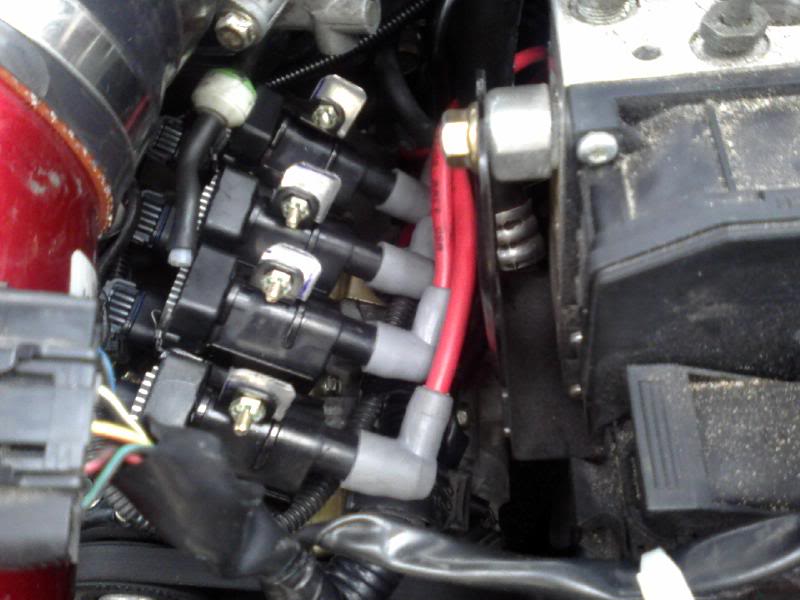

heres the pics.
2.5 to fabricate the Yukon brackets
1.5 to install
i started by getting an old oem bracket and some aluminum.
cut the aluminum into bendable strips and bent them to hold the coils about 3/4 an inch off the oem bracket. i then test fitted the coils on the oem bracket and they fit beautifully so i drilled/riveted the aluminum brackets to the oem one and bolted them in. could be a little cleaner but overall they look decent.
install was a snap.
all together i spent 300 dollars on everything.
heres the pics.
06-23-2009, 06:49 PM
#7
Drive it like u stole it!
Thread Starter
iTrader: (2)
Join Date: Nov 2007
Location: mobile, al
Posts: 1,050
Likes: 0
Received 0 Likes
on
0 Posts
me and charles worked something out for the harness.....i was gonna make one but didnt know what the 4th wire was for....i guess its just a ground....but either way charles' option was easier overall. he also made the plug wires for me. the harness and sp wires cost more than the coils, lol....but money saved is money earned. right? i saved about $200 making the bracket and buying my own coils. but bhr's set is much nicer, stronger, and eaiser to install.
Last edited by chancejat; 06-23-2009 at 06:55 PM.
06-23-2009, 07:33 PM
#9
i had this chat with Ray as well. $300 for you to install with about 4 hours is great! but for me, the extra $200 for the BHR setup is worth it. but i'm glad everything worked out for you man, looks very very good!!
so no noticeable performance increase???
so no noticeable performance increase???
