Engine block Drain plug and Gasket part number?
#2
Surf Hard, Drive Hard
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,840
Likes: 0
Received 12 Likes
on
9 Posts
Can you find them in here?
http://69.108.208.137/ryang/modify/r...uals/Parts.pdf
I'll look but not absolutely certain what you are after.
http://69.108.208.137/ryang/modify/r...uals/Parts.pdf
I'll look but not absolutely certain what you are after.
#4

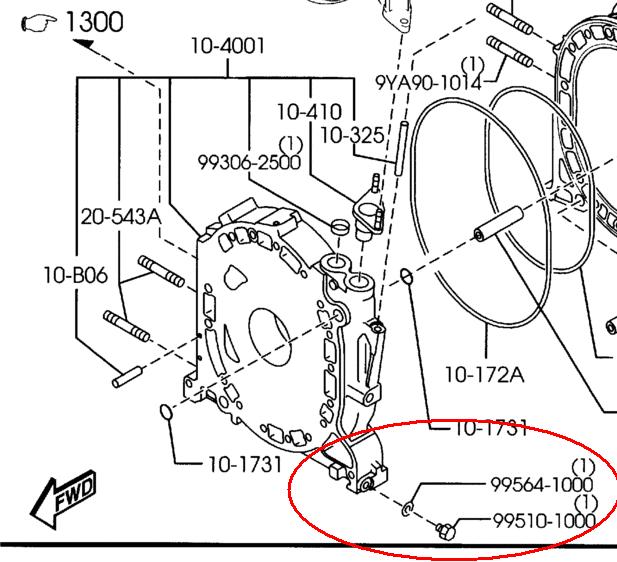

Man, it's not easy tracking down this part number. I did manage to find the bracket that's right next to the engine coolant drain bolt. It's on 6701A Engine & Transmission Wiring Harnesses (page 256) part 18-054. I know it's not the bolt, but it's a lead.
#8
Yea, generic it is, I looked for it, the pictures of the center housing you can see the hole for it at the bottom. You should find a titanium one, to save weight and be ridiculously hardcore
#11
Registered
iTrader: (25)
neither the bolt nor the crush gasket washer are listed in the parts manual
I suspect that the crush gasket washer is the same as the oil pan drain bolt gasket
if you get a generic bolt it needs to be the right material. I believe the existing bolt is brass, but aluminum or stainless steel will work. A steel bolt may be easier to find, but may have a corrosion issue long term.
I suspect that the crush gasket washer is the same as the oil pan drain bolt gasket
if you get a generic bolt it needs to be the right material. I believe the existing bolt is brass, but aluminum or stainless steel will work. A steel bolt may be easier to find, but may have a corrosion issue long term.
#16
AHHH, why havent I thought of that ?
When I was browsing MMS's stock part page, they have some new scan pages on the left side thats much cleaner than the parts.pdf that they have on the site. I always wonder if they added any new parts to it. Ahh huh !
Nice find ! Thanks man !
When I was browsing MMS's stock part page, they have some new scan pages on the left side thats much cleaner than the parts.pdf that they have on the site. I always wonder if they added any new parts to it. Ahh huh !
Nice find ! Thanks man !
Last edited by nycgps; 07-14-2008 at 08:32 PM.
#17
the part numbers are in the parts catalog, the service info is in the service book, and the loose nut goes behind the wheel
#24
///// Upscale Zoom-Zoom
Correct -
I picked up a new 2010 RX8 GT engine coolant drain bolt crush washer (gasket) from Mazda and did talk to and check the torque in the rotary repair manual (not listed in our online version). The torque specs are 12-15 ft-lbs. The crush washer part number for reference is 9956-41-000 131
I picked up a new 2010 RX8 GT engine coolant drain bolt crush washer (gasket) from Mazda and did talk to and check the torque in the rotary repair manual (not listed in our online version). The torque specs are 12-15 ft-lbs. The crush washer part number for reference is 9956-41-000 131
