Formula to convert Stock Wideband O2 reading to AFR???

Thread Tools

Search this Thread

Rate Thread

Old 09-08-2009 | 01:14 AM
  #1
rx8dorifto's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Nov 2006
Posts: 220
Likes: 0
Formula to convert Stock Wideband O2 reading to AFR???

anyone can enlighten me the formula to convert the stock Wideband O2 reading (in mA) to AFR reading?

thanks in advance
Old 09-08-2009 | 01:50 AM
  #2
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 26
From: Under my car
Nope. Can't do it.
You would need a driver circuit to convert it to volts, which would interfere with the PCM's circuit.
Old 09-08-2009 | 03:36 AM
  #3
rx8dorifto's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Nov 2006
Posts: 220
Likes: 0
Originally Posted by MazdaManiac
Nope. Can't do it.
You would need a driver circuit to convert it to volts, which would interfere with the PCM's circuit.
not possible?

How are those OBD scan tools do it? e.g. Canscan, OBDScan, Cobb AP, EFIDude, etc?

My OBDKey give me these data:
O2 Sens1, B1(WR)***mA Eq. ratio
~~~~~~~~~~~~|||~~~~~~~~~~~~
0.406**************1.179
-0.762**************0.846
-0.387**************0.914
1.727**************1.379


Wondering how to convert them into useful AFR.

Last edited by rx8dorifto; 09-08-2009 at 03:39 AM.
Old 09-08-2009 | 06:52 AM
  #4
Spin9k's Avatar
Momentum Keeps Me Going

Joined: Sep 2002
Posts: 5,036
Likes: 4
From: Colorado
Of course it's possible. MM is assuming you want to create some additional gauge to hook in, where what I see you asking is "How is the current reading converted to an AFR?"

There's a graph that shows the conversion somewhere, it's also in the shop manual I think, I may have it too if I can locate it, but it's here on the forum somewhere, just hard to find in here with the millions of tidbits of stuff in here.
Old 09-08-2009 | 06:58 AM
  #5
mysql101's Avatar
⎝⏠⏝⏠⎠

Joined: Apr 2004
Posts: 8,625
Likes: 5
From: USA
EQ Ratio to AFR: AFR=Stoichiometric/EQ Ratio
Old 09-08-2009 | 07:36 AM
  #6
Spin9k's Avatar
Momentum Keeps Me Going

Joined: Sep 2002
Posts: 5,036
Likes: 4
From: Colorado
Originally Posted by mysql101
EQ Ratio to AFR: AFR=Stoichiometric/EQ Ratio
This doesn't help him. The O2 produces a current that is converted into a lambda value in the ECU. The sensor doesn't produce a std voltage output. He needs the current > lambda conversion 1st.
Old 09-08-2009 | 08:31 AM
  #7
rx8dorifto's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Nov 2006
Posts: 220
Likes: 0
Originally Posted by mysql101
EQ Ratio to AFR: AFR=Stoichiometric/EQ Ratio
thanks mysql101, you mean I should divide my "mA Eq. Ratio" to the Stoichiometric (14.7) like this:
mA Eq. ratio

14.7 / 1.179 = 12.468
14.7 / 0.846 = 17.376
14.7 / 0.914 = 16.083
14.7 / 1.379 = 10.660

Does this looks right?
Old 09-08-2009 | 08:42 AM
  #8
rx8dorifto's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Nov 2006
Posts: 220
Likes: 0
i think mysql101 is right, found this on other website:


To convert EQ Ratio to AFR, use: AFR = {stoich}/EQ

To convert Lambda to AFR, use: AFR = Labmda/{stoich}

To convert AFR to EQ Ratio, use: EQ Ratio = {stoich}/AFR

To convert Lambda to EQ Ratio, use: EQ Ratio = 1/Lambda

To convert EQ Ratio to Lambda, use: Lambda = 1/EQ Ratio
Old 09-08-2009 | 10:55 AM
  #9
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 26
From: Under my car
That isn't what you asked.
Old 09-08-2009 | 11:09 AM
  #10
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 26
From: Under my car
Originally Posted by Charles R. Hill
If we are going to play semantics with the guy, MM, then the only correct answer to his question would have been "no".
Originally Posted by MazdaManiac
Nope. Can't do it.
I thought I was pretty clear.

Originally Posted by rx8dorifto
the formula to convert the stock Wideband O2 reading (in mA) to AFR reading?
He asked for a "formula" that converts the mA (that means current) output of the sensor to AFR. That means a wire to a meter to a formula.
Not for a formula to convert the calculated output of the sensor (as performed by the PCM) to AFR.
Old 09-08-2009 | 11:24 AM
  #11
MazdaManiac's Avatar
Banned
iTrader: (3)

Joined: Oct 2003
Posts: 16,386
Likes: 26
From: Under my car
Originally Posted by Charles R. Hill
Re-*******-lax.
Answering forum posts on my phone by the pool sipping coffee.
Old 09-08-2009 | 12:16 PM
  #12
Spin9k's Avatar
Momentum Keeps Me Going

Joined: Sep 2002
Posts: 5,036
Likes: 4
From: Colorado
I swear you guys are like a bunch of old ladies . All the guy wanted was the formula - you all go into some semantics argument and never get to it....remind me of my wife lol!

anyway... perhaps the forumla can be derived from the following:

Name:  02sensor.jpg
Views: 1602
Size:  73.0 KB
Old 09-08-2009 | 08:16 PM
  #13
rx8dorifto's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Nov 2006
Posts: 220
Likes: 0
thanks a lot guys.

my bad, was confused by the term "mA Eq. Ratio" which provided by OBDKey. After much searching, i've got it now.
Old 09-08-2009 | 08:47 PM
  #14
KRMRX8's Avatar
Registered User
iTrader: (1)

Joined: Jun 2009
Posts: 68
Likes: 0
From: near the Twin Cities
Is there any reason why the FJO WB AFR unit could not be spliced into the OEM WB sensor wiring to connect to their gauge without it disrupting the ECU , err_ PCM signal?
Old 09-09-2009 | 06:22 AM
  #15
rx8dorifto's Avatar
Thread Starter
Registered User
iTrader: (1)

Joined: Nov 2006
Posts: 220
Likes: 0
Not sure the correct Stoich is 14.7 or 14.63 which i saw somewhere else.

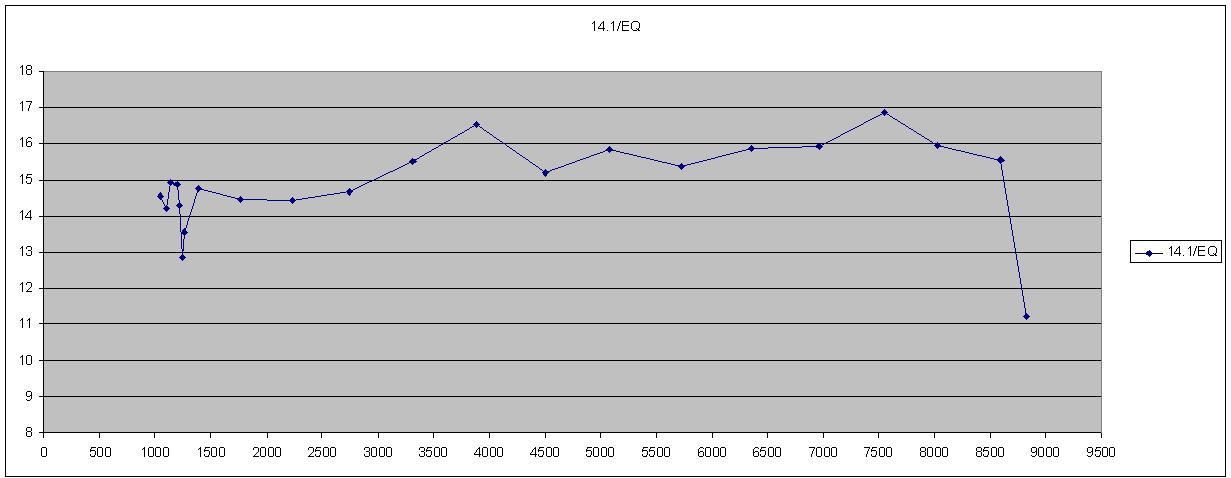

I just did a logging apply this Stoich/EQ Ratio with 14.1 stoich as i'm running RON97 and here is what I got for my AFR. It doesn't look right though...compare to what I've seen here on this website.
Attached Thumbnails Formula to convert Stock Wideband O2 reading to AFR???-afr_14.1stoich.jpg

Last edited by rx8dorifto; 09-09-2009 at 12:06 PM.
Old 07-06-2010 | 07:46 AM
  #16
RIWWP's Avatar
Registered
iTrader: (2)

Joined: Oct 2007
Posts: 16,684
Likes: 261
From: Pacific Northwest
Nevermind. Wrong sensor

Last edited by RIWWP; 07-06-2010 at 06:06 PM.
Old 07-18-2010 | 02:07 PM
  #17
Q-ball's Avatar
Registered User

Joined: Jun 2010
Posts: 12
Likes: 0
Question.. my stock o2 sensor was cut (while my exhuast was stolen) wanting to know solution eg. can i simply run a wide band o2 sensor to stock ecm and to a a/f guage or no. sorry if its a noob question.. thanks!
